Anti Corrosion Self Lube Wear Plates Tin Bronze Graphite Plugged Bearing

Place of Origin Self Lube Bearings
Brand Name bronzelube.com
Certification Plain Sleeve Bearings Standards met: RoHS
Model Number Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free
Minimum Order Quantity Bronze Precision Wear Plates & Lubricating Parts made to order
Price US$0.11 - US$21.11 / Pieces,NEGOTIABLE
Packaging Details Cartons with good information lable
Delivery Time Shipped in 3-20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability Self Lube Bearing Manufacturing Dimensions Tolerance Assembly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminum-Bronze With Solid Lubricant Types Silde Block
Description Solid Lubricating Bearings Application Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc.
Size Standard,Drawings Shape Plate
Production Feature Casting Gleitlager Tin Bronze
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Bronze Wear Plates , Self Lubricating - Special Brass Alloy Self Lubricating Graphite Plugged Bronze Plate Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite lube plate

,

bronze wear plate

Leave a Message
Product Description

In demanding industrial applications where corrosion, wear, and friction are significant concerns, the anti-corrosion self-lubricating tin bronze graphite plugged wear plates bearing stands out as a reliable and efficient solution. This type of bearing is specifically designed to provide long-lasting performance in harsh environments, minimizing the need for frequent maintenance and replacements.

Constructed from tin bronze alloy, these bearings exhibit excellent corrosion resistance and wear durability. The addition of graphite plugs provides self-lubricating properties, allowing for smooth operation without the need for external lubricants. This not only reduces friction but also extends the bearing's service life.

The tin bronze alloy, with its high strength and ductility, ensures that the bearing can withstand heavy loads and dynamic forces. The graphite plugs distribute the lubricant evenly, reducing the risk of localized wear and tear.

In applications such as food processing, chemical handling, and marine environments, where corrosion and contamination are common, the anti-corrosion self-lubricating tin bronze graphite plugged wear plates bearing offers a robust and dependable solution. It ensures smooth operation, minimal downtime, and reduced maintenance costs, making it an ideal choice for any industry requiring reliable bearing solutions.



Bronze, Brass, and Copper Alloys Tin bronze/High strength brass material bronze bushing gleitlager | VSB-50P



Your complete source for Bronze, Brass, and Copper Alloys



In circumstances where it is difficult for the oiI films to generate, such as the alternative movements, swinging movements and frequent on-and-off, VIIPLUS BRONZE BUSHING GRAPHITE highlights their excellent resistance to abrasion. As the principle of the arrangement of VIIPLUS SLIDING BEARING Lubricant is to ensure that each part of the equipment is involved in the Lubrication throughout the movement, the Iocation of the Lubricant shalI be determined according to the movement direction of the parts in abrasion.



Our conmpany is specialized in the production of high brass, tin bronze, aluminumbronze, phosphor bronze, manganese silicon bronze, lead copper, we can produce according to customer requirements. Products are widely used in metallurgical machinery, shipping machinery, energy equipment, mining machinery, engineering machinery, plastic machinery and mould industries. After use under the same workingenvironment, feedback from many manufacturer which make our technology continuously improve, upgrate product quality, we will be the most enthusiastic attitude to serve every customer.



Application



  • Bushings
  • High Strength Machine Parts
  • Bridge Pins
  • Hydraulic Cylinder Parts
  • Heavy Load Bearings
  • Valve Stems
  • Forming Dies
  • Wear Rings



Tin bronze material bronze bushing gleitlager C86300 Manganese Bronze / C863 Manganese Bronze



Cored Bar Stock Solid Round Bar Stock



Plate Stock




These alloys are stocked in various shapes including bar, tube, plate, and sheet.We maintain one of the largest inventories of nonferrous copper alloys in the country. We specialize in Bronze, Brass and Copper.







Typical Applications




graphite plugged bronze bushinggraphite plugged bronze bushing



Characteristics





VSB-50P Sliding Block olid Bronze Metallic Self-lubricating Bearings

Solid Lubricant Cast Bronze Bearings Silde Block With Immediate Running Velocity



Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine

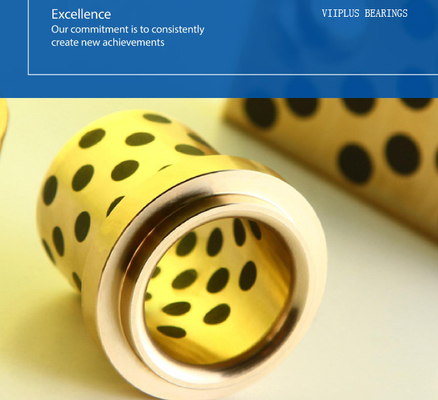

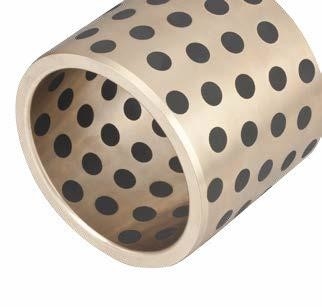

Cast Bronze Bearing with Graphite Plugs


VSB-50P Sliding Block



Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines



1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can b€ used in wide range of temperature from -40℃-+300℃





Aluminum-Bronze With Solid Lubricant Casting Bronze Silde Block

Aluminum-Bronze Solid Lubricating Silde Block is backed with Aluminum-Bronze alloy with good capability of mechanics, castings and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.



Aluminum-Bronze Solid Lubricating Silde Block is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.



The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.



Strusture




VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.





Technical Data





Grade 50# 50S1 50S2 50S3 650S5
Material CuZn25AI5Mn4Fe3 CuSn5Pb5Zn5 CuAI10Ni5Fe5 CuSn12 CuZn25AI5Mn4Fe3
Density 8 8.9 7.8 8.9 8
Hardness ≥210 ≥70 ≥150 ≥75 ≥235
Tensile strength ≥750 ≥250 ≥500 ≥270 ≥800
Yield strength ≥450 ≥90 ≥260 ≥150 ≥450
Elongation ≥12 ≥13 ≥10 ≥5 ≥8
Coefficient o linear expansion 1.9×10-5/℃ 1.8×10-5/℃ 1.6×10-5/℃ 1.8×10-5/℃ 1.9×10-5/℃
Max.Temp. -40~+300℃ -40~+400℃ -40~+400℃ -40~+400℃ -40~+300℃
Max.dynamic load 100 60 50 70 120
Max.speed(Dry) 15 10 20 10 15
N/mm²*m/s(Lubrication) 200 60 60 80 200
Compression deformation < 0.01 mm < 0.05mm < 0.04mm < 0.05mm < 0.005mm




Chemical Compositions



Product NO. Chemical Compositions
    VSB-50 Cu Zn Al Fe Mn Si Ni Sn Pb
60~66 22~28 5.0~8.0 2.0~4.0 2.5~5.0 <0.1 <0.5 <0.2 <0.2























	Self Lube Wear Plates





Solid Bronze Metallic Self-lubricating CUSTOMER SIZE Dimensions and Tolerances
