CuAl10Ni C95500 Bronze Bearings One-Stop, Graphite Plugged, China Supplier
Place of Origin | Self Lube Bearings |
---|---|
Brand Name | bronzelube.com |
Certification | Plain Sleeve Bearings Standards met: RoHS |
Model Number | Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free |
Minimum Order Quantity | Bronze Precision Wear Plates & Lubricating Parts made to order |
Price | US$0.11 - US$21.11 / Pieces,NEGOTIABLE |
Packaging Details | Cartons with good information lable |
Delivery Time | Shipped in 3-20 work days |
Payment Terms | TT IN ADVANCE,L/C,Western Union |
Supply Ability | Self Lube Bearing Manufacturing Dimensions Tolerance Assembly |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Aluminum-Bronze With Solid Lubricant | Types | Silde Block |
---|---|---|---|
Description | Solid Lubricating Bearings | Application | Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. |
Size | Standard,Drawings | Shape | Plate |
Production Feature | Casting | Gleitlager | Tin Bronze |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
Material Designation | CuAl10Ni; CuAl10Ni5Fe4 | Feature | Low Coefficient Of Friction |
High Light | Bronze Wear Plates , Self Lubricating - Special Brass Alloy | Self Lubricating Graphite Plugged Bronze Plate | Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types. |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
Highlight | graphite lube plate,bronze wear plate |
We are a leading supplier of CuAl10Ni C95500 bronze bearings in China, offering a one-stop solution for your bearing needs. Our CuAl10Ni C95500 bronze bearings are characterized by their excellent corrosion resistance, high strength, and good wear resistance, making them suitable for a wide range of applications.
One of the key features of our CuAl10Ni C95500 bronze bearings is the graphite plugging. Graphite is a natural lubricant that can significantly reduce friction and wear, improving the overall performance and lifespan of the bearings. The graphite plugging is precisely engineered to ensure optimal distribution and retention of the lubricant, further enhancing the bearings' durability and reliability.
As a China-based supplier, we have access to a wide range of raw materials and manufacturing resources, enabling us to offer competitive prices and short lead times. We also have a dedicated team of engineers and technicians who are experts in the field of bronze bearings, providing you with technical support and advice throughout the entire process.
Whether you need a small quantity of bearings for a prototype or a large order for a production run, we have the capabilities to meet your requirements. We also offer customization options, allowing you to specify the dimensions, graphite content, and other parameters to ensure that the bearings perfectly match your application.
In summary, if you are looking for a reliable supplier of CuAl10Ni C95500 bronze bearings with graphite plugging, we are your one-stop solution. Contact us today to discuss your requirements and learn more about our products and services.
Self Lube Wear Plates, Slide Plate Bronze Graphite, CuAl10Ni; CuAl10Ni5Fe4, CuZn25Al5Mn4Fe3. CuZn25Al6Fe3Mn3 bronzegraphite slide plate graphite plate slide plates manufacturer
C95500 | One-Stop Bronze Bushings Oilless Parts Supplier GB-CuAl10Ni Material | viiplus.com
✔ STANDARD-STOCKED PRODUCT
Cast Bronze Bearings
viiplus stocks all of the commonly used forms of copper and its alloys including sheet, plate, machining bar & hollow bar, flat bar, hexagon bar, and tube.
Aluminum bronze bushings is the highest strength standard copper-based alloy. VIIPLUS produces C95400, C95500, aluminum bronze plugged graphite bearings as standard-stocked products in standard sizes of bearings.
Self lubricating bronze bearings, good lubrication. Technical Data Sheet. CuAl10Ni. Aluminium bronze. Continuous Cast Bearing Bushings.
Graphite Inlaid Bushings & Platesbronze, Brass, And Copper Alloys Tin Bronze/High Strength Brass Material Bronze Bushing Gleitlager | Vsb-50p
Your Complete Source For Bronze, Brass, And Copper Alloys
C86300 Manganese Bronze / C863 Manganese Bronze
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cored Bar Stock
|
Solid Round Bar Stock
|
Plate Stock
|
Tin bronze material bronze bushing gleitlager
These alloys are stocked in various shapes including bar, tube, plate, and sheet.We maintain one of the largest inventories of nonferrous copper alloys in the country. We specialize in Bronze, Brass and Copper.
Typical Applications

Solid Bronze bushings are intended for oscillating movements in both rotational and axial directions.
Solid Bronze bushings are not intended for rotating movements at medium or high speeds.
Examples of applications are:

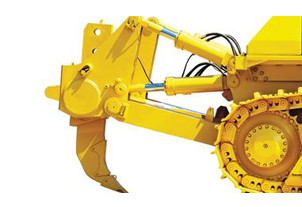

• construction machinery
• transport equipment
• pulp and papermaking machinery
• off-shore equipment
Characteristics
VSB-50P Sliding Block olid Bronze Metallic Self-lubricating Bearings
Solid Lubricant Cast Bronze Bearings Silde Block With Immediate Running Velocity
Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine

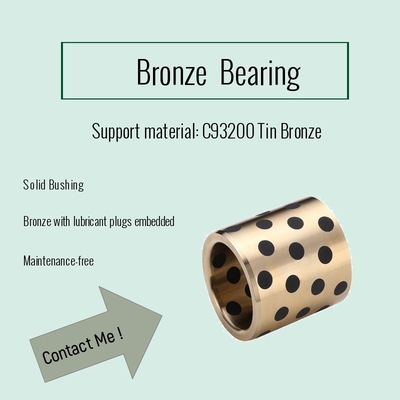

Cast Bronze Bearing with Graphite Plugs
VSB-50P Sliding Block
Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃

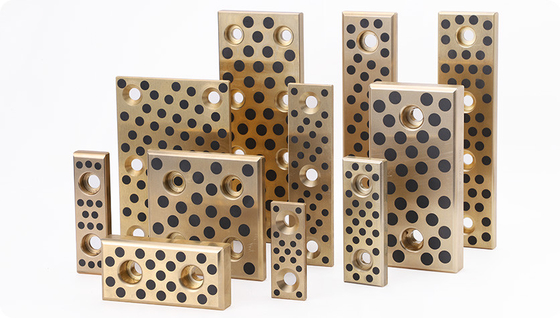

Aluminum-Bronze With Solid Lubricant Casting Bronze Silde Block
Aluminum-Bronze Solid Lubricating Silde Block is backed with Aluminum-Bronze alloy with good capability of mechanics, castings and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.
Aluminum-Bronze Solid Lubricating Silde Block is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.
The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.
VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
Technical Data
Grade |
50# |
50S1 |
50S2 |
50S3 |
650S5 |
Material |
CuZn25AI5Mn4Fe3 |
CuSn5Pb5Zn5 |
CuAI10Ni5Fe5 |
CuSn12 |
CuZn25AI5Mn4Fe3 |
Density |
8 |
8.9 |
7.8 |
8.9 |
8 |
Hardness |
≥210 |
≥70 |
≥150 |
≥75 |
≥235 |
Tensile strength |
≥750 |
≥250 |
≥500 |
≥270 |
≥800 |
Yield strength |
≥450 |
≥90 |
≥260 |
≥150 |
≥450 |
Elongation |
≥12 |
≥13 |
≥10 |
≥5 |
≥8 |
Coefficient o linear expansion |
1.9×10-5/℃ |
1.8×10-5/℃ |
1.6×10-5/℃ |
1.8×10-5/℃ |
1.9×10-5/℃ |
Max.Temp. |
-40~+300℃ |
-40~+400℃ |
-40~+400℃ |
-40~+400℃ |
-40~+300℃ |
Max.dynamic load |
100 |
60 |
50 |
70 |
120 |
Max.speed(Dry) |
15 |
10 |
20 |
10 |
15 |
N/mm²*m/s(Lubrication) |
200 |
60 |
60 |
80 |
200 |
Compression deformation |
< 0.01 mm |
< 0.05mm |
< 0.04mm |
< 0.05mm |
< 0.005mm |
Chemical Compositions
Product NO. |
Chemical Compositions |
||||||||
VSB-50 |
Cu |
Zn |
Al |
Fe |
Mn |
Si |
Ni |
Sn |
Pb |
60~66 |
22~28 |
5.0~8.0 |
2.0~4.0 |
2.5~5.0 |
<0.1 |
<0.5 |
<0.2 |
<0.2 |
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
