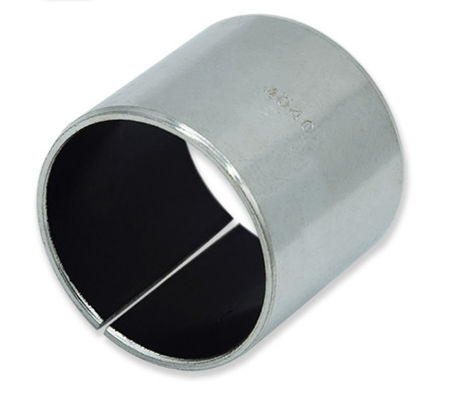

Cylindrical Bushings replacement | Customized Dimensions

  • Cylindrical Bushings replacement | Customized Dimensions
  • Cylindrical Bushings replacement | Customized Dimensions
  • Cylindrical Bushings replacement | Customized Dimensions
  • Cylindrical Bushings replacement | Customized Dimensions
Place of Origin Stainless Steel Backed Bushings
Brand Name CHINA CUSTOM THERMOPLASTIC BUSHING SELF-LUBRICATING BEARINGS
Certification WRAPPED SPILT SLEEVE BUSHING, STAINLESS STEEL 316, DIN 1494 / ISO 3547, LOW-MAINTENANCE
Model Number CUSTOM THERMOPLASTIC AND TEX FABRIC WEAVE PTFE/ GLASS FIBERS STAINLESS-STEEL 316 BEARINGS
Minimum Order Quantity >=500 Pieces
Price Negotiable
Packaging Details CARTONS,wOODEN CASES
Delivery Time 3-4 WEEKS
Payment Terms TT IN ADVANCE
Supply Ability Stainless Steel Bushing Manufacturers Self Lubricating Plain Bearings Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Stainless Steel 316 Port Shanghai
Quality OEM Type Self Lubricating Bearings
STRUCTURE Bushes Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Stainsteel Steel 316 Backed Bushings
High Light Stainless Steel Bushing Manufacturers Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

steel backed bronze bushing

,

stainless steel bushing sleeve
Leave a Message
Product Description

Self-lubricating Bearings Rolling Steel sleeve Stainless Steel 316 bushings Wrapped PTFE .Cylindrical Bushings, metric and inch Dimensions

Stainless Steel 316 Bearings +PTFE Bushings

The small expert that reduces cost, noise.Construction machinery manufacturers have been troubled by severe operating environment and high regular maintenance costs.VIIPLUS USES a self-lubricating maintenance-free design that reduces the cost of bearings and systems while avoiding potential application risks.This not only saves the cost of bearing and the system itself, but also reduces the later maintenance cost.



We often hear that design engineers are facing a dilemma like this:

  • Design cycles need to be shortened, but testing standards need to be raised

  • Every aspect of the cost should be reduced, but the performance should be enhanced

  • Design space should be reduced and noise should be reduced at the same time

  • Designers are becoming more and more difficult, and various pressures are hindering the development of new solutions.

THRUST BEARINGS WASHER / ROUND / COMPOSITE / PTFE

Self-lubricating bushing/bearings for butterfly valves



VIIPLUS Complex lining precision bearings, under lubrication conditions with excellent wear resistance and low friction.Excellent chemical resistance, strong resistance to fatigue, resistance to cavitation and resistance to flow corrosion, good performance under dry start-up conditions.



Introduction Of Material


The material of this product is based on stainless steel base with sintered bronze layer as its interlayer and the compound of PTFE
material as its surface. It can be used in the middle-acid & alkali and anti-corrosive parts of printing machines & oceanic industries.


Physical And Mechanical Property





Max. load

Static

250N/mm2

Temp.

-195℃~+280℃

Dynamic

140N/mm2

Friction coefficient

0.03~0.20

Max. speed

Dry

2m/s

Thermal conductivity

42W (m·k)-1

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Coefficient of thermal expansion

11*10-6k-1

Continuous

1.8N/mm2*·m/s





Wrapped PTFE Lined (maintenance-free), self lubricated plain bearings, thrust washer and strip, stainless steel shell with sintered bronze layer filled with PTFE VSB-33 Dry bearing 316+PTFE Product Overview:Apply to the oil or fuel work harder parts,wear resistance,low coefficient of...



Characteristics


Wrapped PTFE Lined (maintenance-free), self lubricated plain bearings, thrust washer and strip, stainless steel shell with sintered bronze layer filled with PTFE

It is backed with stainless steel with porous bronze sintered on it and polymers imbedded into the bores of the bronze. The stainless steel back provides the bush with stronger mechanic strength and load capability. By combining the metals and the polymers together, the products are endowed with the lower friction coefficient and good capacity of anti-abrasion and self-lubrication. Moreover, the stainless steel back can be effectively preventing chemical erosion. This series are widely applied in printing and dyeing machines, and machines used in the ocean industry, etc.

Stainless Steel Bronze Powder + PTFE Self Lubricating Bearings Multilayer Composite

This new material use the PTFE fibre fabric overlay on metal backings, the fabric have very high load capacity and much longer operating life compare with conventional 3-layer bushes. The metal can be carbon steel. stainless steel.



coated bushings



du bushing size chart

  Di (mm) Do (mm) B (mm) bearing shaft The largest diameter (mm) Minimum diameter (mm) The maximum clearance (mm) The minimum clearance (mm)
0203DU 2 3.5 3 H6 h6 2.048 2 0.054 0
0205DU 2 3.5 5 H6 h6 2.048 2 0.054 0
0303DU 3 4.5 3 H6 h6 3.048 3 0.054 0
0305DU 3 4.5 5 H6 h6 3.048 3 0.054 0
0306DU 3 4.5 6 H6 h6 3.048 3 0.054 0
0403DU 4 5.5 3 H6 h6 4.048 4 0.056 0
0404DU 4 5.5 4 H6 h6 4.048 4 0.056 0
0406DU 4 5.5 6 H6 h6 4.048 4 0.056 0
0410DU 4 5.5 10 H6 h6 4.048 4 0.056 0
0505DU 5 7 5 H7 f7 5.055 4.99 0.077 0
0508DU 5 7 8 H7 f7 5.055 4.99 0.077 0
0510DU 5 7 10 H7 f7 5.055 4.99 0.077 0
0604DU 6 8 4 H7 f7 6.055 5.99 0.077 0
0606DU 6 8 6 H7 f7 6.055 5.99 0.077 0
0608DU 6 8 8 H7 f7 6.055 5.99 0.077 0
0610DU 6 8 10 H7 f7 6.055 5.99 0.077 0
0705DU 7 9 5 H7 f7 7.055 6.99 0.083 0.003
0710DU 7 9 10 H7 f7 7.055 6.99 0.083 0.003
0806DU 8 10 6 H7 f7 8.055 7.99 0.083 0.003
0808DU 8 10 8 H7 f7 8.055 7.99 0.083 0.003
0810DU 8 10 10 H7 f7 8.055 7.99 0.083 0.003
0812DU 8 10 12 H7 f7 8.055 7.99 0.083 0.003
1006DU 10 12 6 H7 f7 10.058 9.99 0.086 0.003
1008DU 10 12 8 H7 f7 10.058 9.99 0.086 0.003
1010DU 10 12 10 H7 f7 10.058 9.99 0.086 0.003
1012DU 10 12 12 H7 f7 10.058 9.99 0.086 0.003
1015DU 10 12 15 H7 f7 10.058 9.99 0.086 0.003
1020DU 10 12 20 H7 f7 10.058 9.99 0.086 0.003
1208DU 12 14 8 H7 f7 12.058 11.99 0.092 0.006
1210DU 12 14 10 H7 f7 12.058 11.99 0.092 0.006
1212DU 12 14 12 H7 f7 12.058 11.99 0.092 0.006
1215DU 12 14 15 H7 f7 12.058 11.99 0.092 0.006
1220DU 12 14 20 H7 f7 12.058 11.99 0.092 0.006
1225DU 12 14 25 H7 f7 12.058 11.99 0.092 0.006
1310DU 13 15 10 H7 f7 13.058 12.99 0.092 0.006
1320DU 13 15 20 H7 f7 13.058 12.99 0.092 0.006
1405DU 14 16 5 H7 f7 14.058 13.99 0.092 0.006
1410DU 14 16 10 H7 f7 14.058 13.99 0.092 0.006
1412DU 14 16 12 H7 f7 14.058 13.99 0.092 0.006
1415DU 14 16 15 H7 f7 14.058 13.99 0.092 0.006
1420DU 14 16 20 H7 f7 14.058 13.99 0.092 0.006
1425DU 14 16 25 H7 f7 14.058 13.99 0.092 0.006
1510DU 15 17 10 H7 f7 15.058 14.99 0.092 0.006
1512DU 15 17 12 H7 f7 15.058 14.99 0.092 0.006
1515DU 15 17 15 H7 f7 15.058 14.99 0.092 0.006
1520DU 15 17 20 H7 f7 15.058 14.99 0.092 0.006
1525DU 15 17 25 H7 f7 15.058 14.99 0.092 0.006
1610DU 16 18 10 H7 f7 16.058 15.99 0.092 0.006
1612DU 16 18 12 H7 f7 16.058 15.99 0.092 0.006
1615DU 16 18 15 H7 f7 16.058 15.99 0.092 0.006
1620DU 16 18 20 H7 f7 16.058 15.99 0.092 0.006
1625DU 16 18 25 H7 f7 16.058 15.99 0.092 0.006
1720DU 17 19 20 H7 f7 17.061 16.99 0.095 0.006
1810DU 18 20 10 H7 f7 18.061 17.99 0.095 0.006
1815DU 18 20 15 H7 f7 18.061 17.99 0.095 0.006
1820DU 18 20 20 H7 f7 18.061 17.99 0.095 0.006
1825DU 18 20 25 H7 f7 18.061 17.99 0.095 0.006
2010DU 20 23 10 H7 f7 20.071 19.99 0.112 0.01
2015DU 20 23 15 H7 f7 20.071 19.99 0.112 0.01
2020DU 20 23 20 H7 f7 20.071 19.99 0.112 0.01
2025DU 20 23 25 H7 f7 20.071 19.99 0.112 0.01
2030DU 20 23 30 H7 f7 20.071 19.99 0.112 0.01
2215DU 22 25 15 H7 f7 22.071 21.99 0.112 0.01
2220DU 22 25 20 H7 f7 22.071 21.99 0.112 0.01
2225DU 22 25 25 H7 f7 22.071 21.99 0.112 0.01
2230DU 22 25 30 H7 f7 22.071 21.99 0.112 0.01
2415DU 24 27 15 H7 f7 24.071 23.99 0.112 0.01
2420DU 24 27 20 H7 f7 24.071 23.99 0.112 0.01
2425DU 24 27 25 H7 f7 24.071 23.99 0.112 0.01
2430DU 24 27 30 H7 f7 24.071 23.99 0.112 0.01
2515DU 25 28 15 H7 f7 25.071 24.99 0.112 0.01
2520DU 25 28 20 H7 f7 25.071 24.99 0.112 0.01
2525DU 25 28 25 H7 f7 25.071 24.99 0.112 0.01
2530DU 25 28 30 H7 f7 25.071 24.99 0.112 0.01
2550DU 25 28 50 H7 f7 25.071 24.99 0.112 0.01
2815DU 28 32 15 H7 f7 28.085 27.99 0.126 0.01
2820DU 28 32 20 H7 f7 28.085 27.99 0.126 0.01
2825DU 28 32 25 H7 f7 28.085 27.99 0.126 0.01
2830DU 28 32 30 H7 f7 28.085 27.99 0.126 0.01
3010DU 30 34 10 H7 f7 30.085 29.99 0.126 0.01
3015DU 30 34 15 H7 f7 30.085 29.99 0.126 0.01
3020DU 30 34 20 H7 f7 30.085 29.99 0.126 0.01
3025DU 30 34 25 H7 f7 30.085 29.99 0.126 0.01
3030DU 30 34 30 H7 f7 30.085 29.99 0.126 0.01
3040DU 30 34 40 H7 f7 30.085 29.99 0.126 0.01
3220DU 32 36 20 H7 f7 32.085 31.99 0.135 0.015
3230DU 32 36 30 H7 f7 32.085 31.99 0.135 0.015
3240DU 32 36 40 H7 f7 32.085 31.99 0.135 0.015
3520DU 35 39 20 H7 f7 35.085 34.99 0.135 0.015
3530DU 35 39 30 H7 f7 35.085 34.99 0.135 0.015
3535DU 35 39 35 H7 f7 35.085 34.99 0.135 0.015
3540DU 35 39 40 H7 f7 35.085 34.99 0.135 0.015
3550DU 35 39 50 H7 f7 35.085 34.99 0.135 0.015
3720DU 37 41 20 H7 f7 37.085 36.99 0.135 0.015
4020DU 40 44 20 H7 f7 40.085 39.99 0.135 0.015
4030DU 40 44 30 H7 f7 40.085 39.99 0.135 0.015
4040DU 40 44 40 H7 f7 40.085 39.99 0.135 0.015
4050DU 40 44 50 H7 f7 40.085 39.99 0.135 0.015
4520DU 45 50 20 H7 f7 45.105 44.99 0.155 0.015
4530DU 45 50 30 H7 f7 45.105 44.99 0.155 0.015
4540DU 45 50 40 H7 f7 45.105 44.99 0.155 0.015
4545DU 45 50 45 H7 f7 45.105 44.99 0.155 0.015
4550DU 45 50 50 H7 f7 45.105 44.99 0.155 0.015
5020DU 50 55 20 H7 f7 50.11 49.99 0.16 0.015
5030DU 50 55 30 H7 f7 50.11 49.99 0.16 0.015
5040DU 50 55 40 H7 f7 50.11 49.99 0.16 0.015
5050DU 50 55 50 H7 f7 50.11 49.99 0.16 0.015
5060DU 50 55 60 H7 f7 50.11 49.99 0.16 0.015
5520DU 55 60 20 H7 f7 55.11 54.99 0.17 0.02
5525DU 55 60 25 H7 f7 55.11 54.99 0.17 0.02
5530DU 55 60 30 H7 f7 55.11 54.99 0.17 0.02
5540DU 55 60 40 H7 f7 55.11 54.99 0.17 0.02
5550DU 55 60 50 H7 f7 55.11 54.99 0.17 0.02
5555DU 55 60 55 H7 f7 55.11 54.99 0.17 0.02
5560DU 55 60 60 H7 f7 55.11 54.99 0.17 0.02
6020DU 60 65 20 H7 f7 60.11 59.99 0.17 0.02
6030DU 60 65 30 H7 f7 60.11 59.99 0.17 0.02
6040DU 60 65 40 H7 f7 60.11 59.99 0.17 0.02
6050DU 60 65 50 H7 f7 60.11 59.99 0.17 0.02
6060DU 60 65 60 H7 f7 60.11 59.99 0.17 0.02
6070DU 60 65 70 H7 f7 60.11 59.99 0.17 0.02
6530DU 65 70 30 H7 f7 65.11 64.99 0.17 0.02
6550DU 65 70 50 H7 f7 65.11 64.99 0.17 0.02
6570DU 65 70 70 H7 f7 65.11 64.99 0.17 0.02
7040DU 70 75 40 H7 f7 70.11 69.99 0.17 0.02
7050DU 70 75 50 H7 f7 70.11 69.99 0.17 0.02
7070DU 70 75 70 H7 f7 70.11 69.99 0.17 0.02
7560DU 75 80 60 H7 f7 75.11 74.99 0.17 0.02
7580DU 75 80 80 H7 f7 75.11 74.99 0.17 0.02
8040DU 80 85 40 H7 h8 80.155 80.02 0.201 0.02
8060DU 80 85 60 H7 h8 80.155 80.02 0.201 0.02
8080DU 80 85 80 H7 h8 80.155 80.02 0.201 0.02
80100DU 80 85 100 H7 h8 80.155 80.02 0.201 0.02
8530DU 85 90 30 H7 h8 85.155 85.02 0.209 0.02
8560DU 85 90 60 H7 h8 85.155 85.02 0.209 0.02
85100DU 85 90 100 H7 h8 85.155 85.02 0.209 0.02
9060DU 90 95 60 H7 h8 90.155 90.02 0.209 0.02
90100DU 90 95 100 H7 h8 90.155 90.02 0.209 0.02
9560DU 95 100 60 H7 h8 95.155 95.02 0.209 0.02
95100DU 95 100 100 H7 h8 95.155 95.02 0.209 0.02
10050DU 100 105 50 H7 h8 100.155 100.02 0.209 0.02
10060DU 100 105 60 H7 h8 100.155 100.02 0.209 0.02
100115DU 100 105 115 H7 h8 100.155 100.02 0.209 0.02
10560DU 105 110 60 H7 h8 105.155 105.02 0.209 0.02
105115DU 105 110 115 H7 h8 105.155 105.02 0.209 0.02
11060DU 110 115 60 H7 h8 110.155 110.02 0.209 0.02
110115DU 110 115 115 H7 h8 110.155 110.02 0.209 0.02
11550DU 115 120 50 H7 h8 115.155 115.02 0.209 0.02
11570DU 115 120 70 H7 h8 115.155 115.02 0.209 0.02
12050DU 120 125 50 H7 h8 120.21 120.07 0.264 0.07
12060DU 120 125 60 H7 h8 120.21 120.07 0.264 0.07
120100DU 120 125 100 H7 h8 120.21 120.07 0.264 0.07
125100DU 125 130 100 H7 h8 125.21 125.07 0.273 0.07
13060DU 130 135 60 H7 h8 130.21 130.07 0.273 0.07
130100DU 130 135 100 H7 h8 130.21 130.07 0.273 0.07
13560DU 135 140 60 H7 h8 135.21 135.07 0.273 0.07
13580DU 135 140 80 H7 h8 135.21 135.07 0.273 0.07
14060DU 140 145 60 H7 h8 140.21 140.07 0.273 0.07
140100DU 140 145 100 H7 h8 140.21 140.07 0.273 0.07
15060DU 150 155 60 H7 h8 150.21 150.07 0.273 0.07
15080DU 150 155 80 H7 h8 150.21 150.07 0.273 0.07
150100DU 150 155 100 H7 h8 150.21 150.07 0.273 0.07
16080DU 160 165 80 H7 h8 160.21 160.07 0.273 0.07
160100DU 160 165 100 H7 h8 160.21 160.07 0.273 0.07
180100DU 180 185 100 H7 h8 180.216 180.07 0.279 0.07
200100DU 200 205 100 H7 h8 200.216 200.07 0.288 0.07
210100DU 210 215 100 H7 h8 210.216 210.07 0.288 0.07
220100DU 220 225 100 H7 h8 220.216 220.07 0.288 0.07
250100DU 250 255 100 H7 h8 250.222 250.07 0.294 0.07
300100DU 300 305 100 H7 h8 300.222 300.07 0.303 0.07


Stainless Steel 316 Sleeve Bushing Specification & Tolerance



Product Overview:Apply to the oil or fuel work harder parts,wear resistance,low coefficient of ftiction,long life:good overall performance.Apply to the oil or fuel work harder parts,wear resistance,low coefficient of friction,long life;good iverall perfotmance.



VSB-33 Plain Bearings and Sleeve Bearings


Stainless steel bearing is of oil resistant,acid resistant,alkali resistant and seawater resistant,more over,there is no lead in the PTFE surface layer and so is particularly fit for application in food machinery,alkali flow meters,pumps motion elements in pharmaceutical machines,printing machines chemical engineering machines and other ocean industry.The bushing is a triple layers composites one,the base material is stainless steel back and a film of heat resistant power filled PTFE being calendered onto the sintered spherical bronze interlayer.


Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, forming a transfer film can protect the mating metal surface, suitable for rotary and oscillating movement. Stainless steel backing provides improved corrosio...


Strusture

Technical Data



AVAILABILITY

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers

Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes.



Typical Applications


VSB is professional as one of the leading manufacturers and suppliers of VSB-33 stainless steel 316 bearings +ptfe in China. We are equipped with a professional factory which covers a great deal of qualified workers. Please feel free to buy VSB-33 stainless steel 316 bearings +ptfe made in China with us.


Plain bearings are available as bushes, collar bushes, washers, strips or special designs.



Packaging & Shipping


Packaging Details: Standard export packing, or as customers' requirement.
CUSTOMER SIZE



START YOUR
PROJECTWITH AN APPLICATION ENGINEER



These links may help you

Cylindrical Bushings replacement | Customized Dimensions 1

Low-maintenance and maintenance-free plain bearings

Or get in touch

Bushings,Lubricated Bearings,Composite Bearings,Metal Bearings,Compressor Bearings,Metal-polymer,Filament Wound,Plain Bearings,Flange Bearings,Polymer Bearings,Flange Bushings,Pump Bearings,Flanged Bushes,Thrust Plates,Industrial Bearings


self-lubricating sleeve bearing

FOLLOW US ON

High temperature resistance C86300 Bronze Bushing & Wear Plate flanged bronze bushings



http://www.bronzegleitlager.com

Tags:

steel backed bronze bushing

stainless steel sleeve bearing

stainless steel bushing sleeve
