Product Details
Material Brass, Bronze, C86300,C93200,C95400 Aluminum Bronze Types Bronze, Self Lubricating Wear Plates, Oil Free Slide Plates With Copper Alloys
Description Self-lubricating Graphite Plugs Application Products Catalog For Specifications And Applications.
Size Standard, Drawings Production Feature Casting Bronze Oil Free Slide Plates With Copper Alloys
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Bronze Wear Plates , Self Lubricating - Special Brass Alloy Self Lubricating Graphite Plugged Bronze Plate Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bronze wear plate

,

brass wear plate
Leave a Message
Product Description

Wear plates with graphite embedded, such as those made from cast bronze alloys like C86300 and C95400, offer exceptional wear resistance and self-lubricating properties. These alloys are designed specifically for applications that require a combination of strength, durability, and low-friction performance.

C86300 bronze, also known as tin-based bronze, is a copper alloy that contains tin, aluminum, manganese, and graphite. The graphite particles embedded in the alloy provide a natural lubricating effect, reducing friction and wear on contacting surfaces. This alloy is often used in bearings, bushings, and other sliding components where wear resistance and low friction are critical.

C95400 bronze, on the other hand, is an aluminum-based bronze alloy that also contains iron, manganese, nickel, and graphite. This alloy offers similar wear resistance and self-lubricating properties as C86300, but with a different chemical composition that may be more suitable for specific applications.

Both C86300 and C95400 bronzes are cast to precise dimensions and machined to fit your specific needs. Their high-strength properties allow them to handle heavy loads and impact forces, while their self-lubricating nature reduces the need for external lubricants and maintenance.

Whether you're looking for wear plates for bearings, bushings, or other sliding components, cast bronze alloys like C86300 and C95400 are an excellent choice. With their exceptional wear resistance and self-lubricating properties, these alloys can help improve the performance and durability of your equipment.



Oil free slide plates with copper alloys, Size - Thickness - mm, Width -mm & Length -  mm with self-lubricating holes.



bronze slide plates, slide plates, Oil-free slide plates



Bronze plugged Oil free slide plates with copper alloys wear plates give products exceptional strength plus the lubricity and other desirable qualities of bronze. Advanced in design, each Bronze, Brass, and Self Lubricating Products is measured to precise standards and is distortion-free for reliable performance and excellent wearability. graphite plugs cover 25-30% of the area requiring lubrication.



C95400 Aluminum Bronze Sliding Bearing is the most popular, all-purpose aluminum bronze alloy. It provides high yield and tensile strength, good ductility, weldability, and exceptional resistance to wear, fatigue and deformation under shock or overload. C95400 aluminum-bronze bushings are recommended for high load, high wear applications. Conforms to continuous cast specification ASTM B 505



Applications: High strength bearings, bushings, gears, worms, Oil-free slide plates with copper alloys wear plates, valve seats, and guides.



NO. DIN Material No. Designation ASTM Standard Proportional Density (g/cm³) 0.2% Strain (MPa) Tensile Strength (MPa) Strain (%) E-modulus (MPa) Hardness (HB) Applications
1 1705 2.1090.01 CuSn7ZnPb B 584 Cu 81 - 85, Sn 6 - 8, Zn 3 - 5, Pb 5 - 7 8.8 120 240 15 106,000 65 Widely utilized in automotive, aerospace, and marine engineering for components requiring good strength and corrosion resistance. Recognized internationally for versatility and performance.
2.1090.03 CuSn7ZnPb B 271 Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 8.8 130 270 13 106,000 75
2.1090.04 CuSn7ZnPb B 505 Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 8.8 120 270 16 106,000 70
2 1705 2.1061.01 CuSn12Pb Not yet standardized Cu 84 - 87, Sn 11 - 13, Pb 1 - 2 8.7 140 260 10 112,000 80 Commonly used in manufacturing bearings, bushings, and components that require high load capacity and wear resistance, especially in marine and industrial applications.
2.1061.03 CuSn12Pb Not yet standardized Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.7 150 280 5 112,000 90
2.1061.04 CuSn12Pb B 505 Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.7 140 280 7 112,000 85
3 1714 2.0975.01 CuAl10Ni B 584 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 270 600 12 122,000 140 Used in marine, aerospace, and heavy machinery for manufacturing bearings and components requiring high strength and durability. Known for extreme loads and high corrosive environments.
2.0975.02 CuAl10Ni B 30 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 300 600 14 122,000 150
2.0975.03 CuAl10Ni B 271 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 300 700 13 122,000 160
2.0975.04 CuAl10Ni B 505 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 300 700 13 122,000 160
4 1709 2.0598.01 CuZn25Al5 B 584 Cu 60 - 67, Al 3 - 7, Fe 1.5 - 4, Mn 2.5 - 5, Zn rest 8.2 450 750 8 115,000 180 Used in heavy-duty bearings, hydraulic components, and marine hardware. Designed for high loads and resistance to corrosive attack.
2.0598.02 CuZn25Al5 B 30 Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 8.2 480 750 8 115,000 180
2.0598.03 CuZn25Al5 B 271 Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 8.2 480 750 5 115,000 190
5 1705 2.1052.01 CuSn12 Not yet standardized Cu 84 - 88, Sn 11 - 13, Pb 1, Ni 2.0, Sb 0.2, P 0.2 8.6 140 260 12 110,000 80 Commonly used in manufacturing bearings, gears, and components requiring high wear resistance. Known for good machinability and corrosion resistance, particularly in seawater environments. All rights to the listed content are reserved by https://www.viiplus.com/
2.1052.03 CuSn12 Not yet standardized Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.6 150 280 8 110,000 90
2.1052.04 CuSn12 Not yet standardized Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.7 140 280 8 110,000 95
Note: Delivery form codes: .01 = sand casting, .02 = gravity casting, .03 = centrifugal casting, .04 = continuous casting.



self-lubricated bearings Oil free slide plates with copper alloys

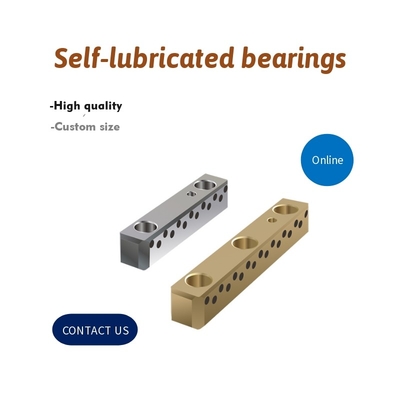

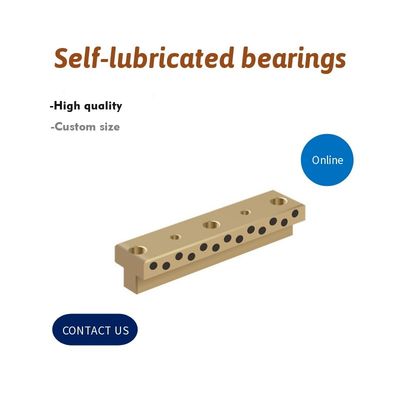

Wear Block Rear with graphite | Cast Bronze Self Lube Oil-free slide plates with copper alloys Wear  Plates, Plug Graphite Lube Plate C86300 C95400  Aluminum Bronze



Reasons for Selecting Plug Graphite Self-Lubricating Products



Plug Graphite Bearings Production



  • Bronze Wear Plates Oil-free slide plates with copper alloys
  • Pillar and Bushes
  • Slide elements
  • Cam components
  • Cam units
  • Retainers
  • Plastic mold components


STRUCTURE



VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature at low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.



CHARACTERISTICS



1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can b€ used in a wide range of temperature from -40℃-+300℃



TECHNICAL DATA



Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm





Chemical Compositions



Product NO.

Chemical Compositions

    VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2



Processing Bearing Equipment


High precision processing equipment is like a strong force magic weapon of surprise



AVAILABILITY



Bearing forms available in standard dimensions

·Cylindrical bushes

· Flanged bushes

· Sliding plates



Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs.





TYPICAL APPLICATIONS



This kind of bearing can be applied in automobile stamping mold, plastic mold, hardware mold, injection molding machinery, and so on.



application

START YOUR PROJECT WITH AN APPLICATION ENGINEER

thrust washer & plate inch size



Bushings, Lubricated Bearings, Composite Bearings, Metal Bearings, Compressor Bearings, Metal-polymer, Filament Wound, Plain Bearings, Flange Bearings, Polymer Bearings, Flange Bushings, Pump Bearings, Flanged Bushes, Oil free slide plates with copper alloys, Thrust Plates, Industrial Bearings

Tags:

bronze wear plate

brass wear plate

graphite lube plate
