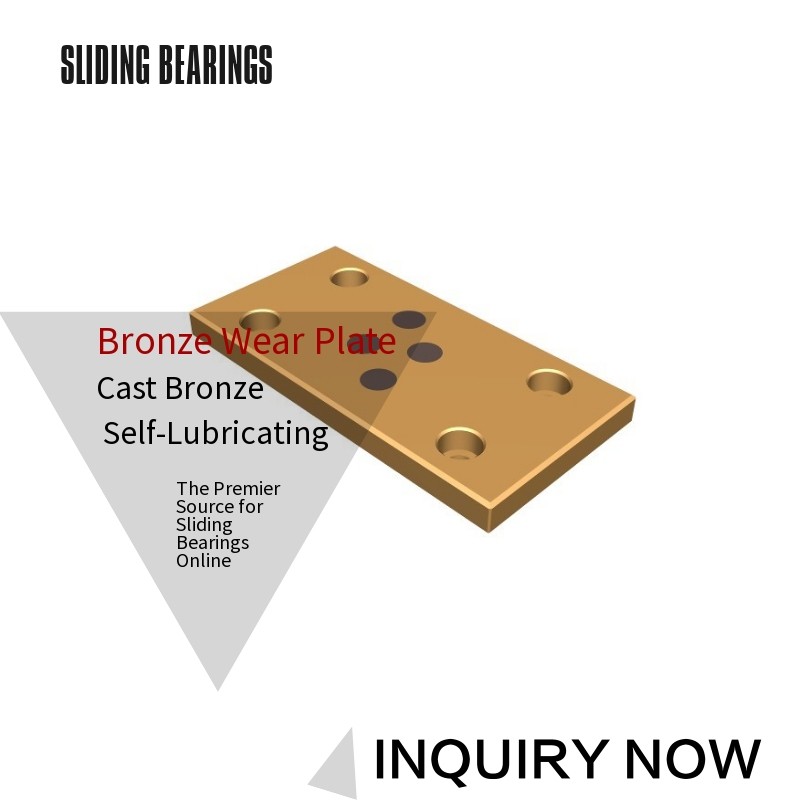

Self-Lube Graphite Plugged Bronze Bushings are sliding components that incorporate graphite plugs for self-lubrication purposes. These bushings, also known as slide plates, are designed to operate without the need for external oil or lubrication, as the graphite plugs provide the necessary lubrication during operation. The bronze material, combined with the graphite plugs, offers excellent wear resistance and low friction, making these bushings suitable for a wide range of applications where oil-free sliding is desired.
CAD drawings allows you now to be your most productive self. Change your bronze parts design
Packaging Automation
we provide a large offering of b bronze materials and surface treatments for oiless parts manufacturing designs. Configurable machined components are available with customized dimensions that can be specified in customers' requirement.
Featured Industry Packaging Automation
Our cast bronze wear plates can be supplied in the following bronze alloys:
Our graphite bushing is oil-less, self-lubricating, and designed for longevity. This insures less down time and eliminates problems caused by high and low temperatures.Solid Bronze Reasons for Selecting Plug Graphite Self-Lubricating Products Graphite Cast Bronze Bearing Solid Bronze Plate C86300
| Composition and properties | ||||||||||||||||
| dg | DIN | Material No. delivery form1) |
Designation | ASTM standard | Proportional weights | Physical properties (min.) | ||||||||||
| Standard | Alloy No. |
DIN | ASTM | Density | 0.2% Strain |
Tensile strength |
Strain | Emodulus | Hardness | Application | ||||||
| Symbol | ρ | δy | δT | |||||||||||||
| Unit | % | % | g/cm³ | MPa | MPa | % | MPa | HB | ||||||||
| 01 | 1705 | 2.1090.01 | CuSn7ZnPb | B 584 | C932 00 | Cu 81 - 85 Sn 6 - 8 Zn 3 - 5 Pb 5 - 7 permissible max. portions Ni 2.0 Sb 0.3 |
Cu 81 - 85 Sn 6.3 - 7.5 Zn 2 - 4 Pb 6 - 8 Ni 1 Sb 0.35 |
8.8 | 120 | 240 | 15 | 106.000 | 65 | Standard material for the most applications international standardized |
||
| 2.1090.03 | CuSn7ZnPb | B 271 | C932 00 | 8.8 | 130 | 270 | 13 | 106.000 | 75 | |||||||
| 2.1090.04 | CuSn7ZnPb | B 505 | C932 00 | 8.8 | 120 | 270 | 16 | 106.000 | 70 | |||||||
| 02 | 1705 | 2.1061.01 | CuSn12Pb | not yet standardized | Cu 84 - 87 Sn 11 - 13 Pb 1 - 2 permissible Ni 0.8 - 1.5 max. portions Ni 2.0 Sb 0.2 P 0.2 |
Cu 85 - 88 Sn 10 - 12 Pb 1 - 1.5 |
8.7 | 140 | 260 | 10 | 112.000 | 80 | Material for high loads and/or corrosion stress attack international only partially standardized |
|||
| 2.1061.03 | CuSn12Pb | not yet standardized | 8.7 | 150 | 280 | 5 | 112.000 | 90 | ||||||||
| 2.1061.04 | CuSn12Pb | B 505 | C925 00 | 8.7 | 140 | 280 | 7 | 112.000 | 85 | |||||||
| 03 | 1714 | 2.0975.01 | CuAl10Ni | B 584 | C955 00 | C u min. 75 Al 8.5 - 11.0 Ni 4.0 - 6.5 Fe 3.5 - 5.5 permissible max. portions Mn 3.3 |
Cu min. 78 Al 10 - 11.5 Ni 3 - 5.5 Fe 3 - 5 Mn max. 3.5 |
7.6 | 270 | 600 | 12 | 122.000 | 140 | Material for extreme loads and/or high corrosive environments international standardized |
||
| 2.0975.02 | CuAl10Ni | B 30 | C955 00 | 7.6 | 300 | 600 | 14 | 122.000 | 150 | |||||||
| 2.0975.03 | CuAl10Ni | B 271 | C955 00 | 7.6 | 300 | 700 | 13 | 122.000 | 160 | |||||||
| 2.0975.04 | CuAl10Ni | B 505 | C955 00 | 7.6 | 300 | 700 | 13 | 122.000 | 160 | |||||||
| 04 | 1709 | 2.0598.01 | CuZn25Al5 | B584 | C863 00 | Cu 60 - 67 Al 3 - 7 Fe 1.5 - 4 Mn 2.5 - 5 Zn rest permissible max. portions Ni max. 3 |
Cu 60 - 66 Al 5 - 7.5 Fe 2 - 4 Mn 2.5 - 5 Zn 22 - 28 Ni max. 1 |
8.2 | 450 | 750 | 8 | 115.000 | 180 | Material for highest loads without corrosive attack. international partially standardized to a large extend |
||
| 2.0598.02 | CuZn25Al5 | B 30 | C863 00 | 8.2 | 480 | 750 | 8 | 115.000 | 180 | |||||||
| 2.0598.03 | CuZn25Al5 | B 271 | C863 00 | 8.2 | 480 | 750 | 5 | 115.000 | 190 | |||||||
| 05 | 1705 | 2.1052.01 | CuSn12 | not yet standardized | Cu 84 - 88 Sn 11 - 13 Pb 1 Ni 2.0 Sb 0.2 P 0.2 |
Cu 85 - 88 Sn 10 - 12 Pb 1 - 1.5 Ni 0.8 - 1.5 |
8.6 | 140 | 260 | 12 | 110.000 | 80 | Material with good wear resis- tance. corrosion and seawater resistant international partially standardized |
|||
| 2.1052.03 | CuSn12 | not yet standardized | 8.6 | 150 | 280 | 8 | 110.000 | 90 | ||||||||
| 2.1052.04 | CuSn12 | not yet standardized | 8.7 | 140 | 280 | 8 | 110.000 | 95 | ||||||||
| 1 ) delivery form: .01 = sand casting. .02 = gravity casting. .03 = centrifugal casting. .04 = continuous casting | ||||||||||||||||
Essential advantages of maintenance-free plain bearings with lubricating plugs are:
Suitable for corrosive environments
High load capacity
Maintenance-free
Suitable for impact loads and vibrations
Suitable for high temperatures
Excellent performance under high-load, Iow-speed circumstances
The VIIPLUS bronze graphite bushings are made of cast high-strength copper as the matrix, which functions as Ioad bearers.Besides, BRONZE GRAPHITE BUSHINGS SERIES use specially formulated graphite as Iubricant, ensuing excellent self-lubrication. Combining the advantages of both the matrix and Lubricant, BRONZE GRAPHITE BUSHINGS are capable of exert their wonderfuI performance in circumstances with high load and low speed
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃
VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
| Grade | 50# | 50S1 | 50S2 | 50S3 | 650S5 |
| Material | CuZn25AI5Mn4Fe3 | CuSn5Pb5Zn5 | CuAI10Ni5Fe5 | CuSn12 | CuZn25AI5Mn4Fe3 |
| Density | 8 | 8.9 | 7.8 | 8.9 | 8 |
| Hardness | ≥210 | ≥70 | ≥150 | ≥75 | ≥235 |
| Tensile strength | ≥750 | ≥250 | ≥500 | ≥270 | ≥800 |
| Yield strength | ≥450 | ≥90 | ≥260 | ≥150 | ≥450 |
| Elongation | ≥12 | ≥13 | ≥10 | ≥5 | ≥8 |
| Coefficient o linear expansion | 1.9×10-5/℃ | 1.8×10-5/℃ | 1.6×10-5/℃ | 1.8×10-5/℃ | 1.9×10-5/℃ |
| Max.Temp. | -40~+300℃ | -40~+400℃ | -40~+400℃ | -40~+400℃ | -40~+300℃ |
| Max.dynamic load | 100 | 60 | 50 | 70 | 120 |
| Max.speed(Dry) | 15 | 10 | 20 | 10 | 15 |
| N/mm²*m/s(Lubrication) | 200 | 60 | 60 | 80 | 200 |
| Compression deformation | < 0.01 mm | < 0.05mm | < 0.04mm | < 0.05mm | < 0.005mm |
| Product NO. | Chemical Compositions | ||||||||
| VSB-50 | Cu | Zn | Al | Fe | Mn | Si | Ni | Sn | Pb |
| 60~66 | 22~28 | 5.0~8.0 | 2.0~4.0 | 2.5~5.0 | <0.1 | <0.5 | <0.2 | <0.2 | |
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
