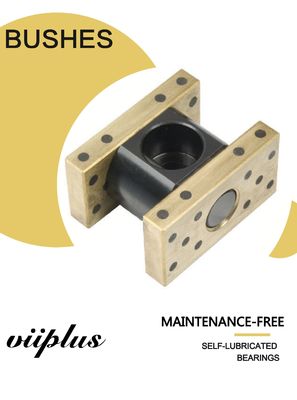

Robotics Bronze Sleeve Lube Guide Solid Bronze C86300 Graphite Bushing Inch Size Oilless

Place of Origin Self Lube Bearings
Brand Name bronzelube.com
Certification Plain Sleeve Bearings Standards met: RoHS
Model Number Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free
Minimum Order Quantity Bronze Precision Wear Plates & Lubricating Parts made to order
Price US$0.11 - US$21.11 / Pieces,NEGOTIABLE
Packaging Details Cartons with good information lable
Delivery Time Shipped in 3-20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability Self Lube Bearing Manufacturing Dimensions Tolerance Assembly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminum-Bronze With Solid Lubricant Types Silde Block,bushings.plate
Description Solid Lubricating Bearings Application Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc.
Size Standard,Drawings Shape Plate
Production Feature Casting Standard Oilless Bearing Bushings
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Bronze Wear Plates , Self Lubricating - Special Brass Alloy Self Lubricating Graphite Plugged Bronze Plate Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite lube plate

,

bronze wear plate

Leave a Message
Product Description

When it comes to the precision and durability requirements of robotic systems, lubrication-free components play a crucial role. Among these, solid bronze bushings with graphite lubrication, specifically those made of C86300 bronze alloy, offer a unique combination of strength, wear resistance, and self-lubricating properties.

The solid bronze sleeve lube guide, also known as an oilless bushing, is designed to provide a maintenance-free solution for robotic applications. The C86300 bronze alloy, which is a high-tin bronze alloy, exhibits excellent corrosion resistance and wear properties, making it ideal for use in demanding environments.

The graphite lubrication incorporated into the bushing provides a continuous and effective lubricating film between the moving surfaces, reducing friction and wear. This eliminates the need for periodic lubrication, simplifying maintenance and reducing downtime.

The inch-sized dimensions of these bushings allow for easy integration into existing robotic systems. Whether it's for precision positioning, heavy-duty lifting, or any other robotic application, the solid bronze sleeve lube guide with graphite bushing offers a reliable and long-lasting solution.

In summary, the oilless, solid bronze C86300 graphite bushing is an excellent choice for robotic applications requiring precision, durability, and low maintenance.



Our sliding bearings & Solid Bronze Sliding Block Plug Graphite Cast Bronze Bearing Solid Bronze Plate C86300 experience combined with modern machinery, where we utilise fully electric injection moulding machines and advanced robotic equipment helps make us the market leader.



Maintenance-free plain bearings with lubricating plugs.



VIIPLUS established itself as an industry leader in self-lubricating bearings exported from China.The U.S. 's , oilless and DAIDO are the world's top three makers of self-lubricated bearings, with strong positions in aerospace, automotive and transportation.



self-lubricated bearing



Robotics Bushings | Robot application is dependent on one thing: precision Robot Bushings | the factor of bushings



With the rapid process of industrialization in China, the application of industrial robots in industry is becoming more and more popular. Sliding Bearing & Bushings,the main part of industrial robot, has been paid more and more attention.

Robotics is especially important because the possibilities for applications are nearly endless; as a result, robots have become far more commonplace in many different industries over the years. Viiplus offer quality precision bushings products for robot.



A Robot is a machine that performs work automatically. It can be directed by humans, run preprogrammed programs, and act on principles laid down by ai technology. Its task is to assist or replace human work, such as production, construction, or hazardous work.



But every robotics application is dependent on one thing: precision.

Viiplus bushings proudly includes the robotics industry among the many markets it supplies with quality miniature to medium size self-lubricating bushings components.



Because of mode analysis of robot, the factor of bushings has more influence than bolt; we can ignore the factor of bolt.

Robot Bushings requires fast, smooth and precise.

Automatic mechanical equipment (stretch, swing, slide, bend, turn, etc.)



CHARACTERISTICS



Material Properties

● Allows maintenance-free and long-life operation;
● Suitable for high static and dynamic loads;
● With low and smoothly coefficient of friction and without stick-slip effects;
● Suitable for dirty, corrosion, impact load and edge loading;
● The base material provided a good shock-absorbing capacity;
● Can be used over a large temperature range;
● Suitable for reciprocating, rotating and oscillating movement with start frequency and difficulty to form oil film occasions;
● With low wear rate and long life service.



VSB-50P Sliding Block olid Bronze Metallic Self-lubricating Bearings

Solid Lubricant Cast Bronze Bearings Silde Block With Immediate Running Velocity



Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine



Cast Bronze Bearing with Graphite Plugs
VSB-50P Sliding Block

Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines



1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can be used in wide range of temperature from -40℃-+300℃





Aluminum-Bronze With Solid Lubricant Casting Bronze Silde Block



Aluminum-Bronze Solid Lubricating Silde Block is backed with Aluminum-Bronze alloy with good capability of mechanics, castings and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.



Aluminum-Bronze Solid Lubricating Silde Block is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.



The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.





STRUSTURE




VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.





TECHNICAL DATA






Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm









Chemical Compositions



Product NO.

Chemical Compositions

    VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2







AVAILABILITY



Bearing forms available in standard dimensions



· Cylindrical bushes

· Flanged bushes

· Sliding plates



Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs







TYPICAL APPLICATIONS



This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
