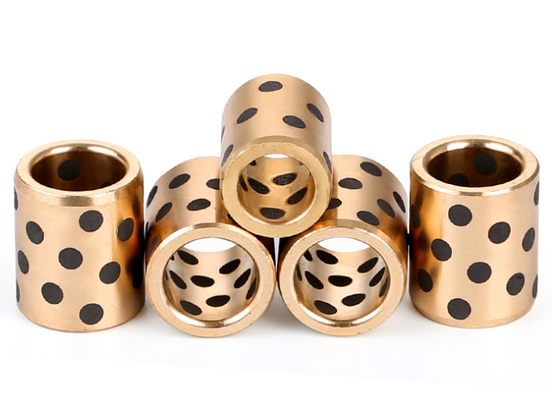

Collar Bearing Sinter Graphite Bronze | bronze gleitlager

Place of Origin gleitlagerbuchsen china
Brand Name VIIPLUS Sleeve & Bearing
Certification FIBRO Standard
Model Number C86300 BRONZE BUSHINGS
Minimum Order Quantity Standard Size Bushing No Minimum Order Quantity
Price Bushings High Quality Price Ratio B2B
Packaging Details Export carton; Wooden case ; Wood pallet.
Delivery Time 2~4 Weeks
Payment Terms T/T, L/C, Western Union,
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Bronze +Graphite,Aluminum-Bronze With Solid Lubricant,CuZn25AI5Mn4Fe3 Model Number Cylinder Bearings,Cylinder Bearings With Flange
Feature Self Lubrication Collar Bearing Lubrication Graphite Collar Bearing
Application Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. Type FLANGE/SLEEVE/WASHER
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite bronze bushing

,

graphite plugged bronze bushings

Leave a Message
Product Description

"Collar Bearing Sinter Graphite Bronze" or "Bronze Gleitlager" refers to a type of bearing that utilizes sintered graphite bronze as the material for the sliding surface. Sintered graphite bronze is a composite material made by sintering bronze powder and graphite particles, which results in a material with excellent wear resistance, high strength, and good self-lubricating properties.
"Gleitlager" in German translates to "sliding bearing" or "plain bearing," which is a type of bearing that allows for sliding or rotational motion between two surfaces. Bronze Gleitlager specifically refers to bearings made from bronze materials, which are known for their strength, corrosion resistance, and good wear properties.
In the context of "Collar Bearing Sinter Graphite Bronze," the collar bearing likely refers to a specific design or configuration of the bearing, while the sintered graphite bronze provides the material properties that make it suitable for the application.
Therefore, "Collar Bearing Sinter Graphite Bronze" or "Bronze Gleitlager" refers to a sliding bearing made from sintered graphite bronze, which offers excellent wear resistance, high strength, and good self-lubricating properties.


Bronze Graphite, Collar Bearing


Collar Bearing | Products & Suppliers
Graphite Inlaid Bushings & Plates Sourcing From China: your online source for bronze bushings. Shop online and have your order shipped today. We have one of the largest inventories of cast and sintered oil-impregnated bronze bushings in the world. No minimum order. Straightness tolerances are also critical due to the increased speed capabilities of the new generation CNC equipment. Our Bronze BUshing allows our customers to utilize the optimum performance of their equipment, thus increasing their competitive advantage.

VIIPLUS is a professional Sliding Bearing factory and bronze sleeve bushing manufacturer from China, wholesale bushes in China, stock sizes | bronzegleitlager.com -China plain bearing manufacturer for many years. China Manufacture of Plug Graphite Bronze Bushings Available. Strict Quality Control. Deliver on time. Reasonable Price. Superior quality. Professional service. Types: C86300 Bronze Graphite Bearing, Flanged Bushing, Plate, Washer.


bronze gleitlager

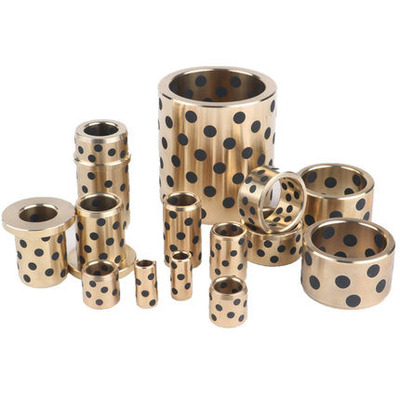

Bronze Graphite Block Straight & Flange Type Bush


standard components for plastic molds die setting components
slide plate thrust bush split bushing



Oilless Trust Bush Metal Sliding Materials Made in china Bearing manufacturing tolerance


Solid Bronze Metallic CuZn25AI5Mn4Fe3 Plug Graphite Cast Bronze Bearings Production Process JDB Casting Process STANDARD PARTS Sliding Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates



Production Process Bronze Gleitlager JDB Casting Process


Die-Casting Machine Bronze Bearings
Injection Molding Machine Bronze Bearings
Pressure Die Casting Machine Bronze Bearings



BRONZE Gleitlager MAIN BASE ALLOY


Material:CuZn25AI5Mn4Fe3


graphite plugged bushing


Structure Characteristics and Applications


VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which a particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engine, etc. Standard Parts TOOL & DIE COMPONENTS,Forest machinery bearing parts, Especially equipment operating in harsh mines and fields;Such as forest mechanical bearing parts.VIIPLUS developed shock-resistant, dust-resistant, high-strength self-lubricating bearing, which not only solves the problem of lubrication but also reduces the noise and extends the service life. Logistics and transportation equipment applications traditional bearing noise, maintenance cycle and the service life is short, high maintenance costs limit the normal operation time of equipment, especially transportation equipment, field equipment, etc.,VIIPLUS self-lubricating bearing can not only improve the comfort of equipment operation.For example, no lubricating oil or one-time coating can solve the process maintenance and high downtime costs, while avoiding environmental pollution.



Solid Lubricant Casting Aluminum Bronze Bearings Bushings

Characteristics



with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available
Solid lubricating bearings
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃



Strusture



VSB-50 solid lubricant sliding bearings material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.


self lubricating bronze bushing Collar Bearing | Products & Suppliers


Technical Data



Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm



 Chemical Compositions



Product NO.

Chemical Compositions

VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2
