Wear Block Solid Bronze Self Lube Wear Plates Lower Friction Brass Wear Plate C86300 Retainers Standard Dayton Moeller

Place of Origin Self Lube Bearings
Brand Name bronzelube.com
Certification Plain Sleeve Bearings Standards met: RoHS
Model Number Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free
Minimum Order Quantity Bronze Precision Wear Plates & Lubricating Parts made to order
Price US$0.11 - US$21.11 / Pieces,NEGOTIABLE
Packaging Details Cartons with good information lable
Delivery Time Shipped in 3-20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability Self Lube Bearing Manufacturing Dimensions Tolerance Assembly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminum-Bronze With Solid Lubricant Types Silde Block
Description Solid Lubricating Bearings Application Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc.
Size Standard,Drawings Shape Plate
Production Feature Casting Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Bronze Wear Plates , Self Lubricating - Special Brass Alloy
Self Lubricating Graphite Plugged Bronze Plate Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types. Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite lube plate

,

bronze wear plate

Leave a Message
Product Description

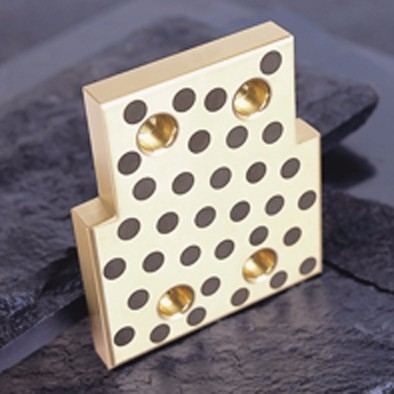

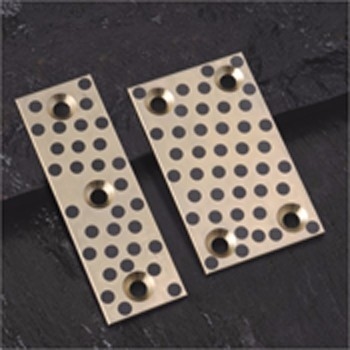

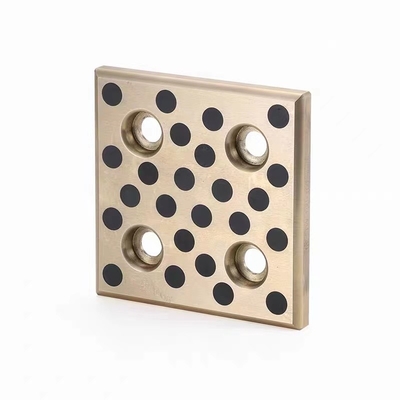

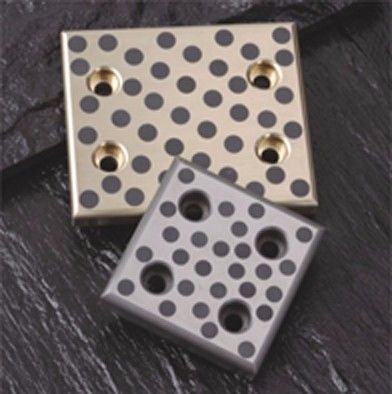

Dayton Moeller offers a range of wear blocks and solid bronze self-lubricating wear plates that are designed to provide lower friction and extended wear life. Made from C86300 brass, these wear plates are ideal for applications where high loads and sliding motion are present.

The C86300 brass alloy used in these wear plates contains tin, aluminum, manganese, and graphite, which provides excellent wear resistance and self-lubricating properties. The graphite particles embedded in the alloy create a natural lubricating effect, reducing friction and wear on contacting surfaces.

The solid bronze construction of these wear blocks ensures durability and strength, while the self-lubricating properties significantly reduce the need for external lubricants. This not only saves on maintenance costs but also eliminates the potential for lubricant contamination in critical applications.

Dayton Moeller's standard wear block retainers are designed to securely hold the wear plates in place, ensuring reliable performance over extended periods of use. These retainers are also made from high-quality materials to match the durability of the wear plates themselves.

In summary, Dayton Moeller's solid bronze self-lubricating wear plates made from C86300 brass are an excellent choice for applications requiring lower friction and extended wear life. The combination of the alloy's composition, solid bronze construction, and self-lubricating properties makes these wear blocks a reliable solution for a wide range of industrial applications.



Solid Bronze Sliding Block Plug Graphite Cast Bronze Bearing Solid Bronze Plate C86300 |VSB-50P



Self Lubricating Bronze Wear Plate Dayton Moeller Punch standard

Wear Plate and Wear Products are available from stock catalog or can be manufactured to your specific print or dimensions.

Wear Plate and Wear Products are available in inch or metric sizes to meet the following specifications:



WEAR PLATE & WEAR PRODUCTS





viiplus international is an authorized, full line, stocking distributor for the manufacturers of wear plate and wear products:



1.Graphite Infused Wear Products

2.Graphite Infused V Gibs

3.Graphite Infused L Gibs



Wear Plate and Wear Products are available in



Self Lubricating | Ear Strip / Wear Strips | Graphite Impregnated Plugs | Self Lubricating Bronze | U&V Blocks | Aluminum Bronze Wear Plate | Gib Assemblies | L Gibs | V Gibs |Steel with Graphite Plugs | Base Plate | Bronze with Graphite Plugs | Special Wear Plate |Custom Wear Plates | Automotive Wear Plates | Keeper Block Wear Plates | Aerial Cam | Die Mount Cam | Cam unit | Guide Post | Guide Post Set | Sintered Wear Plate | Die Components | Bushings | Pins | Mold Components | Blank Die | Die Ace.





CHARACTERISTICS



VSB-50P Sliding Block olid Bronze Metallic Self-lubricating Bearings



self-lubricated bearings



Solid Lubricant Cast Bronze Bearings Silde Block With Immediate Running Velocity

Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine

Cast Bronze Bearing with Graphite Plugs



VSB-50P Sliding Block



Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines



1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can b€ used in wide range of temperature from -40℃-+300℃





Aluminum-Bronze With Solid Lubricant Casting Bronze Silde Block



Aluminum-Bronze Solid Lubricating Silde Block is backed with Aluminum-Bronze alloy with good capability of mechanics, castings and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.



Aluminum-Bronze Solid Lubricating Silde Block is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.



The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.





STRUSTURE




VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.





TECHNICAL DATA






Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm







Chemical Compositions




Product NO.

Chemical Compositions

    VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2







AVAILABILITY



Bearing forms available in standard dimensions

· Cylindrical bushes

· Flanged bushes

· Sliding plates



Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs





TYPICAL APPLICATIONS




This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...





Solid Bronze Metallic Self-lubricating CUSTOMER SIZE Dimensions and Tolerances
