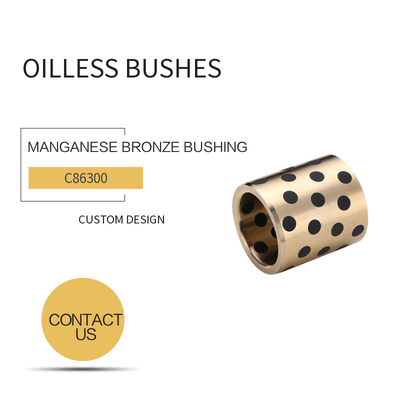

C86300 SAE430B Manganese Bronze Bushings | Oilless Bushes

Place of Origin	gleitlagerbuchsen china
Brand Name	VIIPLUS Sleeve & Bearing
Certification	FIBRO Standard,#500-serie, BWG, BWG-F, COB-05, COB-050 t.o.m. -055, COB-056 t.o.m. -057, CSB 650-serie, JDB-serie
Model Number	Self lubricating bearings with built in graphite pellets.C86300 BRONZE BUSHINGS
Minimum Order Quantity	Standard Size Bushing No Minimum Order Quantity
Price	Bushings High Quality Price Ratio B2B
Packaging Details	Export carton; Wooden case ; Wood pallet.
Delivery Time	2~4 Weeks
Payment Terms	T/T, L/C, Western Union,
Supply Ability	bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Material	CuZn25Al5 Bronze +Graphite，Aluminum-Bronze With Solid Lubricant,CuZn25AI5Mn4Fe3	Model Number	FLANGE/SLEEVE/WASHER,Cylinder Bearings,Cylinder Bearings With Flange
Feature	Self Lubrication,Maintenance-free Bearings	Lubrication	Solid Bushing, Bronze With Lubricant Plugs Embedded
Application	Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc.	Standard	Solid Oilless Bearing: Bronze Bushing #500 SP 101 102 JDB JFB SPB SOB SPF SOBF
Get A Better Quote	Tiffany@viiplus.com	Self-lubricating Bearing Bushing Manufacturer	Https://www.viiplus.com/
High Light	Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing	Gleitalger	A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain
Bush Bearings Manufacturers Suppliers Exporters	Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight	bronze plain bearing , graphite plugged bronze bushings

Leave a Message

Product Description

C86300 SAE430B manganese bronze bushings, also known as oilless bushes, are a highly versatile and reliable solution for applications requiring low-friction and wear-resistant bearings. These bushings are specifically designed to operate without the need for external lubrication, significantly reducing maintenance requirements and downtime.

The C86300 SAE430B alloy is composed of manganese, copper, aluminum, iron, and other trace elements, resulting in a material that offers exceptional strength, ductility, and corrosion resistance. This combination of properties makes it an ideal choice for bushings that are subjected to heavy loads, high temperatures, and demanding operating conditions.

The oilless design of these bushings eliminates the need for periodic lubrication, reducing maintenance costs and improving the overall efficiency of the system. Furthermore, the self-lubricating nature of the manganese bronze alloy ensures smooth operation and reduced wear, even in high-speed or high-load applications.

The precision machining of C86300 SAE430B manganese bronze bushings ensures that they fit precisely within the application's operating envelope. This precision fit minimizes vibration and clearance, further extending the life of the bearing and improving its performance.

In summary, C86300 SAE430B manganese bronze bushings, or oilless bushes, are a robust and reliable bearing solution for applications requiring low-friction, wear-resistant, and oil-free operation. Their unique alloy composition, oilless design, and precision machining make them an excellent choice for a wide range of industrial and automotive applications.

C86300 Manganese Bronze Bushing for Sale - Oilless Bushes Supplier

Wide range of Bronze Bushing ready in stock. Able to satisfy any request and design need.

Manganese Bronze Bushing, Applications: Industrial - Selecting Manganese Bronze Bushing Materials

Manganese Bronze Bushing Supplier, Manganese bronze alloys bearings, such as C86300

Materials Support Material Cuzn25al5 Sliding Layer Graphite Surface: App. 25-30% Other Commonly Used Bronze Alloys Bearings Material: C86200/C86300/C93200 SAE430B SAE430A, SAE 660 Tolerance Details Housing ø H7 Bushing Inner-ø After Mounting Pls Consult Our Sales Engineers To Get A Quote.Online Sale.#500-series, BWG, BWG-F, COB-05, COB-050 t.o.m. -055, COB-056 t.o.m. -057, CSB 650-series, JDB-series

Manufacture of slide bearing, bronze bushing, solid cast bronze bearing, oilless bushing, oils bush, wrapped bronze bushing, bimetal bushing, bushing, etc.

– Maintenance-free (self-lubricating)
– Suitable for heavy load applications
– Withstands extreme temperatures
– Long life span

C86300 CuZn25Al5 ASTM Casting Copper Alloy Bearings Lead-Free Brass Bushing Thick-Walled Metal Bearings Self-lubricating metal bronze bushings, CYLINDRICAL BEARINGS WITH GROOVES, MANGANESE BRONZE C86300 Graphite Bearings and Graphite Bushings Parts, Graphite parts If you have an application that calls for your part to be altered, we can meet your needs. From bronze bushing material: C86200 (SAE 430A) Manganese Bronze Bushing C86300 (SAE 430B) Bearings.boring the I.D., turning the O.D., drilling holes, or cutting off, chamfering, facing, or any other lathe work… we have the technology to do it all.

Chemical Requirements
Copper Alloy UNS No.	Composition, % max, except as indicated
						Nickel
	Copper	Tin	Lead	Zinc	Iron	Including	Aluminum	Manganese	Antimony	Sulfur	Phosphorus	Silicon
						Cobalt
C86300	60.0–66.0	0.20	0.20	22.0–28.0	2.0–4.0	1.0A	5.0–7.5	2.5–5.0	...	...	...	...
C90500	86.0–89.0	9.0–11.0	0.30	1.0–3.0	0.20	1.0A	0.005	...	0.20	0.05	0.05B	0.005
C91100	82.0–85.0	15.0–17.0	0.25	0.25	0.25	0.50A	0.005	...	0.20	0.05	1.0B	0.005
C91300	79.0–82.0	18.0–20.0	0.25	0.25	0.25	0.50A	0.005	...	0.20	0.05	1.0B	0.005
C93700	78.0–82.0	9.0–11.0	8.0–11.0	0.8	0.7C	0.50A	0.005	...	0.50	0.08	0.10B	0.005
A In determining copper minimum, copper may be calculated as copper plus nickel.
B For continuous castings, phosphorus shall be 1.5 % max.
C Iron shall be 0.35 % max. when used for steel-backed.

Gleitlagerbuchsen

AVAILABILITY

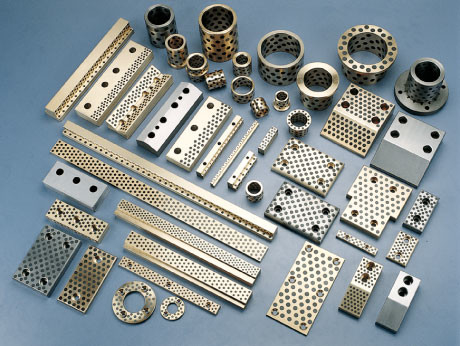

Bearing forms made to order: cylindrical bushes, flanged bushes, thrust washers, sliding plates, half-bearings, axial and radial segment rings, self-aligning spherical bearings, spherical plain bearings, special shapes, customized bearing designs.

Although it has been stated that centrifugal casting bushings resist forged bushings, many users who have tried these bushings have discovered that no other combination will survive viiplus sliding bearings. Our original forged steel bushings have already been shown to withstand any melting, centrifugal melting, or combination of both that have been hardened by other processes in field trials. VIIPLUS BUSHING has created a new line of manganese c86300 bushings for expensive dimensions. Bronze Bushing Factory in China, China C86300/C86200 Bronze Alloy, Cast Bronze

Bushing Sliding Bearing Wholesale from China | Sleeve Bushing & Flange Bearings C86300 Maganese Bronze Bushings Plug Graphite and Flange Bearings

VIIPLUS INTERNATIONAL ONLINE WWW.BRONZEGLEITLGAER.COM CHINA MANUFACTURER offers C86300 Manganese Bronze Bushing, Sliding Plate, Washer. This inch size available customized depends on your size, specification and desired quantity.

BRONZE GRAPHITE BUSHINGS PLASTIC INJECTION MACHINERY APPLICATION VIIPLUS BRONZE BUSHINGS & BEARINGS

VSB-50 SOLID BRONZE METALLIC SELF-LUBRICATING BEARINGS CAST BRONZE BEARING WITH GRAPHITE PLUGS

RANGE OF APPLICATION

Cranes, mining machines, construction machinery, off-shore & marine applications, steel plant, hydropower & hydro mechanical.

1.Injection molding machine Bronze Bearings

2.Pressure die casting machine Bronze Bearings

3.Die-casting machine Bronze Bearings

Material: CuZn25AI5Mn4Fe3

Structure Characteristics and Applications

VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has the pretty good anti-erosion ability in air, freshwater and seawater. The surface is regularly and finely machined with sockets in which a particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engines, etc.

Solid Lubricant Casting Aluminum Bronze Bearings Bushings

Various material specifications, standard and special shapes are also available

VSB-50 Solid lubricating bearings

1. May work without any oil for a long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in a wide range of temperature from -40℃-+300℃

STRUCTURE

VSB-50 SOLID LUBRICANT SLIDING BEARINGS material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature at low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

ASTM Casting Copper Alloy Lead-Free Brass C86300

Chemical Composition mass/%
Cu	Sn	Al	Fe	Mn	Ni	Pb	Si	P	Zn
60-66	0.2	5.0-7.5	2.0-4.0	2.5-5.0	1	0.2	_	_	_

Mechanical properties
Tensile strength Mpa(Min)	Yield strength MPa(Min)	Elongation %	Brinell hardness(HB)
758	427	14	225

TECHNICAL DATA

Grade	50#	50S1	50S2	50S3	650S5
Material	CuZn25AI5Mn4Fe3	CuSn5Pb5Zn5	CuAI10Ni5Fe5	CuSn12	CuZn25AI5Mn4Fe3
Density	8	8.9	7.8	8.9	8
Hardness	≥210	≥70	≥150	≥75	≥235
Tensile strength	≥750	≥250	≥500	≥270	≥800
Yield strength	≥450	≥90	≥260	≥150	≥450
Elongation	≥12	≥13	≥10	≥5	≥8
Coefficient o linear expansion	1.9×10-5/℃	1.8×10-5/℃	1.6×10-5/℃	1.8×10-5/℃	1.9×10-5/℃
Max.Temp.	-40~+300℃	-40~+400℃	-40~+400℃	-40~+400℃	-40~+300℃
Max.dynamic load	100	60	50	70	120
Max.speed(Dry)	15	10	20	10	15
N/mm²*m/s(Lubrication)	200	60	60	80	200
Compression deformation	< 0.01 mm	< 0.05mm	< 0.04mm	< 0.05mm	< 0.005mm

CHEMICAL COMPOSITIONS

Product NO.	Chemical Compositions
VSB-50	Cu	Zn	Al	Fe	Mn	Si	Ni	Sn	Pb
VSB-50	60~66	22~28	5.0~8.0	2.0~4.0	2.5~5.0	<0.1	<0.5	<0.2	<0.2

Gleitlagerbuchsen

AVAILABILITY

Bearing forms available in standard dimensions

· Cylindrical bushes
· Flanged bushes
· Sliding plates

Special manufacturing

All kinds of sliding elements can be offered or produced upon request. Please contact us for further information.

High temperature resistance C86300 Bronze Bushing & Wear Plate flanged bronze bushings

HTTP://WWW.BRONZEGLEITLAGER.COM

AVAILABILITY: Bearing forms available in standard dimensions
