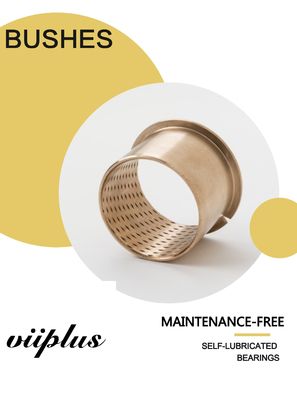

Rolled Bronze Bushing with Diamond Indents | Metric Sleeve material CuSn8 & CuSn6.5P

Rolled Bronze Bushing with Diamond Indents |  Metric Sleeve material CuSn8 & CuSn6.5P
Rolled Bronze Bushing with Diamond Indents |  Metric Sleeve material CuSn8 & CuSn6.5P Rolled Bronze Bushing with Diamond Indents |  Metric Sleeve material CuSn8 & CuSn6.5P Rolled Bronze Bushing with Diamond Indents |  Metric Sleeve material CuSn8 & CuSn6.5P Rolled Bronze Bushing with Diamond Indents |  Metric Sleeve material CuSn8 & CuSn6.5P Rolled Bronze Bushing with Diamond Indents |  Metric Sleeve material CuSn8 & CuSn6.5P

Large Image :  Rolled Bronze Bushing with Diamond Indents | Metric Sleeve material CuSn8 & CuSn6.5P

Product Details:
Place of Origin: Self Lubricating Bearings Manufacturers
Brand Name: REPLACE BRAND GARLOCK BEARINGS (GGB)
Certification: DIN 1494, ISO 3547 STANDARD BUSHING
Model Number: BUSHING TYPE FLANGED PLAIN SLEEVE
Payment & Shipping Terms:
Minimum Order Quantity: NEGOTIABLE
Price: Competitively Priced vs DU DX, Provides Lubricating Bush
Packaging Details: WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS
Delivery Time: 7-20 DAYS,STOCK SIZE BUSHING IMMEDIATE DELIVERY
Payment Terms: TT IN ADVANCE WESTERN UNION
Supply Ability: Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings

Rolled Bronze Bushing with Diamond Indents | Metric Sleeve material CuSn8 & CuSn6.5P

Description
Meterial: Bronze Characteristic: Low-maintenance And Maintenance-free Plain Bearings
Size: Standard Size Available Port:: Shanhai,or Ningbo
Quality: OEM Type: Bushes, Collar Bushes, Washers, Strips Or Special Designs
Sample: Available Feature: High Quality
High Light:

sintered self lubricating bushes

,

self lubricating bronze bushings

Self-lubricating Bronze Bearing Diamond Indentations, Sliding Bearing, Plain Bearing, Bronze bushings-Chinese Manufacturer - Export Wrapped Bronze Bush Sleeve Bushing to the world.

Bushing Company for Sale

Rolled Bronze bushings with Diamond Indents

Factory customized Copper wrapped bushings



VIIPLUS rolled (wrapped) bushings is produced with diamond-shaped lubrication indents on the bearing surface(s). These bushings are ideally suited for thin-wall applications. The indents provide lubricant reservoirs that allow for excellent and prolonged service.



For applications that are sealed or difficult to maintain, we also manufacture this product with self-lubricating graphite filled diamond or circular indents.



They are light-weight and compact and are available as sleeve bushings, flange bearings, washers and plates. They are produced in both inch and metric sizes.



• Metric Sleeves
• Metric Flanges



Bronze rolling bearing, with tin bronze alloy CuSn8/ cusn6.5p as the material, the surface of the rolling diamond oil hole, plays the role of oil storage, it has good fatigue strength and bearing capacity, corrosion resistance, wear resistance.
Widely used in agricultural machinery, construction machinery, construction machinery, and other high-load low-speed occasions.
(also called FB090)



bronze wrapped bushing flange size self-lubricatin...

Application Characteristics

1. Save a lot of copper material and time of copper sleeve manufacturing:
2. Lightweight and low cost compared with axle sleeve and rolling bearing made by vehicle;
3. Various oil grooves can be processed on the friction surface, and oil holes can store certain grease so that the time of oil filling is 5 times longer than that of a copper sleeve;
4. Extremely high bearing capacity, especially suitable for rough friction surface;
5. High heat dissipation, small expansion coefficient, stable service condition and long service life.



Technische Daten

  • Wrapped bronze sliding bearing
  • Low-maintenance
  • With lubrication pockets



Properties

  • High load capacity and stability at low abrasion, suited for rough operation, corrosion-resistant.



Materials

  • CuSn8P
Chemical Composition
MATERIAL Cu Pb Sn
CuSn8 91.30% 8.50% 0.20%
National standard C5210 German standard DIN17662 ISO 4382-2:1991



Lubrication Free with Excellent Wear Resistance

Material Properties

  • Specific load capacity static≤ 120 [N/mm2]
  • Specific load capacity dynamic≤ 40 [N/mm2] at max. 2.0 m/s
  • Sliding speed≤ 2.0 [m/s]
  • Friction value ***0.08 [µ] to 0.25 [µ] depending on lubrication
  • Temperature strain– 100 [°C] to + 200 [°C]
  • Max. PV-value2,8 [N/mm² x m/s]




Mechanical Behavior

Type Tensile Strength Elongation Yield Strength
BRONZE BUSHING CUSN8 090 450 55 250
BRONZE BUSHING CUSN8 092 300 55 250
BRONZE BUSHING CUSN8 08G 420 5 230
BRONZE BUSHING CUSN8 09G 450 10 250

Physical Properties

Type Specific Gravity Linear Expansion Heat Conductivity Electric rate Elastic Modulus
    0C10-6/0C CW0/m.k Cm/onm.mm2 KN/mm2
BRONZE BUSHING CUSN8 090 8.9 18.2 60 6.5 115
BRONZE BUSHING CUSN8 092 8.9 18.2 60 6.5 115
BRONZE BUSHING CUSN8 08G 7.8 22 70 7.8 108
BRONZE BUSHING CUSN8 09G 8 18.2 60 6.5 115

Friction Performance

Type Max.Dynamic Load Max.Speed (no, oil) Max.Speed (oil) Temp.
  (N/mm2) (no oil)(m/s) (oil )(m/s)
BRONZE BUSHING CUSN8 090 75 / 2.5 -80~+200
BRONZE BUSHING CUSN8 092 60 / 2.5 -100~+200
BRONZE BUSHING CUSN8 08G 65 0.4 4 -100~+260
BRONZE BUSHING CUSN8 09G 65 0.2 4 -100~+260

Bearing Hardness

Type Item Hardness
BRONZE BUSHING CUSN8 090 (Standard) 90~120
BRONZE BUSHING CUSN8 092 (Special) 125~155
BRONZE BUSHING CUSN8 08G (Standard) 60~90
BRONZE BUSHING CUSN8 09G (Standard) 90~120
BRONZE BUSHING CUSN8 B090 (Standard) 70~100

Bearing Material

Type Item Material Composition %
      CU SN Pb Zn P (Other)
BRONZE BUSHING CUSN8 090 (Standard) CuSn6.5P   6~7 0.1~0.25 ≤0.1
BRONZE BUSHING CUSN8 092 (Remainder)
  Ⅰ(SpecialⅠ) CuSn8P   7~9 0.01~0.35 ≤0.2
  (Remainder)
  Ⅱ(SpecialⅡ) H68(CuZn31Si) 66~70 ≤0.8   ≤0.5
  (Remainder)
BRONZE BUSHING CUSN8 08G (Standard) CuSn10Pb10+Gr   9~11 9~11 ≤0.5
(Remainder)
BRONZE BUSHING CUSN8 09G (Standard) CuSn6.5P+Gr   6~7 0.1~0.25 ≤0.1
(Remainder)
(Special) CuSn8P+Gr   7~9 0.01~0.35 ≤0.2
(Remainder)

BRONZE BUSHING CUSN8 090 oil lubricating holes
Rolled Bronze Bushing with Diamond Indents |  Metric Sleeve material CuSn8 & CuSn6.5P 0

Type Thickness Oil Depth
BRONZE BUSHING CUSN8 090 1mm 0.3~0.4mm
1.5mm 0.4~0.5mm
2mm 0.5~0.6mm
2.5mm 0.6~0.7mm
BRONZE BUSHING CUSN8 09G 0.65mm 0.15~0.3mm
BRONZE BUSHING CUSN8 08G 1mm 0.3~0.4mm
  1.5mm 0.4~0.5mm
  2mm 0.4~0.5mm
  2.5mm 0.4~0.5mm





Tolerance Details

  • Housing ØH7
  • Bushing inner-Ø after mountingH9
  • Shaft tolerancef7 to h8





self lubricating bronze bushing



Maintenance

it is a low-maintenance bronze sliding bearing. Primary lubrication is necessary. Oil or grease lubrication is possible. Due to lubrication pockets, clearances are reduced to a minimum.



Range Of Application

  • Hydraulic Systems: Bushing for Valves and Rotary Actuator, Bushing for Gear Pumps, Bushing for Cylinders, Bushings for Shock absorber, Bushing for Lucas Hydraulic Pump,
  • Food Processing: Bottling Machine, Bottle Washer, Automatic Bag Maker, Dairy Processors, Meat Choppers, Mixers
  • Automobiles: Suspension Bushings, Steering, Brake Bushings, Clutch, Transmission Bushings
  • Railroad Cars: Side Thrust absorber, Automatic Doors Bushings
  • Ships: Steering Linkages, Hatch Covers, Pulley Blocks Bushings
  • Aircraft: Control Linkage, Shock absorber bushings, Actuator Valves bushings, winches
  • Printing: Offset Printer, Gravure Printer, Mail Printer, Automatic Ticket Bender, AutomaticBook Binder
  • Textile Industry: Spinning frame, Yarn Twister, Sheet Roller, Winders



Caption

Special dimensions are available on request
