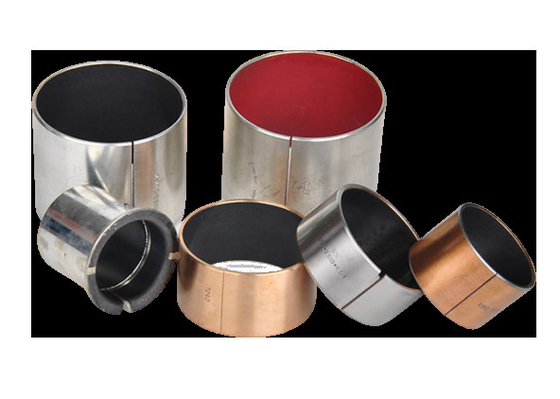

RED ST Stainer Bronze Metal-Polymer Low Friction Plain Bearings, also known as Composite Bearings, are designed to provide exceptional performance in applications requiring metric sizes. These bearings are crafted from a unique blend of bronze metal and polymer materials, resulting in a product that combines the strength and durability of metal with the low friction and wear resistance of polymer.

The incorporation of polymer into the bronze matrix significantly reduces friction and wear, allowing for smoother operation and longer service life compared to traditional metal bearings. This makes them ideal for a wide range of industrial applications, including but not limited to, machinery, automotive, aerospace, and construction, where precision and reliability are paramount.

The metric sizing of these bearings ensures compatibility with international standards, making them easy to integrate into existing systems or designs. The bearings are available in various metric dimensions, allowing for flexibility in selection to suit specific requirements.

In summary, RED ST Stainer Bronze Metal-Polymer Low Friction Plain Bearings offer a superior combination of performance, durability, and versatility, making them the go-to choice for metric-sized composite bearing applications.

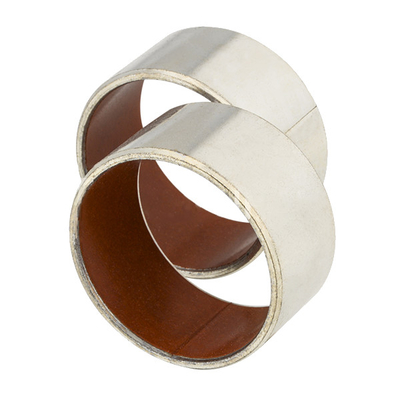

ST Stainer Bronze Metal-Polymer Low Friction Plain Bearings Bushing

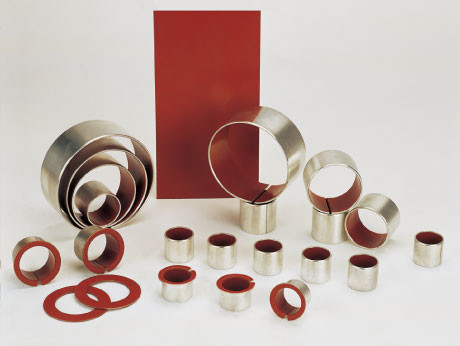

ST Stainer bronze Metal-Polymer Low Friction Plain Bearings Bushing composite bearings, Metal-Polymer Composite Material, Copper Plating or Tin Plating

Metal-Polymer Anti-Friction Bearings

Sliding bearing
Plain bearings are bearings that work under sliding friction.
Sliding bearing works stably, reliably and noiselessly.
Under the condition of liquid lubrication, the sliding surface can be separated by lubricating oil without direct contact, and the friction loss and surface wear can be greatly reduced. The oil film also has certain vibration absorption ability.

ITEM	Code/Description	ITEM / PART No.
1	27020100000	ST+Stainerbronze +
2	27020640000	ST+Stainerbronze + (Metal-Polymer Low Friction Plain Bearings)
3	27020650000	ST+Stainerbronze + (Metal-Polymer Low Friction Plain Bearings)
4	27020660000	ST+Stainerbronze + (Metal-Polymer Low Friction Plain Bearings)
5	27020720000	ST+Stainerbronze + (Metal-Polymer Low Friction Plain Bearings)
6	27020790000	ST+Stainerbronze + (Metal-Polymer Low Friction Plain Bearings)
7	27021250000	ST+Stainerbronze + (Metal-Polymer Low Friction Plain Bearings)





Bushing Type



Sleeve; Flanged

Type ( coated sliding bushing) Steel + porous bronze sinter +

Lead-free flange bushings have sliding surfaces and tin-plated steel bodies, making them an effective substitute for places that cannot or must not be lubricated. Select this type for low speed, high load applications, or low speed and high load applications. This sleeve is suitable for applications where friction and heat should be avoided. The sleeve can also be used, for example, in oil or water, and has good corrosion resistance. In addition, the model can withstand very high and very low temperatures and has a low coefficient of friction. For example, in fitness equipment.

CDIN 1494 Flange sleeve bushing, Flange Size Bushing, ROHS Approved
Sliding surface made of in tinned steel frame
Especially suitable for places where lubrication is not possible or desirable.

Metal-Polymer Low Friction Plain Bearings flanged bearing Suitable for dry running with a low coefficient of friction, low wear rate, good sliding characteristics, the transfer film created will protect the mating metal surface. Suitable for rotary and oscillating movement, high chemical resistance, lower absorption of water and reduced swelling. Also performs well with lubrication.

Material

Einsatzgebiete

Structures

1. /Fibre mixture thickness 0.01~0.03mm, provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides Max. thermal conductivity away from the bearing surface, also serves as a reservoir for the -Fibre mixture.
3. Low-carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.

Characteristics

• Metal-Polymer Low Friction Plain Bearings flange bushing has low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions

• Very good performance in lubricated applications

• Good performance in greased applications

• Suitable for linear, oscillating and rotating movements

• Lead-free material compliant to ELV, WEEE, and RoHS specifications

• Approved to standard DIN EN 1797: 2002-02 and ISO 21010: 2004-04 (Cryogenic Vessels – Gas/Material Compatibility) for piping, valves, fittings and other components in both gaseous and liquid oxygen for up to maximum temperature of 60°C and oxygen pressure of 25 bars.

• Approved to standard FAR 25.853 and FAR 25.855 - Federal Aviation Regulations – making it suitable for interior aircraft applications

Bearing Properties

Dry  coated  bushing

Oil Lubricated

Recommendations

Operating Performance
