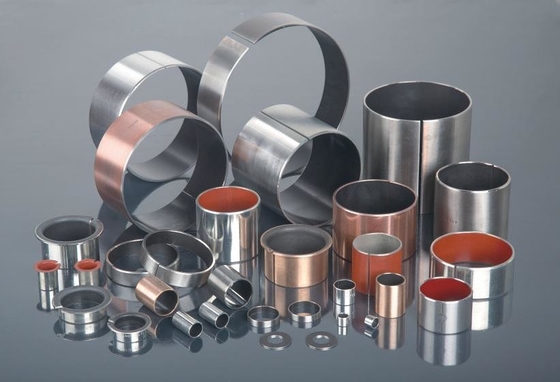

Valve Stems Self Lube Stainless Steel Bushings | Corrosion Resistant 316 Stainless Steel Sleeve Bearing

Place of Origin Stainless Steel Backed Bushings
Brand Name CHINA CUSTOM THERMOPLASTIC BUSHING SELF-LUBRICATING BEARINGS
Certification WRAPPED SPILT SLEEVE BUSHING, STAINLESS STEEL 316, DIN 1494 / ISO 3547, LOW-MAINTENANCE
Model Number CUSTOM THERMOPLASTIC AND TEX FABRIC WEAVE / GLASS FIBERS STAINLESS-STEEL 316 BEARINGS
Minimum Order Quantity >=500 Pieces
Price Negotiable
Packaging Details CARTONS,wOODEN CASES
Delivery Time 3-4 WEEKS
Payment Terms TT IN ADVANCE
Supply Ability Stainless Steel Bushing Manufacturers Self Lubricating Plain Bearings Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Stainless Steel 316 Port Shanghai
Quality OEM Type Self Lubricating Bearings
STRUCTURE Bushes Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Stainless Steel Bushing Manufacturers
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

steel backed bronze bushing

,

stainless steel bushing sleeve

Leave a Message
Product Description

Valve stems play a crucial role in the smooth and efficient operation of valves, and their durability and reliability are essential. To ensure long-lasting performance, especially in corrosive environments, valve stems are often equipped with self-lubricating bushings made from 316 stainless steel.

316 stainless steel is a highly corrosion-resistant alloy that contains molybdenum, which gives it excellent resistance to a wide range of chemicals, including acids, salts, and chlorides. This makes it an ideal choice for sleeve bearings and bushings in valve stems that are exposed to harsh conditions.

The self-lubricating properties of these bushings help reduce friction and wear, ensuring smooth operation of the valve stem. This not only improves the efficiency of the valve but also extends its service life.

The combination of corrosion resistance and self-lubrication makes 316 stainless steel bushings an excellent choice for valve stems in various industries, including chemical processing, oil and gas, power generation, and water treatment. Whether the valve is used in a high-pressure or high-temperature environment, these bushings provide the necessary durability and reliability to ensure the valve performs as expected.

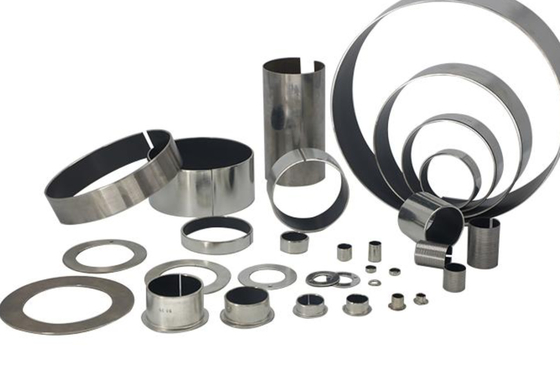

Stainless Steel Bushings



Excellent corrosion proof performance & superior abrasion proof performance Stainless Steel 316 or 304 sleeve /TEX Liner Type bearing provides high load capacity and low friction in the form of a thin-walled sleeve for use in butterfly valves, trunnion bearings,butterfly valve ball and plug valve stem bushings, hydraulic and pneumatic cylinder guide bushings, food handling machinery, and door hinge bushings.

Shapes & forms
Plain cylindrical bearings, flanged bearings, thrust washers, sliding plates.The bearings are so designed that when press-fitting the bearing into the housing, the mating gap can be eliminated.



Self-lubricating Bearings Rolling Steel sleeve Stainless Steel 316 TEX bushings Wrapped | VSB-33



Stainless steel Bushings Corrosion Resistant Bearings


The VIIPLUS offers precision stainless steel wear sleeves designed to be pressed onto a shaft to provide an enhancement of the sealing surface. which are made from stainless steel, providing a corrosion free sealing surface that surpasses the original shaft specifications.





Characteristics


Wrapped Lined (maintenance-free), self lubricated plain bearings, thrust washer and strip, stainless steel shell with sintered bronze layer filled with

It is backed with stainless steel with porous bronze sintered on it and polymers imbedded into the bores of the bronze. The stainless steel back provides the bush with stronger mechanic strength and load capability. By combining the metals and the polymers tog, the products are endowed with the lower friction coefficient and good capacity of anti-abrasion and self-lubrication. Moreover, the stainless steel back can be effectively preventing chemical erosion. This series are widely applied in printing and dyeing machines, and machines used in the ocean industry, etc.

Stainless Steel Bronze Powder + Self Lubricating Bearings Multilayer Composite

This new material use the fibre fabric overlay on metal backings, the fabric have very high load capacity and much longer operating life compare with conventional 3-layer bushes. The metal can be carbon steel. stainless steel.



Stainless Steel 316 Sleeve Bushing Specification & Tolerance



Product Overview:Apply to the oil or fuel work harder parts,wear resistance,low coefficient of ftiction,long life:good overall performance.Apply to the oil or fuel work harder parts,wear resistance,low coefficient of friction,long life;good iverall perfotmance.



VSB-33 Plain Bearings and Sleeve Bearings




Stainless steel bearing is of oil resistant,acid resistant,alkali resistant and seawater resistant,more over,there is no lead in the surface layer and so is particularly fit for application in food machinery,alkali flow meters,pumps motion elements in pharmaceutical machines,printing machines chemical engineering machines and other ocean industry.The bushing is a triple layers composites one,the base material is stainless steel back and a film of heat resistant power filled being calendered onto the sintered spherical bronze interlayer.


Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, forming a transfer film can protect the mating metal surface, suitable for rotary and oscillating movement. Stainless steel backing provides improved corrosio...




Strusture




Technical Data



Max. load

Static

250N/mm2

Temp.

-195℃~+280℃

Dynamic

140N/mm2

Friction coefficient

0.03~0.20

Max. speed

Dry

2m/s

Thermal conductivity

42W (m·k)-1

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Coefficient of thermal expansion

11*10-6k-1

Continuous

1.8N/mm2*·m/s



Availability



Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers

Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes.





Typical Applications



VSB is professional as one of the leading manufacturers and suppliers of VSB-33 stainless steel 316 bearings + in China. We are equipped with a professional factory which covers a great deal of qualified workers. Please feel free to buy VSB-33 stainless steel 316 bearings + made in China with us.


Plain bearings are available as bushes, collar bushes, washers, strips or special designs.



Packaging & Shipping
Packaging Details: Standard export packing, or as customers' requirement.
