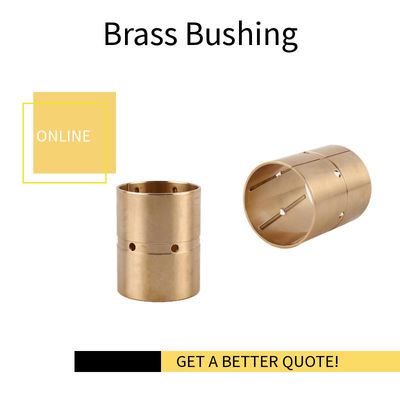

Brass Bushing Bearings 56*51*70mm
| Place of Origin | made in china |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ISO 9001 |
| Model Number | Bronze Bushings |
| Minimum Order Quantity | negotiable |
| Price | Negotiable |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 7-25 work days |
| Payment Terms | T/T |
| Supply Ability | Perforated Bronze Bearing，Plain Bronze Wrapped Bearings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Brass Bushing | Type | Brass Wrapped Bushing |
|---|---|---|---|
| Brass Bushing | 56*51*70mm | Code | Metric Size |
| Feature | Grooves | Item | Split Type Bushings |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ | High Light | CuSn8 Bronze Bushings, Bronze Sleeve Plain Bush Bearing, CuSn8P Plain Bush Bearing, Plain Bush Bearing, Self-Lubricating Sintered Bronze |
| Feature | BRO-MET, FB090, BRM10, WB800 | Specialty | Бронзовые втулки |
| High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing | Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . |
| Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| High Light | CuZn31Si Brass Bushing Bearings,H68 Brass Bushing Bearings,Wrapped Brass Bushing Bearings |
||
Product Description
Brass Bushing, Manufacturer, Exporter, Cheap Price, Grooves Bushings, 56*51*70mm
CuZn31Si(H68) bronze bearing
Enterprise technology relying on Research Institute and colleges and universities and colleges and universities and colleges and universities, constantly develop brass wrapped bushings products adapted to different working conditions and various mechanical fields. The product performance has reached the level of foreign products of the same kind.
www.bronzegleitlager.com is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.
Technical Data
| Performance Index | Data | |
| Material | CuZn31Si(H68) | |
| Density g/cm? | 8.4 | |
| Max Dynamic Load N/mm? | 90 | |
| Max Linear Velocity(Grease) m/s | 1.5 | |
| Max PV value Grease N/mm?·m/s | 1.65 | |
| Pressure strength N/mm? | >440 | |
| Yield Strength N/mm? | >230 | |
| Hardness | 80~120 | |
| Mating Axis | Hardness | ≥50 |
| Roughness | 0.4~1.0 | |
| Working Temperature ℃ | -40~150 | |
| Friction Coefficient | 0.06~0.15 | |
| coefficient of heat conduction W/m·K | 71 | |
| Linear expansion coefficient | 19.2×10-6/K | |
| Typical application | Application: hoisting, mining machinery, forest machinery, agricultural machinery etc. |
|
| We can also develop according to customers special request while out of this table | ||
Chemical properties
Characteristics
High load capacity, good wear-resistance.
Good stability under load, particularly suitable for oscillating bearing.
Grease depots for long-term lubrication.
Availability
Standard cylindrical bushings are available.
Special designs are produced based on your design.
Application
This type oilless bronze bushing is widely used in construction machinery, machine tooling etc.

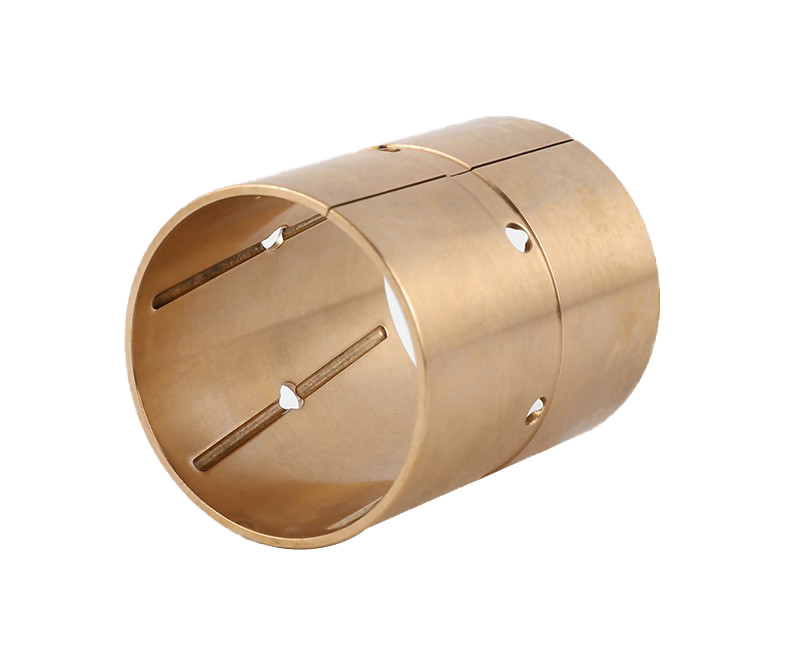

the Brass Wrapped Bushing bushing is made of copper alloy CuZn31Si that is of higher density with its surface punched with oil sockets or grooves, which depends on the customer's requirements. This type of bushing has better load capacity, anti-erosion, and anti-abrasion capacity.
Material: CuZn31Si
Hardness: HB90~150
Temperature limit: -100℃~200℃
Load capacity: 90N/mm2
Speed limit: 2m/s
| The use of parameters | |||||
| Parameters | 090 Bronze Wrapped Bushing | 091 Copper Wrapped BushingBronze Wrapped Bushing | 092 Bronze Wrapped Bushing | 094 Bronze Wrapped Bushing | 09G Bronze Wrapped Bushing |
|
|
|
|
|
|
| Density | |||||
| 8.9g/cm³ | 8.9g/cm³ | 8.4g/cm³ | 8.9g/cm³ | 8.9g/cm³ | 8.3g/cm³ |
| Pressure resistance strength | 470N/mm² | 440N/mm² | 470N/mm² | 470N/mm² | 470N/mm² |
| Coefficient of heat | 60W/m.k | 71W/m.k | 60W/m.k | 60W/m.k | 58W/m.k |
| Linear expansion coefficient | 18.5×10-6/K | 19.2×10-6/K | 18.5×10-6/K | 18.5×10-6/K | 18.5×10-6/K |
| Hardness | 90~120 HB | 80~110 HB | 90~120 HB | 90~120 HB | 90~120 HB |
| Elongation | 55% | 30% | 55% | 55% | 55% |
| Alloy material | CuSn8P | CuZn31Si | CuSn8P | CuSn8P | CuSn8P |
| Other material | CuSn6.5P | CuSn6.5P | CuSn6.5P | CuSn6.5P |
