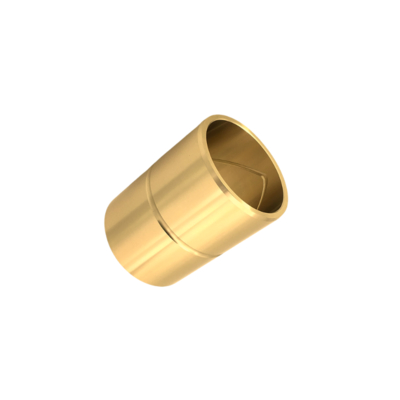

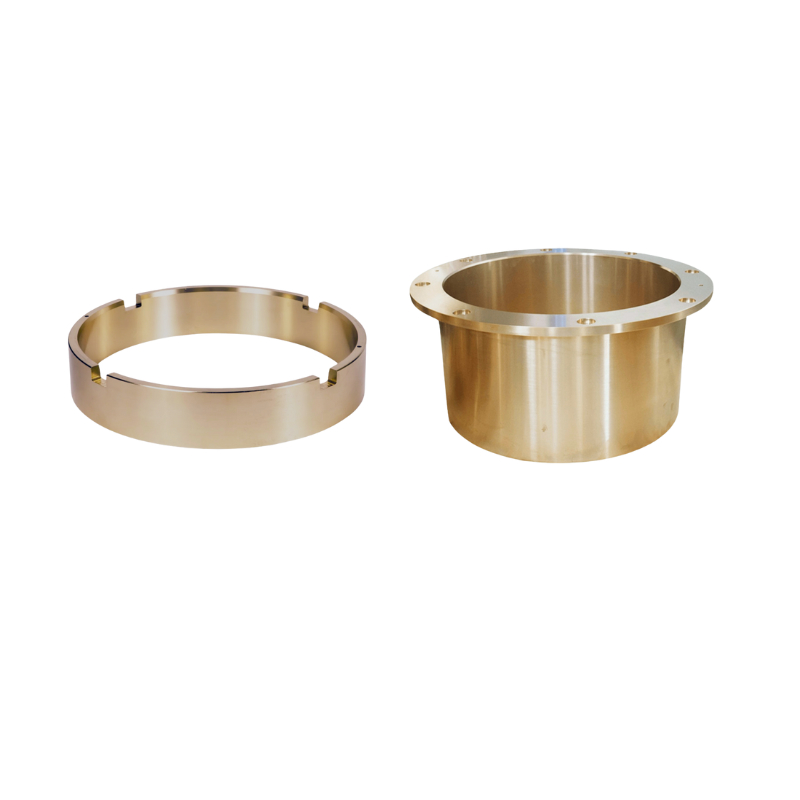

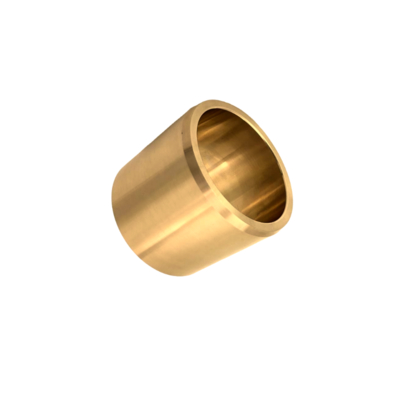

Customzied Groove Bronze Gleitlager Thin Wall Sleeve & Flange For Excavators

Place of Origin gleitlagerbuchsen china
Brand Name VIIPLUS
Certification ISO 9001
Model Number Groove Casting Bronze
Minimum Order Quantity Standard Size Bushing No Minimum Order Quantity
Price Bushings High Quality Price Ratio B2B
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 3 - 15 BUSINESS DAYS
Payment Terms T/T
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing
Product Details
Features High Load Capability,Low Weight , Good Corrosion Resistance. Type Bronze Sleeve,Flange
Material Metal,Brass,copper Application Scrapers Dozers Loaders Excavators
Lubrication Oil Lubrication Other Type Washer
Samples Avaliable Size Custom Size
High Light

graphite bronze bushing

,

graphite plugged bronze bushings

Leave a Message
Product Description

Bronze Bushing Saves You Time & Money In Research, Design & Bronze Bearing Production Costs. E-mail Now!



Find Matching Bronze Bearings,Select the Bronze Bushings Bearing That Meets Your Demands,Customzied Groove Casting Bronze Gleitlager Thin Wall Bearing Sleeve & Flange for EARTHMOVING:Scrapers Dozers Loaders & Excavators



C93200 (SAE 660) Bronze Bushing

Oil & Grease Groove Bronze Bushings & Bearings | Customzied Groove Bronze Gleitlager



Choose from our selection of SAE 660 bronze bushings, including sleeve bearings, flanged sleeve bearings, and more.

CUSTOM & SPECIAL GROOVE PATTERNS

Wide range of Bronze Bushing ready in stock.

groove bronze bushing



ASTM Standard Designation for C93200: ASTM B505 & ASTM B271
SAE Standard Designation for C93200: SAE 660



Chemical Composition
(%max., unless shown as range or min.)
  Cu(1) Al Sb Fe Pb Ni(2) P(3) Si S Sn Zn
Min./Max. 81.0-85.0 .005 .35 .20 6.0-8.0 1.0 .15 .005 .08 6.3-7.5 1.0-4.0
Nominal 83.0 - - - 7.0 - - - - 6.9 2.5

*In determining copper minimum, copper may be calculated as copper plus nickel



Mechanical Properties

Tensile Strength. min 35 ksi 241 MPa
Yield Strength @ .5% ext under load min 20 ksi 138 MPa
Elongation in 2 in. or 50 mm min, % 10
Brinell Hardness,min N/A
Machinability Rating 70%



Bronze bushing types

  • Bronze Bushings
  • Bronze Liners
  • Bronze Wear plates
  • Bronze Washers
  • Bronze Bar Stock



Excavators Bronze Bushings



Oil and grease grooves – Single Loop – Figure Eight – One Straight & One Circular – Double Loop – Double Figure Eight – R.H. & L.H. Spiral – Straight Groove – Circular Groove



 Gleitlagerbuchsen



Overview


We manufacture excavator parts for Oem’S Bushings & Flange Bearing,Thrust Washer

Brown Brass Copper Sleeves,Sleeve bushes and flange bearings are manufactured using c86300 / c95400 / c93200 alloy compared to OEM alloy bushes. High quality sleeves increase abrasive properties while maintaining excellent metal lubricity. VIIPLUS SLIDING CHINA BEARING and sleeves are specially designed to prevent seizure and reduce wear.Custom and special groove models LARGE DIMENSIONS. Systematic and careful inspection procedures ensure that our centrifugal or continuous cast bronze products are shipped to meet the highest material and processing standards.Custom and special groove pattern. Sliding bearing with customized bush sleeve VIIPLUS is a leading manufacturer of custom machined bronze components with experience in producing self-lubricating bearings. We can manufacture virtually any bushing, bearing or related part to your specifications. If you do not have a drawing, we will work with you to reproduce your part from a sample.

Made-To-Order from China Factory Cast Bronze Sleeve Bearings Types of oil groove Customzied for an Oil/Grease Application.Material C86300 / C95400 / C93200 SAE 841 cast bearing / bronze bushing with custom made oil / grease hole and internal groove.

Casting high quality economically favorable bronze material CuSn6Pb6Zn3(Qsn6-6-3) bushing thin wall bearing made to order from china.



Application:



Machine-tool, spring pin, steering shaft and transmission.

 Gleitlagerbuchsen

Material

CuSn6Pb6Zn3(Qsn6-6-3)

Max Dynamic Load

60N/mm2

Density

8.7g/cm3

Max Linear Velocity(Grease)

0.85m/s

Max PV value Grease

1.65N/mm2·m/s

Friction Coefficient

0.09~0.15

Working Temperature

40~140℃

Pressure strength

>240

Mating Axis

Hardness≥40, Roughness 0.4~1.0

Coefficient of heat conduction

52W/m·K

Yield Strength

>100 N/mm2

Linear Expansion Coefficient

18.5*10-6m/k

Typical Application

machine-tool, agricultural machinery, crane electromotor, spring pin, steering shaft and transmission



Packing and Delivery


Packaging Details: anti-corrosive paper, cardboard, wooden crate or pallet
1. Inner packaging
For small products: 100 items - 200 items. In a sealed plastic bag.
For larger products: 2 items - 10 items. Per roll of plastic film (depending on product size)
2. External packaging
8 pieces - 300 pieces in a carton (depends on product size)
3. Packing the shipment
18-24 cartons per box or pallet, shockproof and safe for transport.

PORT:SHANGHAI
