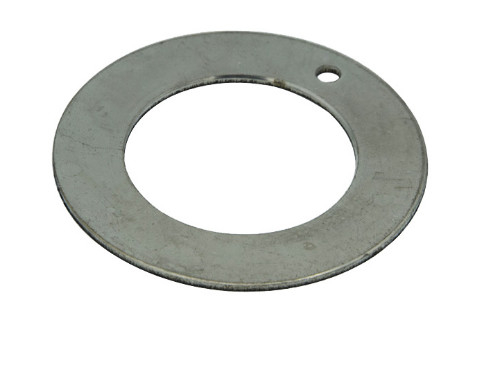

Customized Plate High Hardness 304 Steel Teflon Coated Washer

Customized Plate High Hardness 304 Steel Teflon Coated Washer
Customized Plate High Hardness 304 Steel Teflon Coated Washer Customized Plate High Hardness 304 Steel Teflon Coated Washer

Large Image :  Customized Plate High Hardness 304 Steel Teflon Coated Washer

Product Details:
Place of Origin: Self Lube Bearings
Brand Name: bronzelube.com
Certification: Plain Sleeve Bearings Standards met: RoHS
Model Number: Washer Lead Free
Payment & Shipping Terms:
Minimum Order Quantity: Bronze Precision Wear Plates & Lubricating Parts made to order
Price: US$0.11 - US$21.11 / Pieces,NEGOTIABLE
Packaging Details: Standard package, Pallet or container, As per customized specifications
Delivery Time: Shipped in 3-20 work days
Payment Terms: TT IN ADVANCE,L/C,Western Union
Supply Ability: Self Lube Bearing Manufacturing Dimensions Tolerance Assembly

Customized Plate High Hardness 304 Steel Teflon Coated Washer

Description
Meterial: Low-Carbon Steel + Porous Bronze + PTFE Plating: Tin Or Copper
Types: FLANGE/SLEEVE/WASHER Application:: Printing, Weaving And Tobacco Producing Machines, Gymnastic Equipment, Shock Absorbers, Etc.
Production Feature: Washer Application: Heavy Industry, General Industry, Automotive Industry
High Light:

bronze wear plate

,

brass wear plate

Thrust Washers Sliding layer - Proprietary filled PTFE tape liner

Factory customized high hardness 304 or 316 steel Teflon coated,Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes,washer and wear plate.

APPLICATION

Pulley spacers • Gear spacers • Aerial lifts • Fork lift masts • King pins • Steering links • Lift gates • Cranes • Backhoes • Valve actuator linkages

CHARACTERISTICS

Product Name

Steel Teflon Washer

Max Load Capacity

Static load 250N/mm2 ; Dynamic load 140N/mm2

Max Load Speed

Dry friction 2.5m/s ; Oil lubrication 5.0m/s

Max PV Value Limit

Dry friction 3.6N/mm2 m/s ; Oil lubrication 50N/mm2 m/s

Friction Coefficient

Dry friction 0.08~0.20 ; Oil lubrication 0.02~0.07

Work Temperature

-195℃~+280℃

Thermal Conductivity

42w/m k

Production Process

Material cutting~Bronze sintering~PTFE sintering~Sizing~Coiling~Surface finish~Packing

Application Feature

Self lubrication, Low wear, Low friction, Low noise, Good sliding characteristic, Pb free

WASHER SIZE CHART



WASHER SIZE CHART
  Di (mm) Do (mm) ST (mm) dD (mm) dP (mm) Ha max. (mm) Ha min. (mm)
WC08DU 10 20 1.5     1.2 0.95
WC10DU 12 24 1.5 1.75 18 1.2 0.95
WC12DU 14 26 1.5 2.25 20 1.2 0.95
WC14DU 16 30 1.5 2.25 22 1.2 0.95
WC16DU 18 32 1.5 2.25 25 1.2 0.95
WC18DU 20 36 1.5 3.25 28 1.2 0.95
WC20DU 22 38 1.5 3.25 30 1.2 0.95
WC22DU 24 42 1.5 3.25 33 1.2 0.95
WC24DU 26 44 1.5 3.25 35 1.2 0.95
WC25DU 28 48 1.5 4.25 38 1.2 0.95
WC30DU 32 54 1.5 4.25 43 1.2 0.95
WC35DU 38 62 1.5 4.25 50 1.2 0.95
WC40DU 42 66 1.5 4.25 54 1.2 0.95
WC45DU 48 74 2 4.25 61 1.7 1.45
WC50DU 52 78 2 4.25 65 1.7 1.45
WC60DU 62 90 2 4.25 76 1.7 1.45

AVAILABILITY

Bearing forms available in standard dimensions	Self Lube Wear Plates
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers
