CuSn8P Flanged Bronze Bushing Metric Size

Place of Origin gleitlagerbuchsen china
Brand Name VIIPLUS
Certification ISO 9001
Model Number Wrapped bronze bushing
Minimum Order Quantity Standard Size Bushing No Minimum Order Quantity
Price Bushings High Quality Price Ratio B2B
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 3 - 15 BUSINESS DAYS
Payment Terms T/T
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing
Product Details
Features High Load Capability, Low Weight, Good Corrosion Resistance Type Sleeve, Flange
Material CuSn8, CuSn6, Customized Samples Avaliable
Size Custom Size Design Custom Designs
Other Type Washer Processing Method Wrapped
High Light

CuSn8P Flanged Bronze Bushing

,

ISO 3547 Wrapped Bronze Bushing

,

HB150 Flanged Bronze Bushing

Leave a Message
Product Description

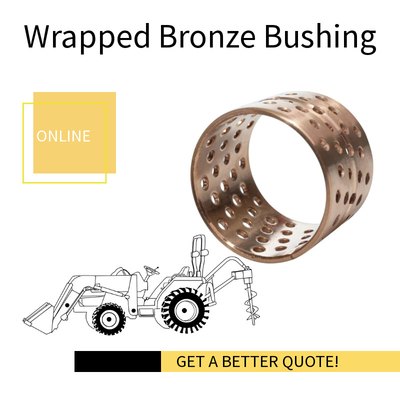

Agricultural Machine Parts Cusn8 Bronze Bushings



Finding the right agricultural equipment parts bronze bushings at the right price can be tough. With thousands of dealers across the country we can help you locate the bronze bushings you are looking for. Search our inventory of bronze bushings to match your equipment.



Quality bronze bushings made by the bronzegleitlager.com Order Today!

One-stop service and specialized in a variety of industry, such as agricultural machinery parts bronze bushings. Providing high quality OEM bronze bushings with professional industrial suggestions.

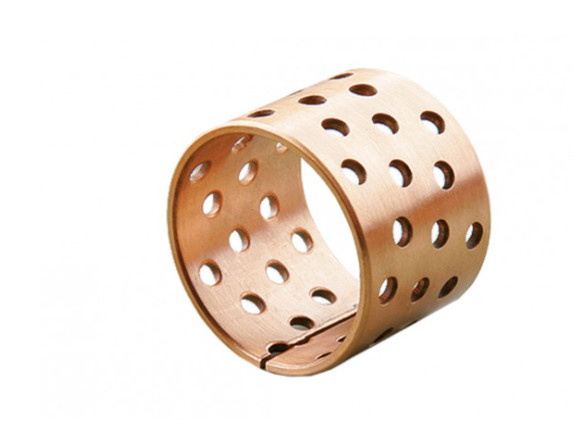

Wrapped Split Sleeve Bronze Bushing Bearing with Oil Holes 092

The wrapped bronze bushing is made of tin-bronze CuSn8P.



These bearings are wrapped by cold-formed homogeneous bronze (CuSn8), which can achieve exceptional material properties. Depending on the different lubrication conditions, we can provide diamond shaped lubrication cavities (grease) and contain holes (oil). These designs can quickly form a lubricating film at the start of movement and then reduce friction during operation.

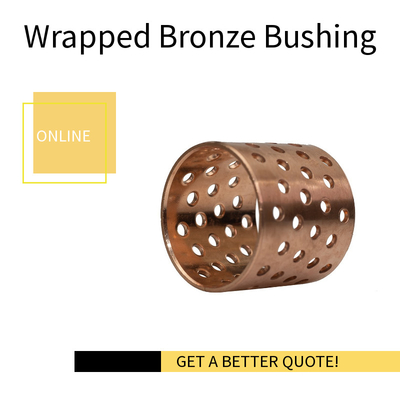

Wrapped bronze bushings with through holes



WRAPPED BRONZE BUSHING WITH THROUGH HOLES 092



Structure

  • Bronze bearings made of CuSn8 with through-holes



Microsection

  • CuSn8 with composition (Sn:8%, P<0.05%, Cu:Rest)



Wrapped bronze bushings featrue



  • Wrapped bronze bushings are made entirely of bronze.
  • They are particularly suitable for applications that require relubrication due to dirty environments.
  • The sliding surface is provided with lubrication holes that contribute to improved lubrication performance.
  • This bushing is manufactured according to ISO 3547 and DIN 1494.



Wrapped bronze bushings advantages



  • Insensitive to dirty environments
  • Resistant to shock loads and vibrations at low speeds
  • Good resistance to corrosive conditions



Wrapped bronze bushings material



Wrapped bronze is made entirely of CuSn6.5 or CuSn8 bronze. The sleeves are made of strips which are then calibrated and wrapped.
The work surface is machined and has circular holes all over the wall.
These recesses serve as grease reservoirs where grease is initially filled and gradually released during operation.



Wrapped bronze bushings 092 oil holes type



 wrapped bronze bushing 092 Oil Indentations Holes



Wrapped bronze bushings main applications



Wrapped bronze bushings are suitable for both radial and axial movements.
Bushings are well suited to machines in dirty environments with shock loads and / or vibrations.



  • Examples of applications are:
  • Agricultural machinery
  • Hoisting equipment
  • Construction machinery
  • Forest machinery



Wrapped bronze bushings lubrication



Lubrication improves sliding properties, reduces wear and prevents corrosion, as the metal surfaces of the bushing and shaft are separated from each other.
Wrapped bronze bushings are suggested to be lubricated with grease or oil. All commonly used greases can be used.
Seals are recommended when the bearing is to be used in an aggressive environment.



Wrapped bronze bushings Properties



Economical solution for bronze bearings due to low wall thickness. High load capacity and good stability with low abrasion. Suitable for harsh working conditions, good corrosion resistance.



Product Type:
Wrapped bronze bushing
Application :
Agricultural
Material:
CuSn8P
Density:
8.8g/cm3
Max Dynamic Load:
120N/mm²
Max Linear Velocity(Grease):
2.5m/s
Max PV Value Grease :
2.8N/mm²·m/s
Pressure Strength
>460N/mm²
Yield Strength N/mm2
>280N/mm2
Hardness:
90-150
Mating Axis
Hardness ≥50, Roughness 0.4-1.0
Working Temperature
-40~+125℃
Friction Coefficient
0.06~0.15
Linear Expansion Coefficient
18.5×10-6/K
coefficient of heat conduction
58W/m·K
In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.

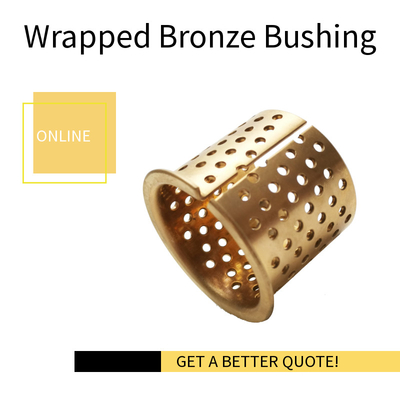

Flanged Wrapped Bronze Bushing With Through Holes - Metric Size



Product Bearing Type Shaft Dia., Nominal (d) (mm) Bearing Outside Diameter, Nominal(Do) (mm) Bearing Length, Nominal (B) (mm) Wall Thickness (S3) (mm)
Wrapped bronze bushing Cusn8 material F6540 flanged bronze bushings 65 70 40 2.5
Wrapped bronze bushing Cusn8 material F6560 flanged bronze bushings 65 70 60 2.5
Wrapped bronze bushing Cusn8 material F17080 flanged bronze bushings 170 175 80 2.5
Wrapped bronze bushing Cusn8 material F9070 flanged bronze bushings 90 95 70 2.5
Wrapped bronze bushing Cusn8 material F19070 flanged bronze bushings 190 195 70 2.5
Wrapped bronze bushing Cusn8 material F11060 flanged bronze bushings 110 115 60 2.5
Wrapped bronze bushing Cusn8 material F7070 flanged bronze bushings 70 75 80 2.5
Wrapped bronze bushing Cusn8 material F8040 flanged bronze bushings 80 85 40 2.5
Wrapped bronze bushing Cusn8 material F12070 flanged bronze bushings 120 125 70 2.5
Wrapped bronze bushing Cusn8 material F7040 flanged bronze bushings 70 75 40 2.5
Wrapped bronze bushing Cusn8 material F25080 flanged bronze bushings 250 255 80 2.5
Wrapped bronze bushing Cusn8 material F6550 flanged bronze bushings 65 70 50 2.5
Wrapped bronze bushing Cusn8 material F30070 flanged bronze bushings 300 305 70 2.5
Wrapped bronze bushing Cusn8 material F9090 flanged bronze bushings 90 95 100 2.5
Wrapped bronze bushing Cusn8 material F11090 flanged bronze bushings 110 115 90 2.5
Wrapped bronze bushing Cusn8 material F20090 flanged bronze bushings 200 205 90 2.5
Wrapped bronze bushing Cusn8 material F25060 flanged bronze bushings 250 255 60 2.5
Wrapped bronze bushing Cusn8 material F16080 flanged bronze bushings 160 165 80 2.5
Wrapped bronze bushing Cusn8 material F13090 flanged bronze bushings 130 135 90 2.5
Wrapped bronze bushing Cusn8 material F6040 flanged bronze bushings 60 65 40 2.5
Wrapped bronze bushing Cusn8 material F3525 flanged bronze bushings 35 39 25 2
Wrapped bronze bushing Cusn8 material F4550 flanged bronze bushings 45 50 50 2.5
Wrapped bronze bushing Cusn8 material F16060 flanged bronze bushings 160 165 60 2.5
Wrapped bronze bushing Cusn8 material F3020 flanged bronze bushings 30 34 20 2
Wrapped bronze bushing Cusn8 material F11080 flanged bronze bushings 110 115 80 2.5
Wrapped bronze bushing Cusn8 material F3030 flanged bronze bushings 30 34 30 2
Wrapped bronze bushing Cusn8 material F6535 flanged bronze bushings 65 70 35 2.5
Wrapped bronze bushing Cusn8 material F19080 flanged bronze bushings 190 195 80 2.5
Wrapped bronze bushing Cusn8 material F7540 flanged bronze bushings 75 80 40 2.5
Wrapped bronze bushing Cusn8 material F10070 flanged bronze bushings 100 105 70 2.5
Wrapped bronze bushing Cusn8 material F8070 flanged bronze bushings 80 85 70 2.5
Wrapped bronze bushing Cusn8 material F5035 flanged bronze bushings 50 55 35 2.5
Wrapped bronze bushing Cusn8 material F20060 flanged bronze bushings 200 205 60 2.5
Wrapped bronze bushing Cusn8 material F8035 flanged bronze bushings 80 85 35 2.5
Wrapped bronze bushing Cusn8 material F26560 flanged bronze bushings 265 270 60 2.5
Wrapped bronze bushing Cusn8 material F2525 flanged bronze bushings 25 28 25 1.5
Wrapped bronze bushing Cusn8 material F7050 flanged bronze bushings 70 75 50 2.5
Wrapped bronze bushing Cusn8 material F26580 flanged bronze bushings 265 270 80 2.5
Wrapped bronze bushing Cusn8 material F5530 flanged bronze bushings 55 60 30 2.5
Wrapped bronze bushing Cusn8 material F7560 flanged bronze bushings 75 80 60 2.5
Wrapped bronze bushing Cusn8 material F19060 flanged bronze bushings 190 195 60 2.5
Wrapped bronze bushing Cusn8 material F6030 flanged bronze bushings 60 65 30 2.5
Wrapped bronze bushing Cusn8 material F17070 flanged bronze bushings 170 175 70 2.5
Wrapped bronze bushing Cusn8 material F6530 flanged bronze bushings 65 70 30 2.5
Wrapped bronze bushing Cusn8 material F7570 flanged bronze bushings 75 80 70 2.5
Wrapped bronze bushing Cusn8 material F20070 flanged bronze bushings 200 205 70 2.5
Wrapped bronze bushing Cusn8 material F13060 flanged bronze bushings 130 135 60 2.5
Wrapped bronze bushing Cusn8 material F22590 flanged bronze bushings 225 230 90 2.5
Wrapped bronze bushing Cusn8 material F14080 flanged bronze bushings 140 145 80 2.5
Wrapped bronze bushing Cusn8 material F20080 flanged bronze bushings 200 205 80 2.5
Wrapped bronze bushing Cusn8 material F12080 flanged bronze bushings 120 125 80 2.5
Wrapped bronze bushing Cusn8 material F19090 flanged bronze bushings 190 195 90 2.5
Wrapped bronze bushing Cusn8 material F8060 flanged bronze bushings 80 85 60 2.5
Wrapped bronze bushing Cusn8 material F13070 flanged bronze bushings 130 135 70 2.5
Wrapped bronze bushing Cusn8 material F15090 flanged bronze bushings 150 155 90 2.5
Wrapped bronze bushing Cusn8 material F28590 flanged bronze bushings 285 285 90 2.5
Wrapped bronze bushing Cusn8 material F6035 flanged bronze bushings 60 65 35 2.5
Wrapped bronze bushing Cusn8 material F13080 flanged bronze bushings 130 135 80 2.5
Wrapped bronze bushing Cusn8 material F5040 flanged bronze bushings 50 55 40 2.5
Wrapped bronze bushing Cusn8 material F30080 flanged bronze bushings 300 305 80 2.5
Wrapped bronze bushing Cusn8 material F15070 flanged bronze bushings 150 155 70 2.5
Wrapped bronze bushing Cusn8 material F4025 flanged bronze bushings 40 44 25 2
Wrapped bronze bushing Cusn8 material F18080 flanged bronze bushings 180 185 80 2.5
Wrapped bronze bushing Cusn8 material F28560 flanged bronze bushings 285 285 60 2.5
Wrapped bronze bushing Cusn8 material F28580 flanged bronze bushings 285 285 80 2.5
Wrapped bronze bushing Cusn8 material F18060 flanged bronze bushings 180 185 60 2.5
Wrapped bronze bushing Cusn8 material F26570 flanged bronze bushings 265 270 70 2.5
Wrapped bronze bushing Cusn8 material F4540 flanged bronze bushings 45 50 40 2.5
Wrapped bronze bushing Cusn8 material F5050 flanged bronze bushings 50 55 50 2.5
Wrapped bronze bushing Cusn8 material F15060 flanged bronze bushings 150 155 60 2.5
Wrapped bronze bushing Cusn8 material F4535 flanged bronze bushings 45 50 35 2.5
Wrapped bronze bushing Cusn8 material F12090 flanged bronze bushings 120 125 90 2.5
Wrapped bronze bushing Cusn8 material F30090 flanged bronze bushings 300 305 90 2.5
Wrapped bronze bushing Cusn8 material F22580 flanged bronze bushings 225 230 80 2.5
Wrapped bronze bushing Cusn8 material F11070 flanged bronze bushings 110 115 70 2.5
Wrapped bronze bushing Cusn8 material F25070 flanged bronze bushings 250 255 70 2.5
Wrapped bronze bushing Cusn8 material F6060 flanged bronze bushings 60 65 60 2.5
Wrapped bronze bushing Cusn8 material F8050 flanged bronze bushings 80 85 50 2.5
Wrapped bronze bushing Cusn8 material F8080 flanged bronze bushings 80 85 80 2.5
Wrapped bronze bushing Cusn8 material F7060 flanged bronze bushings 70 75 60 2.5
Wrapped bronze bushing Cusn8 material F4530 flanged bronze bushings 45 50 30 2.5
Wrapped bronze bushing Cusn8 material F14090 flanged bronze bushings 140 145 90 2.5
Wrapped bronze bushing Cusn8 material F9060 flanged bronze bushings 90 95 60 2.5
Wrapped bronze bushing Cusn8 material F16070 flanged bronze bushings 160 165 70 2.5
Wrapped bronze bushing Cusn8 material F4035 flanged bronze bushings 40 44 35 2
Wrapped bronze bushing Cusn8 material F3535 flanged bronze bushings 35 39 35 2
Wrapped bronze bushing Cusn8 material F14070 flanged bronze bushings 140 145 70 2.5
Wrapped bronze bushing Cusn8 material F18070 flanged bronze bushings 180 185 70 2.5
Wrapped bronze bushing Cusn8 material F26590 flanged bronze bushings 265 270 90 2.5
Wrapped bronze bushing Cusn8 material F14060 flanged bronze bushings 140 145 60 2.5
Wrapped bronze bushing Cusn8 material F17060 flanged bronze bushings 170 175 60 2.5
Wrapped bronze bushing Cusn8 material F16090 flanged bronze bushings 160 165 90 2.5
Wrapped bronze bushing Cusn8 material F5030 flanged bronze bushings 50 55 30 2.5
Wrapped bronze bushing Cusn8 material F10050 flanged bronze bushings 100 105 50 2.5
Wrapped bronze bushing Cusn8 material F10080 flanged bronze bushings 100 105 80 2.5
Wrapped bronze bushing Cusn8 material F7535 flanged bronze bushings 75 80 35 2.5
Wrapped bronze bushing Cusn8 material F15080 flanged bronze bushings 150 155 80 2.5
Wrapped bronze bushing Cusn8 material F9050 flanged bronze bushings 90 95 50 2.5
Wrapped bronze bushing Cusn8 material F2515 flanged bronze bushings 25 28 15 1.5
Wrapped bronze bushing Cusn8 material F28570 flanged bronze bushings 285 285 70 2.5
Wrapped bronze bushing Cusn8 material F25090 flanged bronze bushings 250 255 90 2.5
Wrapped bronze bushing Cusn8 material F5535 flanged bronze bushings 55 60 35 2.5
Wrapped bronze bushing Cusn8 material F7035 flanged bronze bushings 70 75 35 2.5
Wrapped bronze bushing Cusn8 material F6050 flanged bronze bushings 60 65 50 2.5
Wrapped bronze bushing Cusn8 material F10060 flanged bronze bushings 100 105 60 2.5
Wrapped bronze bushing Cusn8 material F3025 flanged bronze bushings 30 34 25 2
Wrapped bronze bushing Cusn8 material F3520 flanged bronze bushings 35 39 20 2
Wrapped bronze bushing Cusn8 material F5540 flanged bronze bushings 55 60 40 2.5
Wrapped bronze bushing Cusn8 material F4030 flanged bronze bushings 40 44 30 2
Wrapped bronze bushing Cusn8 material F10090 flanged bronze bushings 100 105 90 2.5
Wrapped bronze bushing Cusn8 material F22560 flanged bronze bushings 225 230 60 2.5
Wrapped bronze bushing Cusn8 material F7550 flanged bronze bushings 75 80 50 2.5
Wrapped bronze bushing Cusn8 material F17090 flanged bronze bushings 170 175 90 2.5
Wrapped bronze bushing Cusn8 material F11050 flanged bronze bushings 110 115 50 2.5
Wrapped bronze bushing Cusn8 material F4040 flanged bronze bushings 40 44 40 2
Wrapped bronze bushing Cusn8 material F22570 flanged bronze bushings 225 230 70 2.5
Wrapped bronze bushing Cusn8 material F2520 flanged bronze bushings 25 28 20 1.5
Wrapped bronze bushing Cusn8 material F9080 flanged bronze bushings 90 95 80 2.5
Wrapped bronze bushing Cusn8 material F5550 flanged bronze bushings 55 60 50 2.5
Wrapped bronze bushing Cusn8 material F12060 flanged bronze bushings 120 125 60 2.5
Wrapped bronze bushing Cusn8 material F3530 flanged bronze bushings 35 39 30 2



Maintenance



These are low-maintenance bushings. Pre-lubrication is necessary during assembly, after that periodic lubrication with oil or grease is mandatory.



Range of application



Agriculture machinery, truck cranes & construction machinery, suitable for impact loads.



bronze bushing application - equipment manchinery - tractor
