Cusn8 Standard Oil hole Material Thrust Washers & Strips | Bronze bushings for Lifting gear

Cusn8 Standard Oil hole Material Thrust Washers & Strips | Bronze bushings for Lifting gear
Cusn8 Standard Oil hole Material Thrust Washers & Strips | Bronze bushings for Lifting gear
Cusn8 Standard Oil hole Material Thrust Washers & Strips | Bronze bushings for Lifting gear Cusn8 Standard Oil hole Material Thrust Washers & Strips | Bronze bushings for Lifting gear Cusn8 Standard Oil hole Material Thrust Washers & Strips | Bronze bushings for Lifting gear Cusn8 Standard Oil hole Material Thrust Washers & Strips | Bronze bushings for Lifting gear Cusn8 Standard Oil hole Material Thrust Washers & Strips | Bronze bushings for Lifting gear Cusn8 Standard Oil hole Material Thrust Washers & Strips | Bronze bushings for Lifting gear Cusn8 Standard Oil hole Material Thrust Washers & Strips | Bronze bushings for Lifting gear

Large Image :  Cusn8 Standard Oil hole Material Thrust Washers & Strips | Bronze bushings for Lifting gear

Product Details:
Place of Origin: Bronze Bushing Manufacturer
Brand Name: CHINA wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance
Certification: Bushing Standard Met:MBZ, B09 or MBZ B09
Model Number: Bronze Bearings and Bronze Sleeve Bushings made of CuSn8
Payment & Shipping Terms:
Minimum Order Quantity: phosphor bronze bush,tin bronze bearings,brass bushes
Price: Precision Tolerance, Factory Price‎
Packaging Details: EXPORT CARTONS
Delivery Time: 2-3 Weeks
Payment Terms: TT IN ADVANCE
Supply Ability: 1200000 Piece/Pieces per Month

Cusn8 Standard Oil hole Material Thrust Washers & Strips | Bronze bushings for Lifting gear

Description
Meterial: Bronze CuSn8,CuSn6.5 Type: 090 & 092 BRONZE BUSHES
Feature: High Load Lubrication: Oil Lubrication
Quality: OEM Quality Application: Agricultural, Building And Engineering Machines, Etc
High Light:

wrapped bronze bushings

,

flanged bronze bushings

Round Oil Hole Wrapped Bronze Bearings CuSn8 Material

Monometallic material CuSn8 with grease reservoirs for long term lubrication.Quality bronze parts with exceptional customer service.

Order Online Today. Stock Orders Ship Today. Types: Bronze Bushing Standards, Oil-less Type Bushing, Rolled Bushings.

FB090-2023-20 Inner diameter 20 (mm) outer diameter 23 (mm) thickness 20 (mm)

Wrapped oilles bushing inside with oil pockets.straight & flanged bushings.CuSn8 Bronze bushings for Lifting gear 092 bronze sintered bronze bushing wrapped bearing with holes gleitlager

090/092 bronze sleeve bearing is an economical rolling bearing with high bearing capacity and good wear resistance, which is made of CuSn8 or CuSn6.5P0.1 copper sheet as the base material and rolled.The rhomboid oil holes, which are regularly arranged on the surface of the rolling mill, can be coated with oil during installation and play the role of oil storage.

This product is widely used in agricultural machinery, construction machinery, mining machinery and so on.



 wrapped bronze bushings

Download bush bearing catalogue, FB-090 series bronze bushing.pdf.



Feature

090 and 092 bronze bushes are made from phosphorous bronze.These types of bushes, both cylindrical and flanged, are
cut from bronze sheets with a thickness between 1 and 2.5 mm. The main features of 090 and 092 bronze bushes are: high load capacity, high thermal conductivity and good resistance against bumps and oscillations.

Composition is same as VSB -090, but with holes to collect the lubricant instead of indentations.


092 bronze bushing with holes It is suitable for high load, lower speed application like construction, Transport, and agriculture machinery.092 is deriving from 090; the difference between 090 & 092 is Indentations on working surface, which substituted by Through-holes. Theses holes will allow greater capacity to collect lubricant, which build up a lubrication film at the start of movement and reduce the frication.

Bearings are thin-walled, rolled CuSn8 parts provided with depots for use with lubricants. They feature high-load capacity enabling compact, high-performing, low-maintenance bearing locations.



There are three basic variants

as variant with rolled-in diamond-shaped lubrication recesses. This type is primarily designed to cope with cases where surrounding construction elements such as gear wheels are oil lubricated. Equally suitable are commercially available, pumpable greases or pastes.

also has lubrication recesses. However, these are filled with a solid lubricant, thus permitting operation without additional lubrication.



If greater demands are made on grease supply, with end-to-end lubrication holes would be the type to use. This variant is less suitable for oil lubrication due to its design.



Cusn8 Bronze Bushings DZA CuSn8 Sintered Brass Bushing for sale – Wrapped Bronze




 Chemical Composition

Part No.

Material

Cu

Sn

P

Pb

Zn

090

CuSn8

91.3%

8.5%

0.2%

/

/

092

CuSn8

91.3%

8.5%

0.2%

/

/



Advantages


090 and 092 bronze bushes are very easy to mount in various applications, thanks to their minimal bulk. In addition to being easy to mount, this type of bush is set apart by its excellent sliding capacity and simplified lubrication (long lubrication intervals).



Typical application



·Mechanical handling

·Lifting equipment

·Hydraulic cylinders

·Pneumatic equipment

·Medical equipment

·Textile machinery

·Agricultural

·Equipment

·Others

wrapped bronze bushing



Quality Bronze Bushes



We are offering Precision Bushes and Washers in Phosphorus Bronze, Gun Metal, Aluminium Bronze, High Tensile Brass in various grades.

We manufacture these parts as per the Drawing / Samples provided by the customers. We can also design the parts as per the requirements of the customers.



WRAPPED BRONZR BUSHING

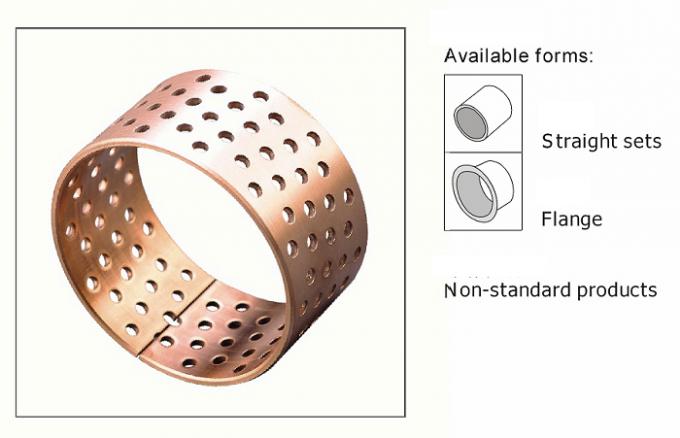

Bronze Wrapped Bearing with holoes (092 CYLINDRICAL BUSHES )



Bronze Bushes and Oil Pockets 090 & 092 BRONZE BUSHES


CuSn8P Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets

Composition of Bronze Bushing 092 and standard oil hole

092 Oil Indentations/Holes

Cusn8 Standard Oil hole Material Thrust Washers & Strips | Bronze bushings for Lifting gear 3



TECHNICAL DATA

Dynamic load limit

60N/mm²

ompostions

 CuSn8P0.3 or CuSn6.5P0.1

PV limit

 2.8N/mm²*m/s

HardnessHB

90~120

Speed limit

2.5m/s

Temp.limit

200°C



Cusn8 Standard Oil hole Material Thrust Washers & Strips | Bronze bushings for Lifting gear 4




VSB-22 CuSn8P Wrapped Bearings

Special technical features


The internal surface of 090 and 092 bronze bushes can be supplied with spherical pockets
(spherical cap pockets) or with diamond shaped pockets (lozenge cap pockets). The VIIPLUS range also includes a series of entirely bronze bushes, originating from the 090 series, with the difference being that the spherical and lozenge pockets on the sliding surface are replaced by through-holes (092 type), therefore with greater lubrication capacity and high resistance against chemical agents.




wrapped bronze bushings


SIZE 090 Bronze wrapped bushing
