CNC Precision Machining Copper Flange Sleeve Bushing Oil Groove Costom Size

Certification
China JIAXING VIIPLUS INTERNATIONAL TRADING CO.,LTD certification
China JIAXING VIIPLUS INTERNATIONAL TRADING CO.,LTD certification
Customer Reviews
Our company import the bronze gleitlager from viiplus china,viiplus professional team makes sure customs clearance is always smooth. They provide an accurate bronze bushing classification, handle all the paperwork,We have received the self-lubricating bronze bushings. They look well done and the high quality.

—— David from Canada

We import the bronze gleitlager from China to under the incoterm FOB shanghai, sometimes by Air. viiplus is a very good bronze gleitlager supplier, they are very professional and patient, after we inform the new order, they will manufacturer bronze gleitlager in time and give us the schedule , and then we just need to receive the bronze parts

—— Valerie from California

Bushes with steel backing,ptfe is good quality,not fall off.

—— Daisy From Germany

“Valve Bushings perfect,Thank you so much for your superior customer service!

—— Beverly from Florida

I'm Online Chat Now

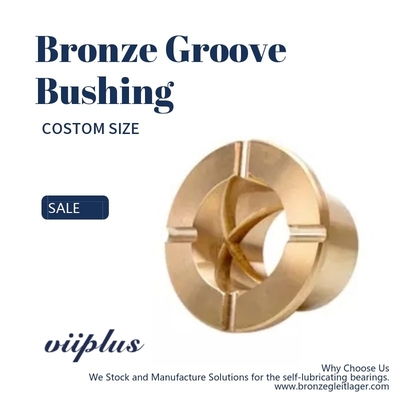

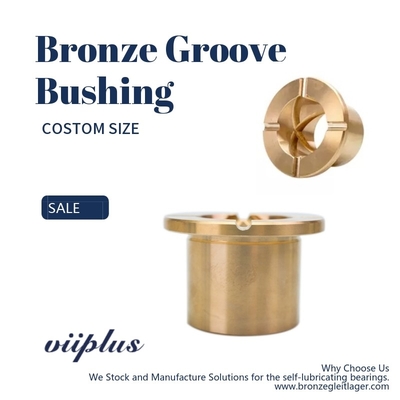

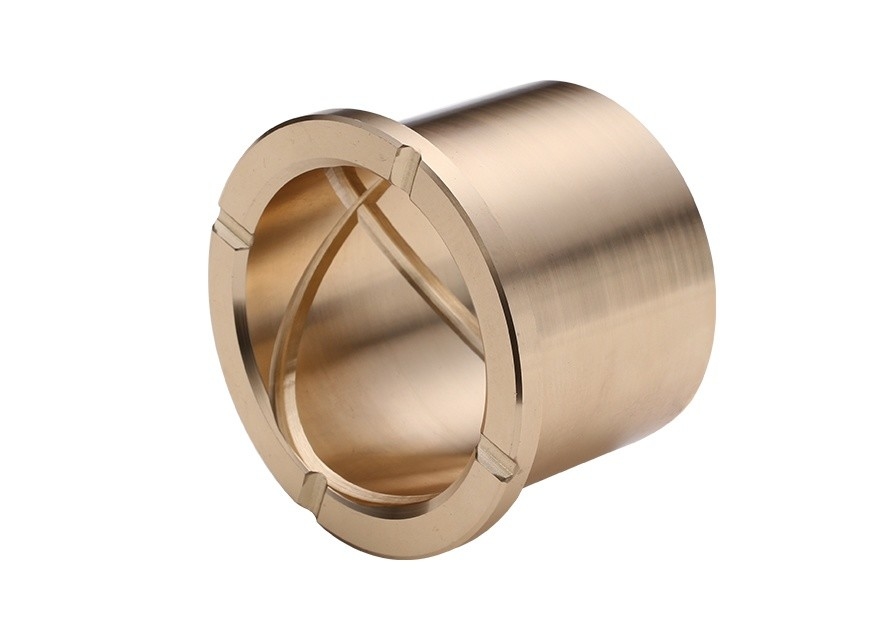

CNC Precision Machining Copper Flange Sleeve Bushing Oil Groove Costom Size

CNC Precision Machining Copper Flange Sleeve Bushing Oil Groove Costom Size
CNC Precision Machining Copper Flange Sleeve Bushing Oil Groove Costom Size CNC Precision Machining Copper Flange Sleeve Bushing Oil Groove Costom Size CNC Precision Machining Copper Flange Sleeve Bushing Oil Groove Costom Size

Large Image :  CNC Precision Machining Copper Flange Sleeve Bushing Oil Groove Costom Size

Product Details:
Place of Origin: Graphite Bearings Manufacturers
Brand Name: VIIPLUS
Certification: ISO 9001
Model Number: Replacement Bearings
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Packaging Details: EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time: 7-20 work days
Payment Terms: T/T
Supply Ability: Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

CNC Precision Machining Copper Flange Sleeve Bushing Oil Groove Costom Size

Description
Material: CuZn25Al5Mn4Fe3/CuSn8P Type: Flanged
Size: Customzied Process Method:: CNC Processing
High Light:

graphite impregnated bronze bushings

,

graphite filled bronze bushes

Bushings - CNC Industries CNC Machining Copper Flange Sleeve Bushing With Oil Groove made to order online



CNC Precision Machining - Copper, Aluminum, Bronze Bearing Material Costom Size Bushing,Replacement Bearings,Copper bearing , Aluminum Bronze Bushing, Brass Flange and thurst washer.

VIIPLUS manufactures products in China and provides high quality rings for mining operations. With quality and precision, you can also find our alloy bearings and bronze bushings with the same tenacity and the same technical characteristics that you are entitled to expect. With exceptional fit and durability on CNC bushings, expect to achieve unprecedented hours on your machine.

CNC Machining Copper Flange Sleeve Bushing With Oil Groove use for Machine-tool,Agricultural machinery, Crane electromotor, Spring pin, Steering shaft and transmission, etc.



self lubricating bronze bushing

Material
CuZn25Al5Mn4Fe3/CuSn8P
Typical Application
Machine-tool,Agricultural machinery, Crane electromotor, Spring pin, Steering shaft and transmission, etc.
Density g/cm3
8.7
Max Dynamic Load N/mm2
60
Max Linear Velocity(Grease) m/s
0.85
Max PV value Grease N/mm2·m/s
1.65
Pressure strength N/mm2
>240
Mating Axis
Hardness ≥40, Roughness 0.4~1.0
Working Temperature ℃
40~140
Friction Coefficient
0.09~0.15
coefficient of heat conduction W/m·K
52
Linear expansion coefficien
18.5×10-6/K
Yield Strength N/mm2
>100
We can also develop according to customers special request while out of this table





VIIPLUS bronze bushes. Bushes exhibit four times the properties of OEM bushes due to the use of improved materials. This highest level of quality is necessary for bronze bushes to match CNC pins and shafts, both in terms of performance and longevity. Increased lubricity is also present with brown bushings to ensure that you get a solution that is specifically tailored to your needs.



Common questions


Q: Are you trading company or manufacturer?
A: Our management has been focused on export activities for over ten years and we have our own bushing factory. VIIPLUS is always professional and reliable. Our advantages are the integration of multiple features, strong quality assurance and excellent level of service. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Usually 10-25 days after order. It depends on the amount.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce according to the confirmed technology or drawings for every order for our customers. And our factory has a strict quality control. We check the goods during production at certain intervals and carry out the final inspection before the goods are packed.
Q: Do you only want to serve customers with small orders?
A: We are always happy to be big or small with all our customers.
We hope that our customers will become stronger and stronger to be with us.
