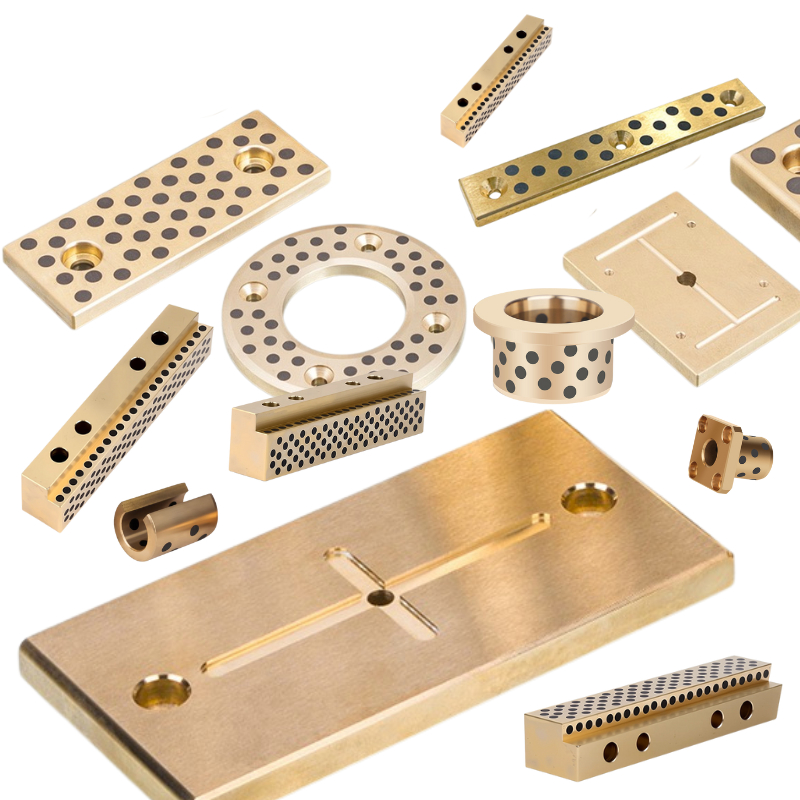

C86300 Bronze JIS, HBSC4 Copper Alloy previously Special Solid Lubricant Embedded

C86300 Bronze JIS, HBSC4 Copper Alloy previously Special Solid Lubricant Embedded
C86300 Bronze JIS, HBSC4 Copper Alloy previously Special Solid Lubricant Embedded
C86300 Bronze JIS, HBSC4 Copper Alloy previously Special Solid Lubricant Embedded C86300 Bronze JIS, HBSC4 Copper Alloy previously Special Solid Lubricant Embedded C86300 Bronze JIS, HBSC4 Copper Alloy previously Special Solid Lubricant Embedded C86300 Bronze JIS, HBSC4 Copper Alloy previously Special Solid Lubricant Embedded C86300 Bronze JIS, HBSC4 Copper Alloy previously Special Solid Lubricant Embedded C86300 Bronze JIS, HBSC4 Copper Alloy previously Special Solid Lubricant Embedded C86300 Bronze JIS, HBSC4 Copper Alloy previously Special Solid Lubricant Embedded

Large Image :  C86300 Bronze JIS, HBSC4 Copper Alloy previously Special Solid Lubricant Embedded

Product Details:
Place of Origin: Self Lube Bearings
Brand Name: bronzelube.com
Certification: Plain Sleeve Bearings Standards met: RoHS
Model Number: Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free
Payment & Shipping Terms:
Minimum Order Quantity: Bronze Precision Wear Plates & Lubricating Parts made to order
Price: US$0.11 - US$21.11 / Pieces,NEGOTIABLE
Packaging Details: Cartons with good information lable
Delivery Time: Shipped in 3-20 work days
Payment Terms: TT IN ADVANCE,L/C,Western Union
Supply Ability: Self Lube Bearing Manufacturing Dimensions Tolerance Assembly

C86300 Bronze JIS, HBSC4 Copper Alloy previously Special Solid Lubricant Embedded

Description
Material: Aluminum-Bronze With Solid Lubricant Types: Silde Block,Plate
Description: Solid Lubricating Bearings Application: Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc.
Size: Standard,Drawings Production Feature: Casting
High Light:

graphite lube plate

,

bronze wear plate


Check out Oil-Free Slide Plates for the most current pricing and lead time, made to order from china, with holes, different plate thickness.

Material: Material: C86300 Bronze (JIS, HBSC4 Copper Alloy previously) Special Solid Lubricant Embedded. Initial greasing is recommended for more effective use. Oil-Free Slide Plates Copper Alloy



Oil-Free Slide Plates – Copper Alloy

Sliding Bearings Need to be purposefully designed and manufactured. Bearing, per se, usually less costly. The overall cost is less for small bearing systems. Service life not predictable, but can be
capable of providing unlimited life. Offer more design flexibility and versatility to a broader spectrum of materials.


More tolerant of abuse. May require periodic maintenance.

Can provide high levels of beneficial damping.

Sometimes higher friction. Wear, under favorable conditions, can approach zero. Little outside help available.
Rolling Element Bearings Off-the-shelf finished bearings available.


The lower overall cost for larger bearings. Small bearings may have higher relative costs.Statistically predictable finite life.


Limited by available standard sizes, configurations, and materials.

Very sensitive to abuse. Minimal maintenance, short of replacement.


Minimal damping characteristics.Finite, generally low friction and wear.Lots of outside help available(suppliers).

Oil-Free Slide Plates Copper Alloy



C86300 casting bronze graphite oilless bush bushing plates with graphite inlaid

Casting bronze bearing with graphite plugs



The solid bronze/iron material is ideally suited for highly demanding applications in tough environments. We offer a standard assortment of plain sleeve bushings, flanged bushings and sliding plates.Plug Graphite Bearings. Plug graphite bearings are primarily used in applications that need continual lubrication in hard to reach areas. Graphite is mechanically forced into the holes/grooves under extreme pressure. A film of lubricant is transferred to the shaft as it begins to turn.





VIIPLUS bronze graphite oilless bush is a material suitable for heavy loads at low sliding speed, the solid lubricant is provided by Graphite with additive, which is inserted into the bronze structure of the bearings.

The base material is CuZn25Al5. The available items in this material are the cylindrical and flanged bush, washers, strips, and special parts on customer requests.







C83600 plates with graphite inlaid, C86300, C95400, SAE40, SAE66 aluminum-bronze bushings, brass bronze copper alloy bushings, bronze alloys bushings, bronze bar stock, cast bronze bearing, copper alloys bushes, manganese bronze bushings, aluminum bronze bearings, phosphorous bronze bushings



Graphite Inlaid Bushings & Oil-Free Slide Plates Copper Alloy

Plates China, Casting bronze bearing with graphite plugs



Solid Bronze Sliding Block Plug Graphite Cast Bronze Bearing Solid Bronze Plate C86300 | VSB-50 PLATE









Applications



Inlaid Plate, Inlaid Plate Suppliers, and Manufacturers.C86300 Bronze JIS, HBSC4 Copper Alloy previously Special Solid Lubricant Embedded 1

This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water, or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines.





CHARACTERISTICS

Material Properties

● Allows maintenance-free and long-life operation;
● Suitable for high static and dynamic loads;
● With low and smoothly coefficient of friction and without stick-slip effects;
● Suitable for dirty, corrosion, impact load and edge loading;
● The base material provided a good shock-absorbing capacity;
● Can be used over a large temperature range;
● Suitable for reciprocating, rotating and oscillating movement with start frequency and difficulty to form oil film occasions;
● With low wear rate and long life service.



VSB-50P Sliding Block solid Bronze Metallic Self-lubricating Bearings

Solid Lubricant Cast Bronze Bearings Slide Block With Immediate Running Velocity



Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine

Cast Bronze Bearing with Graphite Plugs




Solid Sliding Bearing Bushing Materials



Alloy Description

American Spec.

American Spec.

German Spec.

British Spec.

Typical Material Applications



UNS

SAE

alloy

alloy



Cu85 Sn5 Zn5 Pb5
Leaded Gunmetal

C83600

40

CuSn5ZnPb

LG2

Pump components, small gears, bearings, impellers, flanges, low pressure valves and fittings.

Cu83 Sn3 Zn8 Pb6
Leaded Gunmetal

C84400

-

CuSn2ZnPb

*LG1

Light duty bearings, general hardware, fixtures, low pressure valves and fittings.

Cu63 Al6 Fe3 Mn3 Zn25

C86300

430B

-

-

Heavy duty high strength alloy for gears, cams, slow speed heavy load bearings, screw down nuts.

Cu88 Sn8 Zn4
Tin Bronze

C90300

620

-

-

Bearings, bushings, piston rings, valve components, seal rings, steam fittings and gears.

Cu88 Sn10 Zn2
Tin Bronze

C90500

62

CuSn10Zn

*G1

Marine pumps, valves, bearings, bushings, piston rings, steam fittings and gears.

Cu89 Sn11
Tin Bronze

C90700

65

CuSn12

*PB1

Heavy-duty gears, high load bearings, bushings, and worm wheels.

Cu88 Sn6 Zn4 Pb2
Leaded Tin Bronze

C92200

622

-

LG3

Valves, fittings, Medium-pressure hydraulic and steam pressure parts for use up to 550 F (287 C)

Cu87 Sn11 Ni2
Leaded Tin Bronze

C92500

640

CuSn12Ni

CT2

Gears, worm wheels - Good shock resistance, Automotive synchronizer rings.

Cu87 Sn11 Pb2
Leaded Tin Bronze

C92700

63

CuSn12Pb

LB3

Heavy-duty bearings, bushings, piston rings, valve components, steam fittings, gears.

Cu83 Sn7 Zn3 Pb7
Leaded Tin Bronze

C93200

660

CuSn7ZnPb



General utility bearings, bushings and wear plates for medium speeds and pressures.

Cu85 Pb10 Sn5
High Leaded Tin Bronze

C93500

66

-

LB4

high-speed bearings, bushings, high-speed light loading, and light pressure parts.

Cu80 Pb10 Sn10
High Leaded Tin Bronze

C93700

64

CuPb10Sn

LB2

Bearings for high speed and heavy pressures, pump parts, pressure-tight castings.

Cu78 Pb15 Sn7
High Leaded Tin Bronze

C93800

67

CuPb15Sn

LB1

Turbocharger bearings, bearings for general service and moderate pressures, railroad applications.

Cu75 Pb20 Sn5
High Leaded Tin Bronze

C94100

94

CuPb20Sn

LB5

High-speed bearings for moderate loads, anti-seizing, conforms to shaft irregularities.

Cu87 AI10 Fe3
Aluminum Bronze

C95400

-

CuAI10Fe

-

High strength bearings, bushings, gears, worms, wear plates, valve seats, and guides.

Cu81 AI10 Ni5 Fe4
Ni Aluminum Bronze

C95500

-

CuAI10Ni

-

High strength bearings, corrosion-resistant parts, aircraft valve guides, and seats.

Cu80 AI10 Ni6 Fe4
Ni Aluminum Bronze

C95800

-

CuAl10Ni

AB2

Anti-fouling salt water corrosion resistant parts and general marine hardware.




Feature


Solid Bronze bushings are intended to be lubricated with oil or grease. Lubrication not only
improves the sliding properties but also reduces wear and prevents corrosion. Grease is usually
used when lubrication is periodical



VSB-50P Sliding Block oilless slide plate, wear plate, graphite plugged



Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines



1. May work without any oil for a long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can be used in a wide range of temperature from -40℃-+300℃



Aluminum-Bronze With Solid Lubricant Casting Bronze Slide Block

Aluminum-Bronze Solid Lubricating Slide Block is backed with Aluminum-Bronze alloy with good capability of mechanics, castings, and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Slide Block is regularly and finely machined with sockets in which a particular solid lubricant is filled.

Aluminum-Bronze Solid Lubricating Slide Block has widely used conditions with a mediate load but higher temperature and condition with mediate running velocity etc.

The surface of Aluminum-Bronze Solid Lubricating Slide Block is regularly and finely machined with sockets in which a particular solid lubricant is filled.



STRUCTURE

VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature at low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.





TECHNICAL DATA



Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm



Chemical Compositions

Product NO.

Chemical Compositions

    VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2



AVAILABILITY

Bearing forms available in standard dimensions



· Cylindrical bushes

· Flanged bushes

· Sliding plates



Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs

Solid Bronze Metallic Self-lubricating CUSTOMER SIZE Dimensions and Tolerances



START YOUR PROJECT WITH AN APPLICATION ENGINEER



thrust washer&plate inch size



C83600 plates with graphite inlaid, C86300, C95400, SAE40, SAE66 aluminum-bronze bushings, brass bronze copper alloy bushings, bronze alloys bushings, bronze bar stock, cast bronze bearing, copper alloys bushes, manganese bronze bushings, aluminum bronze bearings, phosphorous bronze bushings
