C83600 Bronze Bushing | RG5 CuSn5Pb5Zn5 Bushes

C83600 Bronze Bushing | RG5 CuSn5Pb5Zn5 Bushes
C83600 Bronze Bushing | RG5 CuSn5Pb5Zn5 Bushes
C83600 Bronze Bushing | RG5 CuSn5Pb5Zn5 Bushes C83600 Bronze Bushing | RG5 CuSn5Pb5Zn5 Bushes C83600 Bronze Bushing | RG5 CuSn5Pb5Zn5 Bushes

Large Image :  C83600 Bronze Bushing | RG5 CuSn5Pb5Zn5 Bushes

Product Details:
Place of Origin: Graphite Bearings Manufacturers
Brand Name: OILLESS BUSHES
Certification: C83600 Bronze
Model Number: Solid Bronze Bearings
Payment & Shipping Terms:
Minimum Order Quantity: NEGOTIABLE
Price: Price Graphite Bushing Parts Factory Price
Packaging Details: BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Delivery Time: FAST DELIVERY
Payment Terms: TT IN ADVANCE, Western Union
Supply Ability: Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

C83600 Bronze Bushing | RG5 CuSn5Pb5Zn5 Bushes

Description
Marerial: Phosphor Bronze Graphite Bushing Size: ID*OD*H
Standard Material: C83600 Bronze,CuSn5ZnPb5 Type: Plugged Graphite
Application: Stamping Tooling Standard Parts Feature: High Precision Brass Bearings
High Light:

graphite impregnated bronze bushings

,

graphite impregnated bushings

C83600 Bronze Bushings | C836/Rg5/CuSn5Zn5Pb5 Brass Leaded Red Brass

RG5 | Leaded Gunmetal | CuSn5Pb5Zn5 bronze bearings

C83600, Leaded Red Brass bushings, Leaded Tin Bronze bushing, Bronze bearing, solid bronze graphite bushing

Graphite Plugged Bushings, Oilless Bush with Graphite Plugs



C83600 bronze bushings Similar or Equivalent Specification

CDA ASTM SAE AMS Federal Military Other
C83600 B505
B505M
B271
B271M
B62
J461
J462
4855 WW-P-460
WW-U-516
MIL-C-11866
MIL-V-18436
Ounce Metal

Chemical Composition

Cu%1 Pb% Sn% Zn% Fe% P% Ni%1,2 Al% S% Sb% Si%
Chemical Composition according to ASTM B505/B505M-18


84.00-
86.00
4.00-
6.00
4.00-
6.00
4.00-
6.00

0.30

1.50

1.00

0.005

0.08

0.25

0.005

Material


Bronze alloy CuZn25Al5Mn4Fe3 + Graphite plugs

We can supply in a wide range of Oilless Bushes Size,Bronze Bearings Alloys according to Self-lubricating guide bush without flange



ASTM Standard.Material:CuSn5ZnPb5,CuZn25Al5Mn4Fe3,CuSn10Pb10,CuSn7Zn4Pb7,CuSn8.



VIIPLUS produces manganese and aluminum bronze for severe operating conditions, where alloys of lead or tin bronze do not possess hardness, strength or bearing capacity for adequate operation.
Preferred and most often indicated alloys for this type of bushings are:
Manganese Bronze C863 ASTM B 505
Aluminum Bronze C 954 ASTM B 505
Products are available in sleeve, flange and plate.
The standard viiplus storage line of oil-free self-lubricating manganese bronze bushings as the base metal and adds plugs for the maintenance-free self-lubricating sleeve.





OILES #500 SPFG Oilless Flanged Bushes (All dimensions in MM)



oilless flanged bushes



Standard No Φd E7 ΦD r6 ΦA L1 L
SPFG -12*15 12 0.05 18 0.034 25 11 15
0.032 0.023
SPFG -16*20 16   22 0.041 30 15 20
SPFG -20*25 20 0.061 28 0.028 36 20 25
SPFG -25*30 25 0.04 33 0.05 43 25 30
SPFG -30*35 30 0.075 38 0.034 48 30 35
SPFG -40*45 40 0.05 50   60 40 45
SPFG -50*55 50   62 0.06 75 49 55
  0.041
SPFG -60*65 60 0.09 75 0.062 90 58 65
0.06 0.043









Plain Bearing And Sleeve Bearing,solid lubricant bearing made in china.Get a fee quote https://viiplus.com,oilless bushes bearingsonline sale.Self lubricating bronze bearings,You will find to follow a selection of self lubricating bronze flange bearings and other wear plates,thurst washer manufactured.

Stamping Tooling Standard Parts,Specializing In The Production Of Non-standard C83600 Bronze Graphite Phosphor Bronze Bearings,Graphite Copper Sleeve Special Brass Bushing made to order from china. Solid Self-Lubricating Inlaid BearingThis bearing is a combination of wear resistance and self-lubricating properties of solid copper alloy body of lubricants to use in the process without refueling maintenance...

The product precision is reliable, the size is stable, the type selection is rich, may reduce the mold guide assembly time and the mold manufacture expense!

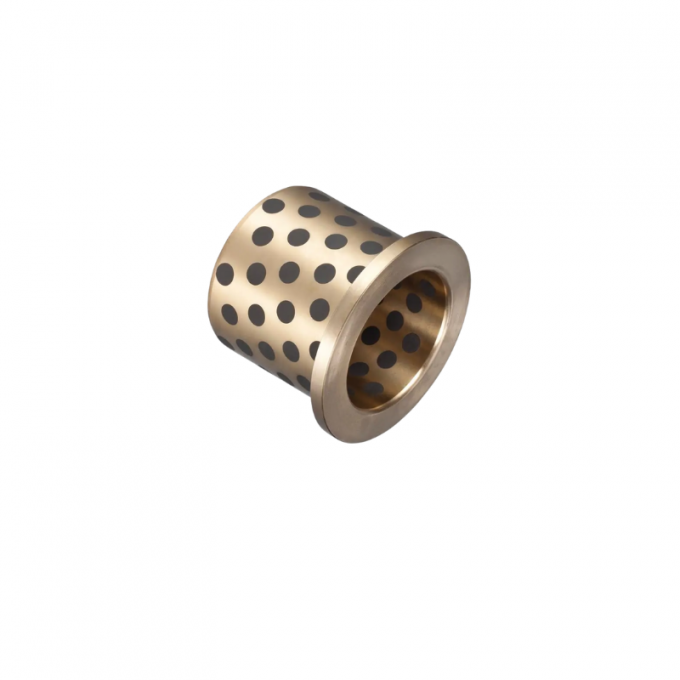

Bronze Flange Bearing Plugged Graphite Features


1. It is widely used in the mold manufacturing industry.
2. The selection of high-quality high strength brass and graphite, so that the guide sleeve in the guide performance of durability greatly enhanced, and has a beautiful metallic luster.
3. After grinding, its toughness, finish and positioning performance are excellent.
4. High dimensional accuracy and stable quality.

Can be provided as form:

  1. Straight bushings

  2. Flange bushings

  3. Thrust washer

  4. Wear Plate

  5. Non-standard products are also avalidable.

Chemical Composition

Cu%1 Pb% Sn% Zn% Fe% P% Ni%2 Al% S% Sb% Si%
84.00-
86.00
4.00-
6.00
4.00-
6.00
4.00-
6.00

0.30

0.05

1.00

0.005

0.08

0.25

0.005



Feature


Self-lubrication type...With special solid lubricant, will save the trouble for refueling.
(if use early add lubricating oil in advance, more can improve durability.)At 150 ℃ or more solid lubricant oil leakage phenomenon may occur, so please pay attention to control the mold temperature.

Product Description





Material CuZn25Al5 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12 CuZn32Al5Ni3
Density 8 8.9 7.8 8.9 8
HB hardness >210 >70 >150 >95 >280
Tensile strength N/mm2 >750 >200 >600 >260 >540
Yeild strength N/mm2 >450 >90 >260 >150 >450
Elongation % >12 >15 >10 >8 >0.3
Coefficient of
linear expansion
1.9x10-5/°C 1.8x10-5/°C 1.6x10-5/°C 1.8x10-5/°C 1.8x10-5/°C
Max. temp. -40~+300 -40~+400 -40~+400 -40~+400 -40~+150
Max. load N/mm2 100 60 50 70 150
Max. speed (Dry) m/min 15 10 20 10 15
Max. PV
N/mm2*m/min (Lubrication)
200 60 60 80 200
Compression deformation
300N/mm2
<0.01mm <0.05mm <0.04mm <0.05mm <0.005mm







Frequently asked questions about this product (FAQ)


1. What is the difference between this guide sleeve and other ordinary guide sleeves in use?
The guide sleeve is used in the same way as other guide sleeves, and the more prominent advantage is that the guide sleeve itself is self-lubricating, so no additional lubricating oil is needed when cooperating with the guide column, while other ordinary guide sleeves need to process oil groove in the hole when cooperating with the guide column.
