C83600 Bronze Bushing and RG5 CuSn5Pb5Zn5 Bushes refer to a type of bronze alloy bushings that contain specific compositions of copper, tin, lead, and zinc. The C83600 designation is a UNS (Unified Numbering System) number that identifies the alloy composition, while RG5 is a common industry name for this alloy.
The CuSn5Pb5Zn5 composition indicates that the alloy consists of approximately 5% tin (Sn), 5% lead (Pb), and 5% zinc (Zn), with the remainder being copper (Cu). This alloy is often chosen for bushings due to its excellent wear resistance, good strength, and self-lubricating properties.
Bronze bushings made from C83600/RG5 alloy are commonly used in applications where low friction, high wear resistance, and good corrosion resistance are required. They are suitable for applications involving rotating or sliding motion and can be used in a variety of industries, including machinery, automotive, and aerospace.
The bushings are typically manufactured through casting or pressing methods, followed by machining and finishing operations to achieve the desired dimensions and surface finish. They can be installed in equipment using various methods, such as pressing or threading, and are often paired with shafts or other rotating components.
RG5 | Leaded Gunmetal | CuSn5Pb5Zn5 bronze bearings
C83600, Leaded Red Brass bushings, Leaded Tin Bronze bushing, Bronze bearing, solid bronze graphite bushing
| CDA | ASTM | SAE | AMS | Federal | Military | Other |
|---|---|---|---|---|---|---|
| C83600 | B505 B505M B271 B271M B62 |
J461 J462 |
4855 | WW-P-460 WW-U-516 |
MIL-C-11866 MIL-V-18436 |
Ounce Metal |
| Cu%1 | Pb% | Sn% | Zn% | Fe% | P% | Ni%1,2 | Al% | S% | Sb% | Si% | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chemical Composition according to ASTM B505/B505M-18
|
|||||||||||
| 84.00- 86.00 |
4.00- 6.00 |
4.00- 6.00 |
4.00- 6.00 |
0.30 |
1.50 |
1.00 |
0.005 |
0.08 |
0.25 |
0.005 |
|
Bronze alloy CuZn25Al5Mn4Fe3 + Graphite plugs
We can supply in a wide range of Oilless Bushes Size,Bronze Bearings Alloys according to Self-lubricating guide bush without flange
ASTM Standard.Material:CuSn5ZnPb5,CuZn25Al5Mn4Fe3,CuSn10Pb10,CuSn7Zn4Pb7,CuSn8.
VIIPLUS produces manganese and aluminum bronze for severe operating conditions, where alloys of lead or tin bronze do not possess hardness, strength or bearing capacity for adequate operation.
Preferred and most often indicated alloys for this type of bushings are:
Manganese Bronze C863 ASTM B 505
Aluminum Bronze C 954 ASTM B 505
Products are available in sleeve, flange and plate.
The standard viiplus storage line of oil-free self-lubricating manganese bronze bushings as the base metal and adds plugs for the maintenance-free self-lubricating sleeve.
| Standard No | Φd E7 | ΦD r6 | ΦA | L1 | L | ||
| SPFG -12*15 | 12 | 0.05 | 18 | 0.034 | 25 | 11 | 15 |
| 0.032 | 0.023 | ||||||
| SPFG -16*20 | 16 | 22 | 0.041 | 30 | 15 | 20 | |
| SPFG -20*25 | 20 | 0.061 | 28 | 0.028 | 36 | 20 | 25 |
| SPFG -25*30 | 25 | 0.04 | 33 | 0.05 | 43 | 25 | 30 |
| SPFG -30*35 | 30 | 0.075 | 38 | 0.034 | 48 | 30 | 35 |
| SPFG -40*45 | 40 | 0.05 | 50 | 60 | 40 | 45 | |
| SPFG -50*55 | 50 | 62 | 0.06 | 75 | 49 | 55 | |
| 0.041 | |||||||
| SPFG -60*65 | 60 | 0.09 | 75 | 0.062 | 90 | 58 | 65 |
| 0.06 | 0.043 | ||||||
Plain Bearing And Sleeve Bearing,solid lubricant bearing made in china.Get a fee quote https://viiplus.com,oilless bushes bearingsonline sale.Self lubricating bronze bearings,You will find to follow a selection of self lubricating bronze flange bearings and other wear plates,thurst washer manufactured.
Stamping Tooling Standard Parts,Specializing In The Production Of Non-standard C83600 Bronze Graphite Phosphor Bronze Bearings,Graphite Copper Sleeve Special Brass Bushing made to order from china. Solid Self-Lubricating Inlaid BearingThis bearing is a combination of wear resistance and self-lubricating properties of solid copper alloy body of lubricants to use in the process without refueling maintenance...
The product precision is reliable, the size is stable, the type selection is rich, may reduce the mold guide assembly time and the mold manufacture expense!
1. It is widely used in the mold manufacturing industry.
2. The selection of high-quality high strength brass and graphite, so that the guide sleeve in the guide performance of durability greatly enhanced, and has a beautiful metallic luster.
3. After grinding, its toughness, finish and positioning performance are excellent.
4. High dimensional accuracy and stable quality.

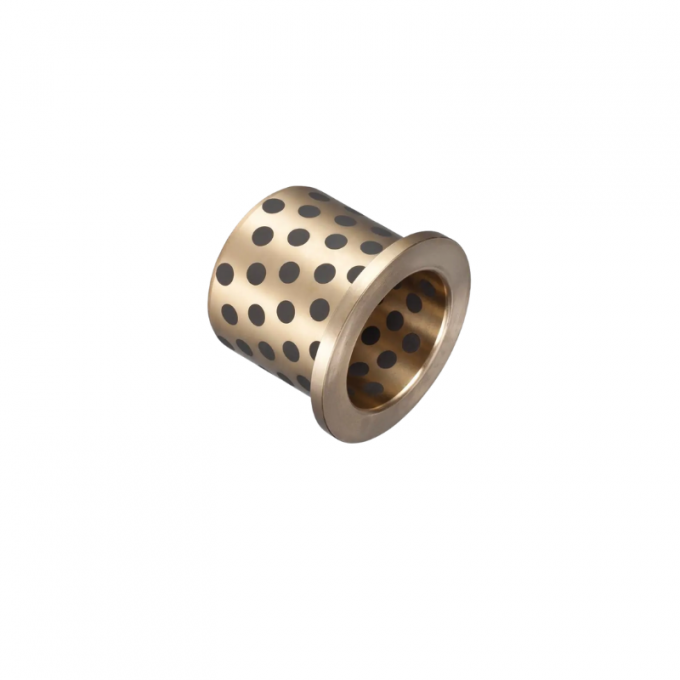

Straight bushings
Flange bushings
Thrust washer
Wear Plate
Non-standard products are also avalidable.
| Cu%1 | Pb% | Sn% | Zn% | Fe% | P% | Ni%2 | Al% | S% | Sb% | Si% |
|---|---|---|---|---|---|---|---|---|---|---|
| 84.00- 86.00 |
4.00- 6.00 |
4.00- 6.00 |
4.00- 6.00 |
0.30 |
0.05 |
1.00 |
0.005 |
0.08 |
0.25 |
0.005 |
Self-lubrication type...With special solid lubricant, will save the trouble for refueling.
(if use early add lubricating oil in advance, more can improve durability.)At 150 ℃ or more solid lubricant oil leakage phenomenon may occur, so please pay attention to control the mold temperature.
| Material | CuZn25Al5 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 | CuZn32Al5Ni3 |
| Density | 8 | 8.9 | 7.8 | 8.9 | 8 |
| HB hardness | >210 | >70 | >150 | >95 | >280 |
| Tensile strength N/mm2 | >750 | >200 | >600 | >260 | >540 |
| Yeild strength N/mm2 | >450 | >90 | >260 | >150 | >450 |
| Elongation % | >12 | >15 | >10 | >8 | >0.3 |
| Coefficient of linear expansion |
1.9x10-5/°C | 1.8x10-5/°C | 1.6x10-5/°C | 1.8x10-5/°C | 1.8x10-5/°C |
| Max. temp. | -40~+300 | -40~+400 | -40~+400 | -40~+400 | -40~+150 |
| Max. load N/mm2 | 100 | 60 | 50 | 70 | 150 |
| Max. speed (Dry) m/min | 15 | 10 | 20 | 10 | 15 |
| Max. PV N/mm2*m/min (Lubrication) |
200 | 60 | 60 | 80 | 200 |
| Compression deformation 300N/mm2 |
<0.01mm | <0.05mm | <0.04mm | <0.05mm | <0.005mm |
1. What is the difference between this guide sleeve and other ordinary guide sleeves in use?
The guide sleeve is used in the same way as other guide sleeves, and the more prominent advantage is that the guide sleeve itself is self-lubricating, so no additional lubricating oil is needed when cooperating with the guide column, while other ordinary guide sleeves need to process oil groove in the hole when cooperating with the guide column.
