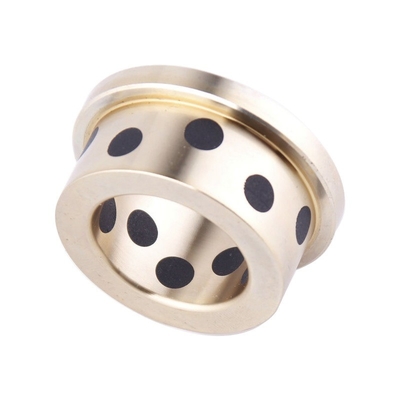

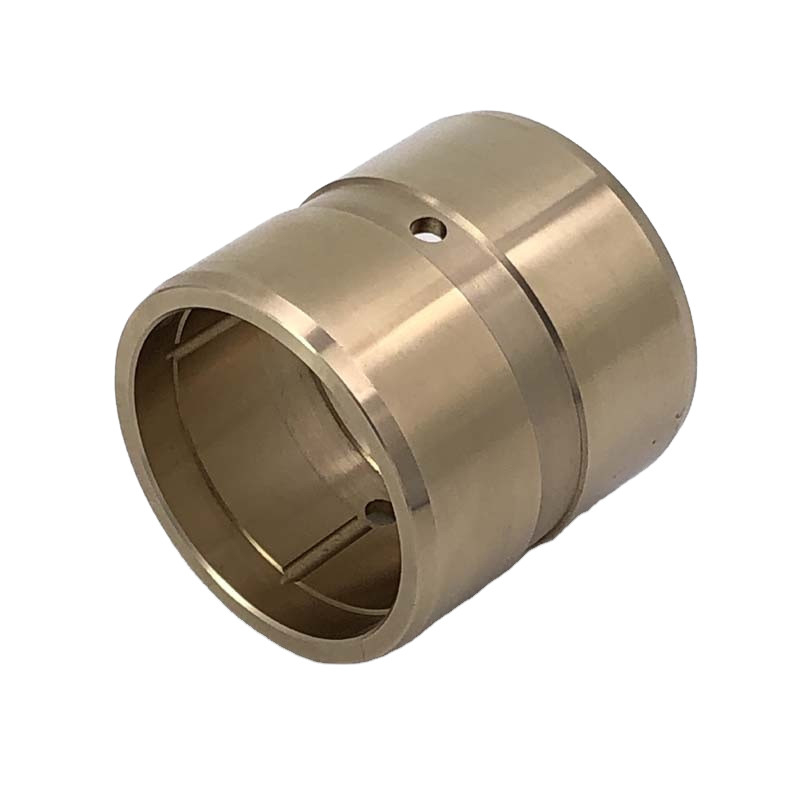

Precision Bronze Bearing C91300 Bearing

Place of Origin MADE IN CHINA
Brand Name VIIPLUS.COM
Model Number China Solid Bronze Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Friction Coefficient Low Mateiral C91300 Cast Bronze Sleeve Bearings
Maintenance Required Low Hardness >HB230
Application High Load, Low Speed Precision High
Avalibility Special Oil Groove Design Can Be Made Shock Resistance High
Leave a Message
Product Description

Precision Bronze Bearing C91300

Product Description:

Precision Bronze Bearing C91300 is a specific type of tin bronze material, which is widely used in the bearing field that requires high precision and wear resistance. The following is a detailed analysis of the Precision Bronze Bearing C91300:

I. Material characteristics
Material composition: The C91300 belongs to a type of tin bronze, which is mainly composed of copper and tin, and may also contain small amounts of other elements such as lead and phosphorus, which are added to enhance its mechanical properties and corrosion resistance.
Physical PROPERTIES: Tin bronze has excellent casting performance, and its casting shrinkage is relatively small, so it is suitable for the production of castings with complex shapes, clear contours and low air tightness requirements. At the same time, C91300 tin bronze also has high strength and good wear resistance, these characteristics make it an ideal material for the production of precision bearings.
Ii. Application fields
Industrial field: C91300 tin bronze bearing is widely used in aerospace, electric power, petrochemical, ship, machinery, electronics, environmental protection and other industries. In the fields of generator sets, shipbuilding, seawater desalination, nuclear industry and petrochemical equipment, C91300 bearings play a key role.
Specific application: It is often used in the production of bearings, piston rings, bushing, electrode plate, clock components and other high-precision, high-wear parts. In addition, the C91300 tin bronze bearing also performs well where heavy loads and low-speed movements are required, such as pump impellers, piston rings, and steam valves.
3. Technical specifications and standards
Standards and specifications: the production and inspection of C91300 tin bronze bearings usually follow the relevant international standards or industry standards, such as ASTM, AISI, DIN, EN, GB, JIS, etc. These standards specify requirements for chemical composition, mechanical properties, physical properties, and surface quality of materials.
Manufacturing process: The manufacturing process of C91300 tin bronze bearing includes raw material preparation, melting, casting, heat treatment, machining and testing. Among them, the casting process is essential to obtain high quality bearing parts.



The High Leaded Solid Bronze Bushing CuSn10Pb10 Gunmetal Bearing For Cone Crusher is designed to provide high precision and shock resistance, ensuring that it can withstand the most demanding operating conditions. This makes it an ideal choice for use in applications where reliability and performance are critical.

In addition, the Solid Bronze Bearing is available with a special oil groove design that can be customized to meet your specific requirements. This feature allows for improved lubrication and extends the life of the bearing, making it a cost-effective and reliable solution for your industrial needs.

Whether you need a durable and reliable bearing for use in heavy-duty industrial equipment or a high-precision component for use in demanding applications, the Solid Bronze Bearing is an excellent choice. With its high-quality construction, exceptional durability, and customizable design options, this bearing is sure to meet your needs and exceed your expectations.

Chemical Requirements
Copper
Alloy
UNS No.
Composition, % max, except as indicated
          Nickel
Copper Tin Lead Zinc Iron Including Aluminum Manganese Antimony Sulfur Phosphorus Silicon
          Cobalt
C86300 60.0–66.0 0.20 0.20 22.0–28.0 2.0–4.0 1.0A 5.0–7.5 2.5–5.0 ... ... ... ...
C90500 86.0–89.0 9.0–11.0 0.30 1.0–3.0 0.20 1.0A 0.005 ... 0.20 0.05 0.05B 0.005
C91100 82.0–85.0 15.0–17.0 0.25 0.25 0.25 0.50A 0.005 ... 0.20 0.05 1.0B 0.005
C91300 79.0–82.0 18.0–20.0 0.25 0.25 0.25 0.50A 0.005 ... 0.20 0.05 1.0B 0.005
C93700 78.0–82.0 9.0–11.0 8.0–11.0 0.8 0.7C 0.50A 0.005 ... 0.50 0.08 0.10B 0.005
A In determining copper minimum, copper may be calculated as copper plus nickel.
B For continuous castings, phosphorus shall be 1.5 % max.
C Iron shall be 0.35 % max. when used for steel-backed.




Features:

  • Product Name: Solid Bronze Bearing
  • Shock Resistance: High
  • Friction Coefficient: Low
  • Lubrication: Oil Or Grease
  • Material: C91300 Cast Bronze Sleeve Bearings
  • Origin: China

Some possible product descriptions:

  • High Leaded Solid Bronze Bushing CuSn10Pb10 Gunmetal Bearing For Cone Crusher
  • Solid Bronze Bearing Gun Metal Bush Bearing For Concrete Pump Parts
  • Spherical Solid Bronze Bearing Brass Oil Lubricated Bronze Bearings


Technical Parameters:

Parameter Description
Origin China
Availability Special Oil Groove Design Can Be Made
Precision High
Material C91300 Cast Bronze Sleeve Bearings
Hardness >HB230
Application High Load, Low Speed
Maintenance Required Low
Lubrication Oil Or Grease
Longevity Long-lasting
Temperature Range Up To 300°C


Applications:

One popular application for our Solid Bronze Bearings is in cone crushers. Our High Leaded Solid Bronze Bushing CuSn10Pb10 Gunmetal Bearing For Cone Crusher is a durable and efficient choice, capable of withstanding high loads and low speeds without sacrificing performance. The oil lubricated design of our Solid Bronze Bearings ensures that maintenance requirements are low, making them a cost-effective solution for industrial machinery.

Another scenario where our Solid Bronze Bearings excel is in high-strength applications. Our Solid Bronze Bearing Brass Sleeve Bushing is a reliable choice for heavy machinery and equipment, thanks to its ability to handle high loads without degrading over time. Made from durable materials and designed to withstand the toughest conditions, our Solid Bronze Bearings are an ideal solution for industries such as mining, construction, and manufacturing.

No matter what your industry or application, VIIPLUS.COM has the Solid Bronze Bearings you need. Our range of oil lubricated Brass Bearing Bushings are designed and manufactured to the highest standards, ensuring that they deliver reliable and efficient performance, even in the toughest conditions. Whether you're looking for a high-strength Solid Bronze Bearing Brass Sleeve Bushing, or a low-maintenance Oil Lubricated Brass Bearing Bushing, VIIPLUS.COM has the products and expertise you need to get the job done right.
