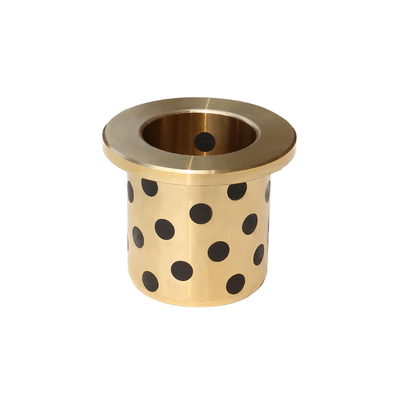

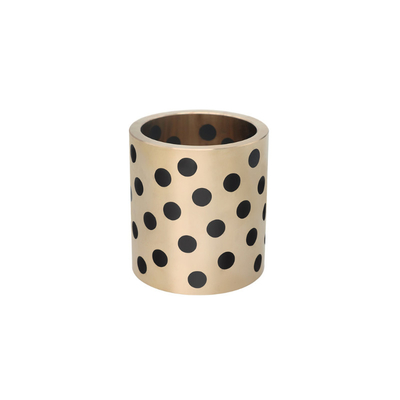

Low Friction JDB Solid Bronze Bearing with Special Oil Groove Design for Long lasting Performance

  • Low Friction JDB Solid Bronze Bearing with Special Oil Groove Design for Long lasting Performance
  • Low Friction JDB Solid Bronze Bearing with Special Oil Groove Design for Long lasting Performance
Place of Origin MADE IN CHINA
Brand Name VIIPLUS.COM
Model Number China Solid Bronze Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Orign China Friction Coefficient Low
Avalibility Special Oil Groove Design Can Be Made Standard DIN 1850 / ISO 4379
Longevity Long-lasting Model JDB
Lubrication Oil Or Grease Maintenance Required Low
Leave a Message
Product Description

Product Description:

The Solid Bronze Bearing Gun Metal Bush Bearing For Concrete Pump Parts is designed to withstand extreme temperatures, with a temperature range of up to 300°C. This makes it a perfect choice for applications where high temperatures are expected, such as in the automotive and aerospace industries. The high-precision design of this product ensures that it operates smoothly and efficiently, making it an excellent choice for industries where precision is paramount.

Another important feature of the Solid Bronze Bearing Gun Metal Bush Bearing For Concrete Pump Parts is its low friction coefficient, which ensures that it operates with minimal resistance. This is particularly important in applications where energy efficiency is a priority, such as in the manufacturing and construction industries.

The Solid Bronze Bearing Gun Metal Bush Bearing For Concrete Pump Parts is also known for its hardness, with a rating of >HB230. This ensures that it is highly resistant to wear and tear, making it an ideal choice for high-stress applications.

In summary, the Solid Bronze Bearing Gun Metal Bush Bearing For Concrete Pump Parts is an excellent choice for applications that require high precision and low maintenance requirements. Its CuSn12 Tin Cast Bronze Sleeve Bearings and anti-wear properties make it ideal for high-stress applications, while its high-temperature range ensures that it can operate efficiently in extreme conditions. Its low friction coefficient and high hardness rating make it an excellent choice for energy-efficient industries, such as manufacturing and construction.



Solid Bronze Bearing (Gun Metal Bush Bearing) for Concrete Pump Parts is a crucial component in ensuring the smooth and reliable operation of concrete pumps. Made from high tensile brass or gunmetal bronze alloy, these bearings are designed to withstand the harsh working conditions encountered in the construction industry.

The gunmetal alloy, typically a combination of copper, tin, and zinc, provides excellent wear resistance, strength, and corrosion resistance. This makes it a suitable material for bearings that are exposed to abrasive materials, high loads, and varying temperatures.

The bearings can be manufactured in plain type or with oil grooves. The oil grooves are strategically positioned to facilitate the distribution of lubricant, which reduces friction and wear during operation. This extends the life of the bearing and reduces the need for frequent maintenance.

Commonly referred to as brass bushing bearing, copper alloy solid bronze bearing, CNC turned bronze bushing, bronze support bushing, or bronze sliding bearing, these components play a vital role in the transmission of power and load in concrete pumps.





Low Friction JDB Solid Bronze Bearing with Special Oil Groove Design for Long lasting Performance



Features:

  • Product Name: Solid Bronze Bearing
  • Friction Coefficient: Low
  • Maintenance Required: Low
  • Standard: DIN 1850 / ISO 4379
  • Longevity: Long-lasting
  • Hardness: >HB230

Our Solid Bronze Bearing product line includes:

  • CuZn25Al6Fe3Mn3 Solid Bronze Bushing
  • Leaded Tin Solid Bronze Bearing
  • CuSn5Pb5Zn5 Cast Bronze Bushing


Technical Parameters:

Origin China
Hardness >HB230
Availability Special Oil Groove Design Can Be Made
Shock Resistance High
Friction Coefficient Low
Model JDB
Longevity Long-lasting
Standard DIN 1850 / ISO 4379
Maintenance Required Low
Application High Load, Low Speed

This product is an Oil Lubricated Brass Bearing Bushing, also known as Leaded Tin Solid Bronze Bearing CuSn5Pb5Zn5 Cast Bronze Bushing or Gunmetal Centrifugal Solid Bronze Bearing CuSn7Zn4Pb7 Cast Bronze Bushing.



Applications:

The Solid Bronze Bearing is designed to withstand high temperatures of up to 300°C, making it suitable for use in various industrial environments. Our products are made to meet the DIN 1850 / ISO 4379 standard, ensuring that they are of high quality and durability. Additionally, we offer special oil groove designs that can be customized to fit specific customer needs.

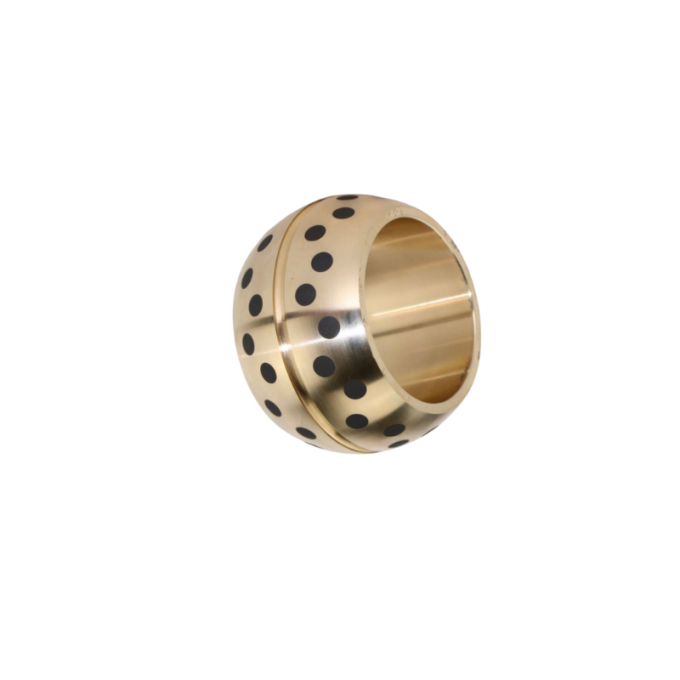

Our Spherical Solid Bronze Bearing is ideal for applications that require a high degree of precision and stability, such as in machinery and equipment. The Brass Oil Lubricated Bronze Bearings are designed to provide a smooth and reliable operating experience in harsh environments. The CuPb15Sn8 Solid Bronze Bearing is perfect for use in eccentric bushings, while the Eccentric Bushing and Bottom Shell Bushing For Crusher are ideal for use in crushers and other heavy machinery.

The CuZn25Al6Fe3Mn3 Solid Bronze Bushing is perfect for use in various industrial applications, such as in the automotive, aerospace, and marine industries. Our products are oil lubricated, which ensures optimal performance and reduces the risk of wear and tear.

In summary, VIIPLUS.COM's Solid Bronze Bearing products are of high precision and quality, making them ideal for use in high load, low speed applications. With our special oil groove design and ability to customize products to fit specific customer needs, we are able to provide reliable and efficient solutions for various industrial environments.



Customization:

With our customization services, you can choose from a variety of options including brass oil lubricated bronze bearings, oil lubricated brass bearing bushings, and spherical solid bronze bearings. No matter what your application requires, we can tailor our products to meet your specific needs.



Features:

  • Low friction: Due to the special design of JDB bearings and the embedding of solid lubricants, these bearings can significantly reduce friction and wear under various working conditions, eliminating the need for or reducing external lubrication.
  • Long life: the addition of solid lubricants improves the wear resistance of the bearings, thus extending their service life.
  • High Temperature Resistance: Some JDB bearings are able to operate at higher temperatures without affecting their performance.
  • Corrosion resistance: The copper alloy matrix provides good corrosion resistance, making the bearings suitable for a wide range of chemical environments.
  • Easy mounting: The design of JDB bearings makes them easy to mount, especially for applications where space is limited.



Design:

  • Solid inlay: JDB bearings are metal-based inlay solid self-lubricating bearings, which are load-bearing by the metal matrix and lubricated by specially formulated solid lubricating materials.
  • Special oil groove design: This kind of bearing has special oil groove design, which can effectively collect and distribute the lubricant and ensure that the bearing is fully lubricated during operation.
  • Material: mainly adopts raw materials such as high force brass (CuZn24A16) and tin phosphor bronze (CuSn8P3), these materials ensure the strength and wear resistance of the bearings.



Metric Cylindrical Bushes Size:



Maintenance free bearing and guide bushes, bronze with solid lubricant

ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB081208 SOB 8-12-8 8 12 8
JDB061012 SOB 6-10-12 6 10 12
JDB081210 SOB 8-12-10 8 12 10
JDB081212 SOB 8-12-12 8 12 12
JDB081215 SOB 8-12-15 8 12 15
JDB101408 SOB 10-14-8 10 14 8
JDB101410 SOB 10-14-10 10 14 10
JDB101412 SOB 10-14-12 10 14 12
JDB101415 SOB 10-14-15 10 14 15
JDB101420 SOB 10-14-20 10 14 20
JDB101510 SOB 10-15-10 10 15 10
JDB121808 SOB 12-18-8 12 18 8
JDB121810 SOB 12-18-10 12 18 10
JDB121812 SOB 12-18-12 12 18 12
JDB121815 SOB 12-18-15 12 18 15
JDB121816 SOB 12-18-16 12 18 16
JDB121819 SOB 12-18-19 12 18 19
JDB121820 SOB 12-18-20 12 18 20
JDB121825 SOB 12-18-25 12 18 25
JDB121830 SOB 12-18-30 12 18 30
JDB131910 SOB 13-19-10 13 19 10



Metric Cylindrical Bushes

Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB131912 SOB 13-19-12 13 19 12
JDB131915 SOB 13-19-15 13 19 15
JDB131916 SOB 13-19-16 13 19 16
JDB131920 SOB 13-19-20 13 19 20
JDB131925 SOB 13-19-25 13 19 25
JDB142010 SOB 14-20-10 14 20 10
JDB142012 SOB 14-20-12 14 20 12
JDB142015 SOB 14-20-15 14 20 15
JDB142020 SOB 14-20-20 14 20 20
JDB142025 SOB 14-20-25 14 20 25
JDB142030 SOB 14-20-30 14 20 30
JDB152110 SOB 15-21-10 15 21 10
JDB152112 SOB 15-21-12 15 21 12
JDB152115 SOB 15-21-15 15 21 15
JDB152116 SOB 15-21-16 15 21 16
JDB152120 SOB 15-21-20 15 21 20
JDB152125 SOB 15-21-25 15 21 25
JDB152130 SOB 15-21-30 15 21 30
JDB162210 SOB 16-22-10 16 22 10
JDB162212 SOB 16-22-12 16 22 12
JDB162215 SOB 16-22-15 16 22 15
JDB162216 SOB 16-22-16 16 22 16
JDB162219 SOB 16-22-19 16 22 19
JDB162220 SOB 16-22-20 16 22 20
JDB162225 SOB 16-22-25 16 22 25
JDB162230 SOB 16-22-30 16 22 30
JDB162235 SOB 16-22-35 16 22 35
JDB162240 SOB 16-22-40 16 22 40
JDB172315 SOB 17-23-15 17 23 15
JDB182410 SOB 18-24-10 18 24 10
JDB182412 SOB 18-24-12 18 24 12
JDB182415 SOB 18-24-15 18 24 15
JDB182416 SOB 18-24-16 18 24 16
JDB182420 SOB 18-24-20 18 24 20
JDB182425 SOB 18-24-25 18 24 25
JDB182430 SOB 18-24-30 18 24 30
JDB182435 SOB 18-24-35 18 24 35
JDB182440 SOB 18-24-40 18 24 40
JDB192615 SOB 19-26-15 19 26 15
JDB192620 SOB 19-26-20 19 26 20
JDB202810 SOB 20-28-10 20 28 10
JDB202812 SOB 20-28-12 20 28 12
JDB202815 SOB 20-28-15 20 28 15
JDB202816 SOB 20-28-16 20 28 16
JDB202819 SOB 20-28-19 20 28 19
JDB202820 SOB 20-28-20 20 28 20


Metric Cylindrical Bushes

Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB202825 SOB 20-28-25 20 28 25
JDB202830 SOB 20-28-30 20 28 30
JDB202835 SOB 20-28-35 20 28 35
JDB202840 SOB 20-28-40 20 28 40
JDB202850 SOB 20-28-50 20 28 50
JDB203010 SOB 20-30-10 20 30 10
JDB203012 SOB 20-30-12 20 30 12
JDB203015 SOB 20-30-15 20 30 15
JDB203016 SOB 20-30-16 20 30 16
JDB203020 SOB 20-30-20 20 30 20
JDB203025 SOB 20-30-25 20 30 25
JDB203030 SOB 20-30-30 20 30 30
JDB203035 SOB 20-30-35 20 30 35
JDB203040 SOB 20-30-40 20 30 40
JDB203070 SOB 20-30-70 20 30 70
JDB223212 SOB 22-32-12 22 32 12
JDB223215 SOB 22-32-15 22 32 15
JDB223220 SOB 22-32-20 22 32 20
JDB223225 SOB 22-32-25 22 32 25
JDB253312 SOB 25-33-12 25 33 12
JDB253315 SOB 25-33-15 25 33 15
JDB253316 SOB 25-33-16 25 33 16
JDB253320 SOB 25-33-20 25 33 20
JDB253325 SOB 25-33-25 25 33 25
JDB253330 SOB 25-33-30 25 33 30
JDB253335 SOB 25-33-35 25 33 35
JDB253340 SOB 25-33-40 25 33 40
JDB253350 SOB 25-33-50 25 33 50
JDB253360 SOB 25-33-60 25 33 60
JDB253512 SOB 25-35-12 25 35 12
JDB253515 SOB 25-35-15 25 35 15
JDB253516 SOB 25-35-16 25 35 16
JDB253520 SOB 25-35-20 25 35 20
JDB253525 SOB 25-35-25 25 35 25
JDB253530 SOB 25-35-30 25 35 30
JDB253535 SOB 25-35-35 25 35 35
JDB253540 SOB 25-35-40 25 35 40
JDB253550 SOB 25-35-50 25 35 50
JDB283820 SOB 28-38-20 28 38 20
JDB283825 SOB 28-38-25 28 38 25
JDB283830 SOB 28-38-30 28 38 30
JDB283840 SOB 28-38-40 28 38 40
JDB303812 SOB 30-38-12 30 38 12
JDB303815 SOB 30-38-15 30 38 15
JDB303820 SOB 30-38-20 30 38 20
JDB303825 SOB 30-38-25 30 38 25


Metric Cylindrical Bushes

Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB303830 SOB 30-38-30 30 38 30
JDB303835 SOB 30-38-35 30 38 35
JDB303840 SOB 30-38-40 30 38 40
JDB303850 SOB 30-38-50 30 38 50
JDB303860 SOB 30-38-60 30 38 60
JDB304012 SOB 30-40-12 30 40 12
JDB304015 SOB 30-40-15 30 40 15
JDB304020 SOB 30-40-20 30 40 20
JDB304025 SOB 30-40-25 30 40 25
JDB304030 SOB 30-40-30 30 40 30
JDB304035 SOB 30-40-35 30 40 35
JDB304040 SOB 30-40-40 30 40 40
JDB304050 SOB 30-40-50 30 40 50
JDB304060 SOB 30-40-60 30 40 60
JDB3,154030 SOB 31,5-40-30 3,15 40 30
JDB3,154040 SOB 31,5-40-40 3,15 40 40
JDB324215 SOB 32-42-15 32 42 15
JDB324220 SOB 32-42-20 32 42 20
JDB324230 SOB 32-42-30 32 42 30
JDB324240 SOB 32-42-40 32 42 40
JDB354420 SOB 35-44-20 35 44 20
JDB354425 SOB 35-44-25 35 44 25
JDB354430 SOB 35-44-30 35 44 30
JDB354435 SOB 35-44-35 35 44 35
JDB354440 SOB 35-44-40 35 44 40
JDB354450 SOB 35-44-50 35 44 50
JDB354460 SOB 35-44-60 35 44 60
JDB354515 SOB 35-45-15 35 45 15
JDB354520 SOB 35-45-20 35 45 20
JDB354525 SOB 35-45-25 35 45 25
JDB354530 SOB 35-45-30 35 45 30
JDB354535 SOB 35-45-35 35 45 35
JDB354540 SOB 35-45-40 35 45 40
JDB354550 SOB 35-45-50 35 45 50
JDB354560 SOB 35-45-60 35 45 60
JDB384830 SOB 38-48-30 38 48 30
JDB384840 SOB 38-48-40 38 48 40
JDB405015 SOB 40-50-15 40 50 15
JDB405020 SOB 40-50-20 40 50 20
JDB405025 SOB 40-50-25 40 50 25
JDB405030 SOB 40-50-30 40 50 30
JDB405035 SOB 40-50-35 40 50 35
JDB405040 SOB 40-50-40 40 50 40
JDB405050 SOB 40-50-50 40 50 50
JDB405060 SOB 40-50-60 40 50 60
JDB405070 SOB 40-50-70 40 50 70


Metric Cylindrical Bushes

Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB405080 SOB 40-50-80 40 50 80
JDB405515 SOB 40-55-15 40 55 15
JDB405525 SOB 40-55-25 40 55 25
JDB405530 SOB 40-55-30 40 55 30
JDB405535 SOB 40-55-35 40 55 35
JDB405540 SOB 40-55-40 40 55 40
JDB405550 SOB 40-55-50 40 55 50
JDB405560 SOB 40-55-60 40 55 60
JDB455530 SOB 45-55-30 45 55 30
JDB455535 SOB 45-55-35 45 55 35
JDB455540 SOB 45-55-40 45 55 40
JDB455550 SOB 45-55-50 45 55 50
JDB455560 SOB 45-55-60 45 55 60
JDB455630 SOB 45-56-30 45 56 30
JDB455635 SOB 45-56-35 45 56 35
JDB455640 SOB 45-56-40 45 56 40
JDB455650 SOB 45-56-50 45 56 50
JDB455660 SOB 45-56-60 45 56 60
JDB456030 SOB 45-60-30 45 60 30
JDB456035 SOB 45-60-35 45 60 35
JDB456040 SOB 45-60-40 45 60 40
JDB456050 SOB 45-60-50 45 60 50
JDB456060 SOB 45-60-60 45 60 60
JDB456070 SOB 45-60-70 45 60 70
JDB456080 SOB 45-60-80 45 60 80
JDB506020 SOB 50-60-20 50 60 20
JDB506025 SOB 50-60-25 50 60 25
JDB506030 SOB 50-60-30 50 60 30
JDB506035 SOB 50-60-35 50 60 35
JDB506040 SOB 50-60-40 50 60 40
JDB506050 SOB 50-60-50 50 60 50
JDB506060 SOB 50-60-60 50 60 60
JDB506070 SOB 50-60-70 50 60 70
JDB506080 SOB 50-60-80 50 60 80
JDB506230 SOB 50-62-30 50 62 30
JDB506235 SOB 50-62-35 50 62 35
JDB506240 SOB 50-62-40 50 62 40
JDB506250 SOB 50-62-50 50 62 50
JDB506260 SOB 50-62-60 50 62 60
JDB506270 SOB 50-62-70 50 62 70
JDB506280 SOB 50-62-80 50 62 80
JDB506530 SOB 50-65-30 50 65 30
JDB506540 SOB 50-65-40 50 65 40
JDB506550 SOB 50-65-50 50 65 50
JDB506560 SOB 50-65-60 50 65 60
JDB506570 SOB 50-65-70 50 65 70


Metric Cylindrical Bushes

Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB506580 SOB 50-65-80 50 65 80
JDB5065100 SOB 50-65-100 50 65 100
JDB557030 SOB 55-70-30 55 70 30
JDB557035 SOB 55-70-35 55 70 35
JDB557040 SOB 55-70-40 55 70 40
JDB557050 SOB 55-70-50 55 70 50
JDB557060 SOB 55-70-60 55 70 60
JDB557070 SOB 55-70-70 55 70 70
JDB607430 SOB 60-74-30 60 74 30
JDB607435 SOB 60-74-35 60 74 35
JDB607440 SOB 60-74-40 60 74 40
JDB607450 SOB 60-74-50 60 74 50
JDB607460 SOB 60-74-60 60 74 60
JDB607470 SOB 60-74-70 60 74 70
JDB607480 SOB 60-74-80 60 74 80
JDB6074100 SOB 60-74-100 60 74 100
JDB607530 SOB 60-75-30 60 75 30
JDB607535 SOB 60-75-35 60 75 35
JDB607540 SOB 60-75-40 60 75 40
JDB607550 SOB 60-75-50 60 75 50
JDB607560 SOB 60-75-60 60 75 60
JDB607570 SOB 60-75-70 60 75 70
JDB607580 SOB 60-75-80 60 75 80
JDB6075100 SOB 60-75-100 60 75 100
JDB637560 SOB 63-75-60 63 75 60
JDB637570 SOB 63-75-70 63 75 70
JDB637580 SOB 63-75-80 63 75 80
JDB658040 SOB 65-80-40 65 80 40
JDB658050 SOB 65-80-50 65 80 50
JDB658060 SOB 65-80-60 65 80 60
JDB658070 SOB 65-80-70 65 80 70
JDB658080 SOB 65-80-80 65 80 80
JDB708530 SOB 70-85-30 70 85 30
JDB708535 SOB 70-85-35 70 85 35
JDB708540 SOB 70-85-40 70 85 40
JDB708550 SOB 70-85-50 70 85 50
JDB708560 SOB 70-85-60 70 85 60
JDB708570 SOB 70-85-70 70 85 70
JDB708580 SOB 70-85-80 70 85 80
JDB7085100 SOB 70-85-100 70 85 100
JDB709050 SOB 70-90-50 70 90 50
JDB709060 SOB 70-90-60 70 90 60
JDB709070 SOB 70-90-70 70 90 70
JDB709080 SOB 70-90-80 70 90 80
JDB7090100 SOB 70-90-100 70 90 100
JDB759050 SOB 75-90-50 75 90 50


Metric Cylindrical Bushes

Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB759060 SOB 75-90-60 75 90 60
JDB759070 SOB 75-90-70 75 90 70
JDB759080 SOB 75-90-80 75 90 80
JDB7590100 SOB 75-90-100 75 90 100
JDB759560 SOB 75-95-60 75 95 60
JDB759570 SOB 75-95-70 75 95 70
JDB759580 SOB 75-95-80 75 95 80
JDB7595100 SOB 75-95-100 75 95 100
JDB809620 SOB 80-96-20 80 96 20
JDB809640 SOB 80-96-40 80 96 40
JDB809650 SOB 80-96-50 80 96 50
JDB809660 SOB 80-96-60 80 96 60
JDB809670 SOB 80-96-70 80 96 70
JDB809680 SOB 80-96-80 80 96 80
JDB8096100 SOB 80-96-100 80 96 100
JDB8096120 SOB 80-96-120 80 96 120
JDB8010040 SOB 80-100-40 80 100 40
JDB8010050 SOB 80-100-50 80 100 50
JDB8010060 SOB 80-100-60 80 100 60
JDB8010070 SOB 80-100-70 80 100 70
JDB8010080 SOB 80-100-80 80 100 80
JDB80100100 SOB 80-100-100 80 100 100
JDB80100120 SOB 80-100-120 80 100 120
JDB80100140 SOB 80-100-140 80 100 140
JDB8510025 SOB 85-100-25 85 100 25
JDB8510060 SOB 85-100-60 85 100 60
JDB8510080 SOB 85-100-80 85 100 80
JDB9011030 SOB 90-110-30 90 110 30
JDB9011050 SOB 90-110-50 90 110 50
JDB9011060 SOB 90-110-60 90 110 60
JDB9011070 SOB 90-110-70 90 110 70
JDB9011080 SOB 90-110-80 90 110 80
JDB9011090 SOB 90-110-90 90 110 90
JDB90110100 SOB 90-110-100 90 110 100
JDB90110120 SOB 90-110-120 90 110 120
JDB100115100 SOB 100-115-100 100 115 100
JDB10012040 SOB 100-120-40 100 120 40
JDB10012050 SOB 100-120-50 100 120 50
JDB10012060 SOB 100-120-60 100 120 60
JDB10012070 SOB 100-120-70 100 120 70
JDB10012080 SOB 100-120-80 100 120 80
JDB10012090 SOB 100-120-90 100 120 90
JDB100120100 SOB 100-120-100 100 120 100
JDB100120120 SOB 100-120-120 100 120 120
JDB100120140 SOB 100-120-140 100 120 140
JDB11013050 SOB 110-130-50 110 130 50


Metric Cylindrical Bushes

Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB11013070 SOB 110-130-70 110 130 70
JDB11013080 SOB 110-130-80 110 130 80
JDB110130100 SOB 110-130-100 110 130 100
JDB110130120 SOB 110-130-120 110 130 120
JDB12014070 SOB 120-140-70 120 140 70
JDB12014080 SOB 120-140-80 120 140 80
JDB12014090 SOB 120-140-90 120 140 90
JDB120140100 SOB 120-140-100 120 140 100
JDB120140120 SOB 120-140-120 120 140 120
JDB120140140 SOB 120-140-140 120 140 140
JDB125145100 SOB 125-145-100 125 145 100
JDB125145120 SOB 125-145-120 125 145 120
JDB13015080 SOB 130-150-80 130 150 80
JDB130150100 SOB 130-150-100 130 150 100
JDB130150130 SOB 130-150-130 130 150 130
JDB140160100 SOB 140-160-100 140 160 100
JDB140160140 SOB 140-160-140 140 160 140
JDB150170100 SOB 150-170-100 150 170 100
JDB150170150 SOB 150-170-150 150 170 150
JDB16018080 SOB 160-180-80 160 180 80
JDB160180100 SOB 160-180-100 160 180 100
JDB160180150 SOB 160-180-150 160 180 150
JDB170190100 SOB 170-190-100 170 190 100
JDB170190150 SOB 170-190-150 170 190 150
JDB180200100 SOB 180-200-100 180 200 100
JDB180200150 SOB 180-200-150 180 200 150
JDB190210100 SOB 190-210-100 190 210 100
JDB190210150 SOB 190-210-150 190 210 150
JDB200230150 SOB 200-230-150 200 230 150
JDB200230200 SOB 200-230-200 200 230 200



Support and Services:

Our Solid Bronze Bearing product comes with comprehensive technical support and services to ensure its optimal performance and longevity. Our team of experts can assist with installation guidance, maintenance recommendations, and troubleshooting assistance. We also offer customization services to meet specific application requirements and provide training to ensure proper usage and handling of the product. Additionally, we offer warranty and repair services to address any issues that may arise during the product's lifespan. Contact us for more information on our technical support and services.



FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is VIIPLUS.COM.

Q: What is the model number of this product?

A: The model number of this product is China Solid Bronze Bearing.

Q: Where is this product made?

A: This product is made in China.

Q: What are the applications of this product?

A: This product is ideal for use in heavy-duty applications such as construction machinery, mining equipment, and agricultural machinery.

Q: What are the benefits of using this product?

A: This product offers high load capacity, excellent wear resistance, and long service life. It is also resistant to corrosion and can withstand high temperatures.

Tags:

oil impregnated bronze bearings

oil lite bronze bushing

oil impregnated bearing
