Brass 500 SWP Wear Bronze Plate With Graphite Embedded

  • Brass 500 SWP Wear Bronze Plate With Graphite Embedded
  • Brass 500 SWP Wear Bronze Plate With Graphite Embedded
  • Brass 500 SWP Wear Bronze Plate With Graphite Embedded
  • Brass 500 SWP Wear Bronze Plate With Graphite Embedded
  • Brass 500 SWP Wear Bronze Plate With Graphite Embedded
Place of Origin oilless bushing
Brand Name VIIPLUS
Certification Replace misumi Part Number Standard
Model Number Wear Plate Oil Free Slide Plates,Graphite Plate Suppliers
Minimum Order Quantity negotiable
Price Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Packaging Details STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE
Delivery Time 10 - 20 Shipping Days
Payment Terms T/T
Supply Ability plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Metal Material High Tensile Brass Based / Solid Lubricant Embedded Standard RoHS
Wear Plate Lubrication Graphite Manufactuer Specifications And Dimensions
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Oilless Bearing Manufacturer Https://www.bronzelube.com/ Manufacturer Bucha De Bronze Grafitado
High Light Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery Oilless Bushes Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ Oilless Bush Supplier Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries.
High Light

graphite impregnated bronze bushings

,

graphite filled bronze bushes
Leave a Message
Product Description

Brass 500 SWP Wear Bronze Plate With Graphite Embedded refers to a type of brass alloy plate that has been enhanced with graphite embedded within the bronze matrix for improved wear resistance. Brass 500 SWP is a specific brass alloy composition that possesses excellent mechanical properties and corrosion resistance, making it suitable for applications requiring high wear resistance and durability.

The inclusion of graphite in the bronze plate provides several advantages, including increased lubricity and reduced friction, which in turn enhances the wear resistance of the material. This makes it suitable for applications where components are subject to repeated sliding or rotating movements and require a long service life.

The Brass 500 SWP Wear Bronze Plate With Graphite Embedded can be used in various industries, such as mining, construction, and heavy machinery, where equipment components are exposed to harsh environments and require robust materials to maintain their integrity and functionality. The combination of brass's corrosion resistance and graphite's wear-resistant properties results in a material that is highly durable and reliable for such applications.



General Machinery Plates, Product information "SOLP", Flat plates, self-lubricating, Width W, Length L, get your parts quote!



Guide plate, self-lubricating Price and delivery time on request.



Bronze Bushing Sliding Bearing is a type of standard products of our company. This type of self-lubricating bearing is also called oilless bearing,brass bearing,cooper bushing,solid sliding bearing bushing,Bronze Bushing bronze bearing, graphite plugged Bronze Bushing bearing bushing,guide bushes and graphite filled bearing Bushing.



Brass 500 SWP Wear Bronze Plate With Graphite Embedded



NO. DIN Material No. Designation ASTM Standard Proportional Density (g/cm³) 0.2% Strain (MPa) Tensile Strength (MPa) Strain (%) E-modulus (MPa) Hardness (HB) Applications
1 1705 2.1090.01 CuSn7ZnPb B 584 Cu 81 - 85, Sn 6 - 8, Zn 3 - 5, Pb 5 - 7 8.8 120 240 15 106,000 65 Widely utilized in automotive, aerospace, and marine engineering for components requiring good strength and corrosion resistance. Recognized internationally for versatility and performance.
2.1090.03 CuSn7ZnPb B 271 Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 8.8 130 270 13 106,000 75
2.1090.04 CuSn7ZnPb B 505 Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 8.8 120 270 16 106,000 70
2 1705 2.1061.01 CuSn12Pb Not yet standardized Cu 84 - 87, Sn 11 - 13, Pb 1 - 2 8.7 140 260 10 112,000 80 Commonly used in manufacturing bearings, bushings, and components that require high load capacity and wear resistance, especially in marine and industrial applications.
2.1061.03 CuSn12Pb Not yet standardized Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.7 150 280 5 112,000 90
2.1061.04 CuSn12Pb B 505 Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.7 140 280 7 112,000 85
3 1714 2.0975.01 CuAl10Ni B 584 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 270 600 12 122,000 140 Used in marine, aerospace, and heavy machinery for manufacturing bearings and components requiring high strength and durability. Known for extreme loads and high corrosive environments.
2.0975.02 CuAl10Ni B 30 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 300 600 14 122,000 150
2.0975.03 CuAl10Ni B 271 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 300 700 13 122,000 160
2.0975.04 CuAl10Ni B 505 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 300 700 13 122,000 160
4 1709 2.0598.01 CuZn25Al5 B 584 Cu 60 - 67, Al 3 - 7, Fe 1.5 - 4, Mn 2.5 - 5, Zn rest 8.2 450 750 8 115,000 180 Used in heavy-duty bearings, hydraulic components, and marine hardware. Designed for high loads and resistance to corrosive attack.
2.0598.02 CuZn25Al5 B 30 Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 8.2 480 750 8 115,000 180
2.0598.03 CuZn25Al5 B 271 Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 8.2 480 750 5 115,000 190
5 1705 2.1052.01 CuSn12 Not yet standardized Cu 84 - 88, Sn 11 - 13, Pb 1, Ni 2.0, Sb 0.2, P 0.2 8.6 140 260 12 110,000 80 Commonly used in manufacturing bearings, gears, and components requiring high wear resistance. Known for good machinability and corrosion resistance, particularly in seawater environments. All rights to the listed content are reserved by https://www.viiplus.com/
2.1052.03 CuSn12 Not yet standardized Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.6 150 280 8 110,000 90
2.1052.04 CuSn12 Not yet standardized Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.7 140 280 8 110,000 95
Note: Delivery form codes: .01 = sand casting, .02 = gravity casting, .03 = centrifugal casting, .04 = continuous casting.



Brass 500 SWP Wear Bronze Plate With Graphite Embedded



Bronze Bushing #500 SWP Oilless Thin Wear Plate (All dimensions in MM)



graphite plugged bronze bushing

Standard No W L a b Sketch
SWP Wear Plate -18*50 18 50 - 20 A
SWP Wear Plate -18*75 75 45
SWP Wear Plate -18*100 100 70
SWP Wear Plate -18*150 150 60 B
SWP Wear Plate-28*50 28 50 - 20 A
SWP Wear Plate -28*75 75 45
SWP Wear Plate -28*100 100 70
SWP Wear Plate -28*150 150 60 B
SWP Wear Plate-38*50 38 50 - 20 A
SWP Wear Plate -38*75 75 45
SWP Wear Plate-38*100 100 70
SWP Wear Plate -38*150 150 60 B
SWP Wear Plate -48*75 48 75 - 45 A
SWP Wear Plate -48*100 100 70
SWP Wear Plate -48*125 125 95
SWP Wear Plate -48*150 150 60 B
SWP Wear Plate -75*75 75 75 45 45 C
SWP Wear Plate -75*100 100 70
SWP Wear Plate-75*125 125 95
SWP Wear Plate -75*150 150 60 D
SWP Wear Plate -100*100 100 100 70 70 C
SWP Wear Plate -100*125 125 95
SWP Wear Plate -100*150 150 60 D



Brass Plate Properties: "SOLP"



Sliding speed v: 30 m/min
Base Material: Special Brass (SO#50SP2)
Self-lubricating: Yes
Lubricant: Graphite
Surface Pressure P: 100 N/mm²
P*v-value: 200 N/mm² x m/min
Operating temperature: -50°C / +200°C (max. 300°C)
Friction coefficient: 0,07



Manganese Bronze Plate Now Available Online



High tensile brass based / solid lubricant embedded Oil-Free Slide Plates SWP Washer oilless wear plate Graphite Plate | Slide Plates -NAAMS Standard & Suppliers

Wear Plate General Purpose Plate #500SP (SWP SERIES) by VIIPLUS MADE TO ORDER FROM CHINA (SWP-100200) | SIMILAR MISUMI plate catalogs BRONZE SLIDING PLATE PLUGGED GRAPHITE.pdfonline shop - Select, configure, order.

Bronze Wear Plate







graphite plugged bronze bushings

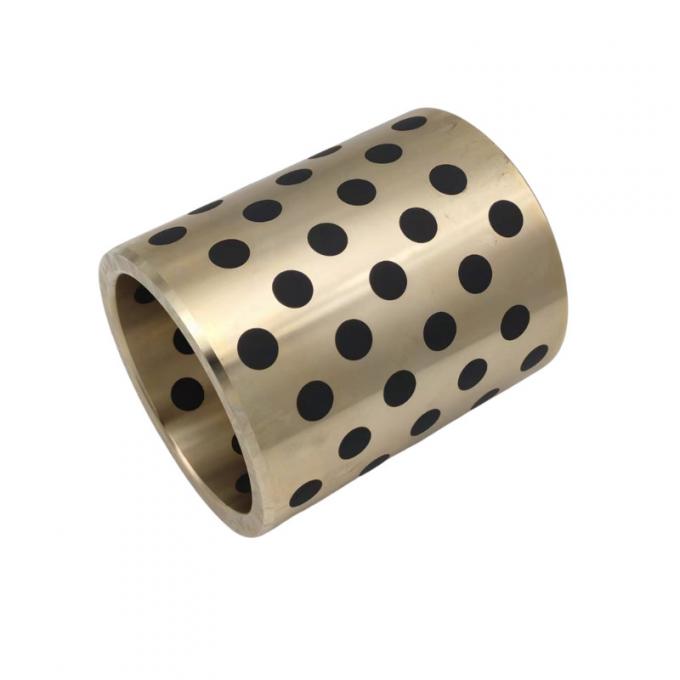

Bronze Bushing #500 SWP Oilless Wear Plate with Graphite Plugs Material bronze CuZn25Al5Mn4Fe3 + Graphiteplugs. Features. Bronze Bushing 500 series bearings incorporate high-quality copper alloy based metals with engineered solid lubricant plugs.
Bronze Bushing #500 SWP Oilless Wear Plate with Graphite Plugs

Description: Bronze Bushing high tension brass with graphite plugs.

Function & Thickness: Abrasion / Sliding Wear

Material:Metal,Bronze CuZn25Al5Mn4Fe3 + Graphite plugs



Features



Bronze Bushing 500 series bearings incorporate high-quality copper alloy based metals with engineered solid lubricant plugs. These bearings are designed to accommodate a wide variety of application requirements demanded by today's equipment. Precise tolerances utilizing strategic plug location and plug compounds ensure performance delivery and lubrication-free service. This bearing style is available in standard inch, metric, and made to order sizes. 500 series bearings provide extreme temperature limits and high load capacity performance. Available in journal style bearings and flat wear plate.

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs.

Part Number Thickness t(mm) Width W(mm) Length L(mm) You can find the detail information about specifications and dimensions weight on our Product Bushing & Plate Catalog part number, contact us:tiffany@viiplus.com


OILESS BUSHES



















Automation Components> Linear Motion> Oil Free Plates, Guide Rails> Oil Free Slide Plates>
Wear Plate General Purpose Plate #500SP (SWP) by VIIPLUS CHINA (SWP-100200) - Select, configure, order. BRONZE PLATE delivers punctually and offers fair prices. Different size and thickness wear plate with graphite or without graphite products are available in our online shop. Additionally, VIIPLUS INTERNATIONAL offers a variety of CAD data for free download.
Bronze Wear Plate General Purpose Plate #500SP (SWP series size ), Oil-Free Slide Plates, Oil-Free Plates, Guide Rails, Linear Motion, Automation Components, Configurable components, factory automation, assembly automation, mechanical, Bushing & Sliding Plate catalog, e-Catalog, china Online Shop, Online Quote Order System,SWP different thinckness bushing and plate.
Please select bronze wear plate part numbers by inner diameter, outer diameter, and length. Wear Plate : WIDTH LENGTH and THICKNESS



Industry & Application:



1) Heavy-duty tractor and farm implement equipment
2) Mining equipment
3) Forestry equipment
4) Mixing tank blade shaft support
5) Foundry, furnace and steel production equipment
6) HVAC applications
7) Heavy-duty caster and wheel support bearings
8) Kiln kart veneer dryer applications, and possibly other applications...



Tech. Data



Grade

650#

650S1

650S2

650S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm



WEAR PLATE DIMENSIONS WITH MOUNTING HOLE TOLERANCE



Find parts, plate, suppliers, datasheets, and more for:



graphite plugged bronze bushings

Parts No. WIDTH LENGTH THICKNESS Mounting Hole Pitch Number of Holes Chamfer Geometry
W Tolerance L Tolerance T Tolerance W1 Tolerance W2 Brass 500 SWP Wear Bronze Plate With Graphite Embedded 51 Tolerance Brass 500 SWP Wear Bronze Plate With Graphite Embedded 52
SWP-4875 48 -0.1
-0.3		 75 -0.1
-0.3		 20 ±0.025 - ±0.2 - 45 ±0.2 15 2 B
SWP-48100 dou dou 100 dou dou dou dou dou dou 50 dou 25 dou dou
SWP-48125 dou dou 125 dou dou dou dou dou dou 75 dou dou dou dou
SWP-48150 dou dou 150 dou dou dou dou dou dou 100 dou dou dou dou
SWP-7575B 75 dou 75 dou dou dou dou dou dou 25 dou dou dou A
SWP-75100B dou dou 100 dou dou dou dou dou dou 50 dou dou dou dou
SWP-75125 dou dou 125 dou dou dou dou dou dou 75 dou dou dou dou
SWP-75150 dou dou 150 dou dou dou dou dou dou 100 dou dou dou dou
SWP-75200 dou dou 200 dou dou dou dou dou dou 150 dou dou dou dou
SWP-100100 100 dou 100 dou dou dou 50 dou 25 50 dou dou 4 dou
SWP-100125 dou dou 125 dou dou dou dou dou dou 75 dou dou dou dou
SWP-100150 dou dou 150 dou dou dou dou dou dou 100 dou dou dou dou
SWP-100200 dou dou 200 dou dou dou dou dou dou 150 dou dou dou dou
SWP-100250 dou dou 250 dou dou dou dou dou dou 200 dou dou dou dou
SWP-125150 125 dou 150 dou dou dou dou dou 37.5 100 dou dou dou dou
SWP-125200 dou dou 200 dou dou dou dou dou dou 150 dou dou dou dou
SWP-125250 dou dou 250 dou dou dou dou dou dou 200 dou dou dou dou
SWP-150150 150 dou 150 dou dou dou 100 dou 25 100 dou dou dou dou
SWP-150200 dou dou 200 dou dou dou dou dou dou 150 dou dou dou dou
SWP-150250 dou dou 250 dou dou dou dou dou dou 200 dou dou dou dou
