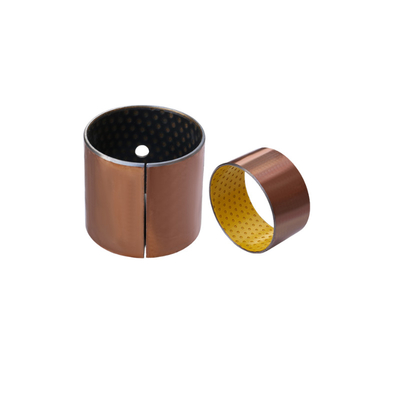

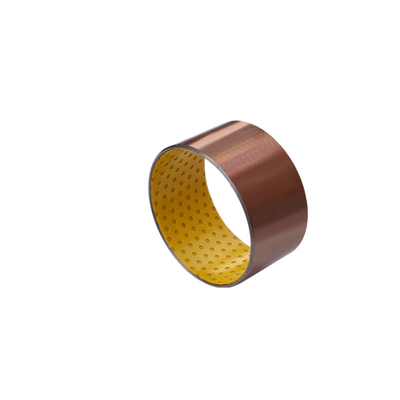

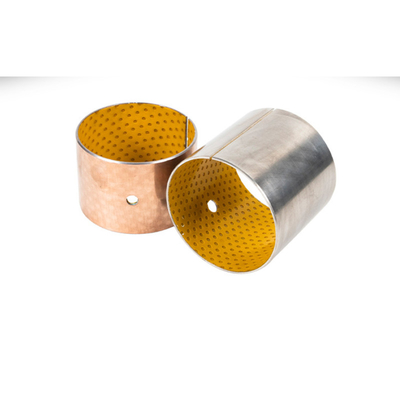

DIN 1494 Copper Plating POM Bushing Steel Back POM Coated Metal Polymer Composite Boundary Lubricating Plain Bushing

Product Description:

The POM Bushing has a density of 1.41 G/cm3, which is relatively lightweight, making it an efficient choice for applications that require low friction and high wear resistance. It also has a low coefficient of friction, ranging from 0.2-0.3, which makes it suitable for use in applications that require smooth and quiet operation.

One of the key benefits of the POM Bushing is its thermal conductivity of 0.25 W/(m·K), which means it is an excellent heat conductor. This makes it suitable for use in high-temperature applications where heat dissipation is critical. Additionally, the POM Bushing is designed for use with a grease or oil boundary lubrication, which helps to reduce friction and wear between the bearing surfaces.

The POM Bushing has a tensile strength of 70 MPa, which is higher than many other materials commonly used in plain bearings. This makes it ideal for use in high-stress applications where strength and durability are critical.

In summary, the POM Bushing is an excellent choice for applications that require high load-bearing capacity, low friction, high wear resistance, and excellent thermal conductivity. Its Steel Back Sintered Bronze POM Bushing Composite material provides excellent mechanical properties, while its low coefficient of friction and thermal conductivity make it ideal for use in a range of different applications.

POM is an engineering plastic known for its high stiffness, rigidity and low coefficient of friction. Here, POM is used as a sliding surface, providing excellent sliding properties and wear resistance.
Steel Back: Steel backs provide strong support for bearings, enabling them to withstand higher loads and more complex movements.
Copper Plating: Copper plating may be used to improve the bond between the steel back and the POM layer, as well as to provide additional lubrication or protection in some cases.
Properties:
Good load capacity: Due to the combination of the sliding properties of POM and the strength of steel, these bearings are able to withstand relatively high loads.
Wear resistance: the wear resistance of POM ensures that the bearings maintain good performance after a long period of use.
Suitable for a wide range of motions: Whether linear, oscillating or rotary motion, this bearing can provide stable performance.
Relatively high loads and optimal performance at low speeds: this means that this bearing is a good choice in applications where large loads need to be carried but not very fast speeds.

In short, this composite plain bearing combining POM and steel excels in industrial applications that need to withstand high loads and/or frequent movements. Their unique materials and design ensure stability and durability under a wide range of operating conditions.

Features:

• Product Name: POM Bushing
• Surface: Copper Plating/Tin Plating/Zinc Plating
• Tensile Strength: 70 MPa
• Elongation At Break: 25%
• Thermal Conductivity: 0.25 W/(m·K)
• Coefficient Of Friction: 0.2-0.3
• Type: Plain Bearing
• Material: Steel Back POM Bushing Acetal Resin Composite
• Usage: Plain Bearing

Technical Parameters:

Applications:

The VIIPLUS.COM Plain Split POM Bushing Bearing is a high-quality product with excellent electrical insulation and chemical resistance. This product is made in China and is available in various surface finishes such as copper plating, tin plating, and zinc plating. The POM Bushing has a density of 1.41 G/cm3 and a thermal conductivity of 0.25 W/(m·K).

The Plain Bearing POM Bushing is suitable for a wide range of applications. It is commonly used in the automotive industry for suspension systems, steering gears, and engines. The POM Bushing can also be used in pumps, compressors, and other industrial machinery as it provides excellent chemical resistance and electrical insulation.

The Plain Bearing POM Bushing is also used in the food and beverage industry as it is FDA approved and can withstand harsh cleaning chemicals. It is also used in furniture and construction as it is wear-resistant and has a low coefficient of friction, providing smooth and quiet operation.

The POM Bushing is an excellent choice for applications where high precision and low friction are required. It is also suitable for high-load and high-speed applications due to its excellent wear resistance and low coefficient of friction.

The VIIPLUS.COM Plain Split POM Bushing Bearing is an ideal solution for a variety of industries and applications. It is a reliable and cost-effective solution for any machinery that requires a Plain Bearing POM Bushing.

Customization:

Product Customization Services for Plain Split POM Bushing Bearing

Brand Name: VIIPLUS.COM

Model Number: Plain Split POM Bushing Bearing

Place of Origin: MADE IN CHINA

Thermal Conductivity: 0.25 W/(m·K)

Coefficient Of Friction: 0.2-0.3

Surface: Copper Plating/Tin Plating/Zinc Plating

Application: Automotive, Electrical, Mechanical

Properties: With Lubrication Pockets,Low-maintenance

Customize your Plain Split Bearing with POM Bushing to fit your specific needs. We offer Copper Plating, Tin Plating, and Zinc Plating surfaces to choose from. Our Plain Split Bearing's coefficient of friction is 0.2-0.3 with a thermal conductivity of 0.25 W/(m·K). Our bearings are suitable for Automotive, Electrical, and Mechanical applications. Our Plain Split Bearing is low-maintenance and includes lubrication pockets for smooth operation. Proudly MADE IN CHINA, by VIIPLUS.COM.

Support and Services:

Our POM Bushing product is backed by comprehensive technical support and services to ensure optimal performance and longevity. Our team of experts is available to assist with installation, maintenance, and troubleshooting to help you get the most out of your product. Our services include:

• Installation guidance and advice
• Maintenance recommendations and schedules
• Technical troubleshooting and support
• Product performance optimization recommendations
