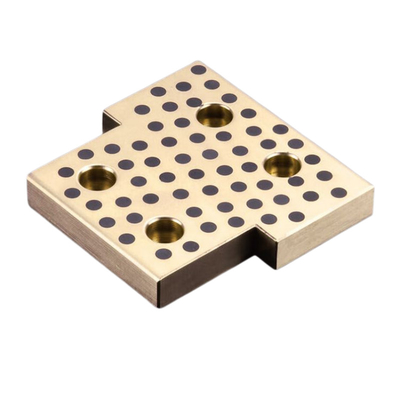

The Straight Type Wear Plate #500SP SWP-75100B Non-Lubricated is a high-quality wear component designed for use in various industrial applications where friction and wear are a concern. This wear plate is made of durable materials that can withstand heavy loads and high-speed movements, ensuring long-term reliability and performance.
The straight design of the wear plate provides a stable and secure fit, making it easy to install and integrate into existing systems. The #500SP SWP-75100B model is specifically engineered to meet the demands of specific applications, ensuring optimal performance and durability.
Since this wear plate is non-lubricated, it relies on the material's inherent properties to provide wear resistance. This means that it does not require external lubrication, reducing maintenance requirements and operational costs. However, it is important to note that in some applications, lubrication may still be necessary to ensure the best possible performance and lifespan.
Overall, the Straight Type Wear Plate #500SP SWP-75100B Non-Lubricated is a reliable and cost-effective solution for reducing friction and wear in industrial equipment. Its durable construction and precision manufacturing make it a suitable choice for a wide range of applications where wear resistance is crucial.
| NO. | DIN | Material No. | Designation | ASTM Standard | Proportional | Density (g/cm³) | 0.2% Strain (MPa) | Tensile Strength (MPa) | Strain (%) | E-modulus (MPa) | Hardness (HB) | Applications |
| 1 | 1705 | 2.1090.01 | CuSn7ZnPb | B 584 | Cu 81 - 85, Sn 6 - 8, Zn 3 - 5, Pb 5 - 7 | 8.8 | 120 | 240 | 15 | 106,000 | 65 | Widely utilized in automotive, aerospace, and marine engineering for components requiring good strength and corrosion resistance. Recognized internationally for versatility and performance. |
| 2.1090.03 | CuSn7ZnPb | B 271 | Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 | 8.8 | 130 | 270 | 13 | 106,000 | 75 | |||
| 2.1090.04 | CuSn7ZnPb | B 505 | Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 | 8.8 | 120 | 270 | 16 | 106,000 | 70 | |||
| 2 | 1705 | 2.1061.01 | CuSn12Pb | Not yet standardized | Cu 84 - 87, Sn 11 - 13, Pb 1 - 2 | 8.7 | 140 | 260 | 10 | 112,000 | 80 | Commonly used in manufacturing bearings, bushings, and components that require high load capacity and wear resistance, especially in marine and industrial applications. |
| 2.1061.03 | CuSn12Pb | Not yet standardized | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.7 | 150 | 280 | 5 | 112,000 | 90 | |||
| 2.1061.04 | CuSn12Pb | B 505 | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.7 | 140 | 280 | 7 | 112,000 | 85 | |||
| 3 | 1714 | 2.0975.01 | CuAl10Ni | B 584 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 270 | 600 | 12 | 122,000 | 140 | Used in marine, aerospace, and heavy machinery for manufacturing bearings and components requiring high strength and durability. Known for extreme loads and high corrosive environments. |
| 2.0975.02 | CuAl10Ni | B 30 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 300 | 600 | 14 | 122,000 | 150 | |||
| 2.0975.03 | CuAl10Ni | B 271 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 300 | 700 | 13 | 122,000 | 160 | |||
| 2.0975.04 | CuAl10Ni | B 505 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 300 | 700 | 13 | 122,000 | 160 | |||
| 4 | 1709 | 2.0598.01 | CuZn25Al5 | B 584 | Cu 60 - 67, Al 3 - 7, Fe 1.5 - 4, Mn 2.5 - 5, Zn rest | 8.2 | 450 | 750 | 8 | 115,000 | 180 | Used in heavy-duty bearings, hydraulic components, and marine hardware. Designed for high loads and resistance to corrosive attack. |
| 2.0598.02 | CuZn25Al5 | B 30 | Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 | 8.2 | 480 | 750 | 8 | 115,000 | 180 | |||
| 2.0598.03 | CuZn25Al5 | B 271 | Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 | 8.2 | 480 | 750 | 5 | 115,000 | 190 | |||
| 5 | 1705 | 2.1052.01 | CuSn12 | Not yet standardized | Cu 84 - 88, Sn 11 - 13, Pb 1, Ni 2.0, Sb 0.2, P 0.2 | 8.6 | 140 | 260 | 12 | 110,000 | 80 | Commonly used in manufacturing bearings, gears, and components requiring high wear resistance. Known for good machinability and corrosion resistance, particularly in seawater environments. All rights to the listed content are reserved by https://www.viiplus.com/ |
| 2.1052.03 | CuSn12 | Not yet standardized | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.6 | 150 | 280 | 8 | 110,000 | 90 | |||
| 2.1052.04 | CuSn12 | Not yet standardized | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.7 | 140 | 280 | 8 | 110,000 | 95 | |||
| Note: Delivery form codes: .01 = sand casting, .02 = gravity casting, .03 = centrifugal casting, .04 = continuous casting. | ||||||||||||
Material Copper alloy with Special solid lubricant (embedded) Standard VDI 3357
High tensile brass based / solid lubricant embedded
wear plate SWP-75100 non-lubricated
dimensions, tolerances, and material specs for the bushing and solid lubricant.
| Material | Metal system | Metal system material | High tensile brass based / solid lubricant embedded |
|---|---|---|---|
| Lubrication | Non-Lubricated | Thickness t(mm) | 20 |
| Width W(mm) | 75 | Length L(mm) | 100 |
| Maximum Allowable Surface Pressure P(N/mm2) | 29 | Maximum Allowable Velocity V(m/s) | 0.5 |
| Maximum Allowable PV Value(N/mm2·m/s) | 1.65 |
●Self lubricating bearings that can be used oil free.
●Q'ty Per Bag(piece): 1
●High-Strength Brass Castings (solid lubricant embedded)
Please check the type/dimensions/specifications of the part SPB-081208 in the #500SP1-SL1, Bushing (SPB) series.
CuZn25Al5Mn4Fe3-C. is a high tensile brass bearings; It is an extremely hard material, especially suited for machine elements submitted to the die & mould.
• high tensile brass bushing
• It is an extremely hard material, especially suited for machine elements submitted to the highest demands.
• The closest international standard is the ASTM B505 C86300
• VIIPLUS has a large stock of rectangular bars and round solid and hollow bars with immediate availability.
• An overview of the High Tensile Brass Bronze Cuzn25al5mn4fe3 ASTM B505 C86300 Bushings
A variety of alloys consisting of more than two elements are called special brasses. Such as aluminum, lead, tin, manganese, nickel, iron, silicon composed of copper alloy, high force brass is one of them. High strength brass has strong wear resistance, high strength brass, hardness, strong chemical corrosion resistance. There are machining mechanical properties are also very superior. High strength brass is often used to manufacture sheet, bar, bar, pipe, casting parts, etc.
Application domain editor
Colliers brass application is very extensive, the casting made of bearing and bushing, domestic mainly made of high strength brass for matrix solid lubrication oil-free bearings (hereinafter referred to as solid embellish bearing), is to use brass Gao Ligao strength as matrix, and embedded radial arranged orderly cylindrical polymer filler for friction materials (general graphite, molybdenum disulfide, , such as oil lubricant), its superiority lies in its made of copper alloy and non-metallic antifriction material has the respective complementary advantages, not only has high bearing capacity, and break through the boundaries of generally depends on the oil film bearing grease lubrication, achieve no oil lubrication, The embedded solid lubrication is easy to form lubrication film, which plays a great role in improving the friction and wear performance, and is stable, reliable and cost-effective. Compared with the composite oil-free bearing, it has the advantages of good machinability, high precision, strong bearing capacity and good wear resistance. The self-lubricating guide bush guide can be used in many fields such as engineering machinery joints, such as excavator, mining scraper, the rotating drill, concrete pump trucks, rock drill machines, hoist, port cranes, etc., and metallurgical machinery casting machinery, water conservancy machinery, transportation machinery, rolling mill, bottle blowing machine blown film machine, injection molding machine cross-clamping differential, tire vulcanizer, trailer balance beam, vacuum switch, etc.
