Metal Polymer Low Friction Bush Customizable

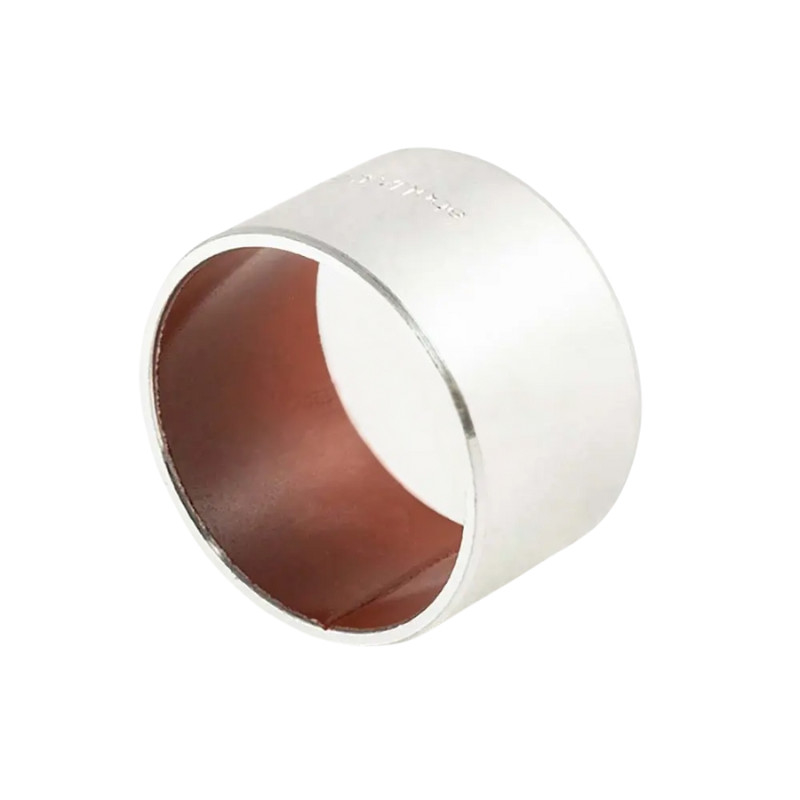

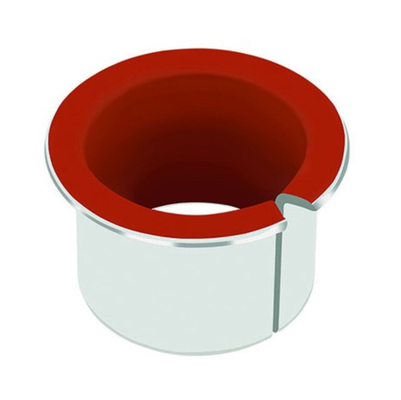

Metal Polymer Low Friction Bush Customizable

Brand Name: VIIPLUS
Model Number: bush
MOQ: negotiable
Price: Negotiable
Payment Terms: T/T
Supply Ability: plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing
Detail Information
Place of Origin:
oilless bushing
Certification:
ISO 9001
ITEM:
Bush Manufacturer
Type:
Bushing Split
Application:
Hydraulic Bushing
Feature:
RED &Fiber Mix Steel Backed Bushing
Size:
Customizable
Material:
Steel Base+ Bronze Powder+ (RED)
Bearing Bushing Factory Price:
Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer:
Https://www.viiplus.com/
High Light::
Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing
Characteristic:
Втулки скольжения (биметаллические подшипники скольжения)
Dry Slide Bearing:
Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running.
Bush Bearings Manufacturers Suppliers Exporters:
Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Packaging Details:
EXPORT CARTON WOOD PALLET WOODEN CASE
Supply Ability:
plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing
Highlight:

Metal Polymer Low Friction Bush

,

Metal Polymer Low Friction Plain Bearings

,

Customizable Low Friction Bush

Product Description

The Metal Polymer Low Friction Bush is a highly customizable component designed to meet the specific requirements of various industrial applications. Constructed from a combination of (Polytetrafluoroethylene) and metal polymers, this bush offers exceptional low-friction properties, ensuring smooth and efficient operation.

The material provides excellent lubrication and wear resistance, while the metal polymers add strength and durability. This combination results in a bush that can handle high loads and speeds while maintaining low friction and minimal wear.

The customizable nature of this bush allows it to be tailored to specific applications and requirements. Wh it's the size, shape, material composition, or lubrication properties, we can adjust the bush to meet your unique needs. This flexibility ensures that the bush will fit perfectly into your mechanical system, providing optimal performance and reliability.

In addition, the Metal Polymer Low Friction Bush is easy to install and maintain, reducing downtime and enhancing the overall efficiency of your operations. It's also suitable for use in a wide range of environments, including high-temperature and corrosive conditions.

In summary, the Metal Polymer Low Friction Bush is a highly customizable component that offers exceptional performance and durability in industrial applications. Its low-friction properties and adaptability make it a trusted choice for ensuring smooth and efficient operation.



Bearing Supplier Metal-Polymer Low Friction Bush

Metal-Polymer Low Friction Plain Bearings





Red/ Bushings Inch Size

Switch from Bearings - metal-polymer-bearings Composites

Red/



Metal Polymer Low Friction Bush Customizable 0



Properties



Suitable for dry running with a low coefficient of friction, low wear rate, good sliding characteristics, the transfer film created will protect the mating metal surface. Suitable for rotary and oscillating movement, high chemical resistance, lower absorption of water and reduced swelling. Also performs well with lubrication.



Material

/ Fibre + Bronze + Steel + Copper plating / tin-plating



Technical Data

Physical and Mechanical Properties Usage
Maximum Operating Temperature Tmax 280°C dry good
Minimum Operating Temperature Tmin -200°C oil lubricated very good
Maximum Static Load Psta,max 250N/mm² grease lubricated good
Maximum Dynamic Load Pdyn,max 140N/mm² water lubricated fair
Maximum Sliding Speed V-dry 2.5m/s process fluid lubricated good
Maximum Sliding Speed V-oil lubricated 5m/s
Maximum PV Factor-dry 1N/mm²·m/s
Maximum PV Factor-oil lubricated 10N/mm²·m/s
Coefficient of friction f-dry 0.04-0.25
Coefficient of friction f-oil lubricated 0.02-0.08

Metal Polymer Low Friction Bush Customizable 1

Application

This material meets the demanding criteria for long life and trouble-free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earthmovers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.
