#2000 Wear Plate Thin Wall 5Mm Type CWT Customized

Place of Origin oilless bushing
Brand Name VIIPLUS
Certification ISO 9001
Model Number Oil-Free Plates,
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-25 work days
Payment Terms T/T
Supply Ability plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Solid Lubricant Guide Rails Oil Free Featrue Maintenance
Lubricating Solid Lubricant Plate Type Metal System Material Solid Lubricant Distributed Sintering
Quality High Quality Size Customized
Bearing Bushing Factory Price Tiffany@viiplus.com Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ Oilless Bearing Manufacturer Https://www.bronzelube.com/
Manufacturer Bucha De Bronze Grafitado High Light Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery
Oilless Bushes Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Oilless Bush Supplier Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries.
High Light

5Mm Thin Wall Wear Plate

,

Customized Thin Wall Wear Plate

Leave a Message
Product Description

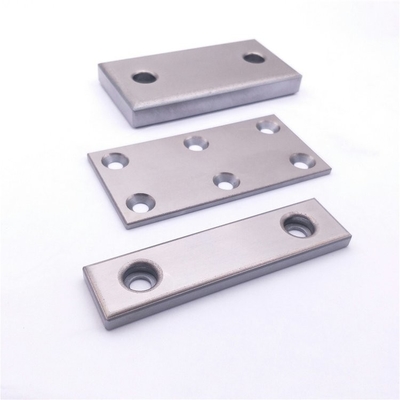

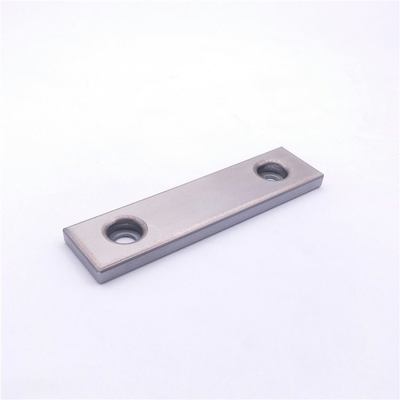

#2000 Wear Plate Thin Wall 5 Mm Type (CWT)

High Quality Mould Die Guide Bush, Graphite Oil-Free Bronze

Oiles #2000 Oiles Bearing Metal Bearing, Metal system material Solid lubricant distributed Sintering

#2000 Wear Plate Thin Wall 5 mm Type (CWT) size chart


  • OIL-FREE SLIDE PLATES
    -SINTERED ALLOY BLANK TYPE

Automation Components Linear Motion. Oil-Free Plates, Guide Rails Oil Free Slide Plates, Economical bearings usable in any sliding direction

The Oiles 2000S series are self-lubricating #2000 Wear Plate Thin Wall 5 mm Type (CWT) bearings made of a newly developed special alloy, where solid lubricant mainly made of graphite is diand spersed impregnated with more oil.



OILES #2000 is a composite multilayer #2000 Wear Plate Thin Wall 5 mm Type (CWT) bearing with a sliding surface of special sintered material and with a steel-structured back metal. The sintered layer employs dispersion sintering of solid lubricant that mainly composes special copper alloy and graphite.

OILES #2000 Wear Plate Thin Wall 5 mm Type (CWT) > Metal Bearing

Characteristics
Dispersion sintering of solid lubricant allows the #2000 Wear Plate Thin Wall 5 mm Type (CWT) bearing to be successfully used in arbitrary directions of movement and stand up to very minute motion.
It requires no oiling.
It offers excellent load and wear resistance,or speed variations.
The sample and the plate material for additional processing are available.

Oiles 2000 #2000 Wear Plate Thin Wall 5 mm Type (CWT)

Sintered oil-impregnated slide plate with dispersed solid lubricant













Self-lubricating, Maintenance-free Bushing sleeve

#2000 Wear Plate Thin Wall 5 mm Type (CWT) size chart

Part Number Width W (mm) Length L
(mm)
CWT-100100 100 100
CWT-100125 100 125
CWT-100150 100 150
CWT-22100 22 100
CWT-22150 22 150
CWT-2250 22 50
CWT-2275 22 75
CWT-28100 28 100
CWT-28150 28 150
CWT-2850 28 50
CWT-2875 28 75
CWT-38100 38 100
CWT-38150 38 150
CWT-3850 38 50
CWT-3875 38 75
CWT-48100 48 100
CWT-48150 48 150
CWT-4875 48 75
CWT-75100 75 100
CWT-75125 75 125
CWT-75150 75 150
CWT-7575 75 75







Types of Wear Plates
Material Thickness Code No. Feautures
Base Metal Oilless Type
FC250
Graphite
20 SESF Excellent sliding performance at low load and medium speed.
20 SESFT
SS400 Copper Powder sintering 20 SOX Excellent sliding performance at low /
medium load and medium speed.With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited.
20 SOXT
S45C 10 TWX
10 TWXT
Copper alloy Graphite 20 SESW Excellent in load resistance and wearExcellent sliding performance at high load and low speed.resistance. Good performance is shown in reciprocating and frequent starts and stops.
20 SESWT
10 TWP
10 TWPT
5 UWP
Steel (S45C) Graphite 20 FRP Since the surface hardness is HRC40 or more, it is excellent in wear resistance.
Steel (SKS3) 20 TSP Since the surface hardness is HRC58 or more, it is greatly excellent in

Oiles 2000S | Bearings, #2000 Wear Plate Thin Wall 5 mm Type (CWT)





Service range
Lubrication conditions Dry
Service temperature range
(°F)
-40 to +248
allowable max. contact pressure : P
(N/mm2)
29
allowable max. velocity : V
(m/s)
1.00
Allowable max. PV value
(N/mm2・m/s)
1.63


Feature

■ Serviceable without the need for lubrication. Demonstrates higher performance when greased.
■ Distributed solid lubricant allows motions in any direction.
■ Features low coefficient of friction and quite superior wear resistance.
■ Lower prices than #2000 Wear Plate Thin Wall 5 mm Type (CWT) bearings with copper alloy bases.





Oilles 2000 bushing sleeve is a Sintered Multi-Layer #2000 Wear Plate Thin Wall 5 mm Type (CWT) Bearings bushing sleeve made of a special sintered material which forms the sliding surface and the steel material forms the support.

The sintered layers are of a special copper-nickel alloy containing a uniformly dispersed lubricating solid, the main component of which is graphite. Solid lubricants will be released onto the Sintered Multi-Layer #2000 Wear Plate Thin Wall 5 mm Type (CWT) Bearings bushing sleeve surface when wear occurs. This ensures a lower friction coefficient during operation.

In addition, these sintered layers are impregnated with oil. Applications covered include wear plates for automotive tools, industrial robots, wear plates for plastic injection molding machines and link Sintered Multi-Layer #2000 Wear Plate Thin Wall 5 mm Type (CWT) Bearings bushing sleeve, construction machinery, etc.



Feature

· Dispersed solid lubricant allows motions in any direction and offers superior performance for minute movements.


· Serviceable without the need for lubrication.


· Features superior load resistance, speed characteristics, and wear resistance.


· Standard Oilles 2000 bushing sleeve products and plates for additional machining are available in various sizes.



· Shows many superior performances due to the effect of the oil retention force of the sintered copper alloy layer and the solid lubricant when          lubricating oil is used together.

· Thin bearing bushing sleeve enables compact design.

· Electrically conductive.



Characteristics


· Good wear and friction characteristics over a wide range of loads, speeds and temperatures without oil

· Also work well with grease

·Maintenance free, long life





Service range



Lubrication conditions Dry Periodic lubrication
Service temperature range
(℃)
-40~+120 -40~+120
allowable max. contact pressure : P
(N/mm2)
24.5 49
allowable max. velocity : V
(m/s)
0.50 1.00
Allowable max. PV value
(N/mm2・m/s)
1.63 2.45




The values ​​in parentheses are the static pressures of the Sintered Multi-Layer Bearings bushing sleeve , which are the pressures of the Sintered Multi-Layer Bearings in non-moving or very low-moving applications (≦ 0.0017 m / s).





Mechanical properties



Density —— g/cm3 6.3
Hardness JIS K 7202-2 HRM 60-95
Oil impregnation rate —— vol% 12



· The value shown above are for sintered layer.
· The values shown above are typical values, not the standard values.







Oil Impregnation Method



If the Oiles 2000 material is purchased and used by finishing it, it should be oil-impregnated after machining and then assembled in the housing. When the bushing sleeve Sintered Multi-Layer Bearings is stored for long or washed, it should be oil-impregnated again and then assembled in the housing. For the method, see the description about the oil impregnation method shown on page 250. Dip the machined bushing sleeveSintered Multi-Layer Bearings in lubricating oil for 24 hours or more before using it, if oil impregnation (by heating) is disabled.
