Enhancing Performance with Oscillating Bearing Spherical Plain Bearing SOBS
"High-Performance Plugged Graphite Oscillating Spherical Plain Bearing SOBS" is a technical term that refers to a specific type of bearing. Let's break down the term to understand its components:
High-Performance: This indicates that the bearing is designed to operate with exceptional durability, precision, and/or load-bearing capacity.
Plugged Graphite: Graphite is a material often used in bearings due to its self-lubricating properties and resistance to wear. "Plugged" likely refers to a specific manufacturing process or structure where graphite is inserted or applied in a particular manner to enhance the bearing's performance.
Oscillating: This refers to the movement pattern of the bearing. Oscillating bearings are designed to handle angular motion or oscillating movements, which is often seen in pivot points or rotating joints.
Spherical Plain Bearing: A spherical plain bearing is a type of bearing that allows for both rotation and tilting movements. The spherical shape of the bearing surface allows for multi-directional movement and flexibility.
SOBS: This appears to be an abbreviation or a specific designation for this type of bearing. It may be a trade name, model number, or a standard abbreviation used in the industry.
In summary, a High-Performance Plugged Graphite Oscillating Spherical Plain Bearing SOBS is a bearing that is designed for high-performance applications, incorporates graphite for lubrication and wear resistance, handles oscillating movements, allows for multi-directional flexibility, and may have a specific designation or trade name of SOBS.

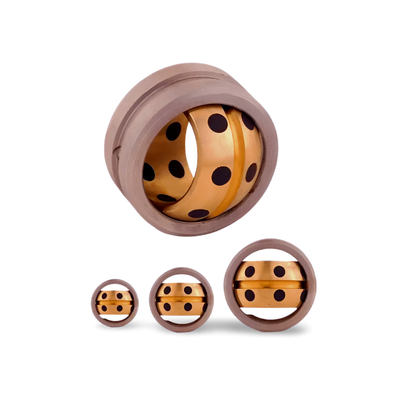

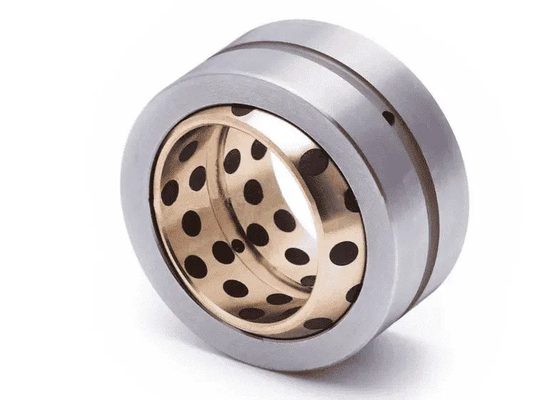

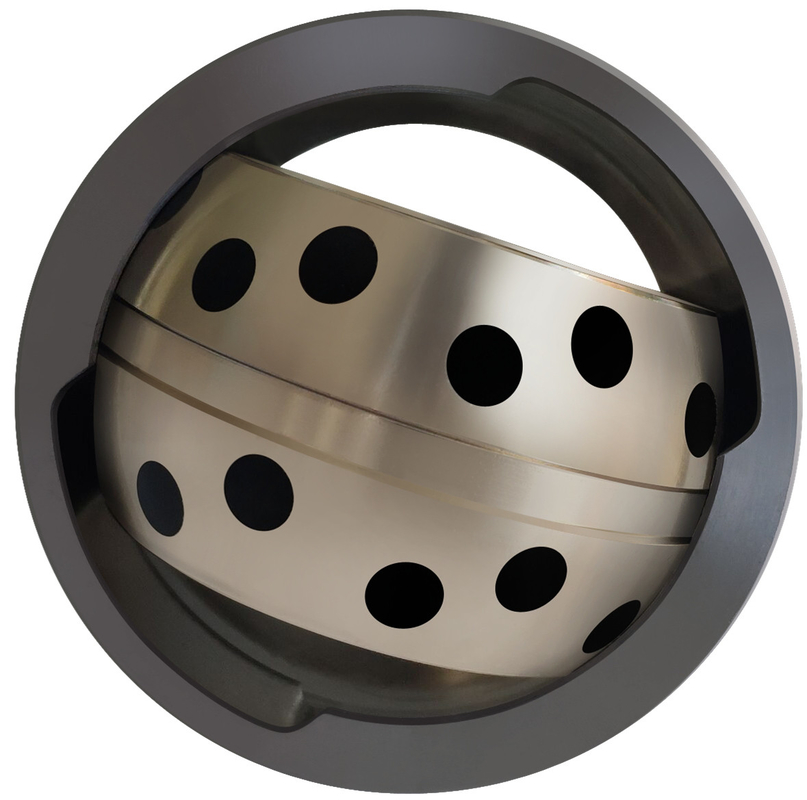

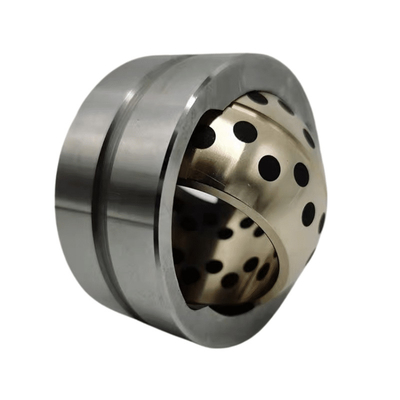

In the realm of mechanical engineering, oscillating bearings play an indispensable role in ensuring smooth operation and optimal performance across a myriad of applications. Among these, spherical plain bearings stand out for their versatility and efficiency in accommodating rotational and oscillating movements within machinery. The bearing has a spherical plain design at its core, which allows it to accommodate rotational and tilting movements with minimal friction and wear. What sets it apart is the integration of graphite plugs within its structure. These graphite plugs serve as solid lubricants, providing self-lubricating properties to the bearing.
Spherical plain bearings are characterized by their spherical inner and outer rings, which house a sliding contact surface. This design enables them to accommodate misalignment, shaft deflection, and varying degrees of angular movement. These bearings are commonly constructed with inner and outer rings made from high-quality bearing steel. At the same time, the sliding contact surface may feature different materials such as steel-on-steel, steel-on-bronze, or steel-on- composite.
The versatility and robustness of spherical plain bearings make them indispensable across a wide range of industries and applications. From heavy machinery and construction equipment to aerospace and automotive systems, these bearings find utilization in diverse environments where reliable performance and durability are paramount.
In aerospace, spherical plain bearings play a critical role in aircraft landing gear systems, control surfaces, and engine components. Their ability to withstand high loads and harsh operating conditions makes them ideal for ensuring safe and efficient flight operations.
Within the automotive industry, spherical plain bearings are commonly employed in steering systems, suspension components, and drivetrain assemblies. Their ability to accommodate misalignment and absorb shocks and vibrations enhances vehicle performance, comfort, and safety.
In industrial machinery applications, spherical plain bearings find widespread use in conveyor systems, hydraulic cylinders, and articulating joints. Their robust construction and high load-carrying capacity contribute to the smooth and reliable operation of various manufacturing processes.
| Properties: | SOBS |
|
Base Material:
|
Special Brass (SO#50SP2)
|
| composition: | CuZn25A16Fe3Mn3 Base |
|
Self-lubricating:
|
Yes
|
| Lubricant: | Graphite |
|
Surface Pressure P:
|
100 N/mm²
|
| Sliding speed v: | 30 m/min |
|
P*v-value:
|
200 N/mm² x m/min
|
| Operating temperature: | -50°C / +200°C (max. 300°C) |
|
Friction coefficient:
|
0,07
|
When compared to other types of bearings, spherical plain bearings offer several distinct advantages that contribute to their widespread adoption and popularity in various industries.
Spherical plain bearings are designed to withstand heavy radial and axial loads, making them suitable for applications where high load-carrying capacity is essential. Their robust construction and efficient load distribution ensure reliable performance under demanding conditions.
Self-Lubricating Properties
Many spherical plain bearings are equipped with self-lubricating features, such as liners or grease-filled cavities, eliminating the need for external lubrication. This reduces maintenance requirements and prolongs bearing service life, resulting in cost savings and operational efficiency.
Accommodation of Misalignment
Unlike traditional bearings, which require precise alignment for optimal performance, spherical plain bearings can accommodate shaft misalignment and angular movement. This flexibility minimizes stress on components and extends the lifespan of machinery, especially in dynamic operating environments.
Key Considerations for Selection and Installation
While spherical plain bearings offer numerous benefits, proper selection and installation are crucial to ensuring optimal performance and longevity. Here are some key considerations to keep in mind:
Load Requirements
Before selecting a spherical plain bearing, it's essential to assess the anticipated load conditions, including both radial and axial loads, as well as dynamic and static forces. Choosing a bearing with the appropriate load capacity ensures reliable operation and prevents premature failure.
Environmental Conditions
Consider the operating environment when selecting spherical plain bearings, taking into account factors such as temperature extremes, moisture, contamination, and exposure to chemicals or corrosive substances. Choosing bearings with suitable sealing and surface treatments helps mitigate the effects of adverse conditions and prolong service life.
Spherical plain bearings, among other oscillating bearings, are essential elements in diverse mechanical systems, providing unmatched versatility, reliability, and performance. Found in aerospace, automotive, industrial machinery, and more, these bearings are vital for maintaining smooth operation and peak functionality. Engineers and technicians can optimize the performance and efficiency of their systems by grasping the design principles, applications, advantages, and important factors related to spherical plain bearings.
If you want to read more information , Welcome to order:VIIPLUS
We provide the model number: Standard No.JDBS-015,JDBS-020,JDBS-025,JDBS-030,JDBS-035,JDBS-040,JDBS-045,JDBS-050,JDBS-060,JDBS-070,JDBS-080,JDBS-090,JDBS-100,JDBS-110,JDBS-120,JDBS-130,JDBS-140,JDBS-150,JDBS-160,JDBS-180,JDBS-200,JDBS-220,JDBS-240,JDBS-260,JDBS-280,JDBS-300.
| Article name | Inner diameter d | Outer diameter D | Width W | Angle a | S-øD1 | l1 | l2 | Permitted radial load Rd (kN) | Permitted axial load Td (kN) | Rd x V permitted (kN x m/min) | Type | CAD-Download | Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SOBS 015 | 15 | 26 | 12 | 8° | 22 | 9 | 4 | 6,5 | 0,5 | 6,5 | A | ||
| SOBS 020 | 20 | 32 | 16 | 4° | 28 | 14 | 4 | 12,6 | 1,4 | 12,6 | A | ||
| SOBS 025 | 25 | 42 | 21 | 5° | 36 | 18 | 4 | 21,8 | 2,5 | 21,8 | A | ||
| SOBS 030 | 30 | 50 | 27 | 6° | 44 | 23 | 4 | 32 | 3,5 | 32 | A | ||
| SOBS 035 | 35 | 55 | 30 | 5° | 49 | 26 | 4 | 43,7 | 4,8 | 43,7 | A | ||
| SOBS 040 | 40 | 62 | 33 | 6° | 55 | 28 | 4 | 54,7 | 5,7 | 54,7 | A | ||
| SOBS 045 | 45 | 72 | 36 | 5° | 62 | 31 | 4 | 69,7 | 7,2 | 69,7 | A | ||
| SOBS 050 | 50 | 80 | 42 | 5° | 70 | 36 | 4 | 92,4 | 10 | 92,4 | A | ||
| SOBS 055 | 55 | 90 | 47 | 5° | 80 | 40 | 4 | 117 | 13 | 117 | A | ||
| SOBS 060 | 60 | 100 | 53 | 6° | 90 | 45 | 4 | 143 | 16 | 143 | A | ||
| SOBS 065 | 65 | 105 | 55 | 5° | 94 | 47 | 4 | 162 | 18 | 162 | A | ||
| SOBS 070 | 70 | 110 | 58 | 5° | 99 | 50 | 4 | 181 | 20 | 181 | A | ||
| SOBS 075 | 75 | 120 | 64 | 5° | 105 | 55 | 4 | 217 | 25 | 217 | A | ||
| SOBS 080 | 80 | 130 | 70 | 6° | 115 | 60 | 4 | 254 | 30 | 254 | A | ||
| SOBS 085 | 85 | 135 | 74 | 6° | 120 | 63 | 4 | 283 | 33 | 283 | A | ||
| SOBS 090 | 90 | 140 | 76 | 6° | 125 | 65 | 4 | 313 | 36 | 313 | A | ||
| SOBS 095 | 95 | 150 | 82 | 6° | 135 | 70 | 4 | 428 | 50 | 428 | A | ||
| SOBS 100 | 100 | 160 | 88 | 6° | 145 | 75 | 6 | 544 | 64 | 544 | B | ||
| SOBS 110 | 110 | 170 | 93 | 5° | 155 | 80 | 6 | 642 | 73 | 642 | B | ||
| SOBS 115 | 115 | 180 | 98 | 5° | 165 | 85 | 6 | 719 | 83 | 719 | B | ||
| SOBS 120 | 120 | 190 | 105 | 6° | 170 | 90 | 6 | 797 | 94 | 797 | B | ||
| SOBS 130 | 130 | 200 | 110 | 5° | 180 | 95 | 6 | 880 | 105 | 880 | B | ||
| SOBS 140 | 140 | 210 | 90 | 7° | 180 | 70 | 6 | 668 | 56 | 668 | B | ||
| SOBS 150 | 150 | 220 | 120 | 5° | 200 | 105 | 6 | 1135 | 129 | 1135 | B | ||
| SOBS 160 | 160 | 230 | 105 | 8° | 200 | 80 | 6 | 891 | 73 | 891 | B | ||
| SOBS 180 | 180 | 260 | 105 | 6° | 225 | 80 | 6 | 1002 | 74 | 1002 | B | ||
| SOBS 200 | 200 | 290 | 130 | 7° | 250 | 100 | 6 | 1434 | 117 | 1434 | B | ||
| SOBS 220 | 220 | 320 | 135 | 8° | 275 | 100 | 9 | 1577 | 118 | 1577 | B | ||
| SOBS 240 | 240 | 340 | 140 | 8° | 300 | 100 | 9 | 1720 | 118 | 1720 | B |
