Precision CuSn5Pb20 Bronze Bearing Metric Size Customized

Place of Origin Graphite Bearings Manufacturers
Brand Name SANKYO,MISUMI,DAIDO,SELF LUBE,GGB,FIBRO STANDARD REPLACEMENT BEARING
Certification DIN 1850/ISO 4379, UNITED STATES UNS STANDARD,C86300
Model Number solid bushing, bronze with lubricant plugs embedded Maintenance-free
Minimum Order Quantity NEGOTIABLE
Price Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Packaging Details BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Delivery Time FAST DELIVERY
Payment Terms TT IN ADVANCE
Supply Ability Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers
Product Details
Material CuSn7Zn4Pb7,CuSn12,CuZn37Mn3Al2PbSi,CuSn7- 0.2,CuAl10Fe3,CuAl10Fe5Ni5,CuZn25Al6Fe3Mn3, Model Number Groove Patterns, "Spira-Lube" Groove And "Rifle" Groove.Flanged Bushings
Feature Customized Drawings Bushings Lubrication Without Graphite,self-lubricating
Application Heavy Duty Equipment,Machinery Repair,Hydraulic,Power Transmission Type Bronze Bushing With Oil Groove Bearing Bush,Precision Bronze Bearing
Additional Information J, JF, JR, PBM, PBMF Dimensions Metric Size
High Light

Metric Precision Bronze Bushings

,

CuSn5Pb20 Bronze Bearing

,

CuSn5Pb20 Precision Bronze Bushings

Leave a Message
Product Description

Precision CuSn5Pb20 Material Bronze Bearing

C93500 C93600 C93700 C93800 C93900 C94000 C94100 CuPb20Sn CuPb10Sn CuPb15Sn CuPb15Sn CuSn5Pb9 CuSn7Pb CuZn35Al1 CuZn15Si4 CuSn10Zn / Rg10 CuSn10 CuSn12 CuSn12Ni CuSn6Zn4Pb2 CuSn12Pb CuSn10Zn CuSn12Pb.....

CuSn5Pb20-C is the EN chemical designation. It has a very low heat capacity among cast bronzes. In addition, it has a very low tensile strength and a very low melting temperature.

Version:0.9 StartHTML:0000000105 EndHTML:0000000318 StartFragment:0000000141 EndFragment:0000000278

Casquillo Bronce Lanza

CASQUILLO BRONCE
ARRASTRE CLAVIJO

CASQUILLO BRONCE
HORIZONTAL CLAVIJO

ARANDELA BRONCE
NUDO HORIZONTAL

ARANDELA BRONCE
NUDO VERTICAL

Casquillo bronce



EN 1982 CC497K / CuSn5Pb20-C. The W-Pb-20 is a copper, lead and tin bronze alloy. The closest international standard is the ASTM B505

Buy the best quality high-leaded tin bronze oilless slide bush C94100 CuSn5Pb20-C with


EN CC497K (CuSn5Pb20-C) High-Leaded Tin Bronze







chemical composition:

Cu -------------------- 65-75

Sn -------------------- 4.7-6.5

Pb -------------------- 15-21.7

Zn -------------------- ≤3.0

Fe -------------------- ≤0.10

Sb -------------------- ≤0.7

Ni+Co -------------------- ≤0.8

S -------------------- ≤0.08

P -------------------- ≤ 0.05

Al -------------------- ≤0.005

Si -------------------- ≤0.005

Executive standard: ASTM B505/B505M-2005

Mechanical behavior:

Tensile strength (not less than) ksi 25 MPa 172

Yield strength (not less than) ksi 17 MPa 117







we can not only manufacture Precision CuSn5Pb20 Material Bronze Bearing, copper alloy material according to China's national standard but also can produce it as the related standards of the ASTM(UNS, SAE), EU and JIS, etc. What's more,we can also develop the copper alloy material according to the special requirements and drawings of customers

the copper sleeve is a high-strength brass bearing lubricated by an oil gully. This product has the function of a traditional tin bronze bearing. After using high-strength brass (Precision CuSn5Pb20 ), its HB hardness is doubled, so using this product in low-speed occasions can double the life of ordinary bronze sleeves, and It has high bearing pressure and can be used on heavy-duty occasions. The following materials can be provided according to customer requirements.



Sleeve bearings, bronze bushings, plain bearings Graphite Plugged Bushing or oil groove type, contact us to get a free quote.

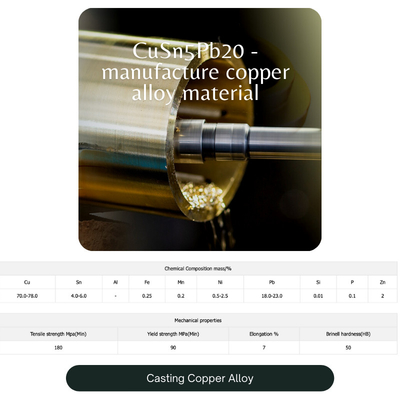

Chemical Composition mass/%
Cu Sn Al Fe Mn Ni Pb Si P Zn
70.0-78.0 4.0-6.0 - 0.25 0.2 0.5-2.5 18.0-23.0 0.01 0.1 2
Mechanical properties
Tensile strength Mpa(Min) Yield strength MPa(Min) Elongation % Brinell hardness(HB)
180 90 7 50
Precision CuSn5Pb20 Bronze Bearing Metric Size Customized 0




Check out our stock size. Stock metal-backed bearing cheap price. Stock Orders Ship Today. Order Online Today. Types: Cast Bronze Standards, Bronze Standards, Standard Metric Bushings, Oil-less Type Bushing, Manganese Bronze.



self-lubricating sleeve bearing forms made to order: cylindrical bushes with bronze alloy RG7 bronze bearings, special parts according to ISO, DIN or customer design, special alloys, c86300 bronze bushing, c93200 bronze bushing, c95400 bronze sleeve.



Characteristics



self-lubricating sleeve bearing material for lubricated applications in general engineering applications Suitable for oil and grease lubrication



Precision CuSn5Pb20 Material Bronze Bearing

Solid Bronze Bushing  and Cast Bronze Bearings The Solution for Extreme Temperatures



Groove Bronze Bushing & self-lubricating sleeve bearing made to order from china are solid brass sliding bearings with screwed-in oil grooves. Thanks to their high levels of load capacity, long service lives, and high levels of base hardness, these self-lubricating sleeve bearing are used at low speeds. The self-lubricating sleeve bearing and flanged bushings sliding bearings are currently used primarily in gearboxes, jibs, or gripper arms.Precision Flanged Groove Online Cast self-lubricating sleeve bearing Spiral inside Groove Bearings, Oil & Grease Grooving groove styles: Circular Straight Single Loop Double Loop Straight & Circular Figure 8 Double Figure 8 STYLE 11


Oil groove copper sleeve bushing Made-To-Order Choose your dimensions.

Precision CuSn5Pb20 Bronze Bearing Metric Size Customized 1

Machined Cast bronze bushings offer technically and economically favorable bearing solutions. High loading capability, low weight, good corrosion resistance. VIIPLUS Sliding Bearing can offer different types of bronze alloys according to the lifetime, service, etc. The tolerance is much higher than wrapped bronze bushes.Our Precision Bronze Bushings are machined from various kinds material :




CuZn25Al6Fe3Mn3,CuSn7Zn4Pb7,CuSn12,CuZn37Mn3Al2PbSi,CuSn70.2,CuAl10Fe3,CuAl10Fe5Ni5 bronze for superior quality and performance.
We are specialists in bushing cutting lubrication grooves in virtually any pattern. Made to order customized bushing for "Spira-Lube" Groove and "Rifle" Groove,figure-eight groove bushings, double figure eight groove bearings, loop groove bushes, double loop groove sleeve, circular groove sliding bearings, wick or straight sleeve bushing.


self-lubricating sleeve bearing with Oil Groove Bearing Bush


VIIPLUS INTERNATIONAL manufactures transportation superstructure self-lubricated bearings solutions in china, and ensures in value details and bushing highest of quality and offer unbeatable prices. Equipment Bushing & Sliding bearings, self-lubricated bearing for vehicles, and transportation solutions are available for china, regional and international benefits. Through a comprehensive and highly diversified network of partners, the viiplus company provides services that compete with international peers with regard to value and excellence. Contact us page for any further information, inquiries, and business partnerships.


Oil Grooves Type For Cast Bronze Bushings


Double Loop and Double Figure Eight recommended for grease only.





Made-To-Order Cast Bronze Sleeve Bearings


Oil & Grease Groove Bronze Bushings & Flanged
Groove Type: Single Loop Figure Eight Straight & Circular Double Loop Double Figure Eight Half Figure Eight Straight Circular
Note: In order to form a more perfect oil film between the bearing & shaft, we recommend a V-shaped groove whenever the design permits, as it allows a full flow of the lubricant across the bearing surface.
Bearing forms made to order: cylindrical bushes with bronze alloy according to ISO 4379, special parts according to ISO, DIN or customer design, special alloys



Solid Bronze Cylindrical Bushes


Solid Bronze Cylindrical Bushes



Choose Your Bronze Bearings Types And Size






Copper Alloy Bushings Technical Parameters






There are the following raw materials for self-lubricating sleeve bearing
ZCuSn10Pb1: corrosion-resistant, especially to dilute sulfuric acid, hydrochloric acid, and fatty acid.Construction information, corrosion, and acid-resistant accessories, crusher bushing, bearing tiles.
ZCuSn10Pb5: smooth, wear-resistant, and corrosion-resistant, suitable for bimetal forging materials.Bearings for vehicles, bimetallic bearing pads for internal combustion engines with peak load up to 100Mpa, piston pin sleeves, friction plates, etc.
ZCuPb10Sn10: high hardness, excellent wear resistance, not easy to bite dead appearance, good forging, and cutting function, in the atmosphere and fresh water, has good corrosion resistance. It can be used for wear-resistant parts under high load (below 20Mpa) and high sliding speed (8m/s), such as connecting rod, bushing, bearing bush, gear, worm wheel, etc.
ZCuPb15Sn8: under the condition of lack of smoothing agent and water quality smoothing agent, sliding and self-soothing function is good, free cutting, forging function is poor, good corrosion resistance to dilute sulfuric acid. Bearing with high external pressure and side pressure can be used to make a copper cooling tube of cold rolling mill, parts with impact load up to 50Mpa, the bimetal bearing shell of the internal combustion engine, mainly used for piston pin sleeve with maximum load up to 70Mpa, acid-resistant accessories.


Oil groove brass bushing


Based on high strength brass, lubricating by oil added in the groove, which has the same performance with tin bronze bushing but with much higher hardness, the lifetime for low-speed application is 2 times of tin bronze bushing. It can be used in heavy load conditions.
It mainly used in the joint of grab which with high load, and in the huge gearbox.
Base material: CuZn25AL6Fe3Mn3
Dynamic load limit: 100N/mm2
Hardness: HB210~270
Friction Coef.μ:<0.16
Speed limit(oil): 1.5m/s
Temperature max: 170℃


Available Sliding Bearings Form:


Plain cast bronze sleeve bushings, grooved cast bronze sleeve bushings, flanged cast bronze bushings, thrust washer, cast bronze bearings, Oversized Bearings Bushings Size: Our standard bearing line features over different dimension & inch size bushings that are carried in stock.


Made-To-Order Cast Bronze Sleeve Bearings for an Oil/Grease Application


VIIPLUS INTERNATIONAL according to different customer requirements, according to ASTM DIN, BS, EN (DIN/EN), SS, BS, UNS, SAE bushing, and China GB standard production of all kinds of bronze, brass bushing, plate, and rod products. All products are made of electrolytic copper by centrifugal casting, continuous casting, and extrusion sliding bearings.




Cast self-lubricating sleeve bearing solutions


VIIPLUS specialized in manufacturing self-lubricated bearings in Construction Machinery,  automotive industry, Electrical appliances, Hydraulic and pneumatic, Mold, Agricultural Machinery, water conservation, Bridge.


Oil and grease grooves
– Single Loop
– Figure Eight
– One Straight & One Circular
– Double Loop
– Double Figure Eight
– R.H. & L.H. Spiral
– Straight Groove
– Circular Groove



We are both manufacturers and distributors of bronze bearings and custom bronze bearings. Our production processes include turning, boring, broaching, grooving, dressing, milling, drilling, grinding, and deburring. Our standard ranges of bronze bushings and bronze sleeve bearings are available in a wide variety of sizes and shapes.
We have thousands of cast bronze bushings, sintered bronze bushings, flanged bushings, thrust bushings, and more in stock. Our standard bronze bearing ranges are supplied with internal grease grooves and without grooves. When quotes are made for pads that are "machined to print" or "made from samples", we welcome designs in a number of formats, such as; Adobe .pdf, Microsoft Word, Koday .jpeg and CAD file to meet the needs of our customers.
