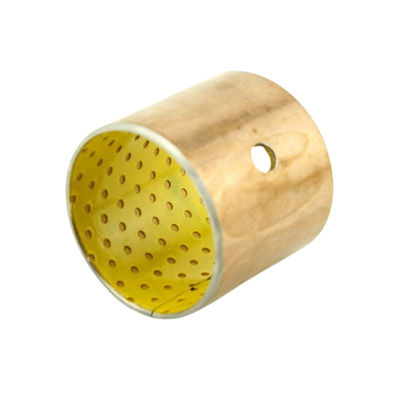

Oilless Bearing Bush Tin Or Copper Plating Yellow
Place of Origin | MADE-TO-ORDER FROM CHINA |
---|---|
Brand Name | Buje De Cojinete |
Certification | STANDARD DIN 1494, ISO 3547 BUSHING |
Model Number | METAL/POLYMER COMPOSITE PLAIN BEARINGS FLANGED PLAIN SLEEVE |
Minimum Order Quantity | ORDER BUSHING ONLINE,STOCK SIZE NO MOQ QUANTITY |
Price | NEGOTIABLE,CHEAP PRICES |
Packaging Details | CARTONS,WOODEN CASE,SPECIFY REQUIREMENTS |
Delivery Time | 7-15 DAYS |
Payment Terms | TT IN ADVANCE,L/C,WESTERN UNION |
Supply Ability | Cojinete de buje de bronce |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeterial | Buje De Cojinete | Plating | Tin Or Copper |
---|---|---|---|
Type | Wrapped Bushes, Thrust Washer,Boundary Lubricating | Customized | Based On Drawing Or Sample |
Color | Copper Plating Yellow | Application | Automotive Chassis, Forging Machines, Mine Quarrying Machines, Metal Melting And Casing Machines And In Water Irrigating And Steel Rolling Industries, Etc. |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
Oilless Bearing Manufacturer | Https://www.bronzelube.com/ | Manufacturer | Bucha De Bronze Grafitado |
High Light | Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery | Oilless Bushes | Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | Oilless Bush Supplier | Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries. |
High Light | Tin Plating Bearing Bush,Copper Plating Oilless Bushes,Copper Plating Bearing Bush |
The oilless bearing bush, featuring a yellow-finished tin or copper plating, offers a highly efficient and maintenance-free bearing solution. This unique design eliminates the need for regular lubrication, significantly reducing operational costs and maintenance requirements.
The bearing bush is constructed from high-quality materials, ensuring its durability and long-term performance. The tin or copper plating not only adds a protective layer but also enhances the bearing's lubricity, resulting in smoother and friction-free operation.
The yellow finish of the plating not only provides a visually appealing appearance but also serves as a corrosion-resistant coating, further extending the bearing's lifespan.
This oilless bearing bush is suitable for a wide range of industrial applications, including machinery, automotive components, and other equipment that require reliable and lubrication-free bearing solutions. Its efficient performance and ease of installation make it a cost-effective choice for various industries.
In summary, the oilless bearing bush with tin or copper plating in yellow finish offers a highly efficient and maintenance-free bearing solution that is suitable for a wide range of industrial applications. Its durability, long-term performance, and visually appealing appearance make it a preferred choice for many industries.
Buy Bushing Parts Buje Cojinete Copper: Bushings & Bearings - Amazon.com ✓ FREE DELIVERY, Designed Specifically for your vehicle;
Composite dry sliding bearings maintenance-free and space-saving
Composite dry sliding bearings are primarily used for bearing arrangements where heavy loads should be supported and where rotational or oscillating movements are relatively slow. Due to their good sliding properties and compact design, these plain bearings are particularly suitable for bearing systems in which:
Bushing Parts Buje Cojinete Copper
Cojinete de buje de bronce
POM based sliding bearing also called DX bushing, boundary lubrication bearing,SF-2 oilless bearing,dry bearing, DX bearing and POM lined plain dry bush.
·maintenance-free operation is a prerequisite
·there is a risk of starvation of lubricantbuje cojinete
·lubricants cannot be used or are prohibited
·Space is limited
Dry Sliding Bearing
we provide many material plain bearing and manufactured to exacting standards. port & terminal cranes bushings energy chain cable carrier systems for port and terminal cranes
metal polymer composite plain bearings pom bushes Bushing Parts Buje Cojinete Copper manufacturers Bushing Parts Buje Cojinete Copper
Bushing Parts Buje Cojinete Copper
Plain Bearings and Sleeve Bearings Metal-Polymer Grease Lubricated POM Bushes
-
Technical principles
-
Plain bearing materials
-
Rating life
-
Design of bearing arrangements
-
Bearing clearance and mounting tolerances
-
Fitting and dismantling
Technical information
Specifications
Plain Bearings
ROLLED DRY SLIDING BEARINGS (POM)
Material
Carbon Steel + Copper Powder + POM (without lead)
Bushing Parts Buje Cojinete Copper
Typicai applicaton
It's used in vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc.
Wrapped Acetal Lined (low-maintenance), oil or grease lubricated bearings, carbon steel shell with sintered bronze layer with a co-acetal polymer layer, plain bearings, thrust washer and strip
Steel + Bronze Powder + POM(DX)
Self Lube Bearings Product Category SF-2 Boundary Lubricating Bearing
Characteristics
VSB-20 Boundary lubrication bearing High Quality DX Bushing POM Bush China Manufacturer
· marginally lubricated bushings for grease or oil lubricated applications
· Standard parts contain grease indents in the sliding layer; plain sliding layer available by request
· Optimum performance under relatively high loads and low speeds
· Suitable for linear, oscillating and rotating movements
· Wide range of parts available from stock
Suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads
Strusture
1. POM thickness 0.30~0.50 mm. It provides high wearresistance and low friction even with only minute volume oflubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
2. Sintered bronze powder thickness 0.20-0.35mm. A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel.Setting the foundation of the bushings, the steel back provides exceptional stability,load carrying and heat dissipation characteristics.
Technical Data
Structure And Composition
· Metal-Polymer Composite Bushing Material
· Steel Back + Porous Bronze Sinter +
POM with Lubrication Indents
Sliding layer POM |
OPERATING PERFORMANCE |
|
Dry |
Poor |
Oil lubricated |
Good |
Grease lubricated |
Very Good |
Water lubricated |
Poor |
Process fluid lubricated |
Poor |
Avaibearing Properties
Max. load |
Static |
250N/mm2 |
Dynamic |
140N/mm2 |
|
|
Rotaing oscillating |
60N/mm2 |
Max. speed |
Dry |
2m/s |
Lubrication |
>2m/s |
|
Max. PV (Dry) |
Short-time |
3.6N/mm2*·m/s |
Continuous |
1.8N/mm2*·m/s |
|
Temp. |
-195℃~+280℃ |
|
Friction coefficient Dry |
0.03~0.20 |
|
Lubrication |
>2m/s |
|
Thermal conductivity |
42W (m·k)-1 |
|
Coefficient of thermal expansion |
11*10-6k-1 |
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Thrust washers
· Sliding plates
Metric bearings and imperial Bushing Parts Buje Cojinete Copper made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs
Typical Applications
Recommended for applications involving intermittent operation or boundary lubrication... Automotive: suspension joints, kingpin assemblies and stub axles of trucks, automobile driving joint hinges, steering and other linkages, articulation joints, rear chassis hinges, fair leader rollers... Machine tool building industry: spindles in drill, grinding, and milling machines, ram guide plates in multi-ram presses... Agricultural equipment: gearbox, clutch, bale trips and wheel caster swivels for bale accumulators, front axle pivot bearings, steering idler box bearings and kingpin bearings for harvesters... It is especially well-suited for applications where lubricant can not be supplied continuously or repeatedly.
STOCK SIZE for Self Lubricating Bearings
Bushing Parts Buje Cojinete Copper
Bushing Parts Buje Cojinete Copper Bushings,Lubricated Bearings,Composite Bearings,Metal Bearings,Compressor Bearings,Metal-polymer,Filament Wound,Plain Bearings,Flange Bearings,Polymer Bearings,Flange Bushings,Pump Bearings,Flanged Bushes,Thrust Plates,Industrial Bearings
Technical information
Specifications - Little space required for installation
- PTFE gliding surface
- Outer shell made from zinc-plated steel
Benefits - Simple to mount
- Low friction value
- Good chemical resistance
Properties - Maintenance-free
