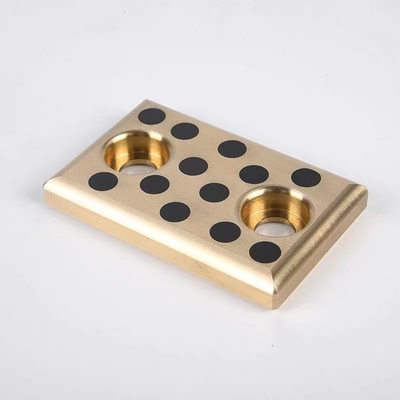

Metric Oilless Wear Plate made of Graphite Plugged Bronze is a highly efficient and long-lasting solution for applications requiring a durable and maintenance-free bearing surface. The combination of bronze and graphite provides excellent wear resistance and self-lubricating properties, ensuring smooth operation without the need for regular lubrication.

The metric sizing of the wear plate allows for easy integration into various industrial machinery and equipment, ensuring compatibility and interchangeability with standard metric components. The graphite plugged design further enhances the lubrication properties, reducing friction and wear, even under high loads and speeds.

Graphite Plugged Bronze is known for its corrosion resistance and ability to withstand extreme temperatures, making it suitable for use in harsh environments. The wear plate's durability and reliability ensure extended operational life, reducing downtime and maintenance costs.

Overall, Metric Oilless Wear Plate made of Graphite Plugged Bronze is an ideal choice for industrial applications that demand high performance and durability in a low-maintenance bearing solution.

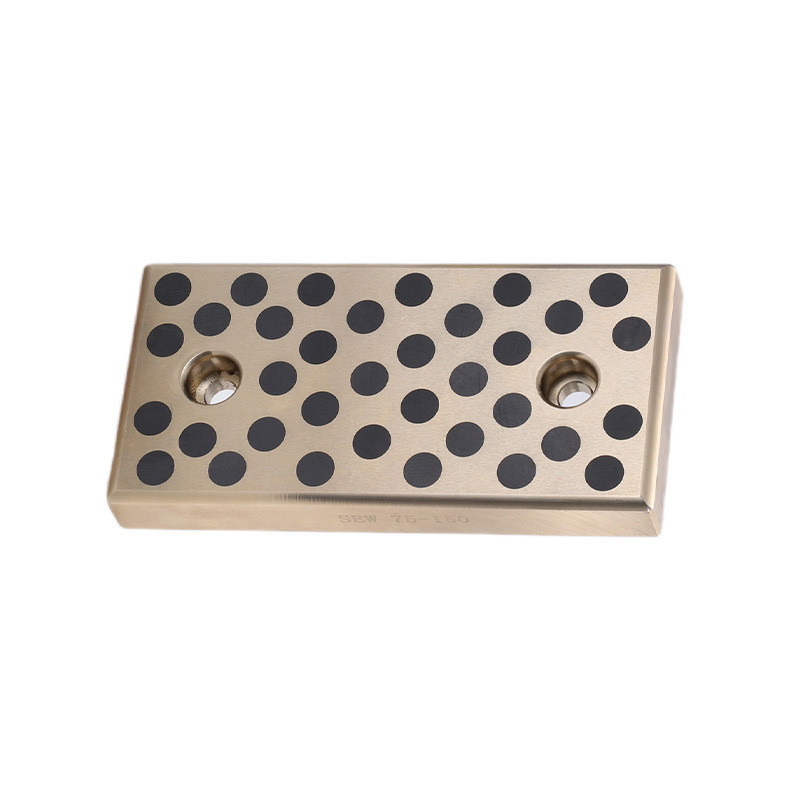

JSP Oiless Plate STW Wear Plate

JSP18~75 self-lubrication slide die guide plate thickness 10 graphite copper plate copper slider to figure production

Solid Lubricant Guide Rail & Wear Pad, JSP PLATE Material Features

GUIDE RAIL Solid Bronze Bushing, Finished Parts, Flange Bushing Self-lubricating, Oilless Bearing, Graphite and with Graphite to be Induction Hardened.

Structures

① Solid lubricant film
② Solid lubricant plug
③ Bronze backing

guide rail, T-shaped, for slide core, copper plate
This guide rails consist of highly wear-resistance copper cast alloy whose sliding surfaces are evenly provided with a certain percentage of solid lubricant plugs according to work condition, high-strength copper alloy provides a high load-bearing capacity and the solid lubricant can be formation of low friction film.

Under technical dry running conditions, the bearing surface is designed with thick running-in film which
enables the solid lubricant to be transferred to the counter material at the first contact.

Oilless Bearing Inspection - Cylindrical Parts Inspection

Sleeve Bearing (from Graphite Impregnated Brass)

It can be widely apied in continuous casting machines,mining machine,ships,air uwrbine,hydraulic turbinesandplasticinjection molding machines.
JDB-1 solid lubricant embedded bearing is made of casting bronze with graphite embedded evenly in it.It has superior performance than normal bearing whose lubrication depends on oil film.Under condition of heavy-duty,high temperature,slow speed, anti-corrosion or where oil is hard to be introduced,Its performance doubles both in hardness and anti-friction.
