3 Layer Straddle Bearing Multi Layer Bushings Self Lubricating

The 3-layer straddle bearing, equipped with multi-layer bushings and self-lubricating capabilities, is a highly efficient and durable mechanical component. Its design incorporates three distinct layers, each with its own unique purpose and characteristics, to provide superior performance in various applications.

The innermost layer, often made of a wear-resistant material, serves as the primary contact surface for the rotating shaft. This layer is responsible for carrying the majority of the load and friction, ensuring smooth and consistent rotation.

The middle layer, which may be composed of a softer, more compliant material, acts as a cushion or shock absorber. It helps to reduce vibrations and noise, improving the overall smoothness of operation.

The outermost layer, typically constructed from a self-lubricating material, provides a continuous supply of lubricant to the bearing surface. This eliminates the need for periodic relubrication, significantly reducing maintenance requirements and downtime.

The multi-layer bushings within the bearing further enhance its performance. These bushings are designed to distribute load evenly across the bearing surface, minimizing wear and tear. They also provide additional support and stability, ensuring reliable operation over a wide range of conditions.

In summary, the 3-layer straddle bearing with multi-layer bushings and self-lubricating properties offers a combination of durability, efficiency, and ease of maintenance. It is an ideal choice for applications requiring high-performance bearings that can withstand heavy loads and frequent operation.

3 Layer Straddle Bearing Multi-Layer Bushings

Multi-Layer Bushings/Straight by - Select, configure, order. We deliver punctually and offer fair prices. Composite products are ...

Multi-layer bearings

The Company of Self-lubricating Bearings for Various Industries.

Multilayer Bearing is of low cost, low vibration and low noise, compacted and light, widely applied in various sliding articles of different kinds of.

Multi-layer bearings are available in various combinations of sliding surfaces. These are available both as maintenance-free and requiring lubrication.

Oil-Free Bushings (Multi-Layer: Steel, Sintered Bronze, Polytetrafluoroethylene)) - Select, configure, order. we deliver punctually and offer fair ...

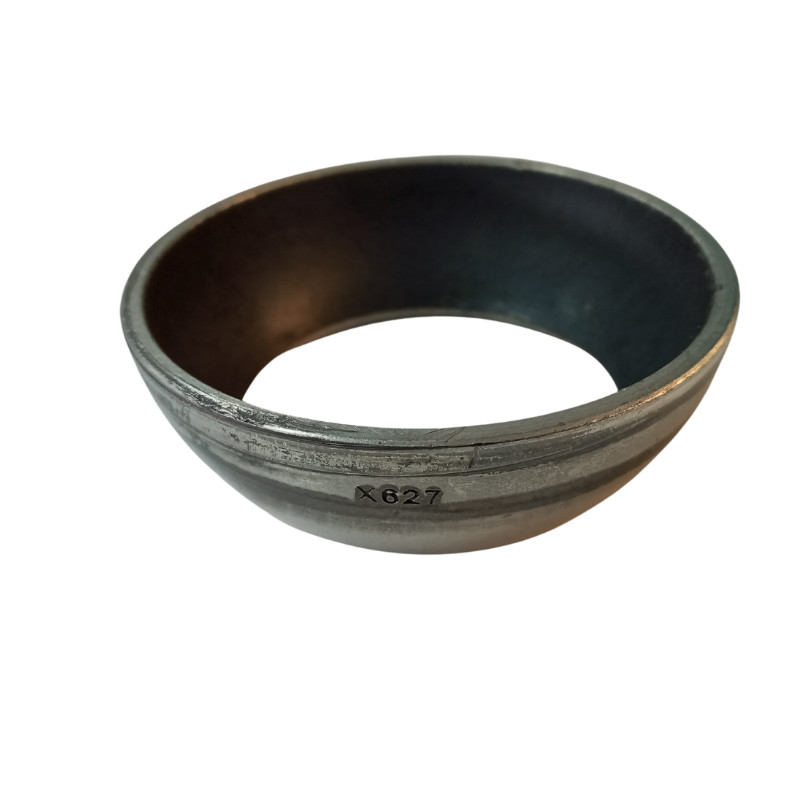

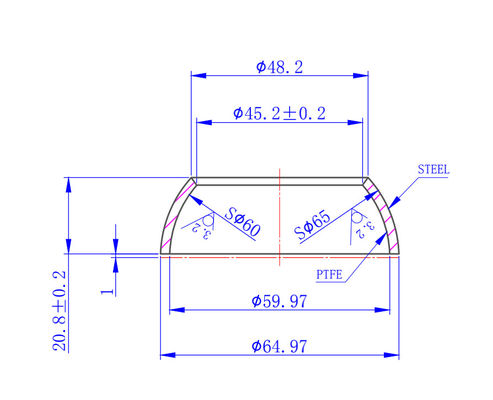

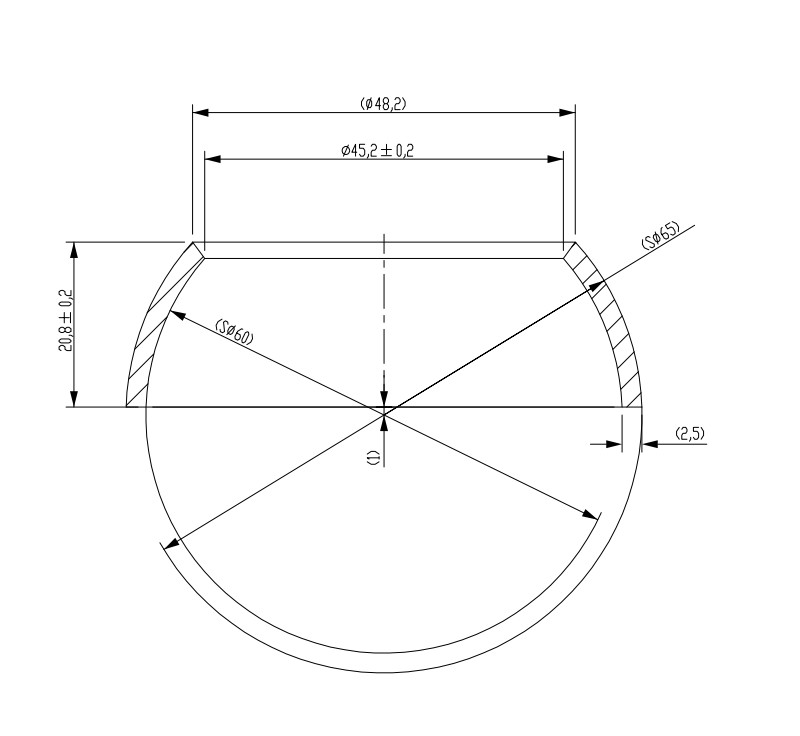

60X65X20.8 Straddle Bearing-Model measurement and quality report

OUTER LAYER: 25 MM THICKNESS LOW CARBON STEEL,

Straddle Bearing

3 LAYER BUSHING:

*OUTER LAYER: 25 MM THICKNESS LOW CARBON STEEL,
*MIDDLE LAYER: SINTERED BRONZE, THICKNESS:0.2-0,35 MM
*INNER LAYER: COATED, THICKNESS: 10-30 MICRONS

Provide competitive high-quality bearings.

We have many years of experience working with OEM manufacturers and tier 1 suppliers to keep our customers reliable and innovative in the market. A team of engineers will help you design the most reasonable solution at the lowest cost.

We have extensive after-sales support, including global local supply and r&d.

A variety of high performance bearings and solutions give our customers a performance and cost advantage in the market.

Excellent customer support from the team to provide technical support for various bearing problems.

Your strategic partner. We provide our customers with low cost, high quality products. Continuous material innovation continues to help customers break through technical difficulties in all aspects.
