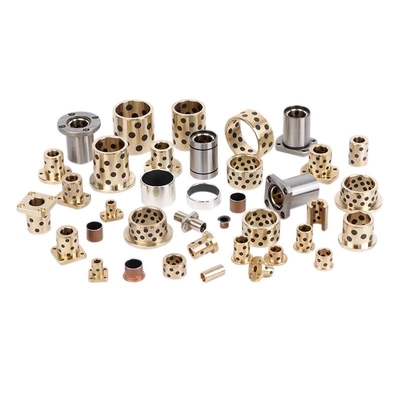

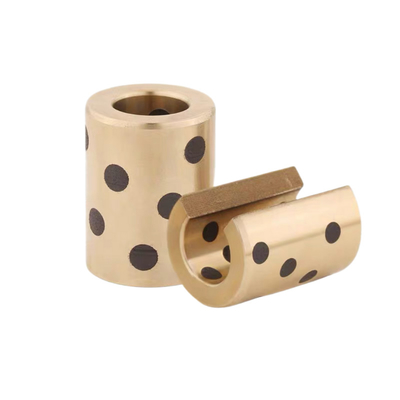

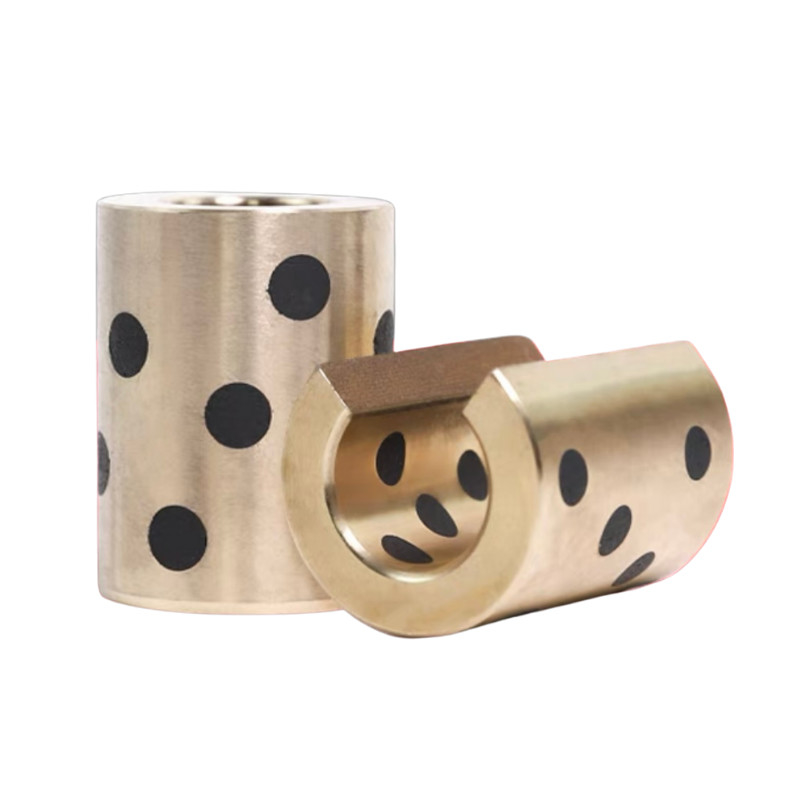

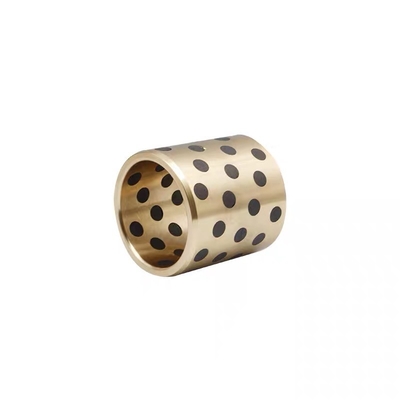

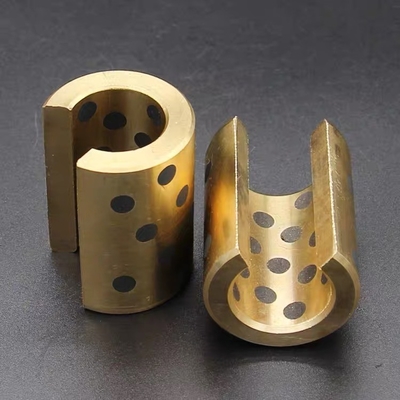

Self Lubricating Metric Bronze Bearings Suv Lift Bushing Drawing Fabricated

  • Self Lubricating Metric Bronze Bearings Suv Lift Bushing Drawing Fabricated
  • Self Lubricating Metric Bronze Bearings Suv Lift Bushing Drawing Fabricated
  • Self Lubricating Metric Bronze Bearings Suv Lift Bushing Drawing Fabricated
  • Self Lubricating Metric Bronze Bearings Suv Lift Bushing Drawing Fabricated
  • Self Lubricating Metric Bronze Bearings Suv Lift Bushing Drawing Fabricated
  • Self Lubricating Metric Bronze Bearings Suv Lift Bushing Drawing Fabricated
Place of Origin Made in China
Brand Name VIIPLUS
Certification ISO9001
Model Number Graphite Bronze Bearings
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-25 work days
Payment Terms T/T
Supply Ability 7000000 Piece/Pieces One week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand VIIPLUS Type Straight,Flanged,Washers
Material Graphite,Bronze Advantages High Quality， Good Price
Place Of Origin Zhejiang,China Product Custom Design
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Item Bronze Grafitado Graphite Plugged Bushings Purchase Oilless Bush #500 Spherical Bearing (SPS) From China, Factory Automation & Metal Molding Parts, Industrial Tools And Consumables.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight

Self Lubricating Metric Bronze Bearings

,

Fabricated Graphite Bronze Bearings

,

Metric Graphite Bronze Bearings
Leave a Message
Product Description

Self-Lubricating Metric Bronze Bearings with SUV Lift Bushing Design refer to bearings made from bronze alloys that are specifically designed for self-lubrication and compatibility with SUV lift systems. The metric sizing ensures compatibility with standard measurement units, facilitating seamless integration into various mechanical assemblies.

The bronze material chosen for these bearings exhibits excellent wear resistance, corrosion resistance, and load-bearing capacity. The self-lubricating feature eliminates the need for regular lubrication, reducing maintenance requirements and enhancing operational efficiency.

The SUV lift bushing design incorporates specific features that optimize performance in SUV lift applications. These bushings are typically fabricated using precision engineering techniques to ensure accurate dimensions and high-quality finishes. The design takes into account the unique requirements of SUV lifts, such as high load capacity and smooth operation, to provide reliable and durable bearing solutions.

Overall, Self-Lubricating Metric Bronze Bearings with SUV Lift Bushing Design offer a combination of durability, performance, and ease of maintenance, making them ideal for use in SUV lift systems and other demanding applications.



Suv Lift Bushing Drawing Self-Lubricating Metric Bronze Bearings Fabricated.



SUV lift Bushing Drawing, SELF-LUBRICATING METRIC BRONZE BEARINGS FABRICATED.

  •
  • linear bearing, Super Liner Bush



Graphite Bronze Bearings|Straight, Flanged, Washers, Guide Pin, Guide Ejector, Guide Post, Spherical-Imperial line bushings (dimensions in inches)



sleeve bearing Graphite self-lubricating bearing.pdf

Graphite Bronze Split Bush



Truck Bushings oilless bushing,oil-free bronze bush bearing

- Copper Alloy Straight, Standard / Thin Wall, I.D. F7 O.D. m6

Product Description

Our present position in the industry is chiefly attributable to our specifically designed Graphite Bronze Split Bush from our exclusive collection of products



Super Liner Bush



Graphite bronze bearings are a substrate of carbon steel, bronze powder, , fiber and other materials through a special process to produce self-lubricating products, with the characteristics of environmental protection



The solid inlaid bearing is on a brass matrix.A high performance solid lubricant inlaid with graphite or MoS2 solid lubricant.It breaks through the limitation that the general Graphite Bronze Bearings depends on oil film lubrication.In the process of use, the friction heat makes solid lubrication and shaft friction, forming an excellent condition for oil and powder to coexist lubrication, which not only protects shaft from wear, but also makes solid lubrication characteristics eternal.Its hardness is twice as high as that of ordinary copper sheath, and its wear resistance is also twice as high.At present, the Graphite Bronze Bearings product has been used in metallurgy continuous casting machine, train support, steel rolling equipment, mining machinery, ships, gas turbines and other high temperature, high load, low speed heavy load and other occasions.

Replacment 500SP1-SL1　SERIES BRONZE BUSHING plugged graphite size sheet:

oilles bearing model

Graphite Bronze Bearings | High Quality, Factory Price‎

Body Lifts and Bushing at Wholesale Prices


Graphite Bronze Bearings Material


-Bronze with solid lubricant, oilless lubricating



Self Lubricated Graphite Bronze Bearings Features


·Self Lubricated Bearings to 450°​​​

·Self Lubricating
·Performs well in High load, low speed operations
·Resists corrosive and and hostile environments.
·Excellent performance in medium to high temperature (up to 600°).
·Comparable with most viscous lubricants, oils, and grease applications.



Replacment 500SP1-SL1　SERIES BRONZE BUSHING plugged graphite size sheet:



 Replacment 500SP1-SL1　SERIES BRONZE BUSHING

  inner diameter   outer diameter   length
BRONZE GRAPHITE BUSHINGS-061008 6 10 8
BRONZE GRAPHITE BUSHINGS-061010 6 10 10
BRONZE GRAPHITE BUSHINGS-061012 6 10 12
BRONZE GRAPHITE BUSHINGS-081208 8 12 8
BRONZE GRAPHITE BUSHINGS-081210 8 12 10
BRONZE GRAPHITE BUSHINGS-081212 8 12 12
BRONZE GRAPHITE BUSHINGS-081215 8 12 15
BRONZE GRAPHITE BUSHINGS-101408 10 14 8
BRONZE GRAPHITE BUSHINGS-101410 10 14 10
BRONZE GRAPHITE BUSHINGS-101412 10 14 12
BRONZE GRAPHITE BUSHINGS-101415 10 14 15
BRONZE GRAPHITE BUSHINGS-101420 10 14 20
BRONZE GRAPHITE BUSHINGS-121808 12 18 8
BRONZE GRAPHITE BUSHINGS-121810 12 18 10
BRONZE GRAPHITE BUSHINGS-121812 12 18 12
BRONZE GRAPHITE BUSHINGS-121815 12 18 15
BRONZE GRAPHITE BUSHINGS-121816 12 18 16
BRONZE GRAPHITE BUSHINGS-121819 12 18 19
BRONZE GRAPHITE BUSHINGS-121820 12 18 20
BRONZE GRAPHITE BUSHINGS-121825 12 18 25
BRONZE GRAPHITE BUSHINGS-121830 12 18 30
BRONZE GRAPHITE BUSHINGS-131910 13 19 10
BRONZE GRAPHITE BUSHINGS-131912 13 19 12
BRONZE GRAPHITE BUSHINGS-131915 13 19 15
BRONZE GRAPHITE BUSHINGS-131920 13 19 20
BRONZE GRAPHITE BUSHINGS-131925 13 19 25
BRONZE GRAPHITE BUSHINGS-131930 13 19 30
BRONZE GRAPHITE BUSHINGS-142010 14 20 10
BRONZE GRAPHITE BUSHINGS-142012 14 20 12
BRONZE GRAPHITE BUSHINGS-142015 14 20 15
BRONZE GRAPHITE BUSHINGS-142020 14 20 20
BRONZE GRAPHITE BUSHINGS-142025 14 20 25
BRONZE GRAPHITE BUSHINGS-142030 14 20 30
BRONZE GRAPHITE BUSHINGS-152110 15 21 10
BRONZE GRAPHITE BUSHINGS-152112 15 21 12
BRONZE GRAPHITE BUSHINGS-152115 15 21 15
BRONZE GRAPHITE BUSHINGS-152116 15 21 16
BRONZE GRAPHITE BUSHINGS-152120 15 21 20
BRONZE GRAPHITE BUSHINGS-152125 15 21 25
BRONZE GRAPHITE BUSHINGS-152130 15 21 30
BRONZE GRAPHITE BUSHINGS-152135 15 21 35
BRONZE GRAPHITE BUSHINGS-152140 15 21 40
BRONZE GRAPHITE BUSHINGS-162210 16 22 10
BRONZE GRAPHITE BUSHINGS-162212 16 22 12
BRONZE GRAPHITE BUSHINGS-162215 16 22 15
BRONZE GRAPHITE BUSHINGS-162216 16 22 16
BRONZE GRAPHITE BUSHINGS-162219 16 22 19
BRONZE GRAPHITE BUSHINGS-162220 16 22 20
BRONZE GRAPHITE BUSHINGS-162225 16 22 25
BRONZE GRAPHITE BUSHINGS-162230 16 22 30
BRONZE GRAPHITE BUSHINGS-162235 16 22 35
BRONZE GRAPHITE BUSHINGS-162240 16 22 40
BRONZE GRAPHITE BUSHINGS-172315 17 23 15
BRONZE GRAPHITE BUSHINGS-182410 18 24 10
BRONZE GRAPHITE BUSHINGS-182412 18 24 12
BRONZE GRAPHITE BUSHINGS-182415 18 24 15
BRONZE GRAPHITE BUSHINGS-182416 18 24 16
BRONZE GRAPHITE BUSHINGS-182420 18 24 20
BRONZE GRAPHITE BUSHINGS-182425 18 24 25
BRONZE GRAPHITE BUSHINGS-182430 18 24 30
BRONZE GRAPHITE BUSHINGS-182435 18 24 35
BRONZE GRAPHITE BUSHINGS-182440 18 24 40
BRONZE GRAPHITE BUSHINGS-192615 19 26 15
BRONZE GRAPHITE BUSHINGS-192620 19 26 20
BRONZE GRAPHITE BUSHINGS-202810 20 28 10
BRONZE GRAPHITE BUSHINGS-202812 20 28 12
BRONZE GRAPHITE BUSHINGS-202815 20 28 15
BRONZE GRAPHITE BUSHINGS-202816 20 28 16
BRONZE GRAPHITE BUSHINGS-202819 20 28 19
BRONZE GRAPHITE BUSHINGS-202820 20 28 20
BRONZE GRAPHITE BUSHINGS-202825 20 28 25
BRONZE GRAPHITE BUSHINGS-202830 20 28 30
BRONZE GRAPHITE BUSHINGS-202835 20 28 35
BRONZE GRAPHITE BUSHINGS-202840 20 28 40
BRONZE GRAPHITE BUSHINGS-202850 20 28 50
BRONZE GRAPHITE BUSHINGS-203010 20 30 10
BRONZE GRAPHITE BUSHINGS-203012 20 30 12
BRONZE GRAPHITE BUSHINGS-203015 20 30 15
BRONZE GRAPHITE BUSHINGS-203016 20 30 16
BRONZE GRAPHITE BUSHINGS-203020 20 30 20
BRONZE GRAPHITE BUSHINGS-203025 20 30 25
BRONZE GRAPHITE BUSHINGS-203030 20 30 30
BRONZE GRAPHITE BUSHINGS-203035 20 30 35
BRONZE GRAPHITE BUSHINGS-203040 20 30 40
BRONZE GRAPHITE BUSHINGS-203050 20 30 50
BRONZE GRAPHITE BUSHINGS-223212 22 32 12
BRONZE GRAPHITE BUSHINGS-223215 22 32 15
BRONZE GRAPHITE BUSHINGS-223220 22 32 20
BRONZE GRAPHITE BUSHINGS-223225 22 32 25
BRONZE GRAPHITE BUSHINGS-253312 25 33 12
BRONZE GRAPHITE BUSHINGS-253315 25 33 15
BRONZE GRAPHITE BUSHINGS-253316 25 33 16
BRONZE GRAPHITE BUSHINGS-253320 25 33 20
BRONZE GRAPHITE BUSHINGS-253325 25 33 25
BRONZE GRAPHITE BUSHINGS-253330 25 33 30
BRONZE GRAPHITE BUSHINGS-253335 25 33 35
BRONZE GRAPHITE BUSHINGS-253340 25 33 40
BRONZE GRAPHITE BUSHINGS-253350 25 33 50
BRONZE GRAPHITE BUSHINGS-253360 25 33 60
BRONZE GRAPHITE BUSHINGS-253512 25 35 12
BRONZE GRAPHITE BUSHINGS-253515 25 35 15
BRONZE GRAPHITE BUSHINGS-253516 25 35 16
BRONZE GRAPHITE BUSHINGS-253520 25 35 20
BRONZE GRAPHITE BUSHINGS-253525 25 35 25
BRONZE GRAPHITE BUSHINGS-253530 25 35 30
BRONZE GRAPHITE BUSHINGS-253535 25 35 35
BRONZE GRAPHITE BUSHINGS-253540 25 35 40
BRONZE GRAPHITE BUSHINGS-253550 25 35 50
BRONZE GRAPHITE BUSHINGS-253560 25 35 60
BRONZE GRAPHITE BUSHINGS-283820 28 38 20
BRONZE GRAPHITE BUSHINGS-283825 28 38 25
BRONZE GRAPHITE BUSHINGS-283830 28 38 30
BRONZE GRAPHITE BUSHINGS-283840 28 38 40
BRONZE GRAPHITE BUSHINGS-303812 30 38 12
BRONZE GRAPHITE BUSHINGS-303815 30 38 15
BRONZE GRAPHITE BUSHINGS-303820 30 38 20
BRONZE GRAPHITE BUSHINGS-303825 30 38 25
BRONZE GRAPHITE BUSHINGS-303830 30 38 30
BRONZE GRAPHITE BUSHINGS-303835 30 38 35
BRONZE GRAPHITE BUSHINGS-303840 30 38 40
BRONZE GRAPHITE BUSHINGS-303850 30 38 50
BRONZE GRAPHITE BUSHINGS-303860 30 38 60
BRONZE GRAPHITE BUSHINGS-304012 30 40 12
BRONZE GRAPHITE BUSHINGS-304015 30 40 15
BRONZE GRAPHITE BUSHINGS-304020 30 40 20
BRONZE GRAPHITE BUSHINGS-304025 30 40 25
BRONZE GRAPHITE BUSHINGS-304030 30 40 30
BRONZE GRAPHITE BUSHINGS-304035 30 40 35
BRONZE GRAPHITE BUSHINGS-304040 30 40 40
BRONZE GRAPHITE BUSHINGS-304050 30 40 50
BRONZE GRAPHITE BUSHINGS-304060 30 40 60
BRONZE GRAPHITE BUSHINGS-314030 31.5 40 30
BRONZE GRAPHITE BUSHINGS-314040 31.5 40 40
BRONZE GRAPHITE BUSHINGS-324220 32 42 20
BRONZE GRAPHITE BUSHINGS-324230 32 42 30
BRONZE GRAPHITE BUSHINGS-324240 32 42 40
BRONZE GRAPHITE BUSHINGS-354420 35 44 20
BRONZE GRAPHITE BUSHINGS-354425 35 44 25
BRONZE GRAPHITE BUSHINGS-354430 35 44 30
BRONZE GRAPHITE BUSHINGS-354435 35 44 35
BRONZE GRAPHITE BUSHINGS-354440 35 44 40
BRONZE GRAPHITE BUSHINGS-354450 35 44 50
BRONZE GRAPHITE BUSHINGS-354460 35 44 60
BRONZE GRAPHITE BUSHINGS-354520 35 45 20
BRONZE GRAPHITE BUSHINGS-354525 35 45 25
BRONZE GRAPHITE BUSHINGS-354530 35 45 30
BRONZE GRAPHITE BUSHINGS-354535 35 45 35
BRONZE GRAPHITE BUSHINGS-354540 35 45 40
BRONZE GRAPHITE BUSHINGS-354550 35 45 50
BRONZE GRAPHITE BUSHINGS-354560 35 45 60
BRONZE GRAPHITE BUSHINGS-384840 38 48 40
BRONZE GRAPHITE BUSHINGS-405015 40 50 15
BRONZE GRAPHITE BUSHINGS-405020 40 50 20
BRONZE GRAPHITE BUSHINGS-405025 40 50 25
BRONZE GRAPHITE BUSHINGS-405030 40 50 30
BRONZE GRAPHITE BUSHINGS-405035 40 50 35
BRONZE GRAPHITE BUSHINGS-405040 40 50 40
BRONZE GRAPHITE BUSHINGS-405050 40 50 50
BRONZE GRAPHITE BUSHINGS-405060 40 50 60
BRONZE GRAPHITE BUSHINGS-405070 40 50 70
BRONZE GRAPHITE BUSHINGS-405080 40 50 80
BRONZE GRAPHITE BUSHINGS-405515 40 55 15
BRONZE GRAPHITE BUSHINGS-405530 40 55 30
BRONZE GRAPHITE BUSHINGS-405535 40 55 35
BRONZE GRAPHITE BUSHINGS-405540 40 55 40
BRONZE GRAPHITE BUSHINGS-405550 40 55 50
BRONZE GRAPHITE BUSHINGS-405560 40 55 60
BRONZE GRAPHITE BUSHINGS-455530 45 55 30
BRONZE GRAPHITE BUSHINGS-455535 45 55 35
BRONZE GRAPHITE BUSHINGS-455540 45 55 40
BRONZE GRAPHITE BUSHINGS-455550 45 55 50
BRONZE GRAPHITE BUSHINGS-455560 45 55 60
BRONZE GRAPHITE BUSHINGS-455630 45 56 30
BRONZE GRAPHITE BUSHINGS-455635 45 56 35
BRONZE GRAPHITE BUSHINGS-455640 45 56 40
BRONZE GRAPHITE BUSHINGS-455650 45 56 50
BRONZE GRAPHITE BUSHINGS-455660 45 56 60
BRONZE GRAPHITE BUSHINGS-456030 45 60 30
BRONZE GRAPHITE BUSHINGS-456035 45 60 35
BRONZE GRAPHITE BUSHINGS-456040 45 60 40
BRONZE GRAPHITE BUSHINGS-456050 45 60 50
BRONZE GRAPHITE BUSHINGS-456060 45 60 60
BRONZE GRAPHITE BUSHINGS-456070 45 60 70
BRONZE GRAPHITE BUSHINGS-456080 45 60 80
BRONZE GRAPHITE BUSHINGS-506020 50 60 20
BRONZE GRAPHITE BUSHINGS-506030 50 60 30
BRONZE GRAPHITE BUSHINGS-506035 50 60 35
BRONZE GRAPHITE BUSHINGS-506040 50 60 40
BRONZE GRAPHITE BUSHINGS-506050 50 60 50
BRONZE GRAPHITE BUSHINGS-506060 50 60 60
BRONZE GRAPHITE BUSHINGS-506070 50 60 70
BRONZE GRAPHITE BUSHINGS-506080 50 60 80
BRONZE GRAPHITE BUSHINGS-506230 50 62 30
BRONZE GRAPHITE BUSHINGS-506235 50 62 35
BRONZE GRAPHITE BUSHINGS-506240 50 62 40
BRONZE GRAPHITE BUSHINGS-506250 50 62 50
BRONZE GRAPHITE BUSHINGS-506260 50 62 60
BRONZE GRAPHITE BUSHINGS-506270 50 62 70
BRONZE GRAPHITE BUSHINGS-506280 50 62 80
BRONZE GRAPHITE BUSHINGS-506530 50 65 30
BRONZE GRAPHITE BUSHINGS-506540 50 65 40
BRONZE GRAPHITE BUSHINGS-506550 50 65 50
BRONZE GRAPHITE BUSHINGS-506560 50 65 60
BRONZE GRAPHITE BUSHINGS-506570 50 65 70
BRONZE GRAPHITE BUSHINGS-506580 50 65 80
BRONZE GRAPHITE BUSHINGS-5065100 50 65 100
BRONZE GRAPHITE BUSHINGS-557030 55 70 30
BRONZE GRAPHITE BUSHINGS-557035 55 70 35
BRONZE GRAPHITE BUSHINGS-557040 55 70 40
BRONZE GRAPHITE BUSHINGS-557050 55 70 50
BRONZE GRAPHITE BUSHINGS-557060 55 70 60
BRONZE GRAPHITE BUSHINGS-557070 55 70 70
BRONZE GRAPHITE BUSHINGS-607430 60 74 30
BRONZE GRAPHITE BUSHINGS-607435 60 74 35
BRONZE GRAPHITE BUSHINGS-607440 60 74 40
BRONZE GRAPHITE BUSHINGS-607450 60 74 50
BRONZE GRAPHITE BUSHINGS-607460 60 74 60
BRONZE GRAPHITE BUSHINGS-607470 60 74 70
BRONZE GRAPHITE BUSHINGS-607480 60 74 80
BRONZE GRAPHITE BUSHINGS-607530 60 75 30
BRONZE GRAPHITE BUSHINGS-607535 60 75 35
BRONZE GRAPHITE BUSHINGS-607540 60 75 40
BRONZE GRAPHITE BUSHINGS-607550 60 75 50
BRONZE GRAPHITE BUSHINGS-607560 60 75 60
BRONZE GRAPHITE BUSHINGS-607570 60 75 70
BRONZE GRAPHITE BUSHINGS-607580 60 75 80
BRONZE GRAPHITE BUSHINGS-6075100 60 75 100
BRONZE GRAPHITE BUSHINGS-637560 63 75 60
BRONZE GRAPHITE BUSHINGS-637570 63 75 70
BRONZE GRAPHITE BUSHINGS-637580 63 75 80
BRONZE GRAPHITE BUSHINGS-658040 65 80 40
BRONZE GRAPHITE BUSHINGS-658050 65 80 50
BRONZE GRAPHITE BUSHINGS-658060 65 80 60
BRONZE GRAPHITE BUSHINGS-658070 65 80 70
BRONZE GRAPHITE BUSHINGS-658080 65 80 80
BRONZE GRAPHITE BUSHINGS-708530 70 85 30
BRONZE GRAPHITE BUSHINGS-708535 70 85 35
BRONZE GRAPHITE BUSHINGS-708540 70 85 40
BRONZE GRAPHITE BUSHINGS-708550 70 85 50
BRONZE GRAPHITE BUSHINGS-708560 70 85 60
BRONZE GRAPHITE BUSHINGS-708570 70 85 70
BRONZE GRAPHITE BUSHINGS-708580 70 85 80
BRONZE GRAPHITE BUSHINGS-7085100 70 85 100
BRONZE GRAPHITE BUSHINGS-709050 70 90 50
BRONZE GRAPHITE BUSHINGS-709060 70 90 60
BRONZE GRAPHITE BUSHINGS-709070 70 90 70
BRONZE GRAPHITE BUSHINGS-709080 70 90 80
BRONZE GRAPHITE BUSHINGS-759050 75 90 50
BRONZE GRAPHITE BUSHINGS-759060 75 90 60
BRONZE GRAPHITE BUSHINGS-759070 75 90 70
BRONZE GRAPHITE BUSHINGS-759080 75 90 80
BRONZE GRAPHITE BUSHINGS-7590100 75 90 100
BRONZE GRAPHITE BUSHINGS-759560 75 95 60
BRONZE GRAPHITE BUSHINGS-759570 75 95 70
BRONZE GRAPHITE BUSHINGS-759580 75 95 80
BRONZE GRAPHITE BUSHINGS-7595100 75 95 100
BRONZE GRAPHITE BUSHINGS-809640 80 96 40
BRONZE GRAPHITE BUSHINGS-809650 80 96 50
BRONZE GRAPHITE BUSHINGS-809660 80 96 60
BRONZE GRAPHITE BUSHINGS-809670 80 96 70
BRONZE GRAPHITE BUSHINGS-809680 80 96 80
BRONZE GRAPHITE BUSHINGS-8096100 80 96 100
BRONZE GRAPHITE BUSHINGS-8096120 80 96 120
BRONZE GRAPHITE BUSHINGS-8010040 80 100 40
BRONZE GRAPHITE BUSHINGS-8010050 80 100 50
BRONZE GRAPHITE BUSHINGS-8010060 80 100 60
BRONZE GRAPHITE BUSHINGS-8010070 80 100 70
BRONZE GRAPHITE BUSHINGS-8010080 80 100 80
BRONZE GRAPHITE BUSHINGS-80100100 80 100 100
BRONZE GRAPHITE BUSHINGS-80100120 80 100 120
BRONZE GRAPHITE BUSHINGS-80100140 80 100 140
BRONZE GRAPHITE BUSHINGS-8510060 85 100 60
BRONZE GRAPHITE BUSHINGS-8510080 85 100 80
BRONZE GRAPHITE BUSHINGS-9011050 90 110 50
BRONZE GRAPHITE BUSHINGS-9011060 90 110 60
BRONZE GRAPHITE BUSHINGS-9011080 90 110 80
BRONZE GRAPHITE BUSHINGS-9011090 90 110 90
BRONZE GRAPHITE BUSHINGS-90110100 90 110 100
BRONZE GRAPHITE BUSHINGS-90110120 90 110 120
BRONZE GRAPHITE BUSHINGS-10012050 100 120 50
BRONZE GRAPHITE BUSHINGS-10012060 100 120 60
BRONZE GRAPHITE BUSHINGS-10012070 100 120 70
BRONZE GRAPHITE BUSHINGS-10012080 100 120 80
BRONZE GRAPHITE BUSHINGS-10012090 100 120 90
BRONZE GRAPHITE BUSHINGS-100120100 100 120 100
BRONZE GRAPHITE BUSHINGS-100120120 100 120 120
BRONZE GRAPHITE BUSHINGS-100120140 100 120 140
BRONZE GRAPHITE BUSHINGS-11013050 110 130 50
BRONZE GRAPHITE BUSHINGS-11013070 110 130 70
BRONZE GRAPHITE BUSHINGS-11013080 110 130 80
BRONZE GRAPHITE BUSHINGS-110130100 110 130 100
BRONZE GRAPHITE BUSHINGS-110130120 110 130 120
BRONZE GRAPHITE BUSHINGS-12014070 120 140 70
BRONZE GRAPHITE BUSHINGS-12014080 120 140 80
BRONZE GRAPHITE BUSHINGS-12014090 120 140 90
BRONZE GRAPHITE BUSHINGS-120140100 120 140 100
BRONZE GRAPHITE BUSHINGS-120140120 120 140 120
BRONZE GRAPHITE BUSHINGS-120140140 120 140 140
BRONZE GRAPHITE BUSHINGS-125145100 125 145 100
BRONZE GRAPHITE BUSHINGS-125145120 125 145 120
BRONZE GRAPHITE BUSHINGS-13015080 130 150 80
BRONZE GRAPHITE BUSHINGS-130150100 130 150 100
BRONZE GRAPHITE BUSHINGS-130150130 130 150 130
BRONZE GRAPHITE BUSHINGS-140160100 140 160 100
BRONZE GRAPHITE BUSHINGS-140160140 140 160 140
BRONZE GRAPHITE BUSHINGS-15017080 150 170 80
BRONZE GRAPHITE BUSHINGS-150170100 150 170 100
BRONZE GRAPHITE BUSHINGS-150170150 150 170 150
BRONZE GRAPHITE BUSHINGS-16018080 160 180 80
BRONZE GRAPHITE BUSHINGS-160180100 160 180 100
BRONZE GRAPHITE BUSHINGS-160180150 160 180 150
BRONZE GRAPHITE BUSHINGS-170190100 170 190 100
BRONZE GRAPHITE BUSHINGS-170190150 170 190 150
BRONZE GRAPHITE BUSHINGS-180200100 180 200 100
BRONZE GRAPHITE BUSHINGS-180200150 180 200 150
BRONZE GRAPHITE BUSHINGS-190210100 190 210 100
BRONZE GRAPHITE BUSHINGS-190210150 190 210 150
BRONZE GRAPHITE BUSHINGS-200230150 200 230 150
BRONZE GRAPHITE BUSHINGS-200230200 200 230 200



Description



Graphite Bronze Bearing-Imperial line bushings (dimensions in inches)



Graphite Bronze Bearing are metal backed with bronze alloy graphite oil-less bushings.



These are multi-layer composite bearings made of a special sintered material used as sliding surfaces and a steel material as a support metal. The sintered layers are made of a special copper-nickel alloy containing a uniformly dispersed solid lubricant, the main component of which is graphite. Solid lubricants will be released to the surface of the ring as they wear, which will ensure a lower coefficient of friction during operation. In addition, these sintered layers were treated by the oil impregnation treatment.





 Features



1．no oil supply device, oil hole, oil groove
The cost of the fuel supply system, the cost of processing, assembling, and so on, can greatly reduce the cost of manufacturing.



2．Operation cost reduction
Greatly reduce the use of lubricating oil and equipment maintenance costs, but also exempt from the risk caused by the shortage of oil.



3．design time shortened
No oil can make the design, structure is greatly simplified, reduce costs, save design time. In addition, using self-lubricating bearings can also improve the mechanical properties and prolong get remarkable results using life and improve the reliability.



4．recovery and environmental protection of lubricant
No need to waste oil recycling, is conducive to environmental protection.




Use notes



1．In the possible case, the design uses the standard specification as far as possible;


2．Please note that there is no foreign body in the assembly;


3．After using the sliding surface, formed by solid lubricant oil film in surface with black or gray black phenomenon, please do not scrub, as usual.


4．Before the assembly, if the lubricating oil applied to the grinding parts, can shorten the running in period, conducive to the operation of machinery, operation;


5．When the assembly should be slowly pressed into, it is strictly forbidden to beat, so as to avoid damage to the Graphite Bronze Bearings  and deformation;


6．Design, different parts should be selected with appropriate material, in order to improve the mechanical performance, to extend the service life of the Graphite Bronze Bearings;


7．In the high load, reciprocating motion, the proposed use of screw fixation;


8．In fresh water, sea water and in the sea, on the use of stainless steel or surface plating.



Characteristic



1. Flexible, simple, convenient design with wide applications


2. FunctionaI in absence of oiI

3. Cost efficiency


4. Excellent performance under high load and low speed circumstances


5. In circumstances where it is difficult to generate hi-films, such as reciprocating movements, rotating movements and frequent on-off, Graphite Bronze Bearings highlights its excellent abrasion resistance.


6. Excellent chemical resistance and corrosion resistance



Specifications



Material

Base Bronze

CuZn25Al6Fe3Mn3

SL2

Solid Graphite lubricant

Density



8.2g/cm3

Tensile Strength



>=755N/mm2

Anti-compact Tenacity



>=400~500KJ/m3

Hardness



>=200HB

Max Load Pressure



100N/mm2 / 120N/mm2(500SP120)

Speed Limit



0.5m/s

PV value limit



1.65N/mm2.m/s

Friction coef

Oil Lubrication

0.03

Dry Friction

0.16

Working temperature



-50~+300°C



Application fieldGraphite Bronze Bearings



·Hardware



·steel manufacturing



·stamping die



·automobile industry tools



·Stamping



·others





Graphite Bronze Bearings is widely used in high load applications where lower friction and good wear resistance are required and where lubrication is difficult. Some examples include wear plates for automobiles, industrial robots, wear plates for injection, injection bolt bushings and self-lubricating bushings for construction equipment.



Bearing Type



·Guide bushing

·fixture

·half bearing bush

·Wear plate

·gasket

·guide plate

·Others



Custom Design



All kinds of sliding elements can be supplied or produced on request.

Please contact us for more information.






WE ARE A PROFESSIONAL

SELF-LUBRICATING BEARING MANUFACTURER & SUPPLIER

GET A FREE QUOTE ONLINE NOW !
Tags:

graphite filled bronze bushes

graphite impregnated bushings

graphite impregnated bronze bushings
