| Brand Name: | VIIPLUS |
| Model Number: | Oil Free Slide Plate |
| MOQ: | negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | Graphite plugged brass bush Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers |

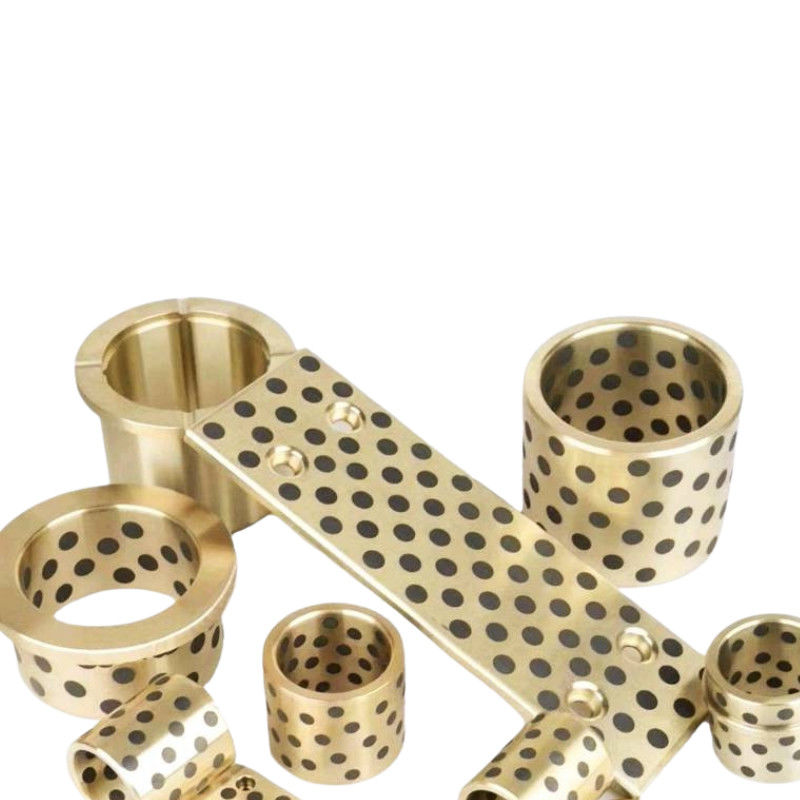

The graphite plugged oil-free slide plate is a self-lubricating component designed for smooth and efficient operation without the need for regular lubrication. The graphite material, which is used as a lubricant, provides excellent wear resistance and low friction, ensuring long-lasting performance even under high loads and frequent use.
The oil-free design of this slide plate eliminates the need for oil or other lubricants, reducing maintenance requirements and operational costs. This feature also makes it suitable for use in environments where oil contamination is a concern.
The slide plate's precision manufacturing ensures a perfect fit for various industrial applications, including machinery, equipment, and vehicles. Wh used in automotive components, heavy machinery, or precision equipment, the graphite plugged oil-free slide plate offers reliable and long-lasting performance.
Oil-Free Slide Plate Wear Plate - Bronze Graphite Material
Sliding Plates Overview
Types:
Sleeve Bearing
Oil-Free Slide Plate
Wear Plate
Solid Bronze Bushing
Finished Parts
Flange Bushing
Features: Self-lubricating and Oilless.
Material: Bronze Graphite.
Bearing Inspection: Specifically for cylindrical parts.
Sleeve Bearing Composition
Material: Graphite Impregnated Brass.
Dimensional Specifications
Available Sizes:
500mm x 800mm x 20mm (Length x Width x Thickness)
500mm x 600mm x 20mm
350mm x 600mm x 20mm
Key Measurements:
A (Length)
B (Width)
H (Thickness)
Performance Characteristics
Operating Temperature Range: -32°C to +150°C.
Maximum Constant Load at 150°C: 430 N/cm².
Maximum Short-term Load (5 seconds) at 150°C: 570 N/cm².
Contact Area Specification: 1520 cm² - Disc Diameter: 440 mm.
These sliding plates are designed for applications requiring durable, maintenance-free operation. The integration of graphite bronze material provides excellent wear resistance and load-bearing capacity, especially at high temperatures.
| Brass and Bronze Plate Standard Casting Alloys Chart of Specifications | |||||||||||||||||||||
| Specifications Nominal Chemical Compositions | Mechanical Properties | ||||||||||||||||||||
Family |
CDA 1970 |
CU% |
SN% |
PB% |
ZN% |
M% |
FE% |
AL% |
Others% |
Tensile Strength Min Typ (ksi) (ksi) |
Yield Strength Min Typ (ksi) (ksi) |
Elongation Min Typ (%) (%) |
Brinell Hardness 10MM-500KG Typical |
Compression Stm. P.S.I.-.001” set |
IMPACT Strn. Izod-R Lbs. |
Weight Lbs. per Cu.In. |
Machin- ability free cut YB-100 |
REPORTED USES |
|||
| Redbrass | 833 | 93 | 1-1/2 | 1-1/2 | 4 | 32 | 10 | 35 | 35 | .318 | 35 | Electrical hardware parts | |||||||||
| 836 | 85 | 5 | 5 | 5 | 30 | 37 | 14 | 17 | 20 | 30 | 50-65 | 14,000 | 9 | .318 | 84 | General miscellaneous items, low-pressure valves & fittings, pumps | |||||
| 838 | 83 | 4 | 6 | 7 | 29 | 35 | 12 | 16 | 15 | 25 | 50-60 | 11,500 | .312 | 90 | General free machining alloy, low-pressure fittings, hardware | ||||||
| Semi Redbrass | 844 | 81 | 3 | 7 | 9 | 29 | 34 | 13 | 15 | 18 | 26 | 50-60 | 6-10 | .314 | 90 | Plumbing fittings, faucets, hardware & ornamental castings | |||||
| 848 | 76 | 3 | 6 | 15 | 25 | 36 | 12 | 14 | 15 | 30 | 50-60 | 12,800 | .310 | 90 | Plumbing fittings, faucets, stops & wastes, hardware | ||||||
| Yellow Brass | 852 | 72 | 1 | 3 | 24 | 35 | 38 | 12 | 13 | 25 | 35 | 40-50 | 8,000 | .305 | 80 | Plumbing fixtures & fittings, andirons & ornamental castings | |||||
| 854 | 67 | 1 | 3 | 29 | 30 | 34 | 11 | 12 | 20 | 35 | 40-60 | 9,000 | .305 | 80 | Plumbing, furniture, hardware & ornamental fittings | ||||||
| 857 | 63 | 1 | 1 | 34.7 | .3 | 40 | 50 | 14 | 18 | 15 | 40 | 75 | .304 | 80 | Plumber's flanges, fittings, ornamental hardware & ship trim | ||||||
| Manganese Bronze |
862 | 64* | Rem. 26 | 3 | 4 | 90 | 95 | 45 | 48 | 18 | 20 | 170■-195■ | 50,000 | .288 | 30 | Brackets, shafts, gears & structural parts | |||||
| 863 | 63* | Rem. 25 | 3 | 6 | 110 | 119 | 60 | 83 | 12 | 18 | 225■ | 60,000 | 15 | .283 | 8 | Screw-down nuts, slow-speed heavy load bearings, gears, gibbs & cams | |||||
| 865 | 58 | .5 | 40 | 1 | 1 | MN-.25 | 65 | 71 | 25 | 28 | 20 | 30 | 130■ | 24,000 | 20-40 | .301 | 26 | Strength applications, propellers for salt & freshwater, machinery parts substituting for steel & malleable iron | |||
| Copper-Silicon | 872 | Rem. | 1Max. | 5 Max. | 1.5 Max. | 2.5 Max | 1.5 Max | Si 4 | 45 | 55 | 18 | 25 | 20 | 30 | 85 | .302 | 40 | Corrosion, brazing & welding applications, substitute for tin-zinc bronzes | |||
| 875 | 82 Rem. | .5 Max. | 14 | Si 4 | 60 | 67 | 24 | 30 | 16 | 21 | 120■-135■ | .299 | 50 | Corrosion, brazing & welding applications, substitute for tin-zinc bronzes | |||||||
| Tin Bronze | 903 | 88 | 8 | 4 | 40 | 45 | 18 | 21 | 20 | 30 | 60-75 | 13,000 | .318 | 30 | Bearings & bushings, pump impellers, piston rings, pump bodies, valves, steam fittings, gears | ||||||
| 905 | 88 | 10 | .3 Max. | 2 | 40 | 45 | 18 | 22 | 20 | 25 | 75 | 13,000 | 10-14 | .315 | 30 | Bearings & bushings, pump impellers, piston rings, pump bodies, valves, steam fittings, gears | |||||
| 907 | 89 | 11 | .5 Max. | .5 Max. | 35 | 44 | 18 | 22 | 10 | 20 | 80 | 13,000 | 10-14 | .317 | 20 | Worm wheels & gears, bearings for heavy loads & relatively low speeds | |||||
| Leaded Tin Bronze |
922 | 88 | 6 | 1.5 | 4.5 | 34 | 40 | 16 | 20 | 22 | 30 | 60-72 | 12,000 | 11-18 | .312 | 42 | Medium-pressure hydraulic & steam applications up to 550°F, marine & ornamental castings | ||||
| 923 | 87 | 8 | 1 Max. | 4 | 36 | 40 | 16 | 20 | 18 | 25 | 60-75 | 9,000 | 12 | .317 | 42 | High-pressure hydraulic & steam equipment, structural castings | |||||
| 926 | 87 | 10 | 2 | 40 | 44 | 18 | 20 | 20 | 30 | 65-80 | 12,000 | 7 | .315 | 40 | Lead screw nuts, heavy-duty bearings, pump pistons | ||||||
| 927 | 88 | 10 | 2 | .7 Max. | 35 | 42 | 21 | 10 | 20 | 77 | 12,000 | 7-10 | .317 | 45 | Lead screw nuts, heavy-duty bearings, pump pistons | ||||||
| High Leaded Tin Bronze |
932 | 83 | 7 | 7 | 3 | 30 | 35 | 14 | 18 | 12 | 20 | 60-70 | 6 | .322 | 70 | General-purpose bushings, washers, non-pressure applications | |||||
| 934 | 84 | 8 | 8 | .7 Max. | 25 | 32 | 16 | 8 | 20 | 55-65 | 5 | .320 | 70 | Bearings & bushings | |||||||
| 935 | 85 | 5 | 9 | 1 | .5 Max. | 25 | 32 | 12 | 16 | 8 | 20 | 55-65 | 13,000 | .320 | 70 | High-speed, light load bushings for mild acid applications | |||||
| 937 | 80 | 10 | 10 | .7 Max. | 25 | 35 | 12 | 18 | 8 | 20 | 55-70 | 13,000 | 5 | .320 | 80 | High-speed, heavy-pressure bushings, acid-resistant to sulfite fluids | |||||
| 938 | 78 | 7 | 15 | .75 Max. | 25 | 30 | 14 | 16 | 10 | 18 | 50-60 | 12,000 | 5 | .334 | 80 | Low-friction, moderate pressure bushings for railroad applications, acid-resistant | |||||
| 943 | 70 | 5 | 25 | .7 Max. | 21 | 27 | 13 | 7 | 10 | 42-55 | 11,000 | 5 | .336 | 80 | High-speed, light to medium pressure bushings for railroad & soft metal applications | ||||||
| Aluminum Bronze |
952 | 88 | 3 | 9 | 65 | 80 | 25 | 27 | 20 | 35 | 110■-140■ | 27,000 | 35 | .276 | 50 | Gun mountings & slides, landing gear parts, pickling tanks & mild alkali applications, marine engines & propellers | |||||
| 953 | 89 | 1 | 10 | 65 | 75 | 25 | 27 | 20 | 140■ | 20,000 | 20 | .272 | 55 | Gears, cams, stripper nuts, slippers, high-temperature applications, mining machine parts | |||||||
| 954 | 85 | 4 | 11 | 75• | 85• | 30• | 35• | 12• | 18• | 140■-170■ | 14 | .269 | 60 | Spur & low-speed, heavily loaded worm gears, nuts, pump & landing gear parts | |||||||
| 955 | 81 | 4 | 4 | 11 | 90• | 100• | 40• | 44• | 6• | 12• | 180■-200■ | 13 | .272 | 50 | Used under extreme conditions such as tank gun recoil mechanisms & landing gear parts | ||||||
| 958 | 81 | 5 | 4 | 9 | MN 1 | 85 | 95 | 35 | 38 | 18 | 25 | 150■-170■ | 20 | .276 | 50 | Propeller hubs, blades & other parts, including valves in contact with seawater | |||||
| Copper Nickel |
962 | 88.6 | 10 | 1.4 | 45 | 49 | 25 | 29 | 20 | 36 | 90-100 | .323 | 10 | Component parts of items used for seawater corrosion resistance | |||||||
| 964 | 69.1 | 30 | .9 | 60 | 68 | 32 | 37 | 20 | 28 | 120■-140■ | .323 | 20 | Valves, pump bodies, flanges, elbows used for seawater corrosion resistance | ||||||||
| Nickel Silver |
973 | 56 | 2 | 10 | 20 | 12 | 30 | 35 | 15 | 17 | 8 | 20 | 50-60 | .321 | 70 | Hardware, valves, statuary & ornamental castings | |||||
| 976 | 64 | 4 | 4 | 8 | 20 | 30 | 40 | 17 | 24 | 8 | 20 | 75-90 | .321 | 70 | Marine furniture, hardware & ornamental castings | ||||||
| 978 | 66 | 5 | 2 | 2 | 25 | 45 | 55 | 22 | 30 | 15 | 16 | 120■-150■ | .320 | 60 | Dairy & food processing fittings, white ornamental & hardware | ||||||
| Wear Plate | WEAR PLATE MWF 100-100 |
| Wear Plate | WEAR PLATE MWF 100-125 |
| Wear Plate | WEAR PLATE MWF 100-150 |
| Wear Plate | WEAR PLATE MWF 75-100 |
| Wear Plate | WEAR PLATE MWF-125-150 |
| Wear Plate | WEAR PLATE MWF 100-125 |
| Wear Plate | WEAR PLATE MWF 100-150 |
| Wear Plate | WEAR PLATE MWF-125-125 |
| Wear Plate | WEAR PLATE MWF-150x150 |
| Wear Plate | WEAR PLATE MWF 125-125 |
| Wear Plate | WEAR PLATE MWF 58-75 |
| Wear Plate | WEAR PLATE MWF 75-75 |
| Wear Plate | WEAR PLATE-MWF 48-75 |
| Wear Plate | WEAR PLATE MWF 100-200 MISUMI |
| Wear Plate | WEAR PLATE MWF 75-125 |
| Wear Plate | WEAR PLATE MWF 75-125 MAKE MISUMI |
| Wear Plate | WEAR PLATE MWF 38-75 |
| Wear Plate | WEAR PLATE STW 75-100 |
| Wear Plate | WEAR PLATE-STW 48-75 |
| Wear Plate | WEAR PLATE MWF 150-150 MAKE MISUMI |
| Wear Plate | WEAR PLATE MWF-38-100 |
| Wear Plate | WEAR PLATE MWF-150x200 |
| Wear Plate | WEAR PLATE-MWF125-200 |
| Wear Plate | WEAR PLATE MWF 150-200 |
| Wear Plate | WEAR PLATE-MWF-100-125 |
| Wear Plate | WEAR PLATE -MWF - 75 -150 |
| Wear Plate | WEAR PLATE-MWF48-75 |
| Wear Plate | WEAR PLATE MWF 58-100 |
| Wear Plate | WEAR PLATE-MWF 28-75 |
| Wear Plate | WEAR PLATE-STW 38 - 125 |
| Wear Plate | WEAR PLATE-STW 125-150 |
| Wear Plate | WEAR PLATE-MWF28-75 |
| Wear Plate | WEAR PLATE-SEW 100-100 |
| Wear Plate | WEAR PLATE MWF 48-100 |
| Wear Plate | WEAR PLATE MWF38-100 |
| Wear Plate | WEAR PLATE-SEW 100-125 |
| Wear Plate | WEAR PLATE STW 100-125 |
| Wear Plate | WEAR PLATE STW28-75 |
| Wear Plate | WEAR PLATE-SEW150-200 |
| Wear Plate | WEAR PLATE -MWF 58-125 |
| Wear Plate | Wear Plate MWF125-200 MISUMI |
| Wear Plate | WEAR PLATE STW 48-100 |
| Wear Plate | WEAR PLATE-MWF38-75 |
| Wear Plate | WEAR PLATE-MWF75-150 |
| Wear Plate | WEAR PLATE MWF 58-100 |
| Wear Plate | WEAR PLATE MWF 58-150 |
| Wear Plate | WEAR PLATE-MWF -100-250 |
| Wear Plate | WEAR PLATE MWF 150-250 |
| Wear Plate | WEAR PLATE MWF 48-125 |
| Wear Plate | WEAR PLATE MWF 75-200 |
| Wear Plate | WEAR PLATE-MWF - 48 -75 |
| Wear Plate | WEAR PLATE-SEW - 100 - 150 |
| Wear Plate | WEAR PLATE-STW - 75 -100 |
| Wear Plate | WEAR PLATE-STW 58 - 100 |
| Wear Plate | WEAR PLATE SEW75-100 |
| Wear Plate | Wear Plate MWF38-125 |
| Wear Plate | WEAR PLATE MWF 28-100 |
| Wear Plate | WEAR PLATE MWF 38-150 |
| Wear Plate | WEAR PLATE MWF 75-150 |
| Wear Plate | WEAR PLATE-SEW 100-250 |
| Wear Plate | WEAR PLATE UTW 28-50 |
| Wear Plate | WEAR PLATE MWF 58- 75 |
| Wear Plate | WEAR PLATE-MWF 48-125 |
| Wear Plate | WEAR PLATE-SEW 75-150 |
| Wear Plate | WEAR PLATE SEW100-100 |
| Wear Plate | WEAR PLATE MWF 100-200 |
| Wear Plate | WEAR PLATE MWF100-300 |
| Wear Plate | WEAR PLATE -STW 28-100 |
| Wear Plate | WEAR PLATE UTW 38-50 |
| Wear Plate | WEAR PLATE UTW 38-75 |
| Wear Plate | WEAR PLATE-STW28-150 |
| Wear Plate | WEAR SEW 48-100 MISUMI |
| Wear Plate | WEAR PLATE MWF 48-150 |
| Wear Plate | WEAR PLATE STZ 38-75 |
| Wear Plate | WEAR PLATE STZ58-75 |
| Wear Plate | WEAR PLATE-SEW 75-100 |
| Wear Plate | WEAR PLATE MWF 125-250 |
| Wear Plate | WEAR PLATE MWF 48-200 |
| Wear Plate | WEAR PLATE STZ 75-100 |
| Wear Plate | WEAR PLATE-SEW 48-200 |
| Wear Plate | WEAR PLATE-SEW 58-100 |
| Wear Plate | WEAR PLATE-STW - 38 -100 |
| Wear Plate | WEAR PLATE-STZ28-75 |
| Wear Plate | WEAR PLATE-SEW 75-200 |
| Wear Plate | WEAR PLATE-STZ48-75 |
| Wear Plate | WEAR PLATE MWF 48-125 |
| Wear Plate | WEAR PLATE MWFT 100-100 |
| Wear Plate | WEAR PLATE-SEW 150 - 150 |
| Wear Plate | WEAR PLATE-SEW 75-125 |
| Wear Plate | WEAR PLATE-STW 48-125 |
| Wear Plate | WEAR PLATE -STW 28-125 |
| Wear Plate | WEAR PLATE STZ58-100 |
| Wear Plate | WEAR PLATE-MWF48-100 |
| Wear Plate | WEAR PLATE-SEW 100 - 200 |
| Wear Plate | WEAR PLATE-STW 100-100 |
| Total Wear Plate | |
| BOP | Description |
| Guide Bush | GUIDE BUSHING-GBF60 |
| Guide Bush | GUIDE BUSH-GBF50 |
| Guide Bush | GUIDE BUSH GBF80 |
| Guide Bush | GUIDE BUSH GBF60 |
| Guide Bush | GUIDE BUSH-GBF40 |
| Guide Bush | GUIDE BUSH GBW60 |
| Guide Bush | GUIDE BUSH GBW80 |
| Guide Bush | GUIDE BUSH-GBF100 |
| Guide Bush | GUIDE BUSHING GBW-60 |
| Total Guide Bush | |
| BOP | Description |
| Guide Pillar | GUIDE PILLAR MYZP 32-140 |
| Guide Pillar | GUIDE PILLAR MYZP 32-160 |
| Guide Pillar | GUIDE PILLER-GPM80-250-MC |
| Guide Pillar | GUIDE PILLAR GPM60-220-MC |
| Guide Pillar | GUIDE PILLAR MYAP 32-140 |
| Guide Pillar | GUIDE PILLAR MYZP 38-160 |
| Guide Pillar | GUIDE PILLAR-GPM60-200-MC |
| Guide Pillar | GUIDE PILLAR MYZP 38-140 |
| Guide Pillar | GUIDE PILLAR GPM 50-200 |
| Guide Pillar | GUIDE PILLAR MYAP 38-140 |
| Guide Pillar | GUIDE PILLAR-MYZP 50 180 |
| Guide Pillar | GUIDE PILLAR GPM60-250 |
| Guide Pillar | GUIDE PILLAR GPM 60-220 |
| Guide Pillar | GUIDE PILLAR MYZP 32-180 |
| Guide Pillar | GUIDE PILLAR-MYZP 50 160 |
| Guide Pillar | GUIDE PILLAR MYZP 38-200 |
| Guide Pillar | GUIDE PILLER GPM 60-300-MC |
| Guide Pillar | GUIDE PILLAR-GPM40-140-MC |
| Guide Pillar | GUIDE PILLAR GPM50-LC230-MC |
| Guide Pillar | GUIDE PILLAR MYZP 32-200 |
| Guide Pillar | GUIDE PILLAR SET-MYZP50-220 |
| Guide Pillar | GUIDE PILLER GPM 60-350-MC |
| Guide Pillar | GUIDE PILLER GPM80-250-MC |
| Guide Pillar | GUIDE PILLAR-GPM40-200-MC |
| Guide Pillar | GUIDE PILLAR GPM 60-200 |
| Guide Pillar | GUIDE PILLAR GPM 60-350 |
| Guide Pillar | GUIDE PILLAR GPM30-160 |
| Guide Pillar | GUIDE PILLAR GPM50-250-MC |
| Guide Pillar | GUIDE PILLAR GPM50-LC220 |
| Guide Pillar | GUIDE PILLAR GPM60-250-MC |
| Guide Pillar | GUIDE PILLAR SET MYP 60-200 |
| Guide Pillar | GUIDE PILLAR SETRD4516M10 |
| Guide Pillar | GUIDE PILLAR-GPM50-200 |
| Guide Pillar | GUIDE PILLAR GPM40-200 |
| Guide Pillar | GUIDE PILLAR MYZP 25-140 |
| Total Guide Pillar | |
| BOP | Description |
| Pillar Set | PILLAR SET MYZP 38-160 |
| Pillar Set | PILLER SET MYAP ø38*160 |
| Pillar Set | PILLAR SET MYZP32-150 |
| Pillar Set | PILLAR SET MYZP 32-150 |
| Pillar Set | PILLER SET MYAP 32-150 |
| Pillar Set | PILLER SET BALL GAUGE-MYKP32-150 |
| Pillar Set | PILLER SET BALL GAUGE-MYAP38-150 |
| Pillar Set | PILLAR SET MYZP 38-150 |
| Pillar Set | PILER SET-MYZP38-140 |
| Pillar Set | PILLAR SET MYZP 38-180 |
| Pillar Set | PILLAR MYZP38-170 |
| Pillar Set | PILLER SET MYZP 50-180 |
| Pillar Set | PILLAR MYAP 32-160 |
| Pillar Set | PILLER SET MYZP 60-200 |
| Pillar Set | PILLAR SET-MYKP50-200 |
| Pillar Set | PILLER SET BALL GAUGE-MYKP38-150 |
| Pillar Set | PILLER SET MYZP 50-180 |
| Pillar Set | PILLAR SET-MYAP32-160 |
| Pillar Set | PILLAR SET MYZP 50-220-M. |
| Pillar Set | PILLAR SET MYZP 60-220 |
| Pillar Set | PILLAR SET-MYZP 38-130 |
| Pillar Set | PILLAR SET-MYZP38-140 |
| Pillar Set | PILLER SETMYZP50-160 |
| Pillar Set | PILLAR SET MYZP 38-220 |
| Pillar Set | PILLAR SET MYZP 50-200 |
| Pillar Set | PILLAR SET MYZP32-170 |
| Pillar Set | PILLAR SET-MYKP38-200 |
| Pillar Set | PILLAR SET-MYKP38-220 |
| Pillar Set | PILLER SET-MYAP38-130 |
| Total PIllar Set | |
| BOP | Description |
| Guide Post | GUIDE POST BUSH-GBF-80 |
| Guide Post | GUIDE POST GPM 60-250-MC |
| Guide Post | Guide post Set GPM50-200-MC |
| Guide Post | GUIDE POST-GPM80-300-MC |
| Guide Post | GUIDE POST MYAP 50-170 |
| Guide Post | GUIDE POST-GPM80-250 |
| Guide Post | GUIDE POST SET-MYZP50-170 |
| Guide Post | GUIDE POST GPM 50-180-MC |
| Guide Post | GUIDE POST-GPM60-200 |
| Guide Post | GUIDE POST-MYZP 38-150 |
| Guide Post | GUIDE POST GPM 60X250 |
| Guide Post | GUIDE POST-GPM50-180 |
| Guide Post | Guide post Set GPM50-250MC |
| Guide Post | GUIDE POST GPM 50-250 |
| Guide Post | GUIDE POST SET MYKP 60-200 |
| Guide Post | GUIDE POST SET MYP 38-140 |
| Guide Post | GUIDE POSTS GPM50-200 |
| Guide Post | GUIDE POST SET MYP 32-170 |
| Guide Post | GUIDE POST SET MYP 38-150 |
| Guide Post | HOLDER GUIDE POST SET MYZP60-250 |
| Guide Post | PLAIN GUIDE POST SET-MYZP60-180 |
| Guide Post | GUIDE POST GPM50-160 |
| Guide Post | GUIDE POST SET MYP 50-200 |
| Guide Post | GUIDE POST SET-MYKP50-170 |
| Guide Post | GUIDE POST-GPM100-350-MC |
| Guide Post | GUIDE POST-MYZP 32-140 |
| Guide Post | GUIDE POST-MYZP 38-180 |
| Guide Post | GUIDE POSTS-GPM40-160-MC |
| Total Guide Post | |
| BOP | Description |
| Oil Free Slide Plate | OIL FREE SLIDE PLATE-STW38-150 |
| Oil Free Slide Plate | OIL FREE SLIDE PLATE -STW75-200 |
| Oil Free Slide Plate | OIL FREE SLIDE PLATE-STW100-200 |
| Oil Free Slide Plate | OIL FREE SLIDE PLATE STS15-30 |
| Oil Free Slide Plate | OIL FREE SLIDE PLATE-STW48-200 |
| Oil Free Slide Plate | OIL FREE SLIDE PLATE-STW48-150 |
| Oil Free Slide Plate | OIL FREE SLIDE PLATE-UTW75-75 |
| Oil Free Slide Plate | OIL FREE SLIDE PLATE-STW100-150 |
| Oil Free Slide Plate | OIL FREE SLIDE PLATE -STW75-150 |
| Oil Free Slide Plate | OIL FREE SLIDE PLATE-SEW38-150 |
| Oil Free Slide Plate | OIL-FREE SLIDE PLATES-SEWT100-150 |
| Oil Free Slide Plate | OIL-FREE SLIDE PLATES-SEWT125-150 |
| Oil Free Slide Plate | OIL FREE SLIDE PLATE -SEW150-250 |
| Oil Free Slide Plate | OIL FREE SLIDE PLATE -SEW38-100 |
| Oil Free Slide Plate | OIL-FREE SLIDE PLATE-MWF52-100 |
| Oil Free Slide Plate | OIL-FREE SLIDE PLATE-MWF58-200 |
| Oil Free Slide Plate | OIL-FREE SLIDE PLATES-SEW48-150 |
| Total Oil Free plate | |
| BOP | Description |
| Oil Less Guide Bush | OILLESS GUIDE BUSHING GBW-50 |
| Oil Less Guide Bush | OILLESS GUIDE BUSHING GBW-60 |
| Oil Less Guide Bush | OILLESS GUIDE BUSHING GBW-80 |
JDB-1 solid lubricant embedded bearing is made of casting bronze with graphite embedded evenly in it.It has superior performance than normal bearing whose lubrication depends on oil film.Under condition of heavy-duty,high temperature,slow speed, anti-corrosion or where oil is hard to be introduced,Its performance doubles both in hardness and anti-friction.
It can be widely apied in continuous casting machines,mining machine,ships,air uwrbine,hydraulic turbinesandplasticinjection molding machines.
| Basic material | CuZn25A16Fe3Mn3 | Dynanic load | 100N/mm² |
| Base hardness | HB210~245 | Friction Coef | <0.16 |
| Temperature Max | 300℃ | Speed limit | dry 0.4m/s oil 5m/s |
