C86300 Alloy Solid Lubricant Guide Rail Wear Pad JSP Plate
Place of Origin | made in china |
---|---|
Brand Name | VIIPLUS |
Certification | ISO 9001 |
Model Number | Graphite plugged brass bush |
Minimum Order Quantity | negotiable |
Price | Negotiable |
Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
Delivery Time | 7-25 work days |
Payment Terms | T/T |
Supply Ability | Graphite plugged brass bush Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xItem | Impregnated Graphite Copper Bushing | Material | Graphite Plugged Bronze Bushing |
---|---|---|---|
Alloy | C86300 C93200 C95400 | Type | Metric Size, Or Customize Size |
Feature | Solid Lubricant | Application | Mold And Die Products |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
Oilless Bearing Manufacturer | Https://www.bronzelube.com/ | Manufacturer | Bucha De Bronze Grafitado |
High Light | Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery | Oilless Bushes | Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | Oilless Bush Supplier | Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries. |
Highlight | Solid Lubricant Guide Rail,C86300 Alloy Solid Bronze Bushing,C86300 Alloy Guide Rail |

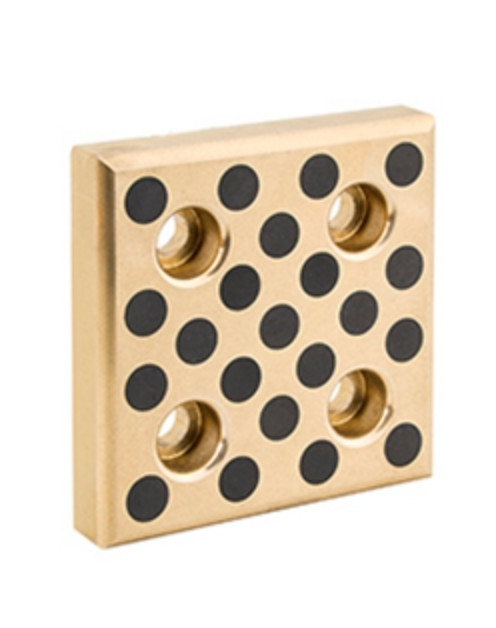

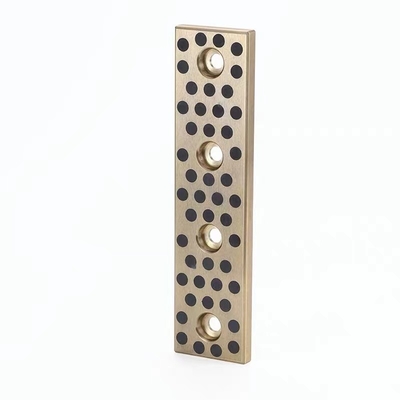

The C86300 Alloy Solid Lubricant Guide Rail Wear Pad JSP Plate is a specialized component designed to provide superior wear resistance and lubrication for guide rails in various industrial applications. Made from C86300 alloy, it offers excellent mechanical properties, including high strength and durability.
The solid lubricant integrated into the wear pad ensures smooth and efficient operation even in high-friction environments. This lubricant effectively reduces friction and heat generation, minimizing wear and tear on the guide rail.
The JSP plate design of this wear pad ensures easy installation and secure attachment to the guide rail. It provides a stable and reliable support surface, preventing excessive wear and damage to the guide rail.
The C86300 Alloy Solid Lubricant Guide Rail Wear Pad JSP Plate is suitable for use in a wide range of industrial settings, including heavy-duty machinery, automation systems, and transportation equipment. Its robust construction and lubrication properties make it a reliable choice for reducing wear and improving the performance of guide rails.
In summary, the C86300 Alloy Solid Lubricant Guide Rail Wear Pad JSP Plate offers a highly effective solution for enhancing the wear resistance and lubrication of guide rails in industrial applications. Its superior performance ensures smoother operation, longer service life, and reduced maintenance costs.
Solid Lubricant Guide Rail & Wear Pad JSP Plate
Solid Lubricant Guide Rail & Wear Pad, JSP PLATE Material Features
|
NO. | DIN | Material No. | Designation | ASTM Standard | Proportional | Density (g/cm³) | 0.2% Strain (MPa) | Tensile Strength (MPa) | Strain (%) | E-modulus (MPa) | Hardness (HB) | Applications |
1 | 1705 | 2.1090.01 | CuSn7ZnPb | B 584 | Cu 81 - 85, Sn 6 - 8, Zn 3 - 5, Pb 5 - 7 | 8.8 | 120 | 240 | 15 | 106,000 | 65 | Widely utilized in automotive, aerospace, and marine engineering for components requiring good strength and corrosion resistance. Recognized internationally for versatility and performance. |
2.1090.03 | CuSn7ZnPb | B 271 | Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 | 8.8 | 130 | 270 | 13 | 106,000 | 75 | |||
2.1090.04 | CuSn7ZnPb | B 505 | Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 | 8.8 | 120 | 270 | 16 | 106,000 | 70 | |||
2 | 1705 | 2.1061.01 | CuSn12Pb | Not yet standardized | Cu 84 - 87, Sn 11 - 13, Pb 1 - 2 | 8.7 | 140 | 260 | 10 | 112,000 | 80 | Commonly used in manufacturing bearings, bushings, and components that require high load capacity and wear resistance, especially in marine and industrial applications. |
2.1061.03 | CuSn12Pb | Not yet standardized | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.7 | 150 | 280 | 5 | 112,000 | 90 | |||
2.1061.04 | CuSn12Pb | B 505 | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.7 | 140 | 280 | 7 | 112,000 | 85 | |||
3 | 1714 | 2.0975.01 | CuAl10Ni | B 584 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 270 | 600 | 12 | 122,000 | 140 | Used in marine, aerospace, and heavy machinery for manufacturing bearings and components requiring high strength and durability. Known for extreme loads and high corrosive environments. |
2.0975.02 | CuAl10Ni | B 30 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 300 | 600 | 14 | 122,000 | 150 | |||
2.0975.03 | CuAl10Ni | B 271 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 300 | 700 | 13 | 122,000 | 160 | |||
2.0975.04 | CuAl10Ni | B 505 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 300 | 700 | 13 | 122,000 | 160 | |||
4 | 1709 | 2.0598.01 | CuZn25Al5 | B 584 | Cu 60 - 67, Al 3 - 7, Fe 1.5 - 4, Mn 2.5 - 5, Zn rest | 8.2 | 450 | 750 | 8 | 115,000 | 180 | Used in heavy-duty bearings, hydraulic components, and marine hardware. Designed for high loads and resistance to corrosive attack. |
2.0598.02 | CuZn25Al5 | B 30 | Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 | 8.2 | 480 | 750 | 8 | 115,000 | 180 | |||
2.0598.03 | CuZn25Al5 | B 271 | Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 | 8.2 | 480 | 750 | 5 | 115,000 | 190 | |||
5 | 1705 | 2.1052.01 | CuSn12 | Not yet standardized | Cu 84 - 88, Sn 11 - 13, Pb 1, Ni 2.0, Sb 0.2, P 0.2 | 8.6 | 140 | 260 | 12 | 110,000 | 80 | Commonly used in manufacturing bearings, gears, and components requiring high wear resistance. Known for good machinability and corrosion resistance, particularly in seawater environments. All rights to the listed content are reserved by https://www.viiplus.com/ |
2.1052.03 | CuSn12 | Not yet standardized | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.6 | 150 | 280 | 8 | 110,000 | 90 | |||
2.1052.04 | CuSn12 | Not yet standardized | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.7 | 140 | 280 | 8 | 110,000 | 95 | |||
Note: Delivery form codes: .01 = sand casting, .02 = gravity casting, .03 = centrifugal casting, .04 = continuous casting. |

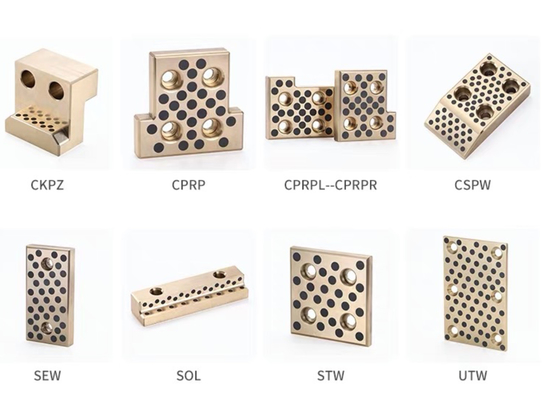

GUIDE RAIL Solid Bronze Bushing, Finished Parts, Flange Bushing Self-lubricating, Oilless Bearing, Graphite and with Graphite to be Induction Hardened.
Structures
① Solid lubricant film
② Solid lubricant plug
③ Bronze backing
guide rail, T-shaped, for slide core, copper plate
This guide rails consist of highly wear-resistance copper cast alloy whose sliding surfaces are evenly provided with a certain percentage of solid lubricant plugs according to work condition, high-strength copper alloy provides a high load-bearing capacity and the solid lubricant can be formation of low friction film.
Under technical dry running conditions, the bearing surface is designed with thick running-in film which
enables the solid lubricant to be transferred to the counter material at the first contact.
Oilless Bearing Inspection - Cylindrical Parts Inspection
Sleeve Bearing (from Graphite Impregnated Brass)
Oil Free Slide Plates Wear Plate, General-Purpose Type | ||||||||||
WEAR PLATE-SELF-LUBRICATING | W | L | Thickness | HOLE | Flat head bolts | |||||
A | B | C | D | E | code | qty | ||||
JSP Oil Free Slide Plates 18*75*10 | 18 | 75 | 10 | 15 | 45 | M6 | 2 | |||
JSP Oil Free Slide Plates 18*100*10 | 100 | 10 | 25 | 50 | ||||||
JSP Oil Free Slide Plates 18*125*10 | 125 | 10 | 25 | 75 | ||||||
JSP Oil Free Slide Plates 18*150*10 | 150 | 10 | 25 | 100 | ||||||
JSP Oil Free Slide Plates 28*75*10 | 28 | 75 | 10 | 15 | 45 | |||||
JSP Oil Free Slide Plates 28*100*10 | 100 | 10 | 25 | 50 | ||||||
JSP Oil Free Slide Plates 28*125*10 | 125 | 10 | 25 | 75 | ||||||
JSP Oil Free Slide Plates 28*150*10 | 150 | 10 | 25 | 100 | ||||||
JSP Oil Free Slide Plates 35*100*10 | 35 | 100 | 10 | 20 | 60 | M8 | ||||
JSP Oil Free Slide Plates 35*150*10 | 150 | 10 | 20 | 55 | 55 | 3 | ||||
JSP Oil Free Slide Plates 35*200*10 | 200 | 10 | 20 | 55 | 50 | 50 | 3 | |||
JSP Oil Free Slide Plates 35*250*10 | 250 | 10 | 20 | 70 | 70 | 70 | 4 | |||
JSP Oil Free Slide Plates 35*300*10 | 300 | 10 | 20 | 65 | 65 | 65 | 65 | 4 | ||
JSP Oil Free Slide Plates 35*350*10 | 350 | 10 | 20 | 80 | 75 | 75 | 80 | 5 | ||
JSP Oil Free Slide Plates 38*75*10 | 38 | 75 | 10 | 15 | 45 | M6 | 2 | |||
JSP Oil Free Slide Plates 38*100*10 | 100 | 10 | 25 | 50 | ||||||
JSP Oil Free Slide Plates 38*125*10 | 125 | 10 | 25 | 75 | ||||||
JSP Oil Free Slide Plates 38*150*10 | 150 | 10 | 25 | 100 | ||||||
JSP Oil Free Slide Plates 48*75*10 | 48 | 75 | 10 | 15 | 45 | |||||
JSP Oil Free Slide Plates48*100*10 | 100 | 10 | 25 | 50 | ||||||
JSP Oil Free Slide Plates 48*125*10 | 125 | 10 | 25 | 75 | ||||||
JSP Oil Free Slide Plates 48*150*10 | 150 | 10 | 25 | 100 | ||||||
JSP Oil Free Slide Plates 50*100*10 | 50 | 100 | 10 | 20 | 60 | M8 | ||||
JSP Oil Free Slide Plates 50*150*10 | 150 | 10 | 20 | 55 | 55 | 3 | ||||
JSP Oil Free Slide Plates 50*200*10 | 200 | 10 | 20 | 55 | 50 | 50 | 4 | |||
JSP Oil Free Slide Plates 50*250*10 | 250 | 10 | 20 | 70 | 70 | 70 | 4 | |||
JSP Oil Free Slide Plates 50*300*10 | 300 | 10 | 20 | 65 | 65 | 65 | 65 | 5 | ||
JSP Oil Free Slide Plates 50*400*10 | 400 | 10 | 20 | 90 | 90 | 90 | 90 | 5 | ||
JSP Oil Free Slide Plates 75*150*10 | 75 | 150 | 10 | 20 | 110 | — | — | 4 | ||
JSP Oil Free Slide Plates 75*200*10 | 200 | 10 | 20 | 80 | 80 | — | 6 | |||
JSP Oil Free Slide Plates 75*250*10 | 250 | 10 | 20 | 105 | 105 | — | 6 | |||
JSP Oil Free Slide Plates 75*300*10 | 300 | 10 | 20 | 85 | 90 | 85 | 8 | |||
JSP Oil Free Slide Plates 75*400*10 | 100 | 10 | 20 | 120 | 120 | 120 | 8 | |||
JSP Oil Free Slide Plates 75*500*10 | 500 | 10 | 20 | 115 | 115 | 115 | 115 | 10 |
JDB-1 solid lubricant embedded bearing is made of casting bronze with graphite embedded evenly in it.It has superior performance than normal bearing whose lubrication depends on oil film.Under condition of heavy-duty,high temperature,slow speed, anti-corrosion or where oil is hard to be introduced,Its performance doubles both in hardness and anti-friction.
It can be widely apied in continuous casting machines,mining machine,ships,air uwrbine,hydraulic turbinesandplasticinjection molding machines.
Basic material | CuZn25A16Fe3Mn3 | Dynanic load | 100N/mm² |
Base hardness | HB210~245 | Friction Coef | <0.16 |
Temperature Max | 300℃ | Speed limit | dry 0.4m/s oil 5m/s |
