Bronze Oilless SPW Thrust Washer Equivalent Engineering Machinery
Place of Origin | oilless bushing |
---|---|
Brand Name | viiplus.com |
Certification | OILLESS BEARINGS |
Model Number | Bronze Bearings |
Minimum Order Quantity | 500 Piece/Pieces (Min. Order) |
Price | Oilless Bushes Factory Price |
Packaging Details | STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE |
Delivery Time | 2~4 Weeks |
Payment Terms | T/T PREPARD, T/T, L/C, D/A, D/P |
Supply Ability | plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeterial | Oilless Bush | Type | Bushes, Bushes With Flange, |
---|---|---|---|
Application | Engineering Machinery,mould Bronze Bushing | Metric Size | High Tensile With Graphite |
Equivalent | Sankyo Oilless Bushings | Available | Shoulder Bronze Bushing |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
Oilless Bearing Manufacturer | Https://www.bronzelube.com/ | Manufacturer | Bucha De Bronze Grafitado |
High Light | Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery | Oilless Bushes | Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | Oilless Bush Supplier | Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries. |
High Light | Oilless Bronze Thrust Washer,SPW Thrust Washer,Engineering Machinery Thrust Washer |

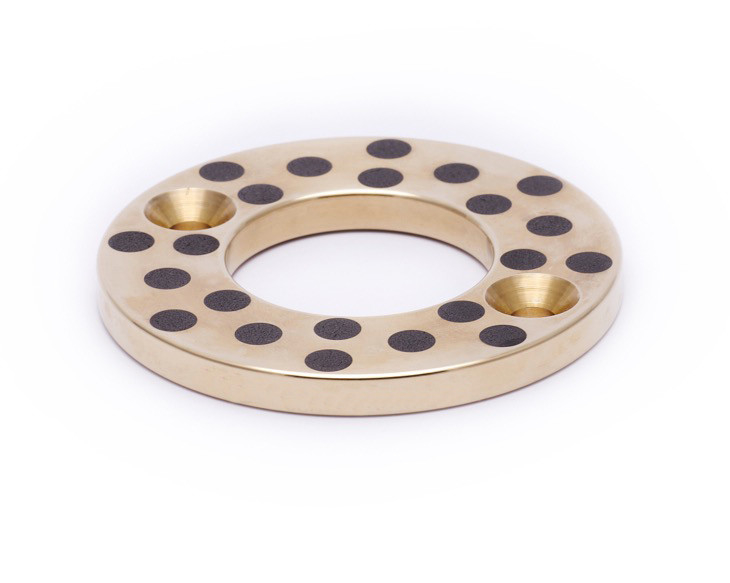

The Bronze Oilless SPW Thrust Washer is a high-performance engineering component that offers a reliable and efficient solution for thrust applications in various machinery. As an equivalent to traditional oil-lubricated thrust washers, it eliminates the need for regular lubrication, reducing maintenance costs and downtime.
Constructed from high-quality bronze material, the thrust washer exhibits excellent wear resistance and durability. Its oil-free design ensures smooth and reliable operation, even under high loads and extreme conditions. This feature makes it suitable for use in a wide range of engineering machinery, including construction equipment, mining machinery, and industrial production lines.
The Bronze Oilless SPW Thrust Washer is precision-manufactured to ensure accurate fit and optimal performance. It can be easily integrated into existing machinery or used as a replacement part for worn-out or damaged thrust washers. Its compact design and durability contribute to the overall efficiency and reliability of the engineering machinery.
Whether you're looking to upgrade your existing equipment or seeking a cost-effective solution for thrust applications, the Bronze Oilless SPW Thrust Washer is an excellent choice. Its equivalent performance to oil-lubricated washers, combined with the convenience of oil-free operation, makes it a valuable addition to your engineering machinery. Contact us today to learn more about this innovative component and how it can enhance the performance of your machinery.
Bronze Oilless Bush SPW Thrust Washer Equivalent
Solid Lubricant Inlaid Thrust Washer, Oiles 500SP1-SL1 Thrust Washer SPW Size, Oilless Bronze bushing with graphite
Sankyo Oilless Bushings Equivalent SOB bronze bearings, SPF Flange Bushings
OILES 500SP1-SL1 Thrust Washer | I.D.: Φd | O.D.: ΦD | Thickness: T | Position of Mounting hole: P.C.D | Number of Hole | Countersunk Screw |
---|---|---|---|---|---|---|
SPW-0603 | 6.2 | 25 | 3 | 15 | 2 | M3 |
SPW-0803 | 8.2 | 28 | 3 | 18 | 2 | M3 |
SPW-1003 | 10.2 | 30 | 3 | 20 | 2 | M3 |
SPW-1203 | 12.2 | 40 | 3 | 28 | 2 | M3 |
SPW-1203N | 12.2 | 40 | 3 | - | - | - |
SPW-1303 | 13.2 | 40 | 3 | 28 | 2 | M3 |
SPW-1403 | 14.2 | 40 | 3 | 28 | 2 | M3 |
SPW-1503 | 15.2 | 50 | 3 | 35 | 2 | M3 |
SPW-1603 | 16.2 | 50 | 3 | 35 | 2 | M3 |
SPW-1603N | 16.2 | 50 | 3 | - | - | - |
SPW-1803 | 18.2 | 50 | 3 | 35 | 2 | M3 |
SPW-2005 | 20.2 | 50 | 5 | 35 | 2 | M5 |
SPW-2505 | 25.2 | 55 | 5 | 40 | 2 | M5 |
SPW-2505N | 25.2 | 55 | 5 | - | - | - |
SPW-3005 | 30.2 | 60 | 5 | 45 | 2 | M5 |
SPW-3005N | 30.2 | 60 | 5 | - | - | - |
SPW-3505 | 35.2 | 70 | 5 | 50 | 2 | M5 |
SPW-4007 | 40.2 | 80 | 7 | 60 | 2 | M6 |
SPW-4507 | 45.2 | 90 | 7 | 70 | 2 | M6 |
SPW-5008 | 50.3 | 100 | 8 | 75 | 4 | M6 |
SPW-5508 | 55.3 | 110 | 8 | 85 | 4 | M6 |
SPW-6008 | 60.3 | 120 | 8 | 90 | 4 | M8 |
SPW-6508 | 65.3 | 125 | 8 | 95 | 4 | M8 |
SPW-7010 | 70.3 | 130 | 10 | 100 | 4 | M8 |
SPW-7510 | 75.3 | 140 | 10 | 110 | 4 | M8 |
SPW-8010 | 80.3 | 150 | 10 | 120 | 4 | M8 |
SPW-9010 | 90.5 | 170 | 10 | 140 | 4 | M10 |
SPW-10010 | 100.5 | 190 | 10 | 160 | 4 | M10 |
SPW-12010 | 120.5 | 200 | 10 | 175 | 4 | M10 |
Bronze with lubricating pins - maintenance-free.Get Best Deals For Sleeve Bronze Bushings graphite bronze bearings Recommendations For You
Specifications Dimensions
Characteristics
– Suitable for high loads
– Multiple areas of us (universal bearing)
– Long life
– Wide temperature range
Areas of use
Forest machinery, pump housing parts, cylinder bearings, shipping & container industry etc.
Shapes & forms
Cylindrical bearings, flange bearing
Bronze Bushing Technology | |||||||
Type | JDB-1 | JDB-2 | JDB-3 | JDB-4 | JDB-5 | ||
Base material | CuZn24Al6 | CuSn6Zn6Pb3 | CuSn6Zn6Pb3 | HT-250 | CuCr15 | ||
Base Hardness | Hb230 | HB 90 | HB 80 | HB 210 | HB 60 | ||
(Hb270) | |||||||
Friction coef(u) | <0.16 | <0.15s | <0.14 | <0.17 | <0.17 | ||
Temperature limit | 300℃ | 350℃ | 300℃ | 400℃ | 350℃ | ||
Dynamic Load Limit | 100 N/mm2 | 60 N/mm2 | 70 N/mm2 | 60 N/mm2 | 250 N/mm2 | ||
Load LImit Under 1m/min | 25 N/mm2 | 15 N/mm2 | 20 N/mm2 | 15 N/mm2 | 70 N/mm2 | ||
Speed limit | 0.40 m/s 5 m/s | 2 m/s | 2 m/s | 0.5 m/s | 0.1 m/s | ||
PV Limt | 3.8 N/mm2·m/s | 0.5 N/mm2·m/s | 0.6 N/mm2·m/s | 0.8 N/mm2·m/s | 2.5 N/mm2·m/s | ||
bronze bushingWear Performance | |||||||
Load Applied | 62N/mm2 | 24.5N/mm2 | 14.7N/mm2 | ||||
Item | Wear Depth | Time | Wear Depth | Time | Wear Depth | Time | |
Type | Lubrication | (mm) | (hrs) | (mm) | (hrs) | (mm) | (hrs) |
CuSn6Zn6Sn3 | Oil | 0.098 | 10 | 0.125 | 100 | 0.1 | 100 |
JDB-1 | dry friction | 0.075 | 100 | 0.015 | 100 | 0.012 | 100 |
JDB-2 | dry friction | 0.025 | 30 | 0.065 | 100 | 0.025 | 100 |
JDB-3 | dry friction | 0.03 | 30 | 0.12 | 100 | 0.015 | 100 |
JDB-4 | dry friction | 0.03 | 10 | 0.25 | 20 | 0.011 | 100 |
JDB-5 | dry friction | 0.022 | 100 | .0.13 | 100 | 0.01 | 100 |
