| Brand Name: | viiplus.com |
| Model Number: | Bronze Bearings |
| MOQ: | 500 Piece/Pieces (Min. Order) |
| Price: | Oilless Bushes Factory Price |
| Payment Terms: | T/T PREPARD, T/T, L/C, D/A, D/P |
| Supply Ability: | plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, PTFE Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing |

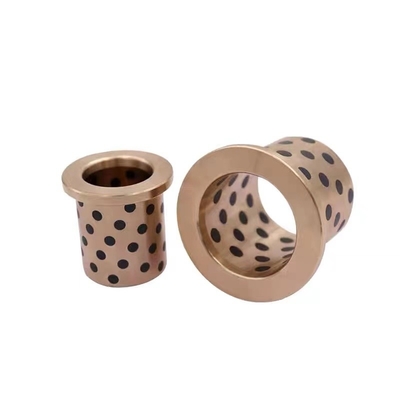

Bronze High Tensile Oilless Bushes SPFG Thrust Bushings Equivalent are precision-engineered components that offer exceptional performance in thrust applications, eliminating the need for regular lubrication. These bushings are designed with high tensile strength and durability, ensuring reliable operation under extreme conditions.
Constructed from high-quality bronze material, the bushings exhibit excellent wear resistance, making them suitable for heavy-duty applications. The oilless design eliminates the need for lubrication, reducing maintenance costs and extending the lifespan of the bushings.
The SPFG thrust bushings are equivalent to traditional oil-lubricated bushings, providing similar performance but with the added convenience of oil-free operation. They are suitable for use in a wide range of engineering machinery, including construction equipment, industrial machines, and automotive components.
With their compact design and precision manufacturing, the Bronze High Tensile Oilless Bushes SPFG Thrust Bushings Equivalent are easy to integrate into existing machinery or use as replacement parts. They contribute to the overall efficiency and reliability of the machinery, reducing downtime and enhancing productivity.
Wh you're upgrading your equipment or seeking a cost-effective solution for thrust applications, the Bronze High Tensile Oilless Bushes SPFG Thrust Bushings Equivalent are an excellent choice. Contact us today to learn more about these innovative bushings and how they can benefit your industrial operations.
| OILES 500SP1-SL1 Thrust Bushings | I.D.: Φd | O.D.: ΦD | Frange: ΦF | Frange Thickness: t | Length: L |
|---|---|---|---|---|---|
| SPFG-0611 | 6 | 10 | 20 | 3 | 11 |
| SPFG-0813 | 8 | 12 | 25 | 3 | 13 |
| SPFG-1013 | 10 | 14 | 25 | 3 | 13 |
| SPFG-1018 | 10 | 14 | 25 | 3 | 18 |
| SPFG-1211 | 12 | 18 | 30 | 3 | 11 |
| SPFG-1218 | 12 | 18 | 30 | 3 | 18 |
| SPFG-1223 | 12 | 18 | 30 | 3 | 23 |
| SPFG-1313 | 13 | 19 | 30 | 3 | 13 |
| SPFG-1318 | 13 | 19 | 30 | 3 | 18 |
| SPFG-1323 | 13 | 19 | 30 | 3 | 23 |
| SPFG-1513 | 15 | 21 | 35 | 3 | 13 |
| SPFG-1518 | 15 | 21 | 35 | 3 | 18 |
| SPFG-1523 | 15 | 21 | 35 | 3 | 23 |
| SPFG-1613 | 16 | 22 | 35 | 3 | 13 |
| SPFG-1618 | 16 | 22 | 35 | 3 | 18 |
| SPFG-1623 | 16 | 22 | 35 | 3 | 23 |
| SPFG-1818 | 18 | 24 | 40 | 3 | 18 |
| SPFG-1823 | 18 | 24 | 40 | 3 | 23 |
| SPFG-2020 | 20 | 28 | 45 | 5 | 20 |
| SPFG-2025 | 20 | 28 | 45 | 5 | 25 |
| SPFG-2520 | 25 | 33 | 50 | 5 | 20 |
| SPFG-2525 | 25 | 33 | 50 | 5 | 25 |
| SPFG-3020 | 30 | 38 | 55 | 5 | 20 |
| SPFG-3025 | 30 | 38 | 55 | 5 | 25 |
| SPFG-3035 | 30 | 38 | 55 | 5 | 35 |
| SPFG-3520 | 35 | 44 | 65 | 5 | 20 |
| SPFG-3525 | 35 | 44 | 65 | 5 | 25 |
| SPFG-3535 | 35 | 44 | 65 | 5 | 35 |
| SPFG-4027 | 40 | 50 | 70 | 7 | 27 |
| SPFG-4037 | 40 | 50 | 70 | 7 | 37 |
| SPFG-4047 | 40 | 50 | 70 | 7 | 47 |
| SPFG-5038 | 50 | 62 | 90 | 8 | 38 |
| SPFG-5048 | 50 | 62 | 90 | 8 | 48 |
| SPFG-5058 | 50 | 62 | 90 | 8 | 58 |
| SPFG-6038 | 60 | 74 | 110 | 8 | 38 |
| SPFG-6048 | 60 | 74 | 110 | 8 | 48 |
| SPFG-6058 | 60 | 74 | 110 | 8 | 58 |
| SPFG-6068 | 60 | 74 | 110 | 8 | 68 |
| SPFG-7050 | 70 | 85 | 120 | 10 | 50 |
| SPFG-7080 | 70 | 85 | 120 | 10 | 80 |
| SPFG-8060 | 80 | 96 | 140 | 10 | 60 |
| SPFG-8090 | 80 | 96 | 140 | 10 | 90 |
Introduction of material
1. The solid casting bronze material is ideally suited for highly demanding applications in tough environments. We offer a standard assortment of plain sleeve bushings, flanged bushings and sliding plates in accordance with ISO 4379 and DIN1850.
2. The solid bronze body can be drilled holes and filled solid graphite lubricant, in this way it can be used in oilless environments.
3. Also the solid bronze body can be machined oil grooves and holes, it can get better lubricating after filled with grease.
Bronze Oilless Bush SPB Oilless Bushings Equivalent. Oilless Bush Catalog.
Manufacturer of Oilless Bush - Oilless Bronze Bushes, Oilless Guide Bushing, Oilless Bushing, and Brass Bushes offered by bronzegleitlager.com Graphite Bronze Bushes online.
oilless bushes material is made of strong cast bronze based metal with special solid lubricants graphite embedded. The base metal with stands high load and the solid lubricants provide for self-lubrication ...
| Company Type | VIIPLUS CHINESE INTERNATIONAL SUPPLIER |
| Material | Brass, Tin bronze, Lead bronze,Aluminum bronze,ect |
| Standard | ISO 2008,SGS,CE |
| Fearture | 1. High load capacity Cood anti-wearing 2. Low coefficients of friction 3.Good heat conductivity 4. High corrosion resistance 5.Long life and maintenance-free 6.No contaminant by oil or grease |
| Process | Centrifugal casting,sand casting,Machining,Injection |
| Quality assurance | 2D Projector, Height Gague,Micrometer,Roughness Tester, CCD Autimatic Testing Machine CCD,Callipers |
| Tolerance | Roundness::+/- 0.01mm. Flatness:+/- 0.005mm. Height and length:+/- 0.01mm. |
| Payment | L/c ,T/T,Paypal,Western Union,Ali Credit insurance |
| Port | CHINESE |
| Drawing | Yes |
| Sample | Available |
| MOQ | 50KG |
| Lead time | According to required time |
Bronze with lubricating pins - maintenance-free.Get Best Deals For Sleeve Bronze Bushings graphite bronze bearings Recommendations For You
– Suitable for high loads
– Multiple areas of us (universal bearing)
– Long life
– Wide temperature range
Forest machinery, pump housing parts, cylinder bearings, shipping & container industry etc.
Shapes & forms
Cylindrical bearings, flange bearing
| Bronze Bushing Technology | |||||||
| Type | JDB-1 | JDB-2 | JDB-3 | JDB-4 | JDB-5 | ||
| Base material | CuZn24Al6 | CuSn6Zn6Pb3 | CuSn6Zn6Pb3 | HT-250 | CuCr15 | ||
| Base Hardness | Hb230 | HB 90 | HB 80 | HB 210 | HB 60 | ||
| (Hb270) | |||||||
| Friction coef(u) | <0.16 | <0.15s | <0.14 | <0.17 | <0.17 | ||
| Temperature limit | 300℃ | 350℃ | 300℃ | 400℃ | 350℃ | ||
| Dynamic Load Limit | 100 N/mm2 | 60 N/mm2 | 70 N/mm2 | 60 N/mm2 | 250 N/mm2 | ||
| Load LImit Under 1m/min | 25 N/mm2 | 15 N/mm2 | 20 N/mm2 | 15 N/mm2 | 70 N/mm2 | ||
| Speed limit | 0.40 m/s 5 m/s | 2 m/s | 2 m/s | 0.5 m/s | 0.1 m/s | ||
| PV Limt | 3.8 N/mm2·m/s | 0.5 N/mm2·m/s | 0.6 N/mm2·m/s | 0.8 N/mm2·m/s | 2.5 N/mm2·m/s | ||
| bronze bushingWear Performance |
|||||||
| Load Applied | 62N/mm2 | 24.5N/mm2 | 14.7N/mm2 | ||||
| Item | Wear Depth | Time | Wear Depth | Time | Wear Depth | Time | |
| Type | Lubrication | (mm) | (hrs) | (mm) | (hrs) | (mm) | (hrs) |
| CuSn6Zn6Sn3 | Oil | 0.098 | 10 | 0.125 | 100 | 0.1 | 100 |
| JDB-1 | dry friction | 0.075 | 100 | 0.015 | 100 | 0.012 | 100 |
| JDB-2 | dry friction | 0.025 | 30 | 0.065 | 100 | 0.025 | 100 |
| JDB-3 | dry friction | 0.03 | 30 | 0.12 | 100 | 0.015 | 100 |
| JDB-4 | dry friction | 0.03 | 10 | 0.25 | 20 | 0.011 | 100 |
| JDB-5 | dry friction | 0.022 | 100 | .0.13 | 100 | 0.01 | 100 |
