Tin Plating Bronze Thrust Washer Inch Sizes Metric Plain Bushing

Place of Origin made in china
Brand Name Viiplus
Certification Plain Sleeve Bearings Standards met: RoHS
Model Number Washer POM Lead Free
Minimum Order Quantity Bronze Precision Wear Plates & Lubricating Parts made to order
Price US$0.11 - US$21.11 / Pieces,NEGOTIABLE
Packaging Details Standard package, Pallet or container, As per customized specifications
Delivery Time Shipped in 3-20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Low-Carbon Steel + Porous Bronze + POM Plating Tin Or Copper
Types FLANGE/SLEEVE/WASHER Application Printing, Weaving And Tobacco Producing Machines, Gymnastic Equipment, Shock Absorbers, Etc.
Parts Bushings-thrust-washers-strips Categories Plain Bearings
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM DX BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

Tin Plating Thrust Washers

,

Tin Plating Bronze Thrust Washer

,

POM Bronze Thrust Washer

Leave a Message
Product Description

DX Thrust Washers - Inch Sizes & Metric Plain Bushing, DTX-D1 washer

Metal Polymer Composite Washer, bush bushing

Metal Polymer Composite (POM) Washer  model.

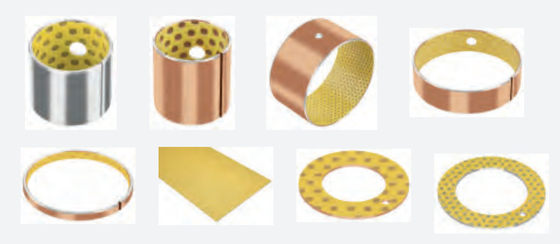

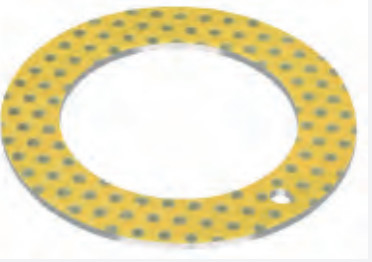

Inside yellow color POM material with outside natural white.

Material: DX
(Metal Polymer Composite POM)

View our range of glacier-style PTFE-lined POM-bearing bushes. We are able to offer split-bearing bushes both standard and flanged. DU type split bearings and DX type split bearings & washer are also available. If there is anything you are unable to find the size. Please contact us.

DX Thrust Washers - Inch sizes View our DX washers here in metric sizes. Buy now for great prices and fast delivery.

DX Style bearing washers are a range of wrapped acetal lined bearings which are suitable for rotary and oscillating movement applications. Available in both metric and imperial sizes.






DX Type Washers - Metric
DX Type Washers - Imperial



Split Bearing Bushes | DX Type Washers | Metric - Plain Bearing

POM composite thrust washers are suitable where oscillating and rotational movement can occur. These washers are punched from the composite material and have as standard a hole to take a pin or screw to prevent the washers from rotating on their seat. SF-2 Thrust washers Bronze+steel+pom Washers. DX Marginally Lubricated Bearings is for grease or oil lubricated applications. Visit https://www.bronzegleitlager.com/

POM BUSHING

SF-2 Thrust washers, SF-1 Thrust washer, DU Oilless Washer, Bronze steel pom washer, DX Maginal Washer.

DX2Glacier style bearing washer.

The washer range of wrapped acetal-lined bearings is suitable for rotary and oscillating movement applications. They benefit from long re-lubrication intervals, no absorption of water, outstanding damping behaviors, and have a low susceptibility to edge loading. The WMX range ore ideal for the automotive, machine building, medical, pneumatics, and agricultural industries and indeed any application where lubricant cannot be supplied continuously. This range of split-bearing bushes can hugely reduce maintenance costs on projects large and small.

Examples of where the dx thrust washer range is used:

  • Rear chassis hinges
  • Articulation joints
  • Drill Spindles
  • Gearboxes & Clutches
  • Grinding and milling machines

Structure: S.A.E. 1010 steel backing strip with sintered bronze and Acetal Copolymer layers

  • WMX wrapped acetal-lined bearings have a high wear resistance and low friction even with very small quantities of lubricant.
  • The surface carries a pattern of circular indents which should be filled with grease on assembly.
  • Low carbon steel gives exceptionally high load carrying capacity and excellent hear dissipation.

Equivalent alternative brands include: Glacier DX, P20






Oilless SF-2 Bronze Bearing Flat Thrust Washer

POM Coated Self Lubricating Thrust Washer

All dimensions in inch dP Di Do sT Ha Do dp dD Hd [D10] DJ Part No. Inside-ø Di Outside-ø Do Thickness sT Dowel hole Recess depth ø dD PCD-ø dP Ha max. min. max. min. max. min. max. min. max. min. max. min. DX06 0.5100 0.5000 0.8750 0.8650 0.0660 0.0625 0.0770 0.0670 0.6920 0.6820 0.050 0.040 DX07 0.5720 0.5620 1.0000 0.9900 0.7860 0.7760 DX08 0.6350 0.6250 1.1250 1.1150 0.1090 0.0990 0.8800 0.8700 DX09 0.6970 0.6870 1.1870 1.1770 0.9420 0.9320 DX10 0.7600 0.7500 1.2500 1.2400 1.0050 0.9950 DX11 0.8220 0.8120 1.3750 1.3650 1.0990 1.0890 DX12 0.8850 0.8750 1.5000 1.4900 0.1400 0.1300 1.1920 1.1820 DX14 1.0100 1.0000 1.7500 1.7400 1.3800 1.3700 DX16 1.1350 1.1250 2.0000 1.9900 0.1710 0.1610 1.5670 1.5570 DX18 1.2600 1.2500 2.1250 2.1150 1.6920 1.6820 DX20 1.3850 1.3750 2.2500 2.2400 1.8170 1.8070 DX22 1.5100 1.5000 2.5000 2.4900 0.2020 0.1920 2.0050 1.9950 DX24 1.6350 1.6250 2.6250 2.6150 2.1300 2.1200 DX26 1.7600 1.7500 2.7500 2.7400 2.2550 2.2450 DX28 2.0100 2.0000 3.0000 2.9900 0.0970 0.0935 2.5050 2.4950 0.080 0.070 DX30 2.1350 2.1250 3.1250 3.1150 2.6300 2.6200 DX32 2.2600 2.2500 3.2500 3.2400 2.7550 2.7

SF-2 POM composite thrust washers Description


POM composite thrust washers have pockets in the sliding surface, which serve as grease reservoirs and should be filled with grease prior to installation. This makes these washers suitable for applications that require minimal maintenance under difficult operating conditions, for example in contaminated environments where lubricant cannot be supplied continuously or frequently. Despite of their compact design, POM composite washers can accommodate heavy axial loads and are less sensitive to misalignment. They are suitable for slow rotational or oscillating movements.

POM composite thrust washers consists of a sheet steel backing on which a 0,2 to 0,4 mm thick layer of tin/bronze is sintered. The principal characteristic of these washers is their relatively thick (0,3 mm) covering layer of acetal resin (POM – polyoxymethylene) with additives. This covering layer has pockets to retain grease and is firmly attached to the sintered tin/bronze layer.

The thickness of the covering layer makes these washers less sensitive to misalignment and the edge loading associated with that misalignment.



Brand Viiplus
Base material Steel/Bronze
Maximum temperaturet -40°C-300°C
Max Load Capacity P 70-250N/mm²
Coefficient of friction u 0.05-0.20u
Material Organization 1. POM with fiber 0.3 ~ 0.5mm
2. Porous bronze 0.2 ~ 0.3mm
3. Steel backing 0.4~ 2.2mm
4. Tin-plating 0.005mm or copper plating 0.008mm
Technical Data Limit Value(Oil) 22N/mm²
Friction Coefficient 0.05~0.25
Temperature Range -40°C~+130°C
Resilience 70N/mm²
Sliding Speed Limit 2.5m/s



SF-2 Thrust washers Material:

DX (Metal Polymer Composite POM)




SF-2 Thrust washers Structure:

Metal-Polymer Composite Thrust Washer Material


SF-2 Thrust washers Composition:

Steel Back + Porous Bronze Sinter + Pom With Lubrication Indents


SF-2 Thrust washers Microsection:

  • POM sliding layer with lubricant indents
  • Porous Bronze Sinter

  • Steel Backing

  • Tin/Copper coating


SF-2 THRUST WASHER LUBRICATION POCKET


SF-2 POM Thrust Washer Technical Details



  • Wrapped composite sliding bearing
  • Tin-plated steel / acetal resin (POM)
  • DIN 1494 / ISO 3547
  • Low-maintenance
  • With lubrication pockets
  • Flanged sliding bearings on request


SF-2 Thrust Washers Suitable for grease or oil lubrication and all kinds of movement, good load capacity, robust and insensible to dirt.


Sliding surface: POM
Support material: Tin plated steel
Dynamic load: ≤ 140 N/mm²
Static load: ≤ 250 N/mm²
Sliding speed: ≤ 2,5 m/s
Fricition value: 0,04 - 0,12 µ
max. PV-value: 2,8 N/mm² x m/s
Temperature strain: -40 up to + 130 °C
Maintenance: maintenance-bound
Tolerance housing: H7
Tolerance after mounting: in series D
Shaft tolerance: h8
Shaft material: Steel, hardened or untempered, roughness Rz < 4-6



SF-2 Thrust Washers Characteristics:



  1. SF-2 POM coated self-lubricating thrust washer for grease or oil lubricated applications.

  2. Standard parts contain grease indents in the sliding layer, plain sliding layer available by request.

  3. Optimum performance under relatively high loads and low speeds.

  4. Suitable for linear, oscillating and rotating movements.

  5. Wide range of parts available from stock.



SF-2 Thrust Washers Typical Applications:


SF-2 POM based thrust washers is widely used in Vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry etc.
