SOBF Metric Flanged Bushings Mold Bushing Bronze With Graphite
| Place of Origin | gleitlagerbuchsen china |
|---|---|
| Brand Name | VIIPLUS Sleeve & Bearing |
| Certification | FIBRO Standard |
| Minimum Order Quantity | Standard Size Bushing No Minimum Order Quantity |
| Price | Bushings High Quality Price Ratio B2B |
| Packaging Details | Export carton; Wooden case ; Wood pallet. |
| Delivery Time | 2~4 Weeks |
| Payment Terms | T/T, L/C, Western Union, |
| Supply Ability | bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | Flanged Bushings - Metric Size | Material | Bronze With Graphite |
|---|---|---|---|
| Feature | Self Lubrication, Maintenance Free | Lubrication | Graphite |
| Application | Mold Bushing | Type | Oil Free Bronze Bearings |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing | Gleitalger | A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | Metric Mold Bushing,SOBF Metric Flanged Bushings,Bronze Metric Flanged Bushings |
||
Product Description
Graphite Materials-China - Trusted Suppliers - Bronzeoilless.Com
Graphite Buje Bronze (With Graphite Plugs) Bushing Materials And Graphite Parts. Top Quality Assured. Competitive Price. Leading Graphite Supplier.

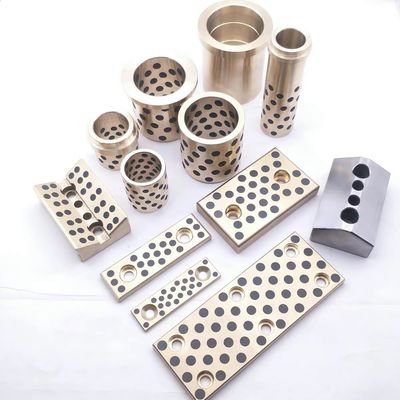

SOBF Metric Flanged Bushings are mold bushings made of bronze with graphite inclusions. The combination of bronze and graphite provides excellent wear resistance and self-lubricating properties, ensuring smooth and reliable operation. The flanged design adds stability and rigidity to the bushing, making it suitable for high-load and high-speed applications.
Metric sizing ensures compatibility with a wide range of machinery and equipment, making these bushings a versatile solution for various industrial applications. Whether used in molds, pumps, valves, or other mechanical systems, SOBF Metric Flanged Bushings with Bronze and Graphite provide a durable and reliable bearing solution.
Flanged Bush, Self-Lubricating. Metric - Mold Bushing Guide Bushings Oilless Bush Bronze
SOBF Flanged Bushings - Metric - Mold Bushing, SOBF Flanged Bushings -
SOBF FLANGE BUSHING SELF-LUBRICATING BEARINGS
SOBF flanged bushing self-lubricating.pdf
Flanged Oilless Bushings - Metric
These Flanged Oilless Bushings components are made of solid aluminum bronze and are available with or without self-lubricating graphite. Straight Bushings are available in a wide range of industry sizes.
SOB FLANGE BUSHING SIZE
| Item No. | ID | OD | Length | Material |
| SOBF20x15 | 20 | 30 | 15 | Bronze/Graphite Bushing |
| SOBF20x20 | 20 | 30 | 20 | Bronze/Graphite Bushing |
| SOBF20x25 | 20 | 30 | 25 | Bronze/Graphite Bushing |
| SOBF20x30 | 20 | 30 | 30 | Bronze/Graphite Bushing |
| SOBF20x40 | 20 | 30 | 40 | Bronze/Graphite Bushing |
| SOBF25x15 | 25 | 35 | 15 | Bronze/Graphite Bushing |
| SOBF25x20 | 25 | 35 | 20 | Bronze/Graphite Bushing |
| SOBF25x25 | 25 | 35 | 25 | Bronze/Graphite Bushing |
| SOBF25x30 | 25 | 35 | 30 | Bronze/Graphite Bushing |
| SOBF25x40 | 25 | 35 | 40 | Bronze/Graphite Bushing |
| SOBF30x20 | 30 | 40 | 20 | Bronze/Graphite Bushing |
| SOBF30x25 | 30 | 40 | 25 | Bronze/Graphite Bushing |
| SOBF30x30 | 30 | 40 | 30 | Bronze/Graphite Bushing |
| SOBF30x35 | 30 | 40 | 35 | Bronze/Graphite Bushing |
| SOBF30x40 | 30 | 40 | 40 | Bronze/Graphite Bushing |
| SOBF30x50 | 30 | 40 | 50 | Bronze/Graphite Bushing |
| SOBF31x20 | 31 | 40 | 20 | Bronze/Graphite Bushing |
| SOBF31x35 | 31 | 40 | 35 | Bronze/Graphite Bushing |
| SOBF35x20 | 35 | 45 | 20 | Bronze/Graphite Bushing |
| SOBF35x30 | 35 | 45 | 30 | Bronze/Graphite Bushing |
| SOBF35x40 | 35 | 45 | 40 | Bronze/Graphite Bushing |
| SOBF35x50 | 35 | 45 | 50 | Bronze/Graphite Bushing |
| SOBF40x20 | 40 | 50 | 20 | Bronze/Graphite Bushing |
| SOBF40x30 | 40 | 50 | 30 | Bronze/Graphite Bushing |
| SOBF40x40 | 40 | 50 | 40 | Bronze/Graphite Bushing |
| SOBF40x50 | 40 | 50 | 50 | Bronze/Graphite Bushing |
| SOBF45x30 | 45 | 55 | 30 | Bronze/Graphite Bushing |
| SOBF45x40 | 45 | 55 | 40 | Bronze/Graphite Bushing |
| SOBF45x50 | 45 | 55 | 50 | Bronze/Graphite Bushing |
| SOBF45x60 | 45 | 55 | 60 | Bronze/Graphite Bushing |
| SOBF50x30 | 50 | 60 | 30 | Bronze/Graphite Bushing |
| SOBF50x40 | 50 | 60 | 40 | Bronze/Graphite Bushing |
| SOBF50x50 | 50 | 60 | 50 | Bronze/Graphite Bushing |
| SOBF50x60 | 50 | 60 | 60 | Bronze/Graphite Bushing |
| SOBF55x40 | 55 | 65 | 40 | Bronze/Graphite Bushing |
| SOBF55x60 | 55 | 65 | 60 | Bronze/Graphite Bushing |
| SOBF60x40 | 60 | 75 | 40 | Bronze/Graphite Bushing |
| SOBF60x50 | 60 | 75 | 50 | Bronze/Graphite Bushing |
| SOBF60x80 | 60 | 75 | 80 | Bronze/Graphite Bushing |
| SOBF63x67 | 63 | 75 | 67 | Bronze/Graphite Bushing |
| SOBF70x50 | 70 | 85 | 50 | Bronze/Graphite Bushing |
| SOBF70x80 | 70 | 85 | 80 | Bronze/Graphite Bushing |
| SOBF75x60 | 75 | 90 | 60 | Bronze/Graphite Bushing |
| SOBF80x60 | 80 | 100 | 60 | Bronze/Graphite Bushing |
| SOBF80x80 | 80 | 100 | 80 | Bronze/Graphite Bushing |
| SOBF80x100 | 80 | 100 | 100 | Bronze/Graphite Bushing |
| SOBF90x60 | 90 | 110 | 60 | Bronze/Graphite Bushing |
| SOBF90x80 | 90 | 110 | 80 | Bronze/Graphite Bushing |
| SOBF100x80 | 100 | 120 | 80 | Bronze/Graphite Bushing |
| SOBF100x100 | 100 | 120 | 100 | Bronze/Graphite Bushing |
| SOBF120x80 | 120 | 140 | 80 | Bronze/Graphite Bushing |
Characteristics
with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available
VSB-50 Solid lubricating bearings
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃
Structure
VSB-50 Solid Lubricant Sliding Bearings material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
Technical Data
|
Grade |
50# |
50S1 |
50S2 |
50S3 |
650S5 |
|
Material |
CuZn25AI5Mn4Fe3 |
CuSn5Pb5Zn5 |
CuAI10Ni5Fe5 |
CuSn12 |
CuZn25AI5Mn4Fe3 |
|
Density |
8 |
8.9 |
7.8 |
8.9 |
8 |
|
Hardness |
≥210 |
≥70 |
≥150 |
≥75 |
≥235 |
|
Tensile strength |
≥750 |
≥250 |
≥500 |
≥270 |
≥800 |
|
Yield strength |
≥450 |
≥90 |
≥260 |
≥150 |
≥450 |
|
Elongation |
≥12 |
≥13 |
≥10 |
≥5 |
≥8 |
|
Coefficient o linear expansion |
1.9×10-5/℃ |
1.8×10-5/℃ |
1.6×10-5/℃ |
1.8×10-5/℃ |
1.9×10-5/℃ |
|
Max.Temp. |
-40~+300℃ |
-40~+400℃ |
-40~+400℃ |
-40~+400℃ |
-40~+300℃ |
|
Max.dynamic load |
100 |
60 |
50 |
70 |
120 |
|
Max.speed(Dry) |
15 |
10 |
20 |
10 |
15 |
|
N/mm²*m/s(Lubrication) |
200 |
60 |
60 |
80 |
200 |
|
Compression deformation |
< 0.01 mm |
< 0.05mm |
< 0.04mm |
< 0.05mm |
< 0.005mm |
Chemical Compositions
|
Product NO. |
Chemical Compositions |
||||||||
|
VSB-50 |
Cu |
Zn |
Al |
Fe |
Mn |
Si |
Ni |
Sn |
Pb |
|
60~66 |
22~28 |
5.0~8.0 |
2.0~4.0 |
2.5~5.0 |
<0.1 |
<0.5 |
<0.2 |
<0.2 |
|
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
