Oiles 500SP1 Spherical Bearings Unit Bearings Self Lubricating

  • Oiles 500SP1 Spherical Bearings Unit Bearings Self Lubricating
Place of Origin made in china
Brand Name VIIPLUS
Certification ISO 9001
Model Number Bearings Unit bearings
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-25 work days
Payment Terms T/T
Supply Ability Spherical Bearings Unit bearings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers
Product Details
Material Bearings Unit Bearings Item Bearings Unit Bearings
Feature High Precision，self-lubricating Certification ISO Standard
Price Factory Price Get A Better Quote Tiffany@viiplus.com
Get A Better Quote Tiffany@viiplus.com Get A Better Quote Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing
Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

500SP1 Spherical Bearings

,

Self Lubricating Spherical Bearings
Leave a Message
Product Description

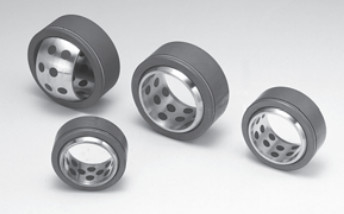

Oiles 500SP1 Spherical Bearings Unit bearings



Feature
●Conforms to the ISO Standard E type bearings. Compatible with them dimensionally. High precision.
●The inner surface of the inner race is subject to sliding. The outer surface of the inner race bears self-aligning.
●Applicable to higher loads than other self-lubricating spherical bearings.
●Applicable to large oscillating angles in circumferential oscillating motion.
●Serviceable without the need for lubrication. Features quite long service life.

The outer race is split into two parts.
Assemble them as shown below so
that the split parts are not located
at the maximum load point. the
bearing to fix it. Press it slowly with
a vice or press by the intermediation
of a as shown below. Chamfering the
housing end is more effective.



Part No.
Allowable dynamic load (Note 1)
N｛kgf｝
Allowable static load (Note 2)
N｛kgf｝
SPS-2035E
SPS-2542E
SPS-3047E
SPS-3555E
SPS-4062E
SPS-4568E
SPS-5075E
SPS-6090E
SPS-70105E
SPS-80120E
SPS-90130E
SPS-100150E
SPS-110160E
SPS-120180E
9,410｛ 960｝
15,600｛ 1,600｝
21,100｛ 2,160｝
27,400｛ 2,800｝
34,500｛ 3,520｝
44,100｛ 4,500｝
54,900｛ 5,600｝
84,700｛ 8,640｝
109,000｛11,200｝
141,000｛14,400｝
176,000｛18,000｝
215,000｛22,000｝
237,000｛24,200｝
329,000｛33,600｝
23,500｛ 2,400｝
39,200｛ 4,000｝
52,900｛ 5,400｝
68,600｛ 7,000｝
86,200｛ 8,800｝
109,000｛11,200｝
137,000｛14,000｝
211,000｛21,600｝
274,000｛28,000｝
353,000｛36,000｝
441,000｛45,000｝
539,000｛55,000｝
593,000｛60,500｝
823,000｛84,000｝
