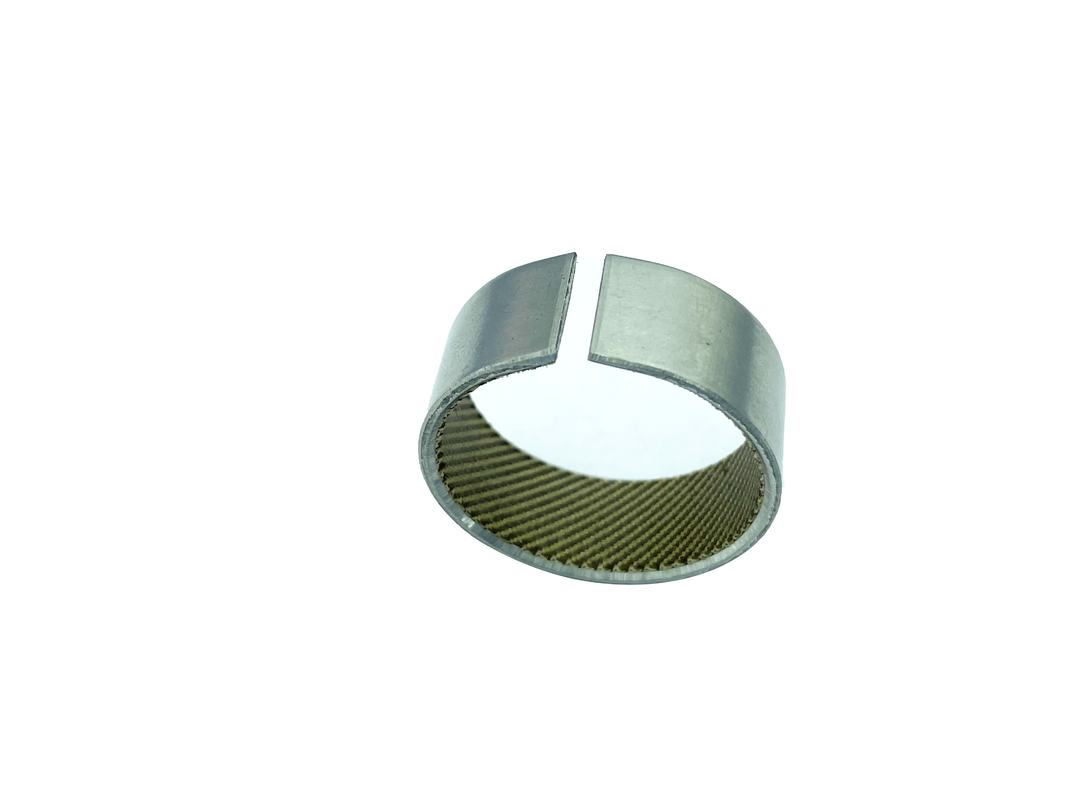

SS316 PTFE 350N/Mm2 Bushing Valve Bushing SelfLubricating

SS316 PTFE 350N/Mm2 Bushing Valve Bushing SelfLubricating
SS316 PTFE 350N/Mm2 Bushing Valve Bushing SelfLubricating SS316 PTFE 350N/Mm2 Bushing Valve Bushing SelfLubricating SS316 PTFE 350N/Mm2 Bushing Valve Bushing SelfLubricating

Large Image :  SS316 PTFE 350N/Mm2 Bushing Valve Bushing SelfLubricating

Product Details:
Place of Origin: Valve Guide Bushing Manufacturer
Brand Name: PTFE/Kevlar Bushing
Certification: DIN 1494, ISO 3547
Model Number: Stainless Steel Bushing
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces (Min. Order)
Price: negotiable
Packaging Details: PLASTIC BAG+ CARTON+PALLET
Delivery Time: 7-25 work days
Payment Terms: T/T, Western Union
Supply Ability: Valve Split Steel Bushings Shaft Bearings Suppliers

SS316 PTFE 350N/Mm2 Bushing Valve Bushing SelfLubricating

Description
Bushing Size: Customized Drawings Bearing Material: Sleeve, Steel, SS316 Steel Copper Material With PTFE/Kevlar
Type: Valve Bushing, Feature: Bushing With RTFE Fiber For Valve
Properties: Impact Resistance, Corrosion Resistance
High Light:

DIN 1494 Valve Bushing

,

SelfLubricating Valve Bushing

,

350N/mm2 Valve Bushing

PTFE/Kevlar Norglide Bushing Tex Self-Lubricating Bearings Rolling

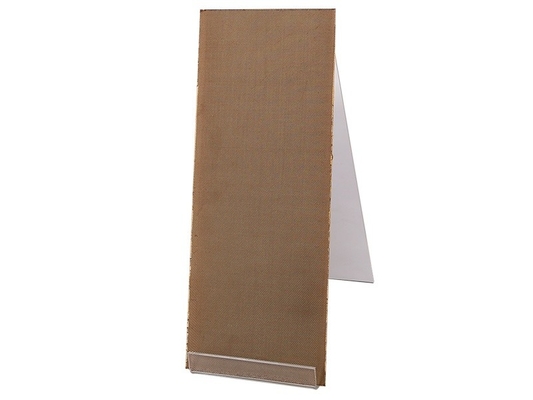

Kevlar Norglide Bushing, SF-TEX elastic steel base PTFE fabric self-lubricating bearings

SF-TEX is a high performance self-lubricating sliding material with a glass fiber reinforced carrying layer.

Kevlar Bearings are steel-reinforced, self-lubricating plain bearings with a layer of low-friction PTFE fabric. They are custom manufactured bearings across a wide range of applications requiring oscillating and rotating motions.

Availability

PTFE compounds are available with carbon steel or ss316L

Self-lubricating plain bearings have the advantages of impact resistance, corrosion resistance, small vibration, low friction coefficient, and applicable temperature

Technical data
Max. load Static 350N/mm2
Dynamic 180N/mm2
Max. speed Dry 0.5m/s
Lubrication >2m/s
Max. PV (Dry) Short-time 3.6N/mm2*·m/s
Continuous 1.8N/mm2*·m/s
Temp. -50℃~+250℃
Friction coefficient 0.03~0.20
Thermal conductivity 42W (m·k)-1
Coefficient of thermal expansion 11*10-6k-1



Kevlar, originally known as Kevlar in English, is also translated as Kevlar or Kevlar. It is the brand name of a kind of aramid fiber material product developed by the United States DuPont Company. The material was originally called "poly (p-benzoyl-p-phenylenediamine)", and the repeating unit of the chemical formula is -[-co-C6H4-CONH-C6H4-NH -]- the amide group attached to the benzene ring is the para-structure (the interposition structure is another trademark product named Nomex, commonly known as the fireproof fiber).

The material is made of all kinds of high quality metals, and the surface is covered with PTFE and other additives, which are low friction and wear resistance knitted fabric materials. This material structure has higher load carrying capacity and longer service life than ordinary three-layer composite materials. The base material can be low carbon steel stainless steel. Used in agricultural machinery, construction machinery, automobile chassis parts, ball valves, butterfly valves, water pumps and chemical industry, such as heavy and low speed but can not refueling occasions. The substrate material is stainless steel 316, American Hastelloy Inconel 625, 254SMO, S31803 (F51), etc.

Kevlar fiber properties
1, permanent heat resistance and flame retardancy, limit oxygen index LOI is greater than 28.
2, permanent antistatic.
3, permanent acid and alkali resistance and organic solvent erosion.
4, high strength, high wear resistance, high tear resistance.
5, in case of fire no droplet production, do not produce toxic gas.
6, fire cloth surface thickness, enhance the sealing, do not break.







Self-lubricating plain bearings have such excellent characteristics as impact resistance, corrosion resistance, small vibration, low friction coefficient, wide application temperature range, large bearing capacity, long life, maintenance-free, no lubricating pollutants and so on. They are widely used in aerospace, light industry, railway machinery and other fields. As the core component of self-lubricating plain bearing, the performance of self-lubricating material determines the service performance and life of the bearing to a great extent. The excellent friction and wear properties of PTFE/KEVLAR fabric liners make them very popular self-lubricating materials for bearings. In order to make the fabric gasket play a role, it must be bonded on the friction surface of the inner and outer ring of the bearing. The stability of the bonding directly affects the performance of its own performance, and ultimately determines the performance of the self-lubricating plain bearing. However, PTFE fiber and Kevlar fiber are very difficult to bond, so it is necessary to properly treat the bonding surface and select the appropriate bonding parameters, so as to obtain a better bonding strength.
