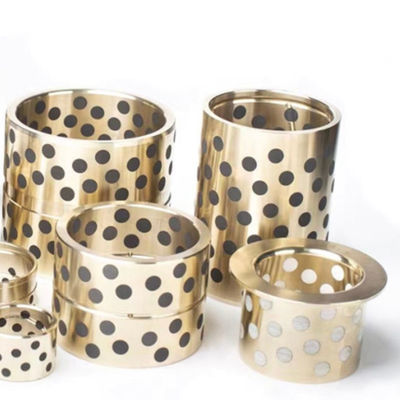

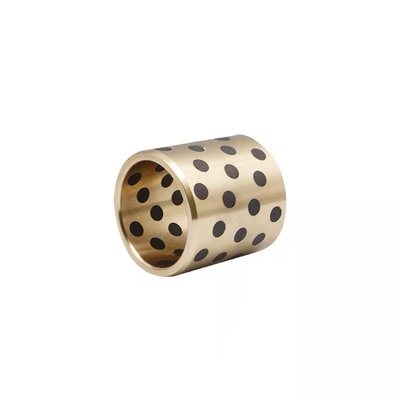

Solid Lubricating Graphite Bronze Oilless Water Valves Bushing

  • Solid Lubricating Graphite Bronze Oilless Water Valves Bushing
  • Solid Lubricating Graphite Bronze Oilless Water Valves Bushing
  • Solid Lubricating Graphite Bronze Oilless Water Valves Bushing
  • Solid Lubricating Graphite Bronze Oilless Water Valves Bushing
  • Solid Lubricating Graphite Bronze Oilless Water Valves Bushing
Place of Origin made in china
Brand Name VIIPLUS
Certification ISO 9001
Model Number Solid Lubricating Graphite Bronze Oilless bearing
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-25 work days
Payment Terms T/T, Western Union
Supply Ability Solid Lubricating Graphite Bronze Oilless bearing Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Maintenance,good Chemical Resistance,corrosion Resistance. Material Solid Lubricating
Application Water Valves Sliding Bushing Type Sleeve
Product Name Oilless Bushing Sliding Bearings Brass Sleeve Bushing Size Customized Size
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Valve Bushings Suppliers Self-lubricating, Metal-polymer Plain Bearing Metal-Polymer Anti-Friction Plain Bearings
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight

Solid Lubricating Valve Bushing

,

Graphite Bronze Valve Bushing
Leave a Message
Product Description

The Solid Lubricating Graphite Bronze Oilless Water Valves Bushing is a specialized component designed for use in water valves that require a self-lubricating, oil-free solution. This bushing incorporates graphite, a natural solid lubricant, within a bronze matrix, creating a unique composite material with exceptional properties.

The graphite component of the bushing provides excellent wear resistance and self-lubricating capabilities. This means that the bushing can operate smoothly without the need for external lubrication, significantly reducing maintenance requirements and downtime.

The bronze matrix provides the bushing with structural strength and stability. Bronze is a durable material that is resistant to corrosion and can withstand the rigors of demanding applications. The combination of graphite and bronze creates a bushing that is both tough and long-lasting.

The oilless design of this bushing is ideal for water valves and other applications where the presence of oil could contaminate the system. The solid lubricating properties of the graphite allow the bushing to operate smoothly without the use of oil or grease.

In summary, the Solid Lubricating Graphite Bronze Oilless Water Valves Bushing is a reliable and efficient component for water valves and other similar applications. Its unique combination of graphite and bronze, along with its oilless design, ensures smooth operation and reduced maintenance requirements.



Valve Shaft Bushings



China Bronze Oilless Bushing, Bronze Oilless Bushing,Brass Sleeve Bushing

Oilless Bush - Oil Less/Graphite Embedded Bush Distributor







OILLESS BUSHING SLDIING BEARINGS



Water Valves Bushing brass sleeve bushing consists of self-lubricating Oilless bearings made up of high-strength brass alloy bases made with advanced casting technology and built-in solid lubricants. They can be combined with various types of solid lubricants according to the conditions of use.







GET A FREE QUOTE ONLINE NOW !


VIIPLUS is a professional manufacturer of Oilless plain bearings and wear plates and has grown rapidly to a point where it is now possible to supply all types of Oilless plain bearings. Standard catalog sizes, special sizes and designs can be produced at competitive prices and according to high quality standards. VIIPLUS serves both the national and international markets. VIIPLUS intends to remain at the forefront of this market.


VIIPLUS specialized in research and development, production and sale of self-lubricating oilless bearings. The main Water Valves Bushing Brass Sleeve Bushing products are metallic polymer composite bearings, bimetallic composite bearings, bronze coated bearings, self-lubricating monometallic bearings and other bearings.







Oilless Bearing Model



OILLESS BUSHING SLDIING BEARINGS BRASS SLEEVE BUSHING-MODEL



Featrue



· Can be used in water


· Can be repaired without the need for lubrication. Demonstrates high performance in high load and low speed operations.


· Demonstrates superior wear resistance in applications where oil films such as reciprocating movements, oscillations, frequent starts and stops, etc. are rarely produced.


· Superior chemical resistance and corrosion resistance.


· Standard Water Valves Bushing Brass Sleeve Bushing products are available.



Mechanical properties



Density —— g/cm3 7.8
Tensile strength JIS Z 2241 N/mm｛kgf/mm 2 2｝ 755｛77｝
Tensile elongation at break JIS Z 2241 ％ 12
Compressive strength —— N/mm｛kgf/mm 2 2｝ 345｛35｝(Note)
Impact strength JIS Z 2242 J/cm｛kgfm/cm 2 2｝ 19｛1.9｝
Hardness JIS Z 2243 HBW 210
Modulus of longitudinal elasticity —— N/mm｛kgf/mm 2 2｝ 105,000｛10,700｝
Co-efficient of linear expansion —— ×10－5 ℃－1 2.12
Thermal conductivity —— W/m℃｛cal/sec℃cm｝ 87.8｛0.21｝

·The values shown above are typical values, not the standard values. (Note)Compressive strength is 0.1%.





Replacment 500SP1-SL4　SERIES  BRASS SLEEVE BUSHING plugged graphite Water Valves Bushing size sheet:



Replacment 500SP1-SL4　SERIES BRASS SLEEVE BUSHING

 I.D.: Φd O.D.: ΦD Length: L
Brass Sleeve Bushing-121820 12 18 20
Brass Sleeve Bushing-152120 15 21 20
Brass Sleeve Bushing-162220 16 22 20
Brass Sleeve Bushing-162230 16 22 30
Brass Sleeve Bushing-182420 18 24 20
Brass Sleeve Bushing-203020 20 30 20
Brass Sleeve Bushing-203030 20 30 30
Brass Sleeve Bushing-203040 20 30 40
Brass Sleeve Bushing-253520 25 35 20
Brass Sleeve Bushing-253525 25 35 25
Brass Sleeve Bushing-253530 25 35 30
Brass Sleeve Bushing-253540 25 35 40
Brass Sleeve Bushing-253550 25 35 50
Brass Sleeve Bushing-304020 30 40 20
Brass Sleeve Bushing-304025 30 40 25
Brass Sleeve Bushing-304030 30 40 30
Brass Sleeve Bushing-304040 30 40 40
Brass Sleeve Bushing-304050 30 40 50
Brass Sleeve Bushing-354520 35 45 20
Brass Sleeve Bushing-354530 35 45 30
Brass Sleeve Bushing-354535 35 45 35
Brass Sleeve Bushing-354540 35 45 40
Brass Sleeve Bushing-354550 35 45 50
Brass Sleeve Bushing-354560 35 45 60
Brass Sleeve Bushing-405030 40 50 30
Brass Sleeve Bushing-405040 40 50 40
Brass Sleeve Bushing-405050 40 50 50
Brass Sleeve Bushing-405060 40 50 60
Brass Sleeve Bushing-405540 40 55 40
Brass Sleeve Bushing-405550 40 55 50
Brass Sleeve Bushing-405560 40 55 60
Brass Sleeve Bushing-456030 45 60 30
Brass Sleeve Bushing-456050 45 60 50
Brass Sleeve Bushing-456060 45 60 60
Brass Sleeve Bushing-506040 50 60 40
Brass Sleeve Bushing-506050 50 60 50
Brass Sleeve Bushing-506060 50 60 60
Brass Sleeve Bushing-506540 50 65 40
Brass Sleeve Bushing-506550 50 65 50
Brass Sleeve Bushing-506560 50 65 60
Brass Sleeve Bushing-506570 50 65 70
Brass Sleeve Bushing-557040 55 70 40
Brass Sleeve Bushing-557060 55 70 60
Brass Sleeve Bushing-557070 55 70 70
Brass Sleeve Bushing-607550 60 75 50
Brass Sleeve Bushing-607560 60 75 60
Brass Sleeve Bushing-607570 60 75 70
Brass Sleeve Bushing-607580 60 75 80
Brass Sleeve Bushing-658060 65 80 60
Brass Sleeve Bushing-658070 65 80 70
Brass Sleeve Bushing-658080 65 80 80
Brass Sleeve Bushing-709060 70 90 60
Brass Sleeve Bushing-709070 70 90 70
Brass Sleeve Bushing-709080 70 90 80
Brass Sleeve Bushing-709090 70 90 90
Brass Sleeve Bushing-7090100 70 90 100
Brass Sleeve Bushing-759570 75 95 70
Brass Sleeve Bushing-7595100 75 95 100
Brass Sleeve Bushing-8010060 80 100 60
Brass Sleeve Bushing-8010080 80 100 80
Brass Sleeve Bushing-8010090 80 100 90
Brass Sleeve Bushing-80100100 80 100 100
Brass Sleeve Bushing-80100110 80 100 110
Brass Sleeve Bushing-9011060 90 110 60
Brass Sleeve Bushing-9011080 90 110 80
Brass Sleeve Bushing-9011090 90 110 90
Brass Sleeve Bushing-90110100 90 110 100
Brass Sleeve Bushing-10012060 100 120 60
Brass Sleeve Bushing-10012080 100 120 80
Brass Sleeve Bushing-100120100 100 120 100
Brass Sleeve Bushing-100120120 100 120 120
Brass Sleeve Bushing-110130100 110 130 100
Brass Sleeve Bushing-110130110 110 130 110
Brass Sleeve Bushing-12014080 120 140 80
Brass Sleeve Bushing-120140100 120 140 100
Brass Sleeve Bushing-120140120 120 140 120
Brass Sleeve Bushing-130150100 130 150 100
Brass Sleeve Bushing-130150130 130 150 130
Brass Sleeve Bushing-130150150 130 150 150
Brass Sleeve Bushing-140160100 140 160 100
Brass Sleeve Bushing-140160140 140 160 140
Brass Sleeve Bushing-150170100 150 170 100
Brass Sleeve Bushing-150170150 150 170 150
Brass Sleeve Bushing-160180100 160 180 100
Brass Sleeve Bushing-160180150 160 180 150
Brass Sleeve Bushing-170190100 170 190 100
Brass Sleeve Bushing-170190150 170 190 150
Brass Sleeve Bushing-180200100 180 200 100
Brass Sleeve Bushing-180200150 180 200 150
Brass Sleeve Bushing-190210100 190 210 100
Brass Sleeve Bushing-190210150 190 210 150
Brass Sleeve Bushing-200230150 200 230 150
Brass Sleeve Bushing-200230200 200 230 200



Service range



Lubrication conditions Dry
Service temperature range
(℃)		 -40～+80
allowable max. contact pressure : P
(N/mm2)		 49
allowable max. velocity : V
(m/s)		 0.25
Allowable max. PV value
(N/mm2・m/s)

1.65





Characteristics



1.Without the extra cost and time saving of oil supply device, oil injection hole and oil tank processing and oil supply device, processing fee and assembly fee, the manufacturing cost can be greatly reduced.



2.The reduction in operating costs significantly reduces the amount of lubricating oil used and the maintenance cost of equipment, and also eliminates the risk caused by insufficient oil supply.



3.In addition, the use of self-lubricating oilless bearings can also improve mechanical properties, extend service life and improve reliability.



4.Recovery and environmental protection of lubricating oil without waste oil recovery treatment is conducive to environmental protection.



Advantages



1. Flexible, simple, convenient and wide range of use;



2. Can be used without oil;



3. Low use cost;



4. Excellent performance under high load and low speed;



5. Where the oil film is difficult to form, such as reciprocating movement, swaying movement and frequent starting and stopping, it can give play to excellent wear resistance;



6. Excellent drug resistance and corrosion resistance;



7. The cost of the Valves Bushing Brass Sleeve Bushing product is more competitive. Compared with similar Valves Bushing Brass Sleeve Bushing products, it has a longer working life, less maintenance, long replacement cycle and good performance.



Application

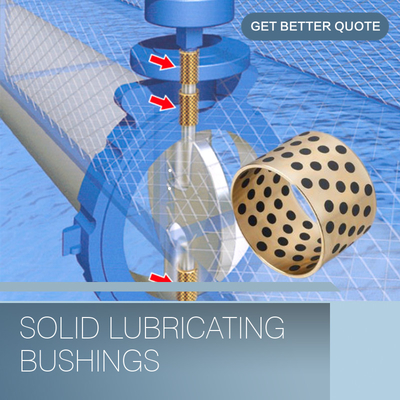

·Water Valves



·Potential applications



Not limited to hydraulic machinery, such as segmentation, miters and emergency gates, swing rings, wind power components, large valves, heavy machinery, cranes and conveyors, mining, construction, agriculture and other off-road equipment . equipment.
Oilless Bearings are also suitable for iron plants, steel mills, offshore structures and civil engineering projects such as bridges and other structures.
