Sintered Bronze Powder Polymer Bushings Self Lubricating Red

Place of Origin Self Lubricating Bearings Manufacturers
Brand Name VIIPLUS
Certification DIN 1494, ISO 3547 STANDARD BUSHING
Model Number BUSHING TYPE FLANGED PLAIN SLEEVE
Minimum Order Quantity NEGOTIABLE
Price Competitively Priced vs DU DX, Provides Lubricating Bush
Packaging Details WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS
Delivery Time 7-20 DAYS,STOCK SIZE BUSHING IMMEDIATE DELIVERY
Payment Terms TT IN ADVANCE WESTERN UNION
Supply Ability Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Bronze Characteristic Low-maintenance And Maintenance-free Plain Bearings
Size Standard Size Available Port Shanhai,or Ningbo
Quality OEM Type Bushes, Collar Bushes, Washers, Strips Or Special Designs
Sample Available Feature High Quality
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light PTFE Coated Self Lubricating Plain Bearing, Teflon Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing Characteristic Втулки скольжения (биметаллические подшипники скольжения)
Characteristic Втулки скольжения (биметаллические подшипники скольжения) Dry Slide Bearing Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

Backed Bronze Polymer Bushings

,

Sintered Bronze Powder Polymer Bushings

,

SelfLubricating Polymer Bushings

Leave a Message
Product Description

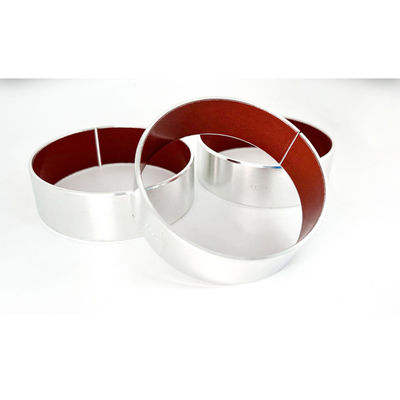

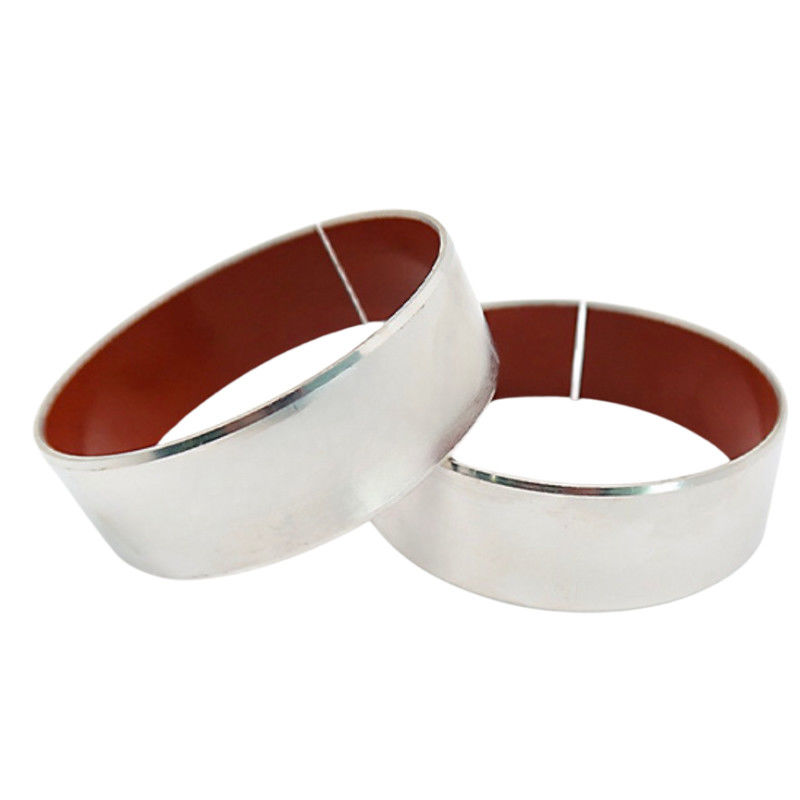

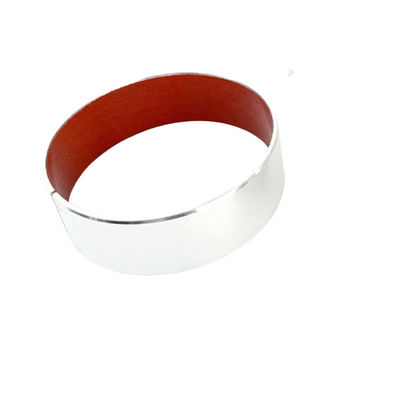

Red Polymer Composite Bushings

Wholesaler of Bushings - Metal-ploymer Composite Self-Lubricating Bushings, Bronze Backed Bushings, Steel Bronze with PTFE/Fibre Bushings



Find the perfect steel backed bronze bushings for your requirement at http://www.bronzegleitlager.com





Available today to offer self-lubricating bearings technical advice for specific bushings & bearings solutions and applications.



Bi-metal Steel Backed Bronze with PTFE/Fibre Bearing Bushing



Steel backing, provides high load carrying capacity, excellent heat dissipation.



Bi-metal metal-polymer composite bushings


These materials consist of a sintered bimetal bronze layer with a steel support with a carrier layer in PTFE-based polymer. The steel support provides mechanical strength, while the bimetal bronze sintered layer provides a strong mechanical bond between the support and the bearing liner, the PTFE, The POM-based polymer offers exceptional low friction even in dry conditions and the polymer Thermoplastic based is generally designed to work with marginal lubrication.

steel backed bushings self-lubricating

Suitable for dry operation, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surfaces, suitable for rotating or oscillating movement, high chemical resistance, low absorption of water and swelling.

The CSB-40 composite bushings reduced friction and better wear resistance over the common CSB-50 composite bushings range under lubricated operation.



Bi-metal Polymer Composite Bushings CSB-40 Feature



The material is designed for the application conditions of high speed and mid-to-high load.

The lipophilic fibre improves the hydrodynamic lubrication performance.

It is a material with good resistance of cavitation corrosion and fluid corrosion.

It is suitable for high PV requirement.



Bi-metal Polymer Composite Bushings CSB-40 Material Structure



1. PTFE/ Conductive additive mixture layer thickness 0.02~0.06mm, provides a low friction coefficient and good wear resistance feature. It is an electrical conductive material.

2. Sintered bronze powder thickness 0.20-0.35mm, provides strong mechanical bond and excellent thermal conductivity.
3. Steel backing Provides mechanical strength.



Bi-metal Polymer Composite Bushings CSB-40 Technical Data



Max. load Static 250N/mm²   Temp. limit -195°C~+280°C
Very low speed 140N/mm² Max.speed Dry running 2m/s
Rotating oscillating 60N/mm² Hydrodynamic operation >2m/s
Max. PV Dry running Short-term operation 3.6N/mm²*m/s Thermal conductivity 42W(m*K)-1
Continuous operation 1.8N/mm²*m/s Coefficient of thermal expansion 11*10-6*K-1
Max. PV Hydrodynamic Lubricate 30N/mm²*m/s Friction coefficient Dry running 0.08~0.20
Hydrodynamic operation 0.03~0.08



Bi-metal Polymer Composite Bushings CSB-40 Application



The material is suitable for the applications of vehicle suspension system, shock absorber, steering system and gear box.

It is also widely used in hydraulic motors, gear pumps, piston pumps, vane pumps, hydraulic cylinders and material handling machines.



Hydraulic Cylinders bushings



Self-lubricating Bearings Supplier - Choose Your Proper Metal-ploymer Comsposite Bushings Online

Search by oilless bushes size



Discover our range of metal, bimetal, steel & sintered bronze bearings & bushings for lubricated conditions
