Metal Polymer Steel Backed Metric Sleeve Bushings Bronze Layer
| Place of Origin | Self Lubricating Bearings Manufacturers |
|---|---|
| Brand Name | VIIPLUS |
| Certification | DIN 1494, ISO 3547 STANDARD BUSHING |
| Model Number | BUSHING TYPE FLANGED PLAIN SLEEVE |
| Minimum Order Quantity | NEGOTIABLE |
| Price | Competitively Priced vs , Provides Lubricating Bush |
| Packaging Details | WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS |
| Delivery Time | 7-20 DAYS,STOCK SIZE BUSHING IMMEDIATE DELIVERY |
| Payment Terms | TT IN ADVANCE WESTERN UNION |
| Supply Ability | Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Meterial | Bronze | Characteristic | Low-maintenance And Maintenance-free Plain Bearings |
|---|---|---|---|
| Size | Standard Size Available | Port | Shanhai,or Ningbo |
| Quality | OEM | Type | Bushes, Collar Bushes, Washers, Strips Or Special Designs |
| Sample | Available | Feature | High Quality |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing | Characteristic | Втулки скольжения (биметаллические подшипники скольжения) |
| Dry Slide Bearing | Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| High Light | Steel Backed Metric Sleeve Bushings,Metal Polymer Metric Sleeve Bushings,Bronze Metric Sleeve Bushings |
||
Product Description
Our metal polymer steel-backed metric sleeve bushings, featuring a bronze layer, are designed to offer superior durability and performance in a range of industrial applications. The combination of metal polymer and steel provides excellent strength and wear resistance, while the bronze layer enhances lubrication and reduces friction.
The steel backing provides a robust foundation for the bushings, ensuring stability and long-term reliability. The metal polymer material, on the other hand, offers superior corrosion resistance and the ability to withstand extreme temperatures.
The bronze layer is the key to the bushings' self-lubricating properties. It creates a smooth surface that reduces friction and wear, eliminating the need for regular lubrication and minimizing maintenance requirements.
These metric sleeve bushings are suitable for use in pumps, motors, compressors, and other rotating equipment where high loads and speeds are common. Wh it's in automotive, heavy machinery, or any other industrial setting, they are an excellent choice for improving the efficiency and reliability of your equipment.
With their metal polymer steel-backed construction and bronze layer, these bushings offer a robust and long-lasting solution for enhancing the performance of your industrial systems.
Polymer Bearings - Durable & Cost-Efficient, Replace bronze bushings - with grease-free metal lubricating bearings
self-lubricating multilayer bushing supplier
Range of Catalogue & Custom-Made Sleeve Bearings. Lubrication-Free Technology. Buy Now! Shop Online. Free Samples. Request A Consultation. Highlights: Everything Delivered Immediately From Stock, Suitable For All Moving Applications.
Metal-Polymer Composite Bearing Steel Backed Bronze Layer Bushings
Design and manufacture various products according to your requirements, Contact! Experienced Manufacturer & Supplier in China. Guaranteed Top Quality & Service. Advanced Technology. Wholesale Price. Quality Assurance.

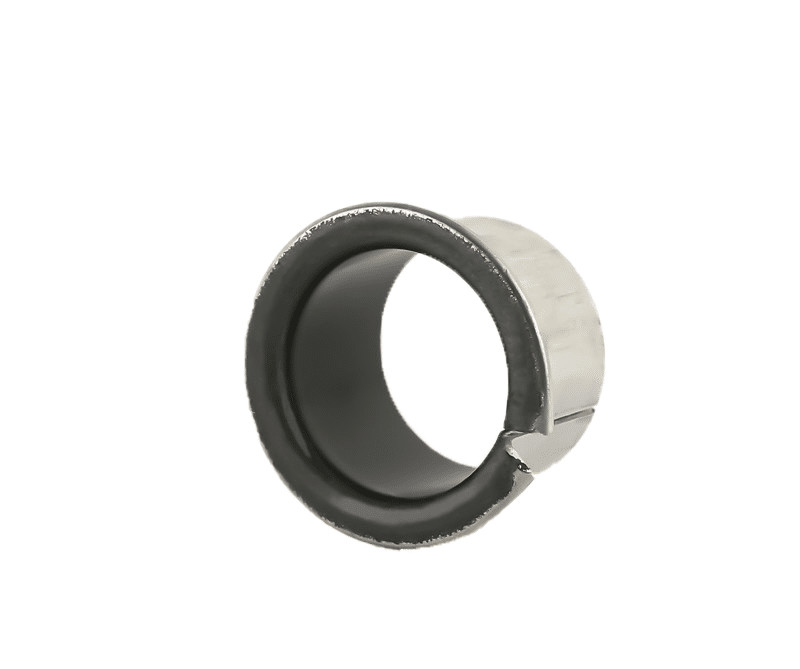

Bushing No Flange Split ; Metal-Polymer Composite Steel Backing, Bronze Inner structure, -lead Overlay; Material
COMPOSITION
Metal-Polymer Composite Self-lubricating Bushing Material
Steel Back + Porous Bronze Sinter + + Lead

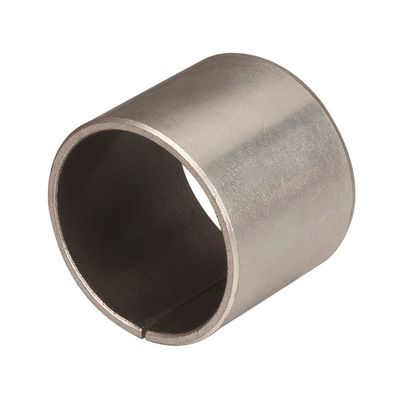

Sleeve Bearings
Bushing No Flange Split
Material Description
Metal-Polymer Composite Steel Backing, Bronze Innerstructure, -lead Overlay
Material
Other Features
Self-Lubricating
Inch - Metric
Metric
Sleeve Bearings
Plain Bearing
Check out our online self-lubricating bushings product catalog with more than 1,000 products with full specifications & sizes available for download - all free of charge! - welcome to http://www.bronzegleitlager.com
Steel Bronze with /Fibre - Metric
Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, forming a transfer film can protect the mating metal surface, suitable for rotary and oscillating movement.
Steel backed lined bushings is a low cost, general purpose bearing product that provides excellent wear characteristics at high loads, speeds over a wide temperature range.
CSB-50EC Steel Backed Bronze Layer with /Fibre electric conductive
CSB-50EC electrically conductive bearings!
The maintenance-free bushings are particularly used in the automotive industry, eg. the cathodic dip coating (CDC) of assemblies application.
Oil Free Bushings(Multi-layer:Steel, Sintered Bronze, Polytetrafluoroethylene)
Type, Shouldered. Bushing Material, Steel-backed .
Metal-ploymer Plain Bearings CSB-50EC Feature
The mechanical feature of this material is similar with CSB-50DH.
The special additives provide the electrical conductivity of the material to ensure the further coating process of the assembly at customer end.
The nominated resistance is less than 1000 Ohm.
With all range self-lubricating bearings products to choose from, the steel backed bronze bushings are further sub-categorized by the following:
- Steel backed bronze bushings – Straight Bushings
- Steel backed bronze bushings – Flanged Bushings
- Steel backed bronze bushings – Thrust Washer Bushings
- Steel backed bronze bushings – Strip Bushings
Metal-ploymer Plain Bearings CSB-50EC Material Structure
1. / Conductive additive mixture layer thickness 0.02~0.06mm, provides a low friction coefficient and good wear resistance feature. It is an electric conductive material.
2. Sintered bronze powder thickness 0.20-0.35mm, provides strong mechanical bond and excellent thermal conductivity.
3. Steel backing Provides mechanical strength.
Metal-ploymer Plain Bearings CSB-50EC Technical Data
| Max. load | Static | 250N/mm² | Friction coefficient | 0.03~0.20 | ||
| Very low speed | 140N/mm² | Max.speed | Dry running | 2m/s | ||
| Rotating oscillating | 60N/mm² | Hydrodynamic operation | >2m/s | |||
| Max. PV Dry running | Short-term operation | 3.6N/mm²*m/s | Thermal conductivity | 42W(m*K)-1 | ||
| Continuous operation | 1.8N/mm²*m/s | Coefficient of thermal expansion | 11*10-6*K-1 | |||
| Operation Temperature range | -195℃～+280℃ | |||||
Metal-ploymer Plain Bearings CSB-50EC Application
The material is suitable for the applications of different hinges, seat recliner and so on.
While providing the low noise feature, it has the electrical conductivity to meet the coating process for customer assembled parts.
Design and develop parts that meet your unique bearings - Choose Your Proper Metal-ploymer Comsposite Bushings Online
