Plugged Graphite Dam Gate Oilless Bearing Self Lubricating

Place of Origin oilless bushing Manganese Bronze C86300
Brand Name VIIPLUS
Certification Water / Dam Gates Bushings
Model Number Oilless Bush
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details Export standard packing
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Good Physical Performance And Good Capability For Casting Material Bronze With Solid Lubricant Manganese Bronze C86300
Types Sleeve Plain Bearings Move Heavyweight Radial Gates Size Metric Size & Custom Size
Lubrication Graphite, Oilless Processing Method CNC Processing
Surface Treatment Oiled, Plugged Graphite Samples Avaliable
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Oilless Bearing Manufacturer Https://www.bronzelube.com/ Manufacturer Bucha De Bronze Grafitado
High Light Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery Oilless Bushes Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ Oilless Bush Supplier Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries.
Application Graphite Radial Spherical Plain Bearings For Hydropower Dam Gates
Highlight

Self Lubricating Oilless Bearing

,

Dam Gate Oilless Bearing

,

Plugged Graphite Oilless Bushes

Leave a Message
Product Description

Plain bearings move heavyweight radial gates C86300 manganese bronze bearing finished sizes and bushings for a dam gate or bronze for machineThe plugged graphite dam gate oilless bearing is a unique and innovative component designed for superior performance in various industrial applications. This bearing stands out for its self-lubricating properties, which significantly reduce friction and wear, ensuring smooth and efficient operation.

Hydro power Solutions for hydroelectric industry, Lubricates small and large bearings at the same time;

Water / Dam Gates Bushings, flanged sleeve bushings, Spherical plain bearing pintu air/dam gates

The graphite material used in this bearing is known for its excellent lubricating properties, making it an ideal choice for oilless bearings. The plugged design further enhances its lubricating capabilities, providing a continuous supply of lubrication to the contact areas.

The dam gate feature of this bearing effectively seals the lubrication system, preventing leakage and ensuring a consistent supply of lubrication. This not only prolongs the bearing's lifespan but also reduces the need for frequent maintenance and lubrication.

The oilless design of this bearing eliminates the need for external lubrication systems, reducing costs and simplifying the overall system. It also eliminates the risks associated with oil leaks and contamination, making it a safer and more reliable option.

Wh used in heavy machinery, dam gates, or other industrial equipment, the plugged graphite dam gate oilless bearing offers a cost-effective and maintenance-friendly solution for reducing friction and wear. Its self-lubricating design and high-quality materials ensure optimal performance in various applications.

Dam Gate Oilless Bearing Big Size self-lubricating series

Oilless Bearing Dam, Gate, Lock, and Large Bridge Applications

Oilless Bearings and self-lubricating bearing supplier, Large Bridge oilless bushing

Linkage dam gate bushings are critical components in the operation of hydroelectric dams. These bushings are designed to support and guide the movement of the dam gates, which control the flow of water through the dam. The use of bronze self-lubricating bearings in these applications is a strategic choice due to several key benefits:

Corrosion Resistance: Bronze is highly resistant to corrosion, which is essential in environments where water and moisture are present. This resistance ensures the longevity and reliability of the bushings in a dam's harsh operating conditions.

Self-Lubrication: The proprietary -filled solid lubricant embedded in the cast bronze backing provides a self-lubricating feature. This is crucial for reducing friction and wear, especially in areas that are difficult to access for regular maintenance or where continuous lubrication is not feasible.

Low Friction: The combination of bronze and creates a low-friction surface, which is ideal for the smooth operation of dam gates. This reduces the force required to move the gates and can lead to energy savings in the dam's operation.

Wear Resistance: The solid lubricant within the bronze bushing helps to distribute loads evenly and reduce wear on both the bushing and the mating surfaces. This extends the service life of the components and reduces the frequency of replacements.

Load Capacity: Bronze bushings have a high load-bearing capacity, which is necessary for the heavy loads that dam gates must withstand.

Compatibility with Water: Bronze is compatible with water and does not degrade or contaminate it, which is an important consideration for environmental and operational reasons in a hydro dam setting.

Maintenance Reduction: Due to their self-lubricating nature, these bushings require less frequent maintenance, which can reduce operational costs and downtime.

Reliability: The use of bronze and in dam gate bushings contributes to the overall reliability of the dam's gate system, ensuring that it functions as intended even under demanding conditions.

In summary, linkage dam gate bushings made from bronze with a -filled solid lubricant are an excellent choice for hydro dam gate applications due to their corrosion resistance, self-lubricating properties, low friction, wear resistance, and compatibility with water. These features make them highly reliable and cost-effective, contributing to the efficient and safe operation of hydroelectric dams.

Maintenance-free bearing, bronze with solid lubricant Dam Gate Oilless Bearing Big Size

Bushings, pins, and housing for water gates/dams are the most important parts of water gates.
VIIPLUS offers oil-free self-lubricating bushings, housing, and shaft for water valve/damper applications
There are many advantages, such as:
Performs self-lubricating properties above and below the water
Dimension up to an inner diameter of 4000 mm
Can be customized according to your own design
Fast production and availability
Application includes :

Side roller bushings, pins, and rollers
Stop log & Regulating gate bushings, pins, and wear plates
Self-lubricating sliding bars
Spillway radial gate hinges bushings
Fishway gate bushings
Sandflush & drain bushings
Headpond and Tailrace bushings

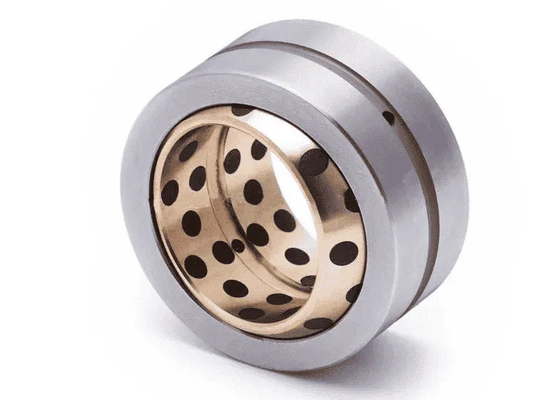

Self-lubricating spherical lain bearings
Valve bronze seal rings and rollers
Butterfly valves upper, middle, and lower bushings

SOB Maintenance-free bearing is manufactured using high tensile manganese bronze plugged with solid lubricants. Basic bronze alloy material is CuZn25Al6Fe3Mn3 with graphite plugged

DAM GATE Oiles Bearings  self-lubricating bearing



Features and advantages



1.Insensitive to a dirty environment
2.Resistant to shock loads and vibrations at slow speeds
3.Enable operation with a poor shaft surface finish
4.Good resistance to corrosive conditions

Wholesale products oil hole sealing groove counterbore high quality copper bushing brass bronze oil groove

Technical Data



  Bronze material

CuZn25Al6Fe3Mn3

+graphite

CuSn5Pb5Zn5

+graphite

CuAl10Fe5Ni5

+graphite

CuSn12

+graphite

Cu% Rest 85 80 88
Sn% -- 5 -- 12
Pb% -- 5 -- --
Zn% 25 5 -- --
Al% 6 -- 10 --
Ni% -- -- 5 --
Fe% 3 -- 5 --
Mn% 3 -- -- --
Density 8.2 g/cm3 8.8 g/cm3 8.5 g/cm3 8.8 g/cm3
Hardness >HB210 >HB70 >HB150 >HB80
Max. Load Pressure 100 N/mm2 40 N/mm2 50 N/mm2 45 N/mm2
Max. Linear Speed 0.5 m/s(dry) 0.4 m/s(dry) 0.25 m/s(dry) 0.5 m/s(dry)
Max. PV 1.65 N/mm2 * m/s 1.00 N/mm2 * m/s 1.25 N/mm2 * m/s 1.20 N/mm2 * m/s
Tensile Strength >750 N/mm2 >200 N/mm2 >500 N/mm2 >360 N/mm2
Elongation >12 % >15 % >10 % >8 %
  Temperature Limit -40 ~ +300 oC -40 ~ +250 oC -40 ~ +400 oC -40 ~ +300 oC



  • Structure:

1. Initial lubricating film, provides initial lubricating to reduce the friction.

2. Solid Lubricants, aligned according to the bearing motion direction to form lubricating film improving the friction coefficients and wear resistance feature.

3. Bronze alloy, provides mechanical strength and improve the impact resistance and corrosion resistance.



  • Main Metal Type

Type 650 650S5 650W1 650W3 650S1 650S2 650S3
Material CuZn25AI5Mn4Fe3 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12
Density 7.8 8.9 7.8 8.9
HB Hardness ≥210 ≥250 ≥210 ≥230 ≥70 ≥150 ≥75
Tensile Strength MPa ≥750 ≥800 ≥755 ≥755 ≥250 ≥500 ≥270
Yield Strength MPa ≥450 ≥450 ≥400 ≥400 ≥90 ≥260 ≥150
Elongation % ≥12 ≥8 ≥12 ≥12 ≥13 ≥10 ≥5
Thermal Expansion Coefficient 1.9x10*%/°C 1.8x10*9/°C 1.6x10^*/°C 1.8x10*/°C
Max. Operation Temp. -40~+250°C -40~+400°C
Max. load MPa 50 75 75 100 50
Max. speed m/s Dry 0.5 0.1 0.5 0.1 0.5
Lubricated 1 0.25 1 0.25 2.5
Max. PV (N/mm2*m/s) Dry 1.65 1
Lubricated 3.25 1.65

The above data is recommended by VIIPLUS.COM. The designing data should be evaluated according to the particular application conditions.



  • Solid Lubricants

Lubricant Feature Typical Applications
SL1
Graphite + Additives
Good Chemical resistance and low friction
coefficients. Operation temperature up to +400oC
Suitable for general industry applications exposed to
atmosphere.
SL4
+MoS2+Additives
Low friction coefficients and good water lubricating
feature. Operation temperature up to +300oC
Suitable for water lubrication conditions. The applications
include vessels, hydraulic turbines, and steam turbines.

Examples of applications



1.Construction machinery
2.Transport equipment
3.Pulp and papermaking machinery
4.Off-shore equipment

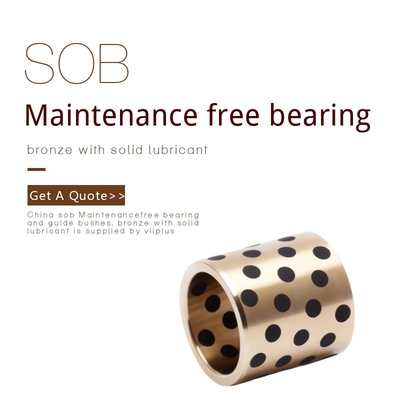

SOB Maintenance free bearing and guide bushes, bronze with solid lubricant



Variants:
Articlenumber Article name Inner diameter d Outer diameter D Length L f r
11008080 SOB 8-12-8 8 12 8 0.5 0.5
11006120 SOB 6-10-12 6 10 12 0.5 0.5
11008100 SOB 8-12-10 8 12 10 0.5 0.5
11008120 SOB 8-12-12 8 12 12 0.5 0.5
11008150 SOB 8-12-15 8 12 15 0.5 0.5
11010088 SOB 10-14-8 10 14 8 0.5 0.5
11010108 SOB 10-14-10 10 14 10 0.5 0.5
11010128 SOB 10-14-12 10 14 12 0.5 0.5
11010158 SOB 10-14-15 10 14 15 0.5 0.5
11010208 SOB 10-14-20 10 14 20 0.5 0.5
11010100 SOB 10-15-10 10 15 10 0.5 0.5
11012080 SOB12-18-8 12 18 8 0.5 0.5
11012100 SOB12-18-10 12 18 10 0.5 0.5
11012120 SOB12-18-12 12 18 12 0.5 0.5
11012150 SOB12-18-15 12 18 15 0.5 0.5
11012160 SOB12-18-16 12 18 16 0.5 0.5
11012190 SOB12-18-19 12 18 19 0.5 0.5
11012200 SOB12-18-20 12 18 20 0.5 0.5
11012250 SOB12-18-25 12 18 25 0.5 0.5
11012300 SOB12-18-30 12 18 30 0.5 0.5
11013100 SOB13-19-10 13 19 10 0.5 0.5
11013120 SOB13-19-12 13 19 12 0.5 0.5
11013150 SOB13-19-15 13 19 15 0.5 0.5
11013160 SOB13-19-16 13 19 16 0.5 0.5
11013200 SOB13-19-20 13 19 20 0.5 0.5
11013250 SOB13-19-25 13 19 25 0.5 0.5
11014100 SOB14-20-10 14 20 10 0.5 0.5
11014120 SOB14-20-12 14 20 12 0.5 0.5
11014150 SOB14-20-15 14 20 15 0.5 0.5
11014200 SOB14-20-20 14 20 20 0.5 0.5
11014250 SOB14-20-25 14 20 25 0.5 0.5
11014300 SOB14-20-30 14 20 30 0.5 0.5
11015100 SOB15-21-10 15 21 10 0.5 0.5
11015120 SOB15-21-12 15 21 12 0.5 0.5
11015150 SOB15-21-15 15 21 15 0.5 0.5
11015160 SOB15-21-16 15 21 16 0.5 0.5
11015200 SOB15-21-20 15 21 20 0.5 0.5
11015250 SOB15-21-25 15 21 25 0.5 0.5
11015300 SOB15-21-30 15 21 30 0.5 0.5
11016100 SOB16-22-10 16 22 10 0.5 0.5
11016120 SOB16-22-12 16 22 12 0.5 0.5
11016150 SOB16-22-15 16 22 15 0.5 0.5
11016160 SOB16-22-16 16 22 16 0.5 0.5
11016190 SOB16-22-19 16 22 19 0.5 0.5
11016200 SOB16-22-20 16 22 20 0.5 0.5
11016250 SOB16-22-25 16 22 25 0.5 0.5
11016300 SOB16-22-30 16 22 30 0.5 0.5
11016350 SOB16-22-35 16 22 35 0.5 0.5
11016400 SOB16-22-40 16 22 40 0.5 0.5
11017150 SOB17-23-15 17 23 15 0.5 0.5
11018100 SOB18-24-10 18 24 10 0.5 0.5
11018120 SOB18-24-12 18 24 12 0.5 0.5
11018150 SOB18-24-15 18 24 15 0.5 0.5
11018160 SOB18-24-16 18 24 16 0.5 0.5
11018200 SOB18-24-20 18 24 20 0.5 0.5
11018250 SOB18-24-25 18 24 25 0.5 0.5
11018300 SOB18-24-30 18 24 30 0.5 0.5
11018350 SOB18-24-35 18 24 35 0.5 0.5
11018400 SOB18-24-40 18 24 40 0.5 0.5
11019150 SOB19-26-15 19 26 15 0.5 0.5
11019200 SOB19-26-20 19 26 20 0.5 0.5
11020100 SOB20-28-10 20 28 10 0.5 0.5
11020120 SOB20-28-12 20 28 12 0.5 0.5
11020150 SOB20-28-15 20 28 15 0.5 0.5
11020160 SOB20-28-16 20 28 16 0.5 0.5
11020190 SOB20-28-19 20 28 19 0.5 0.5
11020200 SOB20-28-20 20 28 20 0.5 0.5
11020250 SOB20-28-25 20 28 25 0.5 0.5
11020300 SOB20-28-30 20 28 30 0.5 0.5
11020350 SOB20-28-35 20 28 35 0.5 0.5
11020400 SOB20-28-40 20 28 40 0.5 0.5
11020500 SOB20-28-50 20 28 50 0.5 0.5
11020108 SOB20-30-10 20 30 10 0.5 0.5
11020128 SOB20-30-12 20 30 12 0.5 0.5
11020158 SOB20-30-15 20 30 15 0.5 0.5
11020168 SOB20-30-16 20 30 16 0.5 0.5
11020208 SOB20-30-20 20 30 20 0.5 0.5
11020258 SOB20-30-25 20 30 25 0.5 0.5
11020308 SOB20-30-30 20 30 30 0.5 0.5
11020358 SOB20-30-35 20 30 35 0.5 0.5
11020408 SOB20-30-40 20 30 40 0.5 0.5
11020708 SOB20-30-70 20 30 70 0.5 0.5
11022120 SOB22-32-12 22 32 12 0.5 0.5
11022150 SOB22-32-15 22 32 15 0.5 0.5
11022200 SOB22-32-20 22 32 20 0.5 0.5
11022250 SOB22-32-25 22 32 25 0.5 0.5
11025120 SOB25-33-12 25 33 12 0.5 0.5
11025150 SOB25-33-15 25 33 15 0.5 0.5
11025160 SOB25-33-16 25 33 16 0.5 0.5
11025200 SOB25-33-20 25 33 20 0.5 0.5
11025250 SOB25-33-25 25 33 25 0.5 0.5
11025300 SOB25-33-30 25 33 30 0.5 0.5
11025350 SOB25-33-35 25 33 35 0.5 0.5
11025400 SOB25-33-40 25 33 40 0.5 0.5
11025500 SOB25-33-50 25 33 50 0.5 0.5
11025600 SOB25-33-60 25 33 60 0.5 0.5
11025128 SOB25-35-12 25 35 12 0.5 0.5
11025158 SOB25-35-15 25 35 15 0.5 0.5
11025168 SOB25-35-16 25 35 16 0.5 0.5
11025208 SOB25-35-20 25 35 20 0.5 0.5
11025258 SOB25-35-25 25 35 25 0.5 0.5
11025308 SOB25-35-30 25 35 30 0.5 0.5
11025358 SOB25-35-35 25 35 35 0.5 0.5
11025408 SOB25-35-40 25 35 40 0.5 0.5
11025508 SOB25-35-50 25 35 50 0.5 0.5
11028200 SOB28-38-20 28 38 20 0.5 0.5
11028250 SOB28-38-25 28 38 25 0.5 0.5
11028300 SOB28-38-30 28 38 30 0.5 0.5
11028400 SOB28-38-40 28 38 40 0.5 0.5
11030120 SOB30-38-12 30 38 12 1.0 1
11030150 SOB30-38-15 30 38 15 1.0 1
11030200 SOB30-38-20 30 38 20 1.0 1
11030250 SOB30-38-25 30 38 25 1.0 1
11030300 SOB30-38-30 30 38 30 1.0 1
11030350 SOB30-38-35 30 38 35 1.0 1
11030400 SOB30-38-40 30 38 40 1.0 1
11030500 SOB30-38-50 30 38 50 1.0 1
11030600 SOB30-38-60 30 38 60 1.0 1
11030128 SOB30-40-12 30 40 12 1.0 1
11030158 SOB30-40-15 30 40 15 1.0 1
11030208 SOB30-40-20 30 40 20 1.0 1
11030258 SOB30-40-25 30 40 25 1.0 1
11030308 SOB30-40-30 30 40 30 1.0 1
11030358 SOB30-40-35 30 40 35 1.0 1
11030408 SOB30-40-40 30 40 40 1.0 1
11030508 SOB30-40-50 30 40 50 1.0 1
11030608 SOB30-40-60 30 40 60 1.0 1
11031300 SOB31,5-40-30 31,5 40 30 1.0 1
11031400 SOB31,5-40-40 31,5 40 40 1.0 1
11032150 SOB32-42-15 32 42 15 1.0 1
11032200 SOB32-42-20 32 42 20 1.0 1
11032300 SOB32-42-30 32 42 30 1.0 1
11032400 SOB32-42-40 32 42 40 1.0 1
11035200 SOB35-44-20 35 44 20 1.0 1
11035250 SOB35-44-25 35 44 25 1.0 1
11035300 SOB35-44-30 35 44 30 1.0 1
11035350 SOB35-44-35 35 44 35 1.0 1
11035400 SOB35-44-40 35 44 40 1.0 1
11035500 SOB35-44-50 35 44 50 1.0 1
11035600 SOB35-44-60 35 44 60 1.0 1
11035158 SOB35-45-15 35 45 15 1.0 1
11035208 SOB35-45-20 35 45 20 1.0 1
11035258 SOB35-45-25 35 45 25 1.0 1
11035308 SOB35-45-30 35 45 30 1.0 1
11035358 SOB35-45-35 35 45 35 1.0 1
11035408 SOB35-45-40 35 45 40 1.0 1
11035508 SOB35-45-50 35 45 50 1.0 1
11035608 SOB35-45-60 35 45 60 1.0 1
11038300 SOB38-48-30 38 48 30 1.0 1
11038400 SOB38-48-40 38 48 40 1.0 1
11040150 SOB40-50-15 40 50 15 1.0 1
11040200 SOB40-50-20 40 50 20 1.0 1
11040250 SOB40-50-25 40 50 25 1.0 1
11040300 SOB40-50-30 40 50 30 1.0 1
11040350 SOB40-50-35 40 50 35 1.0 1
11040400 SOB40-50-40 40 50 40 1.0 1
11040500 SOB40-50-50 40 50 50 1.0 1
11040600 SOB40-50-60 40 50 60 1.0 1
11040700 SOB40-50-70 40 50 70 1.0 1
11040800 SOB40-50-80 40 50 80 1.0 1
11040158 SOB40-55-15 40 55 15 1.0 1
11040258 SOB40-55-25 40 55 25 1.0 1
11040308 SOB40-55-30 40 55 30 1.0 1
11040358 SOB40-55-35 40 55 35 1.0 1
11040408 SOB40-55-40 40 55 40 1.0 1
11040508 SOB40-55-50 40 55 50 1.0 1
11040608 SOB40-55-60 40 55 60 1.0 1
11045308 SOB45-55-30 45 55 30 1.0 1
11045358 SOB45-55-35 45 55 35 1.0 1
11045408 SOB45-55-40 45 55 40 1.0 1
11045508 SOB45-55-50 45 55 50 1.0 1
11045608 SOB45-55-60 45 55 60 1.0 1
11045300 SOB45-56-30 45 56 30 1.0 1
11045350 SOB45-56-35 45 56 35 1.0 1
11045400 SOB45-56-40 45 56 40 1.0 1
11045500 SOB45-56-50 45 56 50 1.0 1
11045600 SOB45-56-60 45 56 60 1.0 1
11045309 SOB45-60-30 45 60 30 1.0 1
11045359 SOB45-60-35 45 60 35 1.0 1
11045409 SOB45-60-40 45 60 40 1.0 1
11045509 SOB45-60-50 45 60 50 1.0 1
11045609 SOB45-60-60 45 60 60 1.0 1
11045709 SOB45-60-70 45 60 70 1.0 1
11045809 SOB45-60-80 45 60 80 1.0 1
11050208 SOB50-60-20 50 60 20 1.0 1
11050258 SOB50-60-25 50 60 25 1.0 1
11050308 SOB50-60-30 50 60 30 1.0 1
11050358 SOB50-60-35 50 60 35 1.0 1
11050408 SOB50-60-40 50 60 40 1.0 1
11050508 SOB50-60-50 50 60 50 1.0 1
11050608 SOB50-60-60 50 60 60 1.0 1
11050708 SOB50-60-70 50 60 70 1.0 1
11050808 SOB50-60-80 50 60 80 1.0 1
11050300 SOB50-62-30 50 62 30 1.0 1
11050350 SOB50-62-35 50 62 35 1.0 1
11050400 SOB50-62-40 50 62 40 1.0 1
11050500 SOB50-62-50 50 62 50 1.0 1
11050600 SOB50-62-60 50 62 60 1.0 1
11050700 SOB50-62-70 50 62 70 1.0 1
11050800 SOB50-62-80 50 62 80 1.0 1
11050309 SOB50-65-30 50 65 30 1.0 1
11050409 SOB50-65-40 50 65 40 1.0 1
11050509 SOB50-65-50 50 65 50 1.0 1
11050609 SOB50-65-60 50 65 60 1.0 1
11050709 SOB50-65-70 50 65 70 1.0 1
11050809 SOB50-65-80 50 65 80 1.0 1
11051009 SOB50-65-100 50 65 100 1.0 1
11055309 SOB55-70-30 55 70 30 1.0 1
11055359 SOB55-70-35 55 70 35 1.0 1
11055409 SOB55-70-40 55 70 40 1.0 1
11055509 SOB55-70-50 55 70 50 1.0 1
11055609 SOB55-70-60 55 70 60 1.0 1
11055709 SOB55-70-70 55 70 70 1.0 1
11060300 SOB60-74-30 60 74 30 1.0 1
11060350 SOB60-74-35 60 74 35 1.0 1
11060400 SOB60-74-40 60 74 40 1.0 1
11060500 SOB60-74-50 60 74 50 1.0 1
11060600 SOB60-74-60 60 74 60 1.0 1
11060700 SOB60-74-70 60 74 70 1.0 1
11060800 SOB60-74-80 60 74 80 1.0 1
11061000 SOB60-74-100 60 74 100 1.0 1
11060308 SOB60-75-30 60 75 30 1.0 1
11060358 SOB60-75-35 60 75 35 1.0 1
11060408 SOB60-75-40 60 75 40 1.0 1
11060508 SOB60-75-50 60 75 50 1.0 1
11060608 SOB60-75-60 60 75 60 1.0 1
11060708 SOB60-75-70 60 75 70 1.0 1
11060808 SOB60-75-80 60 75 80 1.0 1
11061008 SOB60-75-100 60 75 100 1.0 1
11063600 SOB63-75-60 63 75 60 1.0 1
11063700 SOB63-75-70 63 75 70 1.0 1
11063800 SOB63-75-80 63 75 80 1.0 1
11065400 SOB65-80-40 65 80 40 1.0 1
11065500 SOB65-80-50 65 80 50 1.0 1
11065600 SOB65-80-60 65 80 60 1.0 1
11065700 SOB65-80-70 65 80 70 1.0 1
11065800 SOB65-80-80 65 80 80 1.0 1
11070300 SOB70-85-30 70 85 30 1.0 1
11070350 SOB70-85-35 70 85 35 1.0 1
11070400 SOB70-85-40 70 85 40 1.0 1
11070500 SOB70-85-50 70 85 50 1.0 1
11070600 SOB70-85-60 70 85 60 1.0 1
11070700 SOB70-85-70 70 85 70 1.0 1
11070800 SOB70-85-80 70 85 80 1.0 1
11071000 SOB70-85-100 70 85 100 1.0 1
11070508 SOB70-90-50 70 90 50 1.0 1
11070608 SOB70-90-60 70 90 60 1.0 1
11070708 SOB70-90-70 70 90 70 1.0 1
11070808 SOB70-90-80 70 90 80 1.0 1
11071008 SOB70-90-100 70 90 100 1.0 1
11075500 SOB75-90-50 75 90 50 1.0 1
11075600 SOB75-90-60 75 90 60 1.0 1
11075700 SOB75-90-70 75 90 70 1.0 1
11075800 SOB75-90-80 75 90 80 1.0 1
11075100 SOB75-90-100 75 90 100 1.0 1
11075608 SOB75-95-60 75 95 60 1.0 1
11075708 SOB75-95-70 75 95 70 1.0 1
11075808 SOB75-95-80 75 95 80 1.0 1
11075108 SOB75-95-100 75 95 100 1.0 1
11080200 SOB80-96-20 80 96 20 1.0 1
11080400 SOB80-96-40 80 96 40 1.0 1
11080500 SOB80-96-50 80 96 50 1.0 1
11080600 SOB80-96-60 80 96 60 1.0 1
11080700 SOB80-96-70 80 96 70 1.0 1
11080800 SOB80-96-80 80 96 80 1.0 1
11081000 SOB80-96-100 80 96 100 1.0 1
11081200 SOB80-96-120 80 96 120 1.0 1
11080408 SOB80-100-40 80 100 40 1.0 1
11080508 SOB80-100-50 80 100 50 1.0 1
11080608 SOB80-100-60 80 100 60 1.0 1
11080708 SOB80-100-70 80 100 70 1.0 1
11080808 SOB80-100-80 80 100 80 1.0 1
11081008 SOB80-100-100 80 100 100 1.0 1
11081208 SOB80-100-120 80 100 120 1.0 1
11081408 SOB80-100-140 80 100 140 1.0 1
11085250 SOB85-100-25 85 100 25 1.0 1
11085600 SOB85-100-60 85 100 60 1.0 1
11085800 SOB85-100-80 85 100 80 1.0 1
11090300 SOB90-110-30 90 110 30 1.0 1
11090500 SOB90-110-50 90 110 50 1.0 1
11090600 SOB90-110-60 90 110 60 1.0 1
11090700 SOB90-110-70 90 110 70 1.0 1
11090800 SOB90-110-80 90 110 80 1.0 1
11090900 SOB90-110-90 90 110 90 1.0 1
11091000 SOB90-110-100 90 110 100 1.0 1
11091200 SOB90-110-120 90 110 120 1.0 1
11101008 SOB100-115-100 100 115 100 1,5 1,5
11100400 SOB100-120-40 100 120 40 1,5 1,5
11100500 SOB100-120-50 100 120 50 1,5 1,5
11100600 SOB100-120-60 100 120 60 1,5 1,5
11100700 SOB100-120-70 100 120 70 1,5 1,5
11100800 SOB100-120-80 100 120 80 1,5 1,5
11100900 SOB100-120-90 100 120 90 1,5 1,5
11101000 SOB100-120-100 100 120 100 1,5 1,5
11101200 SOB100-120-120 100 120 120 1,5 1,5
11101400 SOB100-120-140 100 120 140 1,5 1,5
11110500 SOB110-130-50 110 130 50 1,5 1,5
11110700 SOB110-130-70 110 130 70 1,5 1,5
11110800 SOB110-130-80 110 130 80 1,5 1,5
11111000 SOB110-130-100 110 130 100 1,5 1,5
11111200 SOB110-130-120 110 130 120 1,5 1,5
11120700 SOB120-140-70 120 140 70 1,5 1,5
11120800 SOB120-140-80 120 140 80 1,5 1,5
11120900 SOB120-140-90 120 140 90 1,5 1,5
11121000 SOB120-140-100 120 140 100 1,5 1,5
11121200 SOB120-140-120 120 140 120 1,5 1,5
11121400 SOB120-140-140 120 140 140 1,5 1,5
11125100 SOB125-145-100 125 145 100 1,5 1,5
11125120 SOB125-145-120 125 145 120 1,5 1,5
11130800 SOB130-150-80 130 150 80 1,5 1,5
11131000 SOB130-150-100 130 150 100 1,5 1,5
11131300 SOB130-150-130 130 150 130 1,5 1,5
11141008 SOB140-160-100 140 160 100 1,5 1,5
11141408 SOB140-160-140 140 160 140 1,5 1,5
11151000 SOB150-170-100 150 170 100 1,5 1,5
11151500 SOB150-170-150 150 170 150 1,5 1,5
11160800 SOB160-180-80 160 180 80 1,5 1,5
11161000 SOB160-180-100 160 180 100 1,5 1,5
11161500 SOB160-180-150 160 180 150 1,5 1,5
11171000 SOB170-190-100 170 190 100 1,5 1,5
11171500 SOB170-190-150 170 190 150 1,5 1,5
11181000 SOB180-200-100 180 200 100 1,5 1,5
11181500 SOB180-200-150 180 200 150 1,5 1,5
11191000 SOB190-210-100 190 210 100 1,5 1,5
11191500 SOB190-210-150 190 210 150 1,5 1,5
11201500 SOB200-230-150 200 230 150 1,5 1,5
11202000 SOB200-230-200 200 230 200 1,5 1,5
