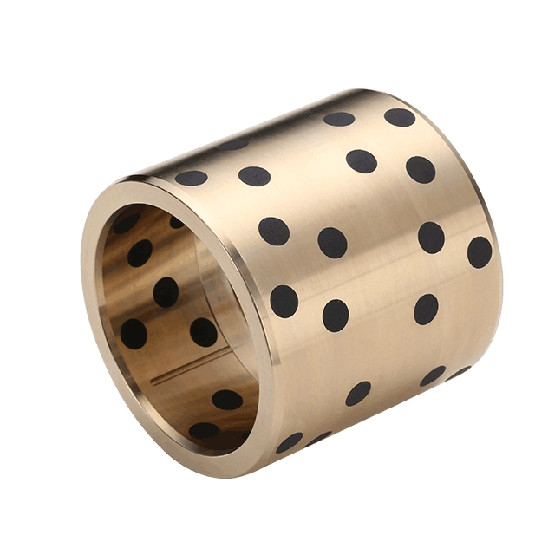

Introducing our Metric Bronze Oilless Self-Lubricating Bush, available in both C86300 and C86200 alloys. These bushes are designed to offer exceptional performance and durability in a range of industrial applications where lubrication is either impractical or undesirable.

The bronze alloy material provides excellent corrosion resistance and wear durability, making these bushes suitable for use in harsh environments. The self-lubricating feature ensures smooth and reliable operation, significantly reducing friction and wear, even under high loads and speeds.

The metric design of these bushes allows for easy integration into existing systems, while the precision-manufactured dimensions ensure a perfect fit and optimal performance. Wh you're replacing worn-out bushings or upgrading your equipment, our Metric Bronze Oilless Self-Lubricating Bush is a reliable and cost-effective solution.

Available in both C86300 and C86200 alloys, you can choose the material that best suits your specific application requirements. Contact us today to learn more about our bushes or to place an order. Our team of experts is always ready to assist you with your bushing needs.

SELF LUBRICATING BUSH C86300/C86200

Slide Bearing with Flange-Bronze sintered with self-lubrication

TECHNICAL REQUIREMENTS: MATERIAL: SELF LUBRICATING BUSH MADE OF HIGH STRENGTH MANGANESE BRONZE BACKING/BASE METAL TO ASTM B22/B271 (C86300/C86200)& COMPRISING OF GRAPHITE PLUGS THAT ENSURE LOW FRICTiON COEFFICIENT. BUSH SHALL BE MADE FROM CENTRIFUGAL CASTING PROCESS. FINISH MACHINED BRONZE BUSH SHALL BE SUPPLIED AS PER DRAWING.

Bronze Bushing bearing catalogue

Guide bushings Cylindrical Guide Bushing, Flanged guide bush and slide plate
Misumi Bushing (JDB-10)
Rg7 Bronze Bearing with Graphite

Guide bushings
Oiless Ejector Guide Bushing (JDB Series)

Material: RG7+Graphite
Material: CuZn25Al5 or HT250
GBF Oil-free guide bushing
GBW oilless guide bush
HGBF flanged guide bearing

These oilless bushings are self-lubricating bearings composed of high strength brass alloy bases manufactured with advanced casting technology and built-in solid lubricants. They can be combined with different types of solid lubricants depending on the conditions of use.

Standard copper alloy oil-free bushing MPBZ graphite copper bushing self-lubricating copper bushing corrosion-resistant copper bushing

Self-Lubricating Oilless Graphite Plugged Bronze Bushing, Factory Price, Contact Us!

Various standard oilless bushings products are available.

Specify Part No. by required I.D. and Length. (e.g.) I.D. is 50mm and length is 30mm.

Flange Integrated Oil Free Bushings

Flange Integrated Oil Free Bushings / Oil Free Copper Alloy Washers

Oil impregnated flanged sintered bronze bushes

Bronze w/Graphite

These components are made of solid aluminum bronze and are available with or without self-lubricating graphite.

• Maintenance without the need for lubrication. Demonstrates high performance in high load, low speed operations.
• Demonstrates superior wear resistance in applications where the oil film is infrequently produced, such as reciprocating, oscillating, frequent starts and stops, etc.
• Superior chemical resistance and corrosion resistance.
• Standard products are available in different sizes.

Avaliability

Oilless Bushing forms available in standard dimensions

• Straight Oilless Bushings
• Flanged Oilless Bushings
• Thrust Washer Bushings

Metric self-lubricating bearings and imperial oilless bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs

Graphite Plugged Bronze Bushing Application

The oilless bushing is widely used in successive casting machine, mineral mountain machinery, shipping, steam turbine etc.

Flange graphite bronze oilless bushing

Solid graphite plugged bronze oilless bushings

The base of the solid lubricating bearing should be determined according to the working conditions of the bearing itself. The more commonly used materials are high-strength brass, tin bronze, castings, etc. There are two main types of embedded solid lubricating materials, one is natural black lead, Artificial graphite is synthesized with MoS2, and the other is synthesized with . According to the bearing's own working conditions, through the combination of different metal substrates and embedded solid lubricants, it can ensure that the product can meet various temperatures, loads, motions and media. Special needs under the conditions, while ensuring stable and reliable work.

JDB solid graphite plugged bronze bushings

JDB solid graphite plugged bronze bushings are widely used in metallurgical continuous casters, train supports, rolling equipment, mining machinery, ships, steam turbines, and other high temperature, high load, low speed and heavy load occasions; in low load, high temperature, medium speed and other occasions, such as fireplaces Door, oven raceway, rubber machinery, light industry machinery, machine tool industry; its end face can be welded and installed with the base body, so it is suitable for metallurgical machinery, construction machinery, oil transportation machinery and other fields that cannot be refueled; in lifting machinery The supporting parts are especially adapted, such as hoist support, crane support, and excavator support.

Application characteristics of oilless bushing:

It is especially suitable for rotating motion under heavy load and low speed, rocking motion and parts that are not easy to form fluid lubrication under load; it can be used for a long time under boundary lubrication conditions without refueling maintenance, and refueling in the process can make the bearing use The service life can be more extended; the plastic layer on the surface can leave a certain margin during the forming and processing of the shaft sleeve, and can be processed by itself after being pressed into the opening to achieve a better assembly size.

At present, it is mainly used in metallurgical machinery, mining machinery, water conservancy machinery, automobile chassis, construction machinery, agricultural machinery, steel rolling machinery, etc.

1. The mixture of modified polyoxymethylene (POM) and lead is 0.3~0.5mm, which has high wear resistance, and has a low friction coefficient even in the case of instantaneous oil shortage. There are regularly arranged oil storage pits with spiral angles on the bearing surface, which must be covered with lubricating grease during assembly.

2. The copper powder layer is 0.2~0.3mm, which has good carrying capacity and wear resistance, and good thermal conductivity can transfer the heat generated during the operation of the bearing in time. The composite material can penetrate into the gap of the copper powder ball to improve the bonding strength.

3. Low carbon steel 0.4~2.2mm, improve the bearing capacity and heat transfer effect.

4. Copper/tin plating layer, copper plating layer 0.008mm, tin plating layer 0.005mm, so that the bearing has good corrosion resistance.

Flange Bronze Oilless Bushings Size Model

Oilless 500SP Flange Bronze Bushings Size Chart
