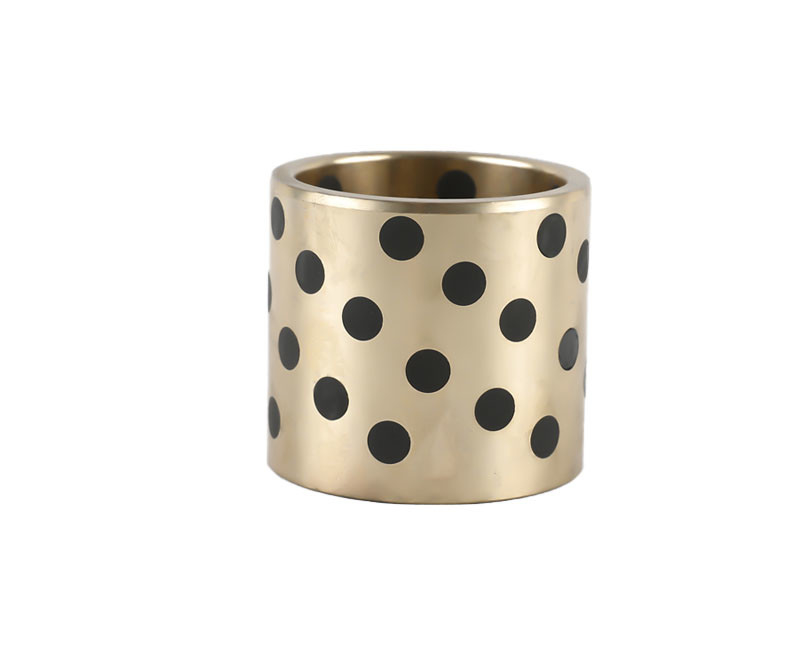

Solid Lubricant Embedded MPBZ10-12 Oil Free Bushing Brass Alloy
| Place of Origin | oilless bushing |
|---|---|
| Brand Name | viiplus |
| Certification | ISO3547 |
| Model Number | soliding bearings |
| Minimum Order Quantity | NEGOTIABLE |
| Price | Negotiable |
| Packaging Details | BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS |
| Delivery Time | FAST DELIVERY |
| Payment Terms | T/T, Western Union |
| Supply Ability | plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Marerial | Brass Bushings, Plugged Graphite And MoS2 | Standard Material | CuZn25A16Fe3Mn4 |
|---|---|---|---|
| Type | MPBZ10-12 Bushing | Feature | Straight Size Bushing |
| Bushing | Oilless Bushing | Size | Metric Size Bushing 10*14*12 |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Oilless Bearing Manufacturer | Https://www.bronzelube.com/ | Manufacturer | Bucha De Bronze Grafitado |
| High Light | Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery | Oilless Bushes | Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | Oilless Bush Supplier | Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries. |
| Highlight | Brass Alloy Oil Free Bushing,Solid Lubricant Embedded Oil Free Bushing,MPBZ10-12 Oil Free Bearing |
||
Product Description
Introducing our Solid Lubricant Embedded MPBZ10-12 oil-free bushing, crafted from high-quality brass alloy. This bushing stands out for its unique combination of durability and self-lubricating properties.
The solid lubricant embedded within the bushing ensures smooth and reliable operation without the need for regular lubrication. This feature significantly reduces maintenance requirements and extends the bushing's lifespan, making it a cost-effective solution for a wide range of industrial applications.
The brass alloy material used in the construction of this bushing provides excellent corrosion resistance and wear durability. This, combined with the bushing's precision-engineered design, ensures a perfect fit and optimal performance in even the most demanding environments.
Wh you're looking for a replacement bushing for worn-out parts or need a reliable solution for new equipment, our Solid Lubricant Embedded MPBZ10-12 oil-free bushing is the perfect choice. Contact us today to learn more or to place an order. Our team of experts is always ready to assist you with your bushing needs.
MPBZ10-12 Oil Free Bushing - Brass Alloy, Straight
Part Number Metric size bushing 10*14*12
MPBZ10-12 Oil Free Bushing - Brass Alloy, Straight, I.D. F7 (Plugged Graphite) Drawing dimensions, tolerances, and material specs for the bushing and solid lubricant. : MPBZ10-12 8X14X20--18X3 Slide Bearing with Flange-Bronze sin...
Configured Specifications
| Type | Straight | Bushing Material | Graphite Impregnated Brass |
|---|---|---|---|
| I.D. d(mm) | 10 | O.D. D(mm) | 14 |
| Overall Length L(mm) | 12 | Maximum Allowable PV Value Range(N/mm2•m/s) | 1.1～2.0 |
| Maximum Allowable PV Value(N/mm2•m/s) | 1.65 | Maximum Allowable Load(N/mm2) | 29 |
| Maximum Allowable Velocity(m/s) | 0.5 | Mounting Hole Fits | H7 |
| Operating Temperature Range(℃) | -40～150 | Operating Temperature Range (No Lubrication) Min | -40 |
High tensile brass alloy solid lubricant embedded
High strength brass brass
・Materials
[ M ] Material: High Tensile Brass Alloy
Solid Lubricant Embedded
Specifications
| Part Number | - | L |
| MPBZ10 MPBZU16 |
- - |
15 20 |
■Table 1
| D | O.D. m6 (*1) | Housing Dia. H7 (*2) |
| 7~10 | +0.015 | + 0.015 |
| +0.006 | 0 | |
| 11~18 | +0.018 | + 0.018 |
| +0.007 | 0 | |
| 19~30 | +0.021 | + 0.021 |
| +0.008 | 0 | |
| 31~50 | +0.025 | + 0.025 |
| +0.009 | 0 | |
| 51~80 | +0.030 | + 0.030 |
| +0.011 | 0 | |
| 81~120 | +0.035 | + 0.035 |
| +0.013 | 0 |
| Part Number | L | MPBZ | MPBZU | |||||||||||||||||||||
| Type | dF7 | Dm6 (*1) |
Thickness (N) | *Rotation Stopper Screw (Reference) | Dm6 (*1) |
Thickness (N) | ||||||||||||||||||
| MPBZ MPBZU *L dimensions in ( ) are available only for MPBZ. |
5 | +0.022 +0.010 |
8 | (9) | 10 | 12 | (15) | 9 | 2 | M4x8 | 7 | 1 | ||||||||||||
| 6 | 8 | (9) | 10 | 12 | 15 | 16 | (19) | (20) | 10 | 8 | ||||||||||||||
| 8 | +0.028 +0.013 |
8 | (9) | 10 | 12 | 15 | 16 | (19) | 20 | (25) | 12 | 10 | ||||||||||||
| 10 | 8 | (9) | 10 | 12 | 15 | 16 | (19) | 20 | 25 | (30) | 14 | 12 | ||||||||||||
| 12 | +0.034 +0.016 |
(8) | (9) | 10 | 12 | 15 | 16 | (19) | 20 | 25 | (30) | (35) | 18 | 3 | 15 | 1.5 | ||||||||
| 13 | (9) | 10 | 12 | 15 | 16 | (19) | 20 | 25 | (30) | (35) | 19 | 16 | ||||||||||||
| 15 | (9) | 10 | 12 | 15 | 16 | (19) | 20 | 25 | 30 | (35) | (40) | 21 | 18 | |||||||||||
| 16 | (9) | 10 | 12 | 15 | 16 | (19) | 20 | 25 | 30 | (35) | (40) | 22 | 20 | 2 | ||||||||||
| 18 | (9) | (10) | 12 | 15 | 16 | (19) | 20 | 25 | 30 | (35) | (40) | 24 | M5x8 | 22 | ||||||||||
| 20 | +0.041 +0.020 |
(9) | (10) | (12) | 15 | 16 | (19) | 20 | 25 | 30 | (35) | 40 | (50) | (60) | 28 | 4 | 24 | |||||||
| 20A | (9) | (10) | (12) | (15) | (16) | (19) | (20) | (25) | (30) | (35) | (40) | (50) | 30 | 5 | - | |||||||||
| 25 | (12) | 15 | 16 | (19) | 20 | 25 | 30 | (35) | 40 | (50) | (60) | 33 | 4 | 29 | ||||||||||
| 25A | (12) | (15) | (16) | (19) | (20) | (25) | (30) | (35) | (40) | (50) | (60) | 35 | 5 | - | ||||||||||
| 30 | (12) | 15 | 16 | (19) | 20 | 25 | 30 | (35) | 40 | (50) | (60) | (70) | 38 | 4 | M6x16 | 34 | ||||||||
| 35 | +0.050 +0.025 |
20 | 25 | 30 | (35) | 40 | (50) | (60) | (70) | 44 | 4.5 | 40 | 2.5 | |||||||||||
| 40 | 20 | 25 | 30 | (35) | 40 | 50 | (60) | (70) | (80) | 50 | 5 | 45 | ||||||||||||
| 50 | 30 | (35) | 40 | 50 | (60) | (70) | (80) | 62 | 6 | M8x16 | 55 | |||||||||||||
| 60 | +0.060 +0.030 |
(50) | (60) | (70) | (80) | 75 | 7.5 | - | - | |||||||||||||||
| 80 | (60) | (70) | (80) | 96 | 8 | - | - | |||||||||||||||||
| 100 | +0.071 +0.036 |
(80) | (100) | 120 | 10 | - | - | |||||||||||||||||
Basic Information
| Type | Straight | Bushing Material | Graphite Impregnated Brass | Maximum Allowable PV Value Range(N/mm2•m/s) | 1.1～2.0 |
|---|---|---|---|---|---|
| Maximum Allowable PV Value(N/mm2•m/s) | 1.65 | Maximum Allowable Load(N/mm2) | 29 | Maximum Allowable Velocity(m/s) | 0.5 |
| Mounting Hole Fits | H7 |
Please check the type/dimensions/specifications of the part MPBZ10-12 in the Oil Free Bushing - Brass Alloy, Straight, I.D. F7 (China oilless bushing) series.
A variety of alloys consisting of more than two elements are called special brasses. Such as aluminum, lead, tin, manganese, nickel, iron, silicon composition of copper alloy, high force brass is one of them. High strength brass has strong wear resistance, high strength brass, hardness, strong chemical corrosion resistance. There are also machining mechanical properties that are very superior. High strength brass is often used to manufacture sheet, bar, bar, pipe, casting parts, etc. Chemical composition
The chemical formula of high strength brass is ZCuZn25Ai6Fe3Mn3, which contains about 65% copper and 25% zinc. Aluminum improves the strength, hardness, and corrosion resistance of brass. There are three kinds of brass at room temperature: brass with zinc content below 35%, and the microstructure at room temperature is composed of single-phase A solid solution, known as A brass.
■ Application field
brass application is very extensive, the casting made of bearing and bushing, domestic now mainly made of high strength brass for matrix solid lubrication oil-free bearings (hereinafter referred to as solid embellish bearing), is to use brass Gao Ligao strength as a matrix, and embedded radial arranged orderly cylindrical polymer filler for friction materials (as for graphite, 2 - molybdenum, ethylene, oil, and other lubricants), its superiority lies in its made of copper alloy and non-metallic antifriction material has the respective complementary advantages, not only has the high bearing capacity, and breakthrough - the line on the oil film bearing grease lubrication, achieve no oil lubrication, The embedded solid lubrication is easy to form lubrication film, which plays a great role in improving the friction and wear performance, and is stable, reliable and cost-effective. Compared with the composite oil-free bearing, it has the advantages of good machinability, high precision, strong bearing capacity, and good wear resistance. The self-lubricating guide bush guide can be used in many fields such as engineering machinery joints, such as excavator, mining scraper, the rotating drill, concrete pump truck, rock drill machine, hoist, port cranes, etc., and metallurgical machinery casting machinery, water conservancy machinery, transportation machinery, rolling mill, bottle blowing machine blown film machine, injection molding machine cross-clamping differential, tires mechanism, trailer balance beam, vacuum switch, etc.
Solid Bronze Bushings, Plugged graphite brass bushes.
Application fields:
1. Special bearings for construction machinery
2. Special bearings for injection molding machinery
3. Special bearings for molds
4. Automobile: air conditioning compressor, fuel pump, gearbox, shock absorber, starting motor, etc
5. Hydraulic components: gear pump, piston pump, vane pump, compressor, oil cylinder, etc
6. Logistics and port machinery: outdoor logistics machinery such as moving truck, stacker, lifting platform truck, and port machinery
7. Stamping, forging, and pressing machinery
8. Agricultural machinery: combine harvester, seeder, bale baler, grinder, tractor and another cylinder, suspension system, joint parts and other parts that can not be refueled or difficult to form oil film
9. Office equipment: facsimile machine, copier, shredder, scanner, printer and other joint and reciprocating moving parts
10. Food machinery
11. Energy facilities: environmentally friendly new energy such as wind power generation, solar power generation, water conservancy power generation and other convenient use
12. Fitness and entertainment equipment
Bronze Bearings Alloy Material
| Model/corresponding brand | JDB-1 | JDB-2 | JDB-3 | JDB-4 | JDB-5 | ||
|---|---|---|---|---|---|---|---|
| JDB-2 | JDB-22 | JDB-23 | |||||
| GB1776-87 | ZCuZn25 Al6Fe3Mn3 |
ZCuSn6Zn6Pb3 | ZCuAl10Fe3 | ZCuSu10P1 | steel+ ZCuSn6Zn6Pb3 | HT250 | GCr15 |
| ISO1338 | GCuZn25 Al6Fe3Mn3 |
GCuSn6Zn6Pb3 | GCuAl10Fe3 | - | steel+ CuSn6Zn6Pb3 Fe3Ni5 |
- | B1 |
| DIN | G-CuZn25 Al5 |
GB-CuSn5Zn5Pb5 | GB-CuAl10Ni | GB-CuSn10 | steel+ CuSn6Zn6Pb3Ni | - | 100Cr6 |
| JIS | HBsC4 | BC6 | AIBC3 | BC3 | BC6 | FC250 | SUJ2 |
| ASTM/UNS | C86300 | C83600 | C95500 | C90500 | C83600 | Class40 | 52100 |
| (BS) | HTB2 | LG2 | AB1 | PB4 | LG2 | - | - |
Bronze Bearings Material composition and properties
| chemical composition | CuZn25Al5Mn3Fe3 | CuZn25Al5Mn3Fe3 | CuAl9Fe4Ni4Mn2 | CuSn5Pb5Zn5 | CuSn12 | HT250 | Gcr15 |
| density(g/cm³) | 8.0 | 8.0 | 8.5 | 8.9 | 9.05 | 7.3 | 7.8 |
| hardness (HB) | ＞210 | ＞250 | ＞150 | ＞70 | ＞80 | ＞190 | HRC＞58 |
| Tensile strength (N/mm²) | ＞750 | ＞800 | ＞800 | ＞200 | ＞260 | ＞250 | ＞1500 |
| elongation (%) | ＞12 | ＞8 | ＞15 | ＞10 | ＞8 | ＞5 | ＞15 |
| Coefficient of linear expansion | 1.9 | 1.9 | 1.9 | 1.8 | 1.8 | 1.0 | 1.1 |
| The use of temperature(℃) | -40~+300 | -40~+150 | -40~+400 | -40~+400 | -40~+400 | -40~+400 | -40~+400 |
| Maximum dynamic load(N/mm²) | 100 | 120 | 150 | 60 | 70 | 80 | 200 |
| Maximum linear velocity(m/min) | 15 | 15 | 20 | 10 | 10 | 8 | 5 |
| Maximum PV value lubrication (N/mm²*m/min) |
200 | 200 | 60 | 60 | 80 | 40 | 150 |
| Amount of permanent compression deformation (300N/mm²) |
＜0.01 | ＜0.005 | ＜0.04 | ＜0.05 | ＜0.05 | ＜0.015 | ＜0.002 |
