Brand Name: | CHINA CUSTOM BUSHING SELF-LUBRICATING BEARINGS |
Model Number: | Dry Bush, Self Lubricating Steel Bushings |
MOQ: | negotiable |
Price: | 1.00usd-100.00usd,negotiable |
Payment Terms: | T/T IN ADVANCE, Western Union |
Supply Ability: | Dry Steel Bushing Manufacturers Self Lubricating Plain Bearings Suppliers |
When referring to cylindrical bushes and flange bushes, part numbers are used to uniquely identify each type, size, and specification of these components. These part numbers ensure that the correct bushings are ordered and installed for a specific application.
For cylindrical bushes, the part number typically reflects the outer diameter (OD), inner diameter (ID), length, and any additional features or coatings. For example, a cylindrical bush with an OD of 50mm, ID of 40mm, and a length of 100mm might have a part number like "CB-50x40x100".
Similarly, for flange bushes, the part number incorporates the dimensions of the cylindrical portion as well as the flange dimensions and features. A flange bush with the same OD, ID, and length as the cylindrical bush mentioned above, but with a flange diameter of 60mm and thickness of 5mm, might have a part number like "FB-50x40x100-F60x5".
It's important to note that these are just examples, and actual part numbers may vary depending on the manufacturer and specifications of the bushings. Always refer to the manufacturer's catalog or website for accurate part numbers and specifications.
By using the correct part numbers, you can ensure that you receive the exact bushings you need for your application, avoiding costly errors and downtime.
composite bushings consisting of a carbon steel backing, an intermediate layer of sintered bronze, and a -based sliding lining. Available in inch and metric sizes.
Bushings
d |
16 mm
|
|
---|---|---|
D |
18 mm
|
|
B |
20 mm
|
|
M |
3 mm
|
|
c1 |
min. 0.1 mm
|
|
c1 |
max. 0.6 mm
|
|
c2 |
min. 0.2 mm
|
|
c2 |
max. 1 mm
|
|
α |
±8 20 °
|
High-quality Flanged slide bushing , from bronzegleitlager.com, premium brand, Global leader in high performance bearing solutions.
PCM B and PCM F. bushings
/ Fibre + Bronze + Steel Backing + Copper Plating / Tin-Plating
Features
|
Structures
1. /Fibre mixture thickness 0.01~0.03mm, provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film. |
Base Material Steel Backed Sleeve Bushing Price and delivery time on request
Base Material: | Steel backed bushes |
Self-lubricating: | Yes |
Lubricant: | lubrication layer |
Surface Pressure P (<100.000 load cases): | 29 N/mm² |
Surface Pressure P (>10 mln. load cases): | 15 N/mm² |
Surface Pressure P (rotating, oscillating, gliding): | 59 N/mm² |
Surface Pressure P (very slow movement): | 147 N/mm² |
Sliding speed v: | 15 m/min |
Operating temperature: | -200°C / +280°C |

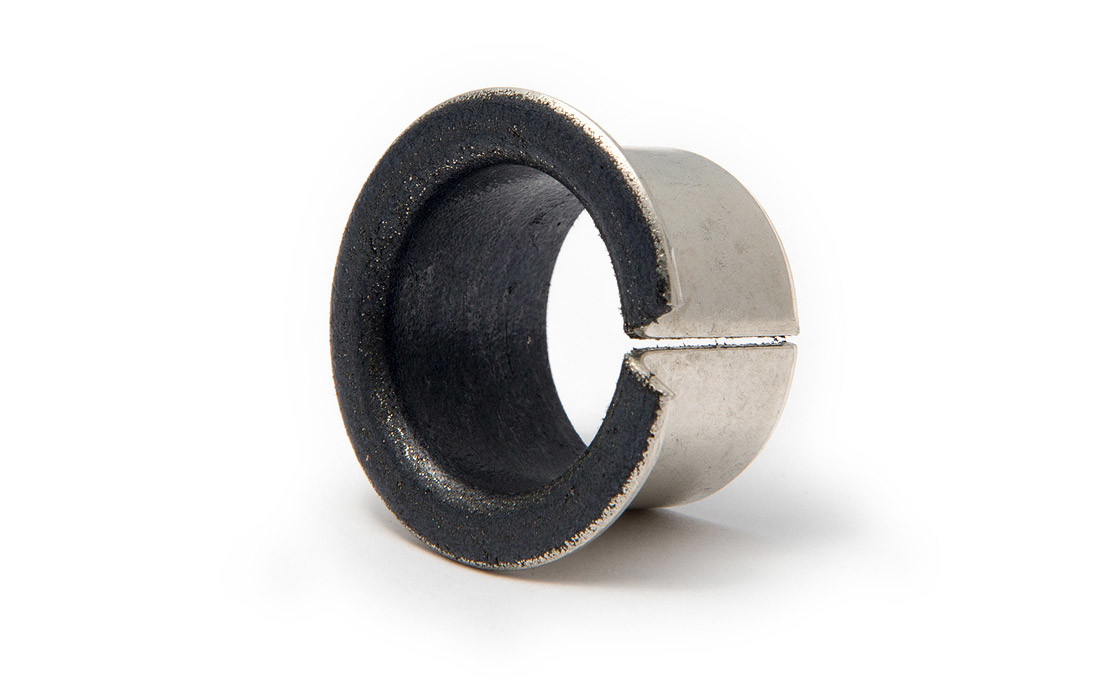

Flanged dry bush
Base Material: | Steel backed bushes |
Self-lubricating: | Yes |
Lubricant: | lubrication layer |
Surface Pressure P (<100.000 load cases): | 29 N/mm² |
Surface Pressure P (>10 mln. load cases): | 15 N/mm² |
Surface Pressure P (rotating, oscillating, gliding): | 59 N/mm² |
Surface Pressure P (very slow movement): | 147 N/mm² |
Sliding speed v: | 15 m/min |
Operating temperature: | -200°C / +280°C |
Please advise your flange bushing size, Get a free quote.
