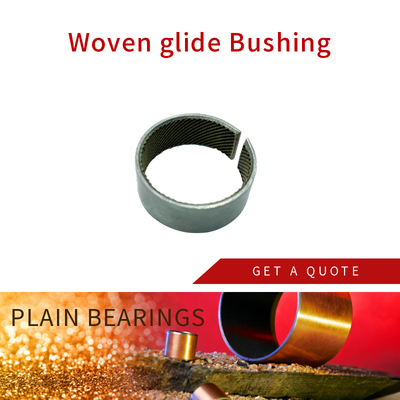

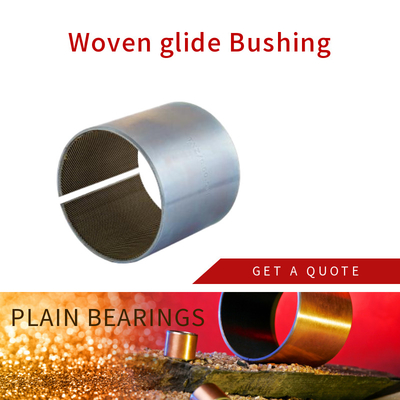

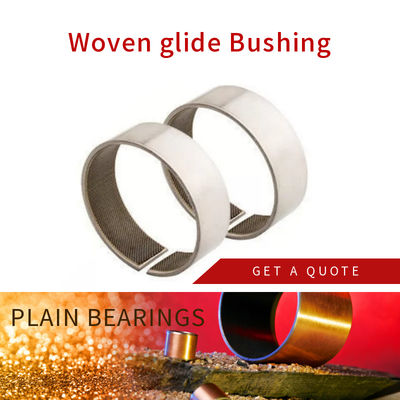

Woven Glide Bushing For Hydro Turbine

Place of Origin Plain Bearing Material
Brand Name China Plain-Bearing
Certification DIN 1494/ISO 3547
Model Number Wrapped composite sliding bearing
Minimum Order Quantity 500 Piece/Pieces
Price flat strip material inch sizes Manufacturers,Factory Price
Packaging Details Shipment Bushing Packing: Cartons per Wooden Case or Pallet.
Delivery Time 15~20 Days
Payment Terms TT IN ADVANCE
Supply Ability 1000000 Piece/Pieces per Month Plain-Bearing Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Stainless Steel 316 With PTFE FABRIC Type Bushes (cylindrical)
Port Shanghai & NingBo Main Function Self Lubricating Bearings
PACKAGE Carton With Pallet Or As Your Requirement CATALOGUE Available
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

Woven Glide Bushing

,

Hydro Turbine Glide Bushing

Leave a Message
Product Description

Woven glide bushings for hydro turbines are specialized components designed to provide smooth and reliable operation in the demanding environment of hydroelectric power generation. These bushings are typically made from high-performance materials that can withstand the high pressures, velocities, and potential for water-borne contaminants present in hydro turbine systems.

The woven construction of these bushings offers several advantages. It allows for greater flexibility and conformity to irregular surfaces, providing a more uniform distribution of load and wear. Additionally, the woven design can also help trap and distribute lubricating fluids, further enhancing the bushings' wear resistance and durability.

In hydro turbine applications, woven glide bushings are often used in bearings, seals, and other critical components. They play a vital role in ensuring the efficient and reliable operation of the turbine, which in turn contributes to the overall performance and longevity of the hydroelectric power plant.

When selecting woven glide bushings for hydro turbines, it is important to consider factors such as the specific operating conditions of the turbine, the materials of construction, and the required durability and performance. Consulting with a trusted supplier or manufacturer can help ensure that you select the optimal bushings for your specific application.

Proper installation and maintenance of woven glide bushings are also crucial for their long-term performance. Ensuring that the bushings are properly aligned, pressed into their housings without excessive force, and lubricated according to the manufacturer's recommendations can help maximize their service life and prevent premature failure.

In summary, woven glide bushings for hydro turbines are essential components that play a key role in ensuring the reliable and efficient operation of hydroelectric power plants. Selecting the appropriate bushings, installing them correctly, and maintaining them properly are critical to achieving optimal performance and longevity.



Hydro - Bearings for Dry Conditiions. Specialist in developing high-performance Woven Glide Bushing, Stainless steel /316+bronze +PTFE/ fabric Woven thrust washer & sliding guide bearings, engineering ceramics, high-temperature-resistant bronze bushing & bearings materials, metal backed bushings & passive fire protection solutions.



The ability of Stainless steel /316+bronze +PTFE/ fabric Woven bearings to work in both dry and wet conditions without grease lubrication means they are used in a wide variety of applications within the Hydropower industry.



Our ange of wearing and bearing materials include composites bushing including Stainless steel /316+bronze +PTFE/ fabric Woven and metal & bimetal bushing bearing



Large Inventory of Bronze Bushings, Bronze Bearing and Self-lubricating Wear Plates. Gleitlager. Bushing Sleeve bearing. Bushes Catalogs and Brochures Available.



bushing catalog.pdf



Woven Glide Bushing main features are wear resistance and corrosion resistance, high load bearing than DU bushing, bushes.



Application: hydro turbine, hydraulic pump, chemical industry,Mechanical Pipe Joining & Fire Protection Solutions,producer of mechanical pipe joining, flow control & fire protection solutions for the most complex piping applications.



It is mainly used in the high-temperature production lines, construction machinery, automobile chassis parts, ball valve, butterfly valve, water pump, chemical industry and high-speed train and other heavy load and low speed but can not refuel occasions.


Plain Bearings Woven Glide Bushing (Bushes) Material:



Stainless steel /316+bronze +PTFE/ fabric Woven

The material is made of all kinds of high-quality metals, and the surface is covered with PTFE and other additives, which are low friction and friction-resistant fabric materials. This material structure has a higher carrying capacity, high-temperature resistance, and longer service life than the general three-layer composite material. The base material is low carbon steel, stainless steel 316, etc. It is mainly used in the high-temperature production line, construction machinery, automobile chassis parts, ball valve, butterfly valve, water pump, chemical industry, and high-speed train and other heavy load and low speed but can not refuel occasions.



Plain Bearings Woven Glide Bushing (Bushes) Technical data



Max.Load Static 350N/mm·m Temp: -50℃-250℃
Dynamic 180N/mm·m Friction coefficient 0.03-0.20
Max.Speed Dry 0.5m/s Thermal conductivity 42W(m·k)
Lubrication >1m/s
Max.PV(Dry) Short-term 3.6N/mm·m·m/s coefficient of thermal expansion 11*10k





Feature:



  1. Low friction coefficient

  2. Use in both dry and wet conditions

  3. High compressive strength

  4. Low water swell

  5. Self-lubricating



Low Friction Woven Fabric Oilless Bearing Automotive Slide Bushing Composite Bearing Bush

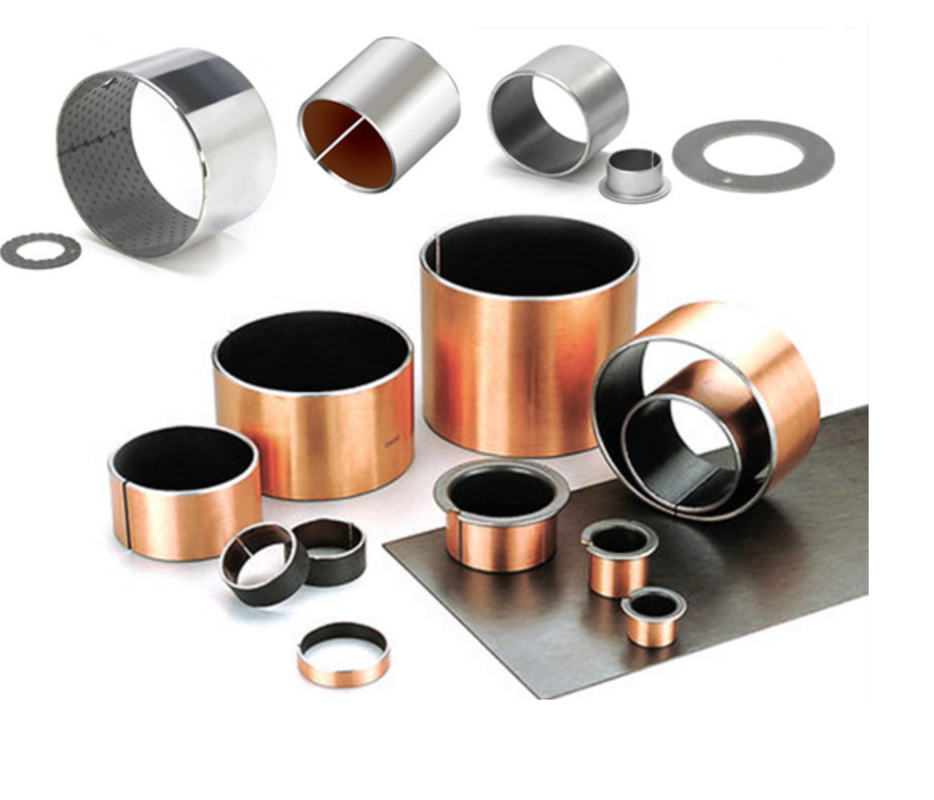

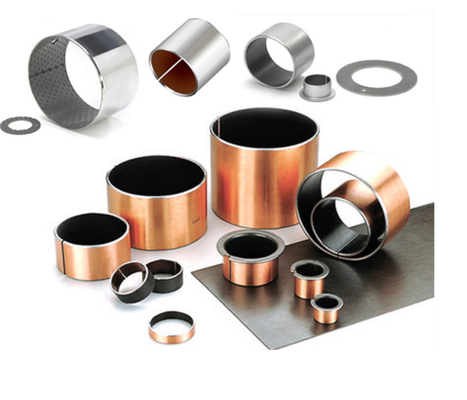

Bushing Material Types


Material choice for plain bearings is far greater than for ball and roller bearings owing to the need to find material that can support self-lubricating bearings parts, provide bases that are softer than shaft journals, provide plain bearing composite material, etc. Load and speeds play a big role in determining materials, as do environmental conditions. Dry-running plastic bushings are favored in pharmaceutical and food packaging where oil and metal are considered potentially harmful if they can contaminate the products. Stainless Steel Backed Lubricated Bushing can sometimes be used in marine applications where ptfe fabric layer serves as a lubricant . Stainless Steel Bushings Kevlar Liner Material Strips TEX PTFE Fiberglass Lined is the traditional material for hydrodynamic bearings used in turbomachines. Materials for sleeve bearings are often composed of alloys of steel backed bronze bushing, which satisfy the various requirements of lubrication and resiliency.


Stainless steel /316+bronze +PTFE/ fabric Woven



SST Metal with Kevlar Liner Material Strips SHEET TEX Bearing | PTFE Fiberglass lined Stainless steel Fiber Bush TEX Bushing,Customized Bushing , Fiber Bush MADE IN CHINA


Stainless steel fabric bushings,this kind of bushings widely used in valve,oil, chemistry, metallurgy.It has flexible bearings, no maintenance, low installation accuracy, good shock absorption and impact resistance. Low noise characteristics, and due to the high strength of the fiber material and the support of the steel back, it has the unique advantage of high load capacity. In general sports, it is advisable to maintain proper clearance between the inner hole and the shaft. The size of the gap can be referred to the DU type product. The outer diameter of the bearing and the seat hole are generally interference fit. The interference can also be referred to the DU type product.
Metal matrix fabric composite sheet has more flexibility than general rigid bearings due to the 0.25mm thickness of fiber cloth lubrication layer. In some low-speed rocking motions, the bearing inner hole and the pin shaft can be used without gaps or even interference. Cooperate, this can better exert its shock absorption and low noise performance; such bearings are mainly used in low-speed, heavy-duty oil and grease lubrication, and can also be used in oil-free lubrication.


Plain Bearing (Journal Bearing)


TEX bearing use the PTFE fibres fabric and aramid fiber overlay on metal backings,the fabric have very high load capacity and high accuracygood run with low speed and heavy friction superior performance

Polytetrafluoroethylene fiber PTFE/Kevlar


 VIIPLUS TEX ptfe fiber metal base self-lubricating bearing is a self-lubricating composite bearing material made of high-quality low-carbon steel plate, bronze plate or stainless steel plate as the matrix, with the woven fabric of ptfe fiber as the friction surface layer.
The two are rolled into sliding bearing by means of a solid bond of structural adhesive.In order to guarantee the bonding strength between ptfe fiber and metal sheet, the woven fabric is made of special ptfe filament and aramid filament.
The bearing has the characteristics of high bearing capacity, good wear resistance, suitable temperature, wide range of medium, simple structure, compact size and good stability.

Polytetrafluoroethylene (ptfe) is a kind of self-lubricating material with excellent performance.But the wear resistance is poor because of the low strength.At present, most of the fibers or other fillers are used to improve the wear resistance, the effect is very limited.And polytetrafluoroethylene fiber has tensile strength 15 times higher than pure polytetrafluoroethylene resin, to make up for the lack of this aspect, wear resistance is greatly improved, at the same time, the fiber also avoids the occurrence of cold flow phenomenon of polytetrafluoroethylene resin.
Polytetrafluoroethylene fiber metal base self-lubricating bearings are divided into steel base, copper base and stainless steel base three.


Stainless Steel 316 with PTFE FABRIC
Maximum load pressure: 180Mpa
Friction factor: 0.03~0.20
Operating temperature range: -90 ° C ~ 180 ° C
